Upright Freezer

Model # B18IF800SP/01 Official Bosch upright freezer

Here are the diagrams and repair parts for Official Bosch B18IF800SP-01 upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

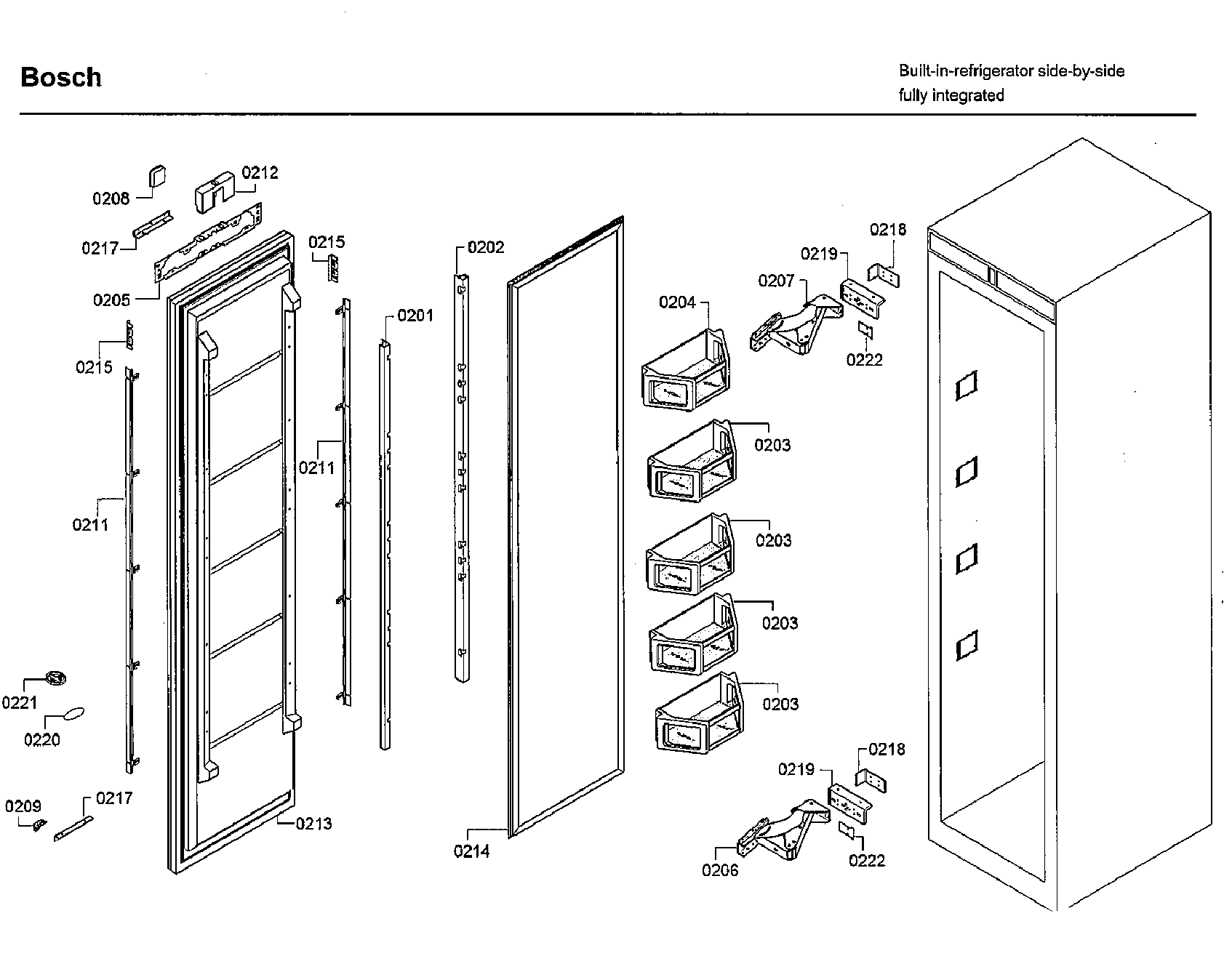

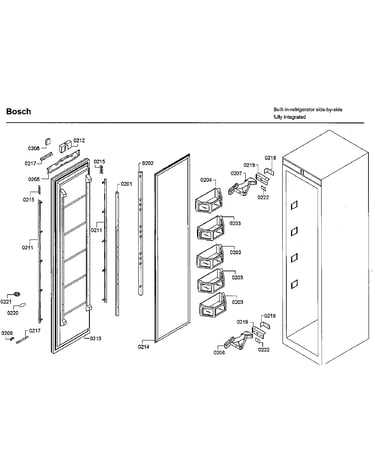

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 181 parts  |
Freezer Water Filter 00740560
#411

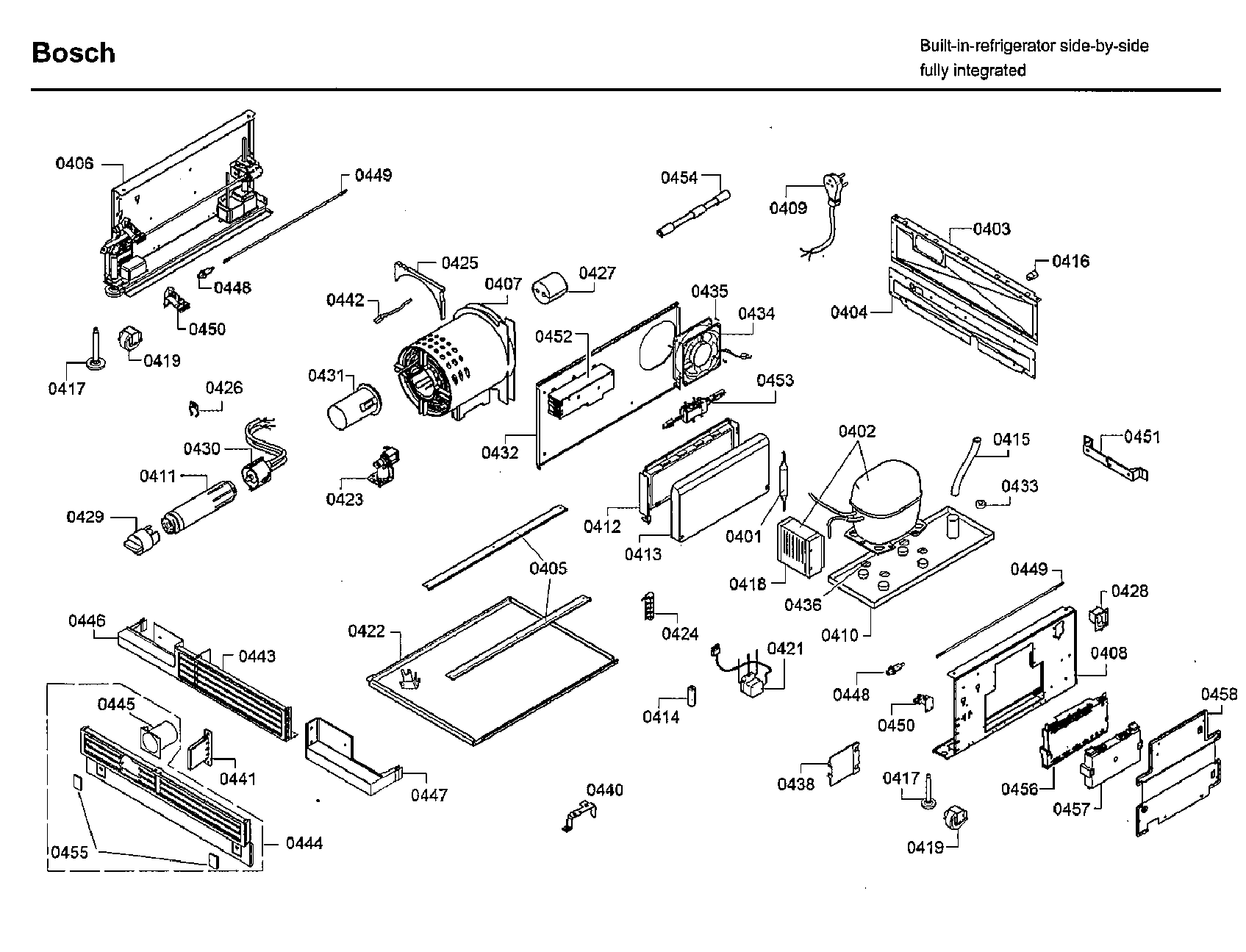

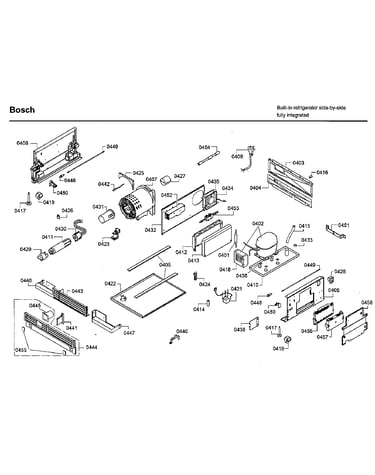

Compressor diagram

Freezer water filter

Part #00740560

Replaced by #00644845

?
Manufacturer substitution
This part replaces 00740560. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$61.39
In Stock
Refrigerator Defrost Sensor 00617203
#130

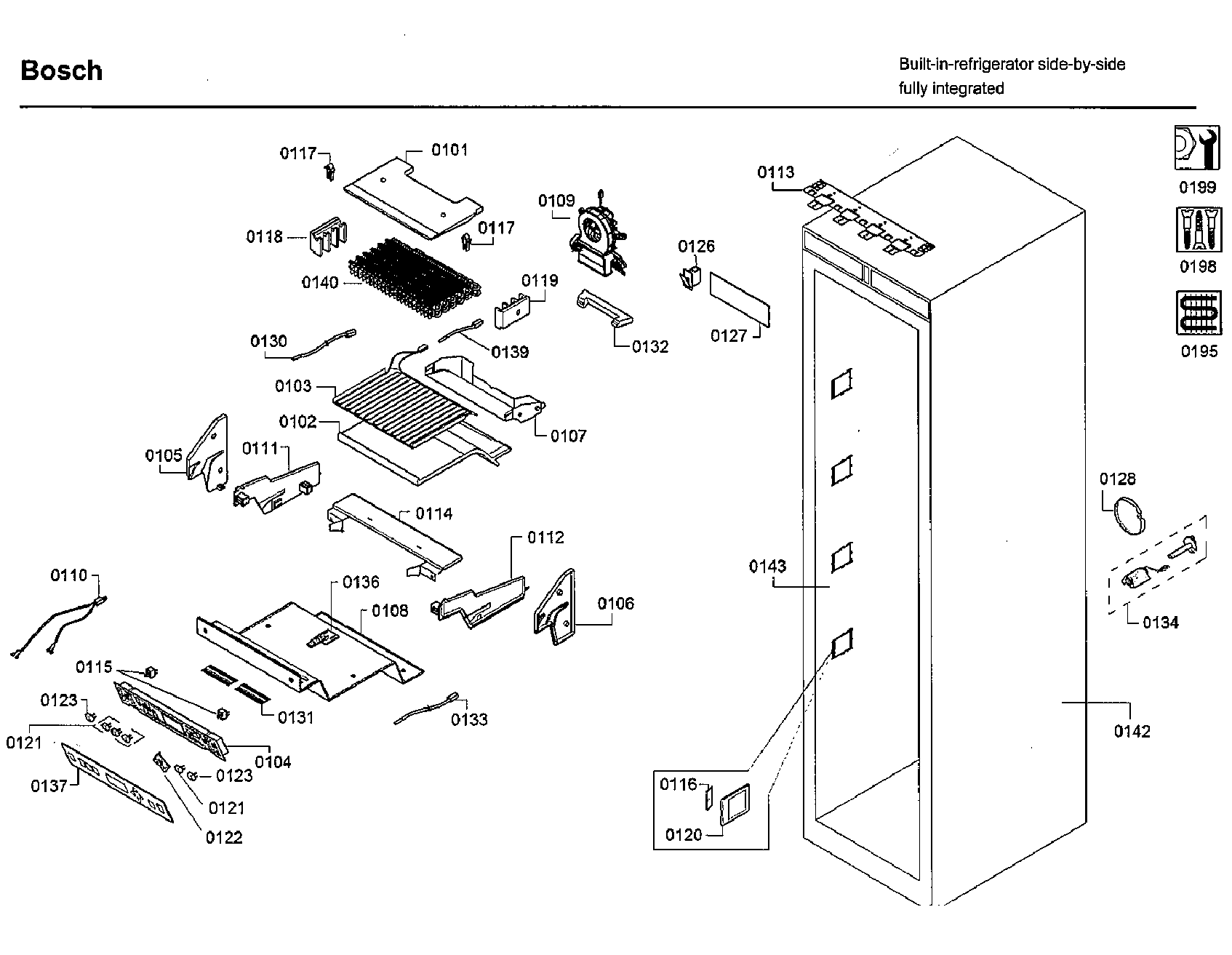

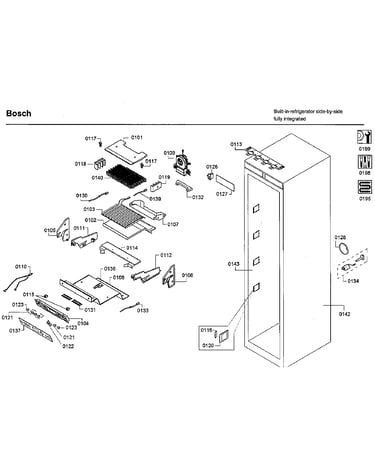

Freezer diagram

Refrigerator defrost sensor

Part #00617203

This item is not returnable
$23.59 |
20% OFF Phone Price : $29.59
In Stock
Thermador Freezer Water Filter Cap 00604684
#429

Compressor diagram

Thermador freezer water filter cap

Part #00604684

$11.49 |
15% OFF Phone Price : $13.49
In Stock
Cve Module 00499853
#413

Compressor diagram

Cve module

Part #00499853

$50.89 |
11% OFF Phone Price : $56.89
In Stock
Thermador Housing 00605602
#445

Compressor diagram

Thermador housing

Part #00605602

This item is not returnable
$6.06
In Stock
Thermador Foot 00630777
#417

Compressor diagram

Thermador foot

Part #00630777

$19.37
In Stock
Insulating 00616358
#128A

Freezer diagram

Insulating

Part #00616358

This item is not returnable
$6.77
In Stock
Cover 00641518
#308

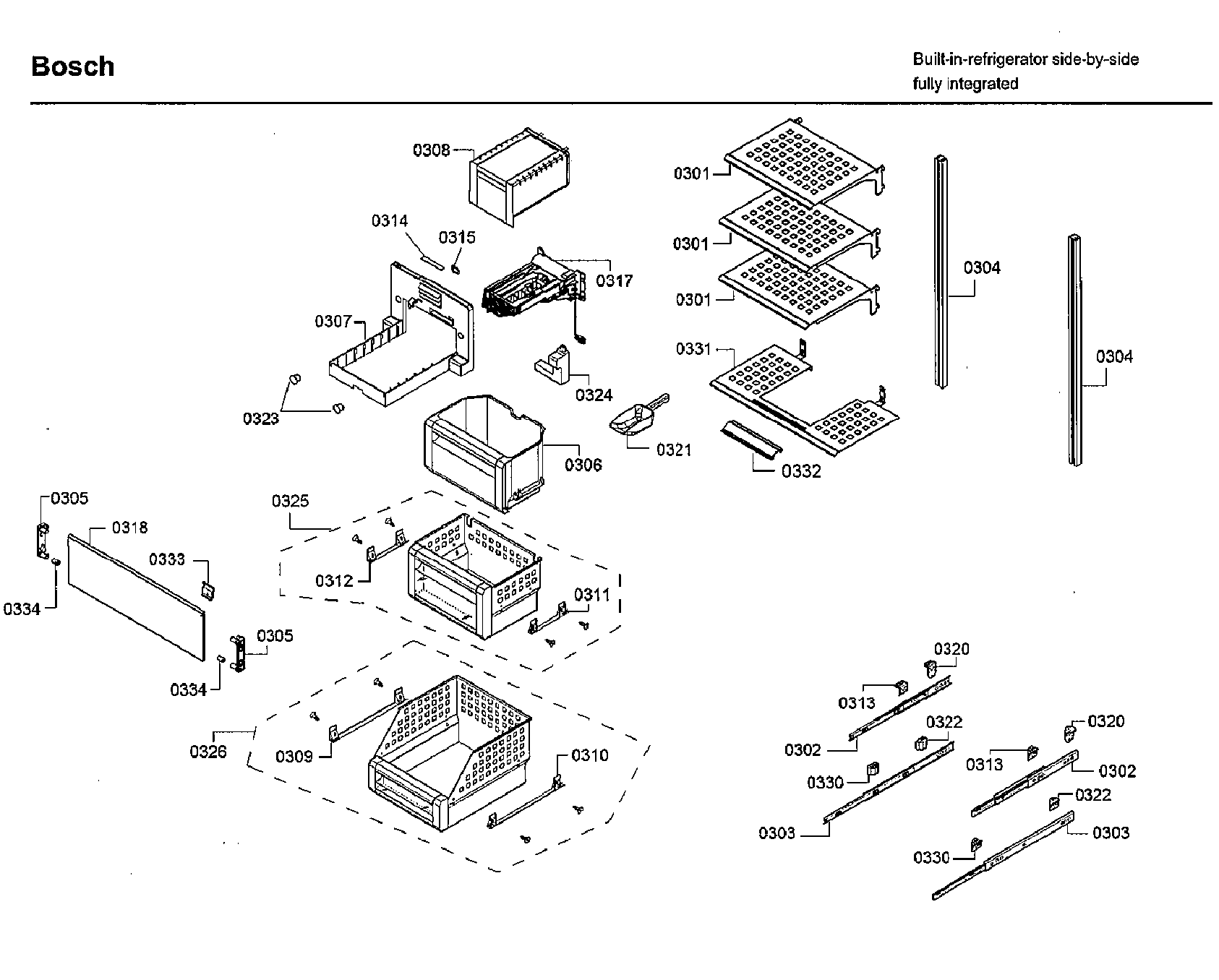

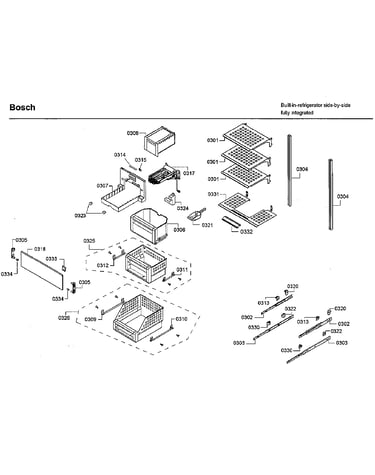

Shelfs diagram

Cover

Part #00641518

$102.44
In Stock
Pin 00605775
#609

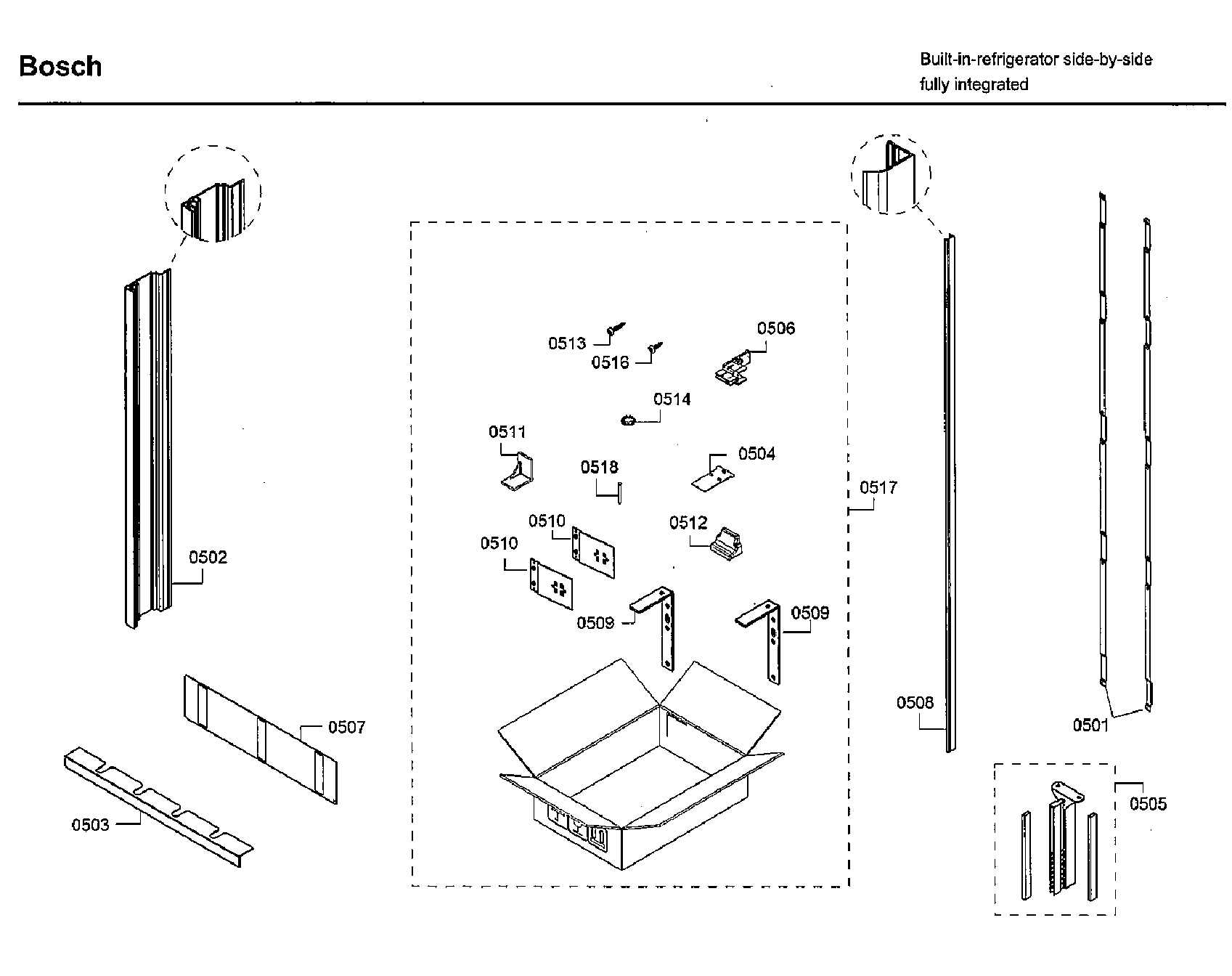

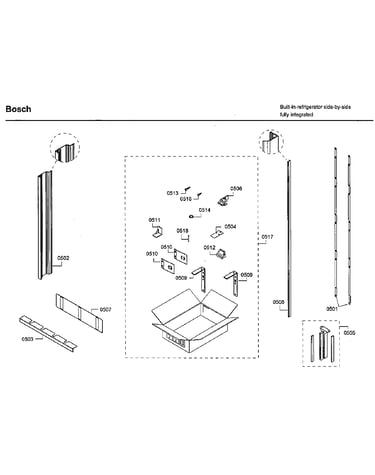

Mounting 2 diagram

Pin

Part #00605775

This item is not returnable
$5.80
In Stock
Fixture 00605771
#605

Mounting 2 diagram

Fixture

Part #00605771

This item is not returnable
$5.83
In Stock
