Model # AZ85E18EACM2 Official GE zoneline air conditioner

Here are the diagrams and repair parts for Official GE AZ85E18EACM2 zoneline air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

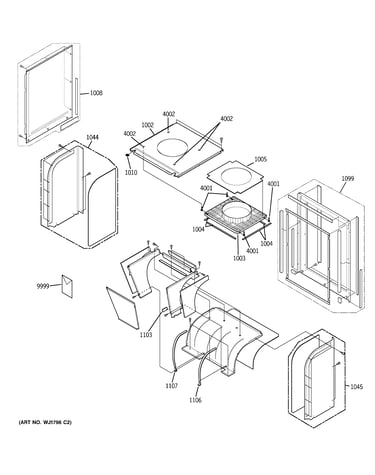

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
Room Air Conditioner Blower Wheel WJ73X10059
#1051

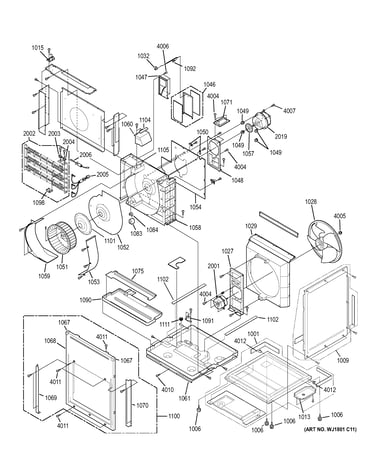

Motor, heater & base pan parts diagram

Room air conditioner blower wheel

Part #WJ73X10059

$106.79 |
10% OFF Phone Price : $118.79
In Stock
Power Switch WP24X10001
#2024

Control parts diagram

Power switch

Part #WP24X10001

$29.18
In Stock
Lead Tube WP56X10056
#5005

Capillary tubes diagram

Lead tube

Part #WP56X10056

This item is not returnable
$7.17
In Stock
Capillary Tube WP56X10055
#5001

Capillary tubes diagram

Capillary tube

Part #WP56X10055

This item is not returnable
$7.17
In Stock
Thermistor WP27X10073
#2023

Unit parts diagram

Thermistor

Part #WP27X10073

$17.03
In Stock
Cord Holder WP01X10009
#1073

Control parts diagram

Cord holder

Part #WP01X10009

This item is not returnable
$4.35
In Stock
Lead Wire WP01X10045
#2014

Control parts diagram

Lead wire

Part #WP01X10045

$88.11
In Stock
Capillary Tube WP56X10060
#5002

Capillary tubes diagram

Capillary tube

Part #WP56X10060

$70.43
In Stock
Damper Assembly WP14X10040
#1046

Motor, heater & base pan parts diagram

Damper assembly

Part #WP14X10040

$62.87
In Stock
Room Air Conditioner Compressor WP98X10045
#3005

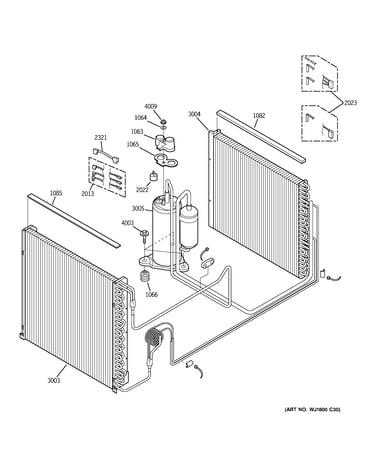

Unit parts diagram

Room air conditioner compressor

Part #WP98X10045

$880.69 |
$12.00 OFF Phone Price : $892.69
In Stock
