Hotpoint
Chest Freezer

Model # FH27CLC Official Hotpoint refrigerator

Here are the diagrams and repair parts for Official Hotpoint FH27CLC refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

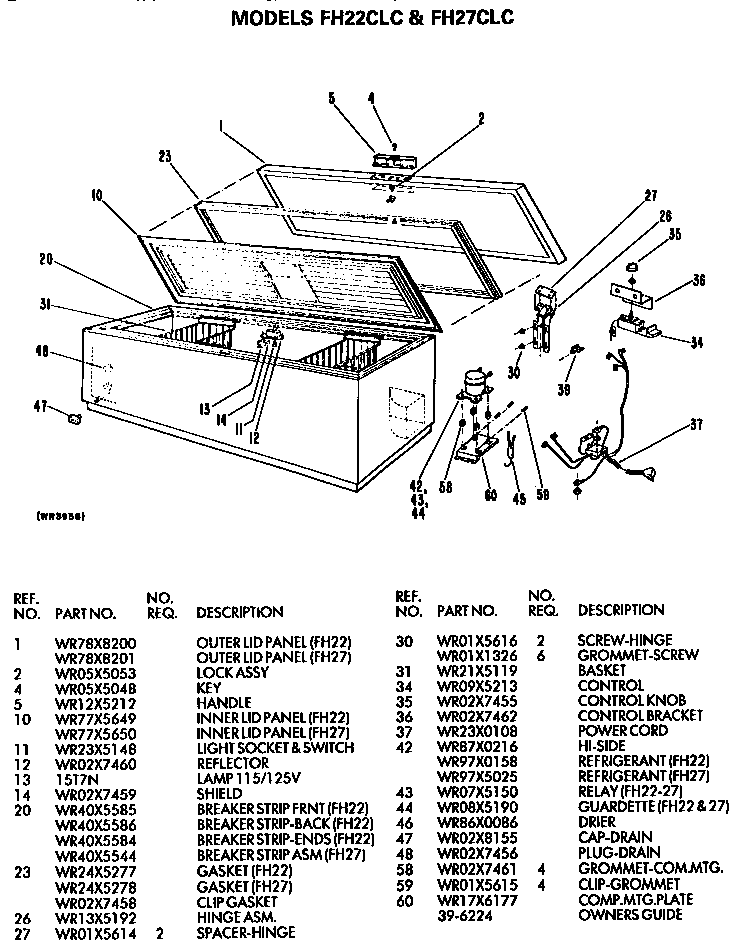

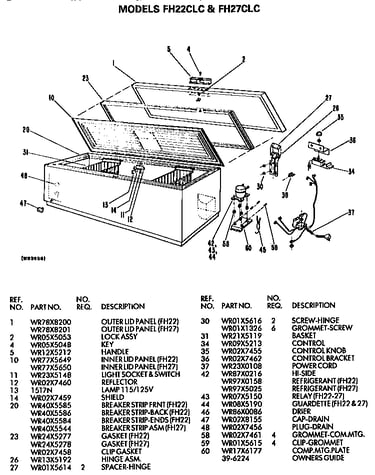

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Dryer Assembly WR86X86

#740

All parts diagram

Dryer assembly

Part #WR86X86

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X86. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Power Cord WR23X108

#626

All parts diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Guard WR8X5190

#44

All parts diagram

Guard

Part #WR8X5190

The manufacturer no longer makes this part, and there's no substitute part

Bkr Stp Rear WR40X5586

#20

All parts diagram

Bkr stp rear

Part #WR40X5586

The manufacturer no longer makes this part, and there's no substitute part

Control WR9X5213

#34

All parts diagram

Control

Part #WR9X5213

The manufacturer no longer makes this part, and there's no substitute part

Lid Gasket WR24X5277

#23

All parts diagram

Lid gasket

Part #WR24X5277

The manufacturer no longer makes this part, and there's no substitute part

Hi Side WR87X216

#42

All parts diagram

Hi side

Part #WR87X216

The manufacturer no longer makes this part, and there's no substitute part

Grommet WR1X1326

#292

All parts diagram

Grommet

Part #WR1X1326

The manufacturer no longer makes this part, and there's no substitute part

Clip Gasket WR2X7458

#23

All parts diagram

Clip gasket

Part #WR2X7458

The manufacturer no longer makes this part, and there's no substitute part

Bkr Stp Frnt WR40X5585

#20

All parts diagram

Bkr stp frnt

Part #WR40X5585

The manufacturer no longer makes this part, and there's no substitute part
