GE
Chest Freezer

Model # CB20DCC Official GE freezer

Here are the diagrams and repair parts for Official GE CB20DCC freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Hose Adapter WR1X1538
#30B

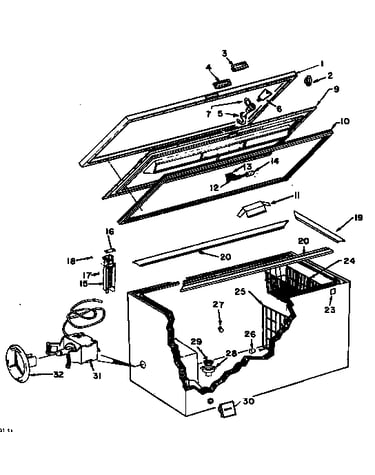

Freezer assembly diagram

Hose adapter

Part #WR1X1538

$27.99 |
18% OFF Phone Price : $33.99
In Stock
Freezer Liner Button Plug WR2X3139
#27B

Freezer assembly diagram

Freezer liner button plug

Part #WR2X3139

This item is not returnable
$5.00
In Stock
Refrigerator Use And Care Guide 49-6316
#58B

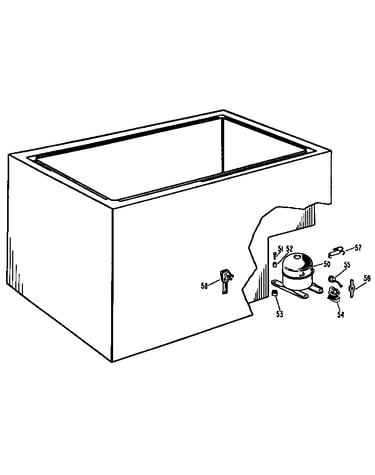

Unit diagram

Refrigerator use and care guide

Part #49-6316

Replaced by #49-6316-2

?
Manufacturer substitution
This part replaces 49-6316. Substitute parts can look different from the original.
$8.49
In Stock
Power Cord WR23X108
#58A

Unit diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Gasket Handle WR14X5122
#4

Freezer assembly diagram

Gasket handle

Part #WR14X5122

The manufacturer no longer makes this part, and there's no substitute part

59211 WR1X5060
#51

Unit diagram

59211

Part #WR1X5060

The manufacturer no longer makes this part, and there's no substitute part

Relay WR7X5066
#54

Unit diagram

Relay

Part #WR7X5066

The manufacturer no longer makes this part, and there's no substitute part

Lock WR5X5033
#5

Freezer assembly diagram

Lock

Part #WR5X5033

The manufacturer no longer makes this part, and there's no substitute part

Key WR5X65
#6

Freezer assembly diagram

Key

Part #WR5X65

The manufacturer no longer makes this part, and there's no substitute part

Shim Hinge WR2X4646
#16

Freezer assembly diagram

Shim hinge

Part #WR2X4646

The manufacturer no longer makes this part, and there's no substitute part
