Model # 63494 Official Craftsman motor

Here are the diagrams and repair parts for Official Craftsman 63494 motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Capacitor STD376315
#22

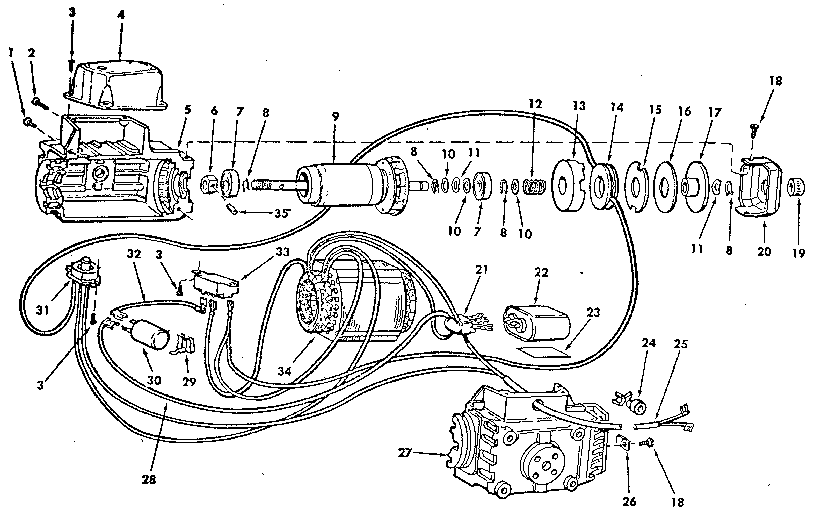

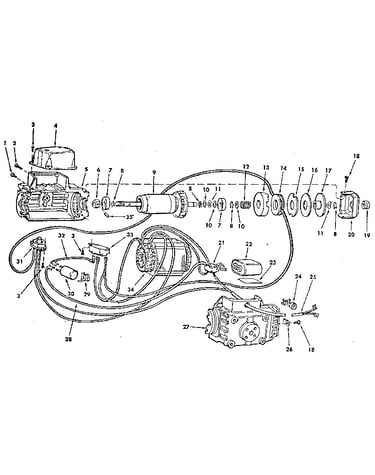

Motor asm. 63494 diagram

Capacitor

Part #STD376315

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Motor Brake Shoe Lining 63137
#16

Motor asm. 63494 diagram

Radial arm saw motor brake shoe lining

Part #63137

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Power Tool Washer 30767
#10

Motor asm. 63494 diagram

Kenmore power tool washer

Part #30767

The manufacturer no longer makes this part, and there's no substitute part

Screw 448039
#2

Motor asm. 63494 diagram

Screw

Part #448039

The manufacturer no longer makes this part, and there's no substitute part

Spring Washer 37886
#11

Motor asm. 63494 diagram

Spring washer

Part #37886

The manufacturer no longer makes this part, and there's no substitute part

Cover 63309
#20

Motor asm. 63494 diagram

Cover

Part #63309

The manufacturer no longer makes this part, and there's no substitute part

Retain Ring 37158
#8

Motor asm. 63494 diagram

Retain ring

Part #37158

The manufacturer no longer makes this part, and there's no substitute part

Spacer 62272
#23

Motor asm. 63494 diagram

Spacer

Part #62272

The manufacturer no longer makes this part, and there's no substitute part

Motor Assembly 63494
#1A

Motor asm. 63494 diagram

Motor assembly

Part #63494

The manufacturer no longer makes this part, and there's no substitute part

Lead Ay Red 62265
#32

Motor asm. 63494 diagram

Lead ay red

Part #62265

The manufacturer no longer makes this part, and there's no substitute part
