Craftsman
Garage Door Opener

Model # 139651100 Official Craftsman garage door opener

Here are the diagrams and repair parts for Official Craftsman 139651100 garage door opener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |

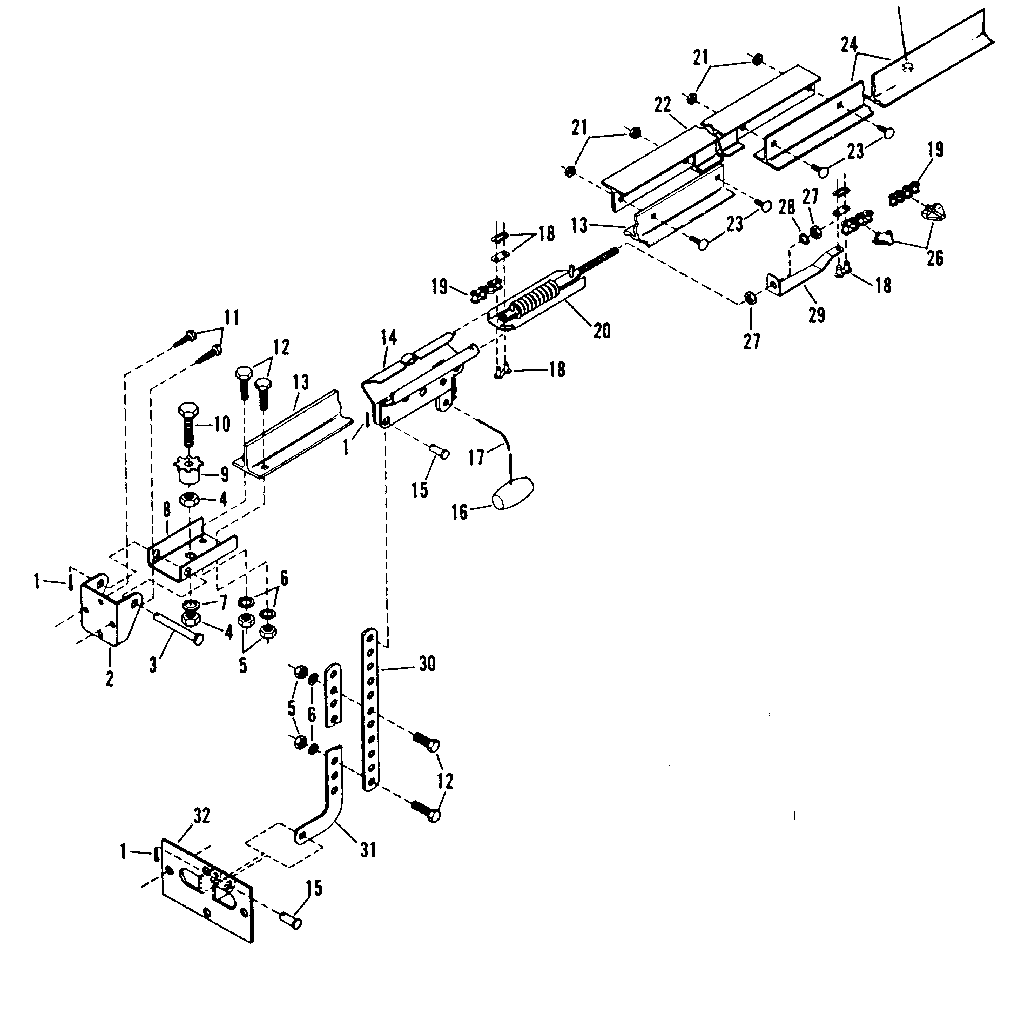

T-rail End 183B36
T-rail end

Part #183B36

The manufacturer no longer makes this part, and there's no substitute part

Insulator 75A100
#13

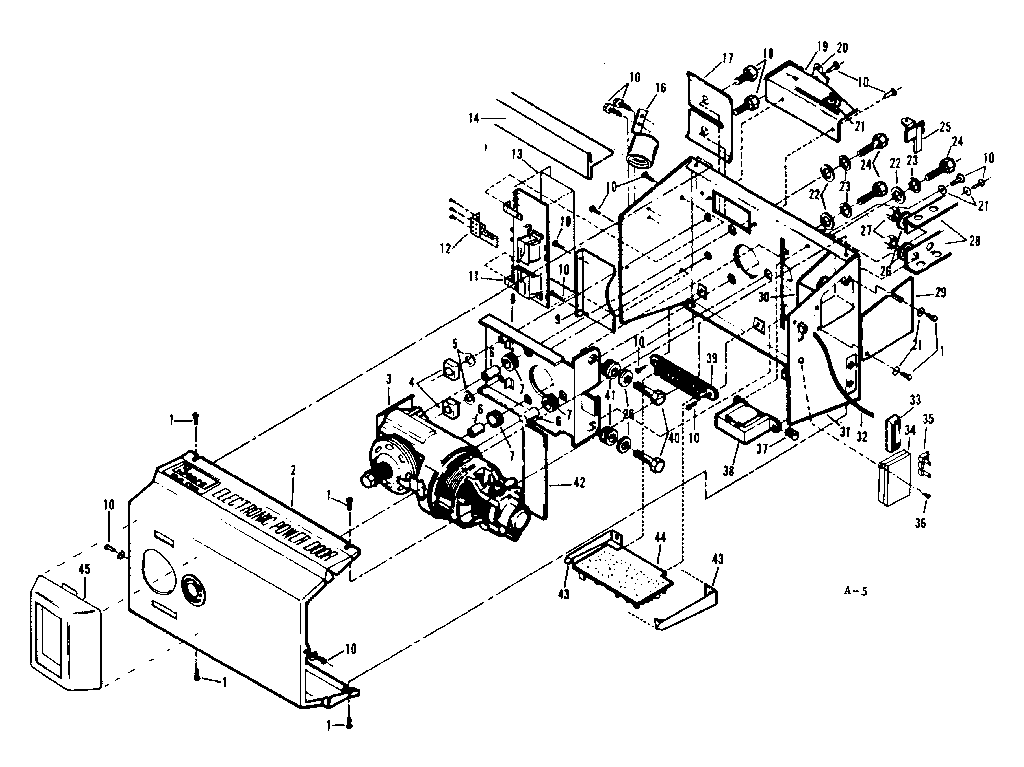

Chassis assembly diagram

Insulator

Part #75A100

The manufacturer no longer makes this part, and there's no substitute part

(specify N,s,w,x, Or Y) 1A974-S
#12A

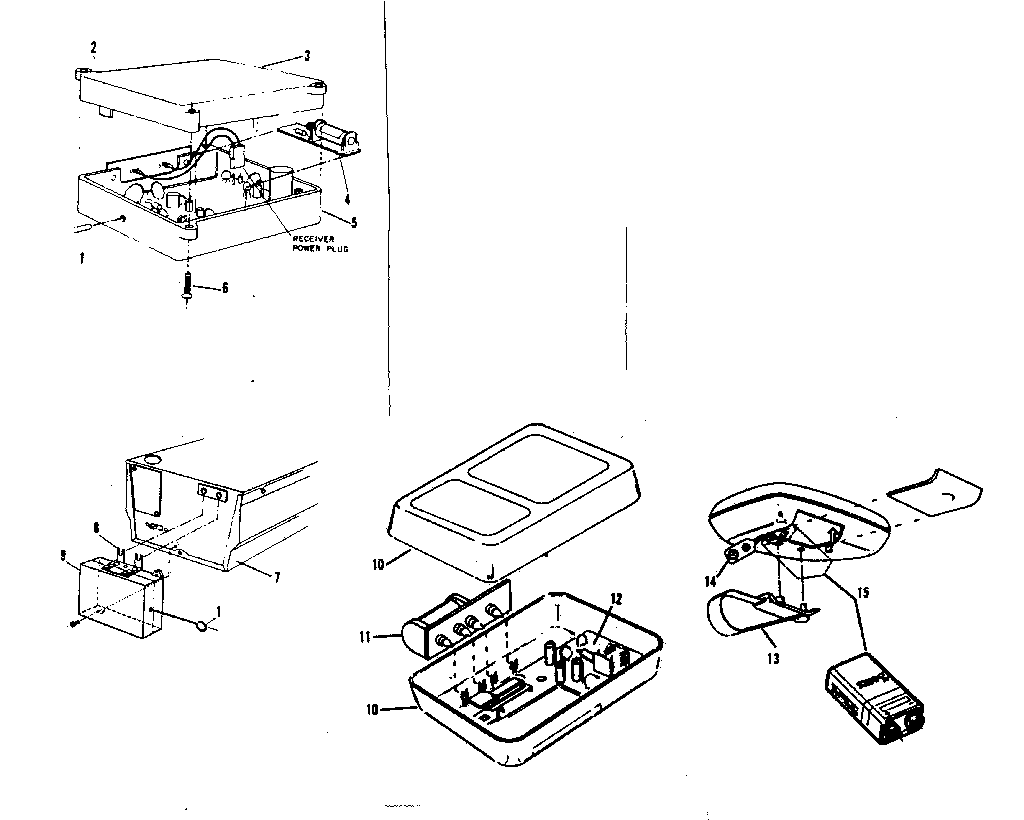

Radio controls and gdo accessories diagram

(specify n,s,w,x, or y)

Part #1A974-S

The manufacturer no longer makes this part, and there's no substitute part

Chain Dogs 1A536
#26

Uhf transmitter diagram

Chain dogs

Part #1A536

The manufacturer no longer makes this part, and there's no substitute part

Relay Assembly 1C706
#11

Chassis assembly diagram

Relay assembly

Part #1C706

The manufacturer no longer makes this part, and there's no substitute part

Cover 31W67
#29

Chassis assembly diagram

Cover

Part #31W67

The manufacturer no longer makes this part, and there's no substitute part

Chassis 37D62
#31

Chassis assembly diagram

Chassis

Part #37D62

The manufacturer no longer makes this part, and there's no substitute part

Grommet 82A5
#41

Chassis assembly diagram

Grommet

Part #82A5

The manufacturer no longer makes this part, and there's no substitute part

Wiring Box A 1A518
#30

Chassis assembly diagram

Wiring box a

Part #1A518

The manufacturer no longer makes this part, and there's no substitute part

Retain Ring 158A7
#24

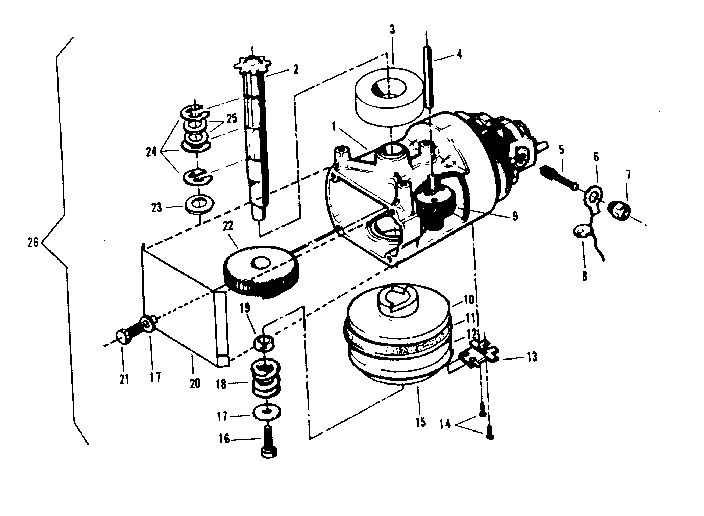

Motor assembly diagram

Retain ring

Part #158A7

The manufacturer no longer makes this part, and there's no substitute part
