Tappan
Upright Freezer

Model # TFU16F7EW0 Official Tappan upright freezer - 5995279725

Here are the diagrams and repair parts for Official Tappan TFU16F7EW0 upright freezer - 5995279725, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

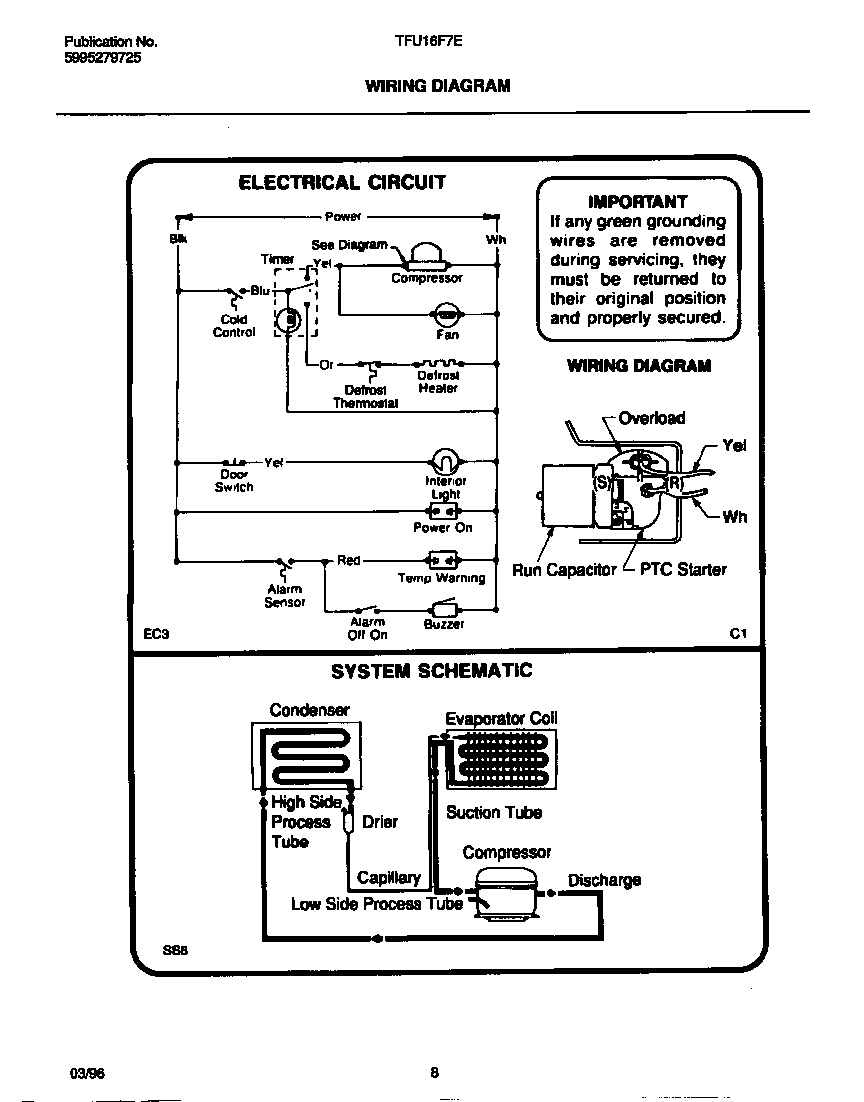

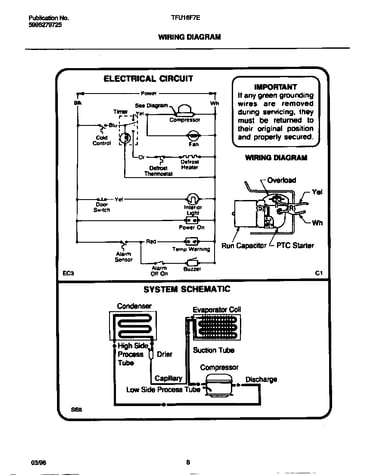

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
Filter Drier 216099900
#4

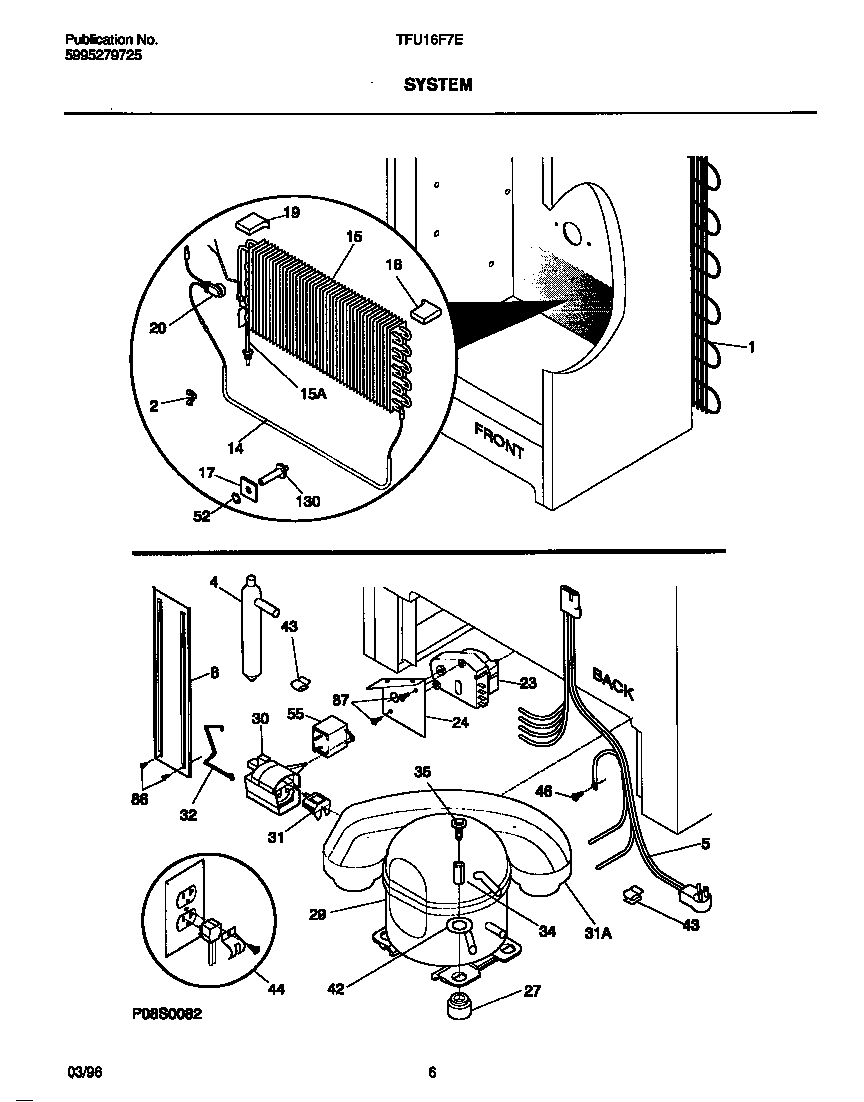

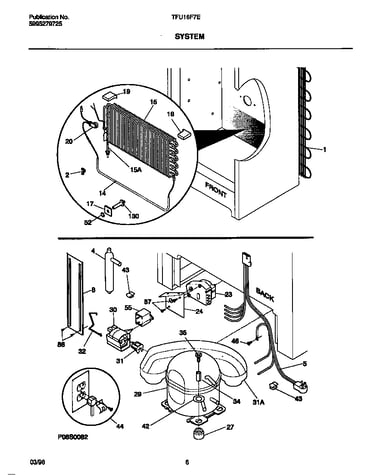

System diagram

Filter drier

Part #216099900

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216099900. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Key 216388700
#5

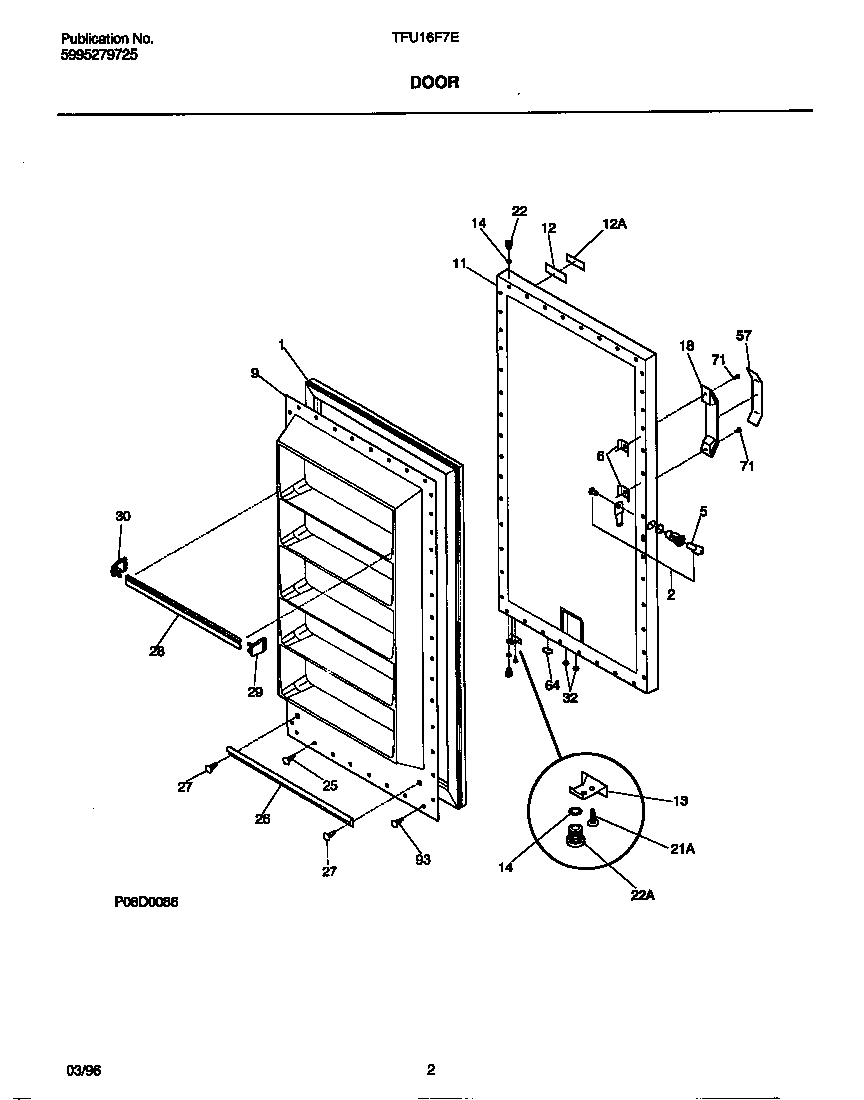

Door diagram

Key

Part #216388700

Replaced by #297147700

?
Manufacturer substitution
This part replaces 216388700. Substitute parts can look different from the original.
BEST SELLER
$9.25 |
10% OFF Phone Price : $10.25
In Stock
Compressor 5303925388
#29

System diagram

Compressor

Part #5303925388

Replaced by #5304475098

?
Manufacturer substitution
This part replaces 5303925388. Substitute parts can look different from the original.
BEST SELLER
$363.07 |
$12.00 OFF Phone Price : $375.07
In Stock
Capacitor 216236200
#55

System diagram

Capacitor

Part #216236200

Replaced by #5304464438

?
Manufacturer substitution
This part replaces 216236200. Substitute parts can look different from the original.
BEST SELLER
$47.29 |
11% OFF Phone Price : $53.29
In Stock
Grille Screw 131168200
#71

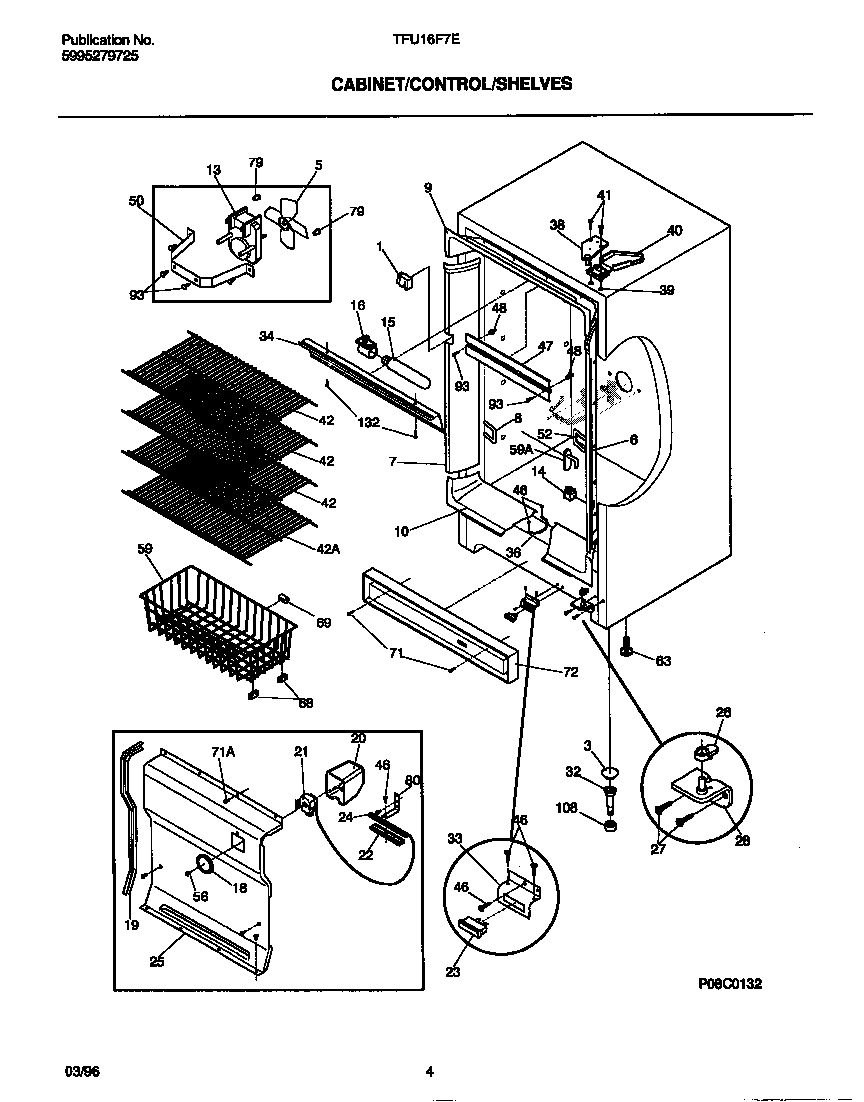

Cabinet/control/shelves diagram

Grille screw

Part #131168200

Replaced by #131168200

?
Manufacturer substitution
This part replaces 131168200. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Appliance Leveling Leg (replaces 134158000, 7216396900) 216396900
#63

Cabinet/control/shelves diagram

Appliance leveling leg (replaces 134158000, 7216396900)

Part #216396900

BEST SELLER
$20.04 |
23% OFF Phone Price : $26.04
In Stock
Evaporator Motor 216409700
#13

Cabinet/control/shelves diagram

Evaporator motor

Part #216409700

Replaced by #5304442620

?
Manufacturer substitution
This part replaces 216409700. Substitute parts can look different from the original.
$147.29 |
8% OFF Phone Price : $159.29
In Stock
Refrigerator Light Switch 5309918806
#14

Cabinet/control/shelves diagram

Refrigerator light switch

Part #5309918806

This item is not returnable
$22.76 |
21% OFF Phone Price : $28.76
In Stock
Refrigerator Evaporator Cover Screw 08037851
Refrigerator evaporator cover screw

Part #08037851

This item is not returnable
$3.51
In Stock
Freezer Defrost Heater 216254600
#14

System diagram

Freezer defrost heater

Part #216254600

$187.61 |
6% OFF Phone Price : $199.61
In Stock
