Here are the diagrams and repair parts for Official Frigidaire FFBD2408NS7C dishwasher, as well as links to manuals and error code tables, if available.

Installation guide

Owner’s manual

By Schematic

By Part

SELECT DIAGRAM

Browse Parts forFFBD2408NS7C Dishwasher

#3

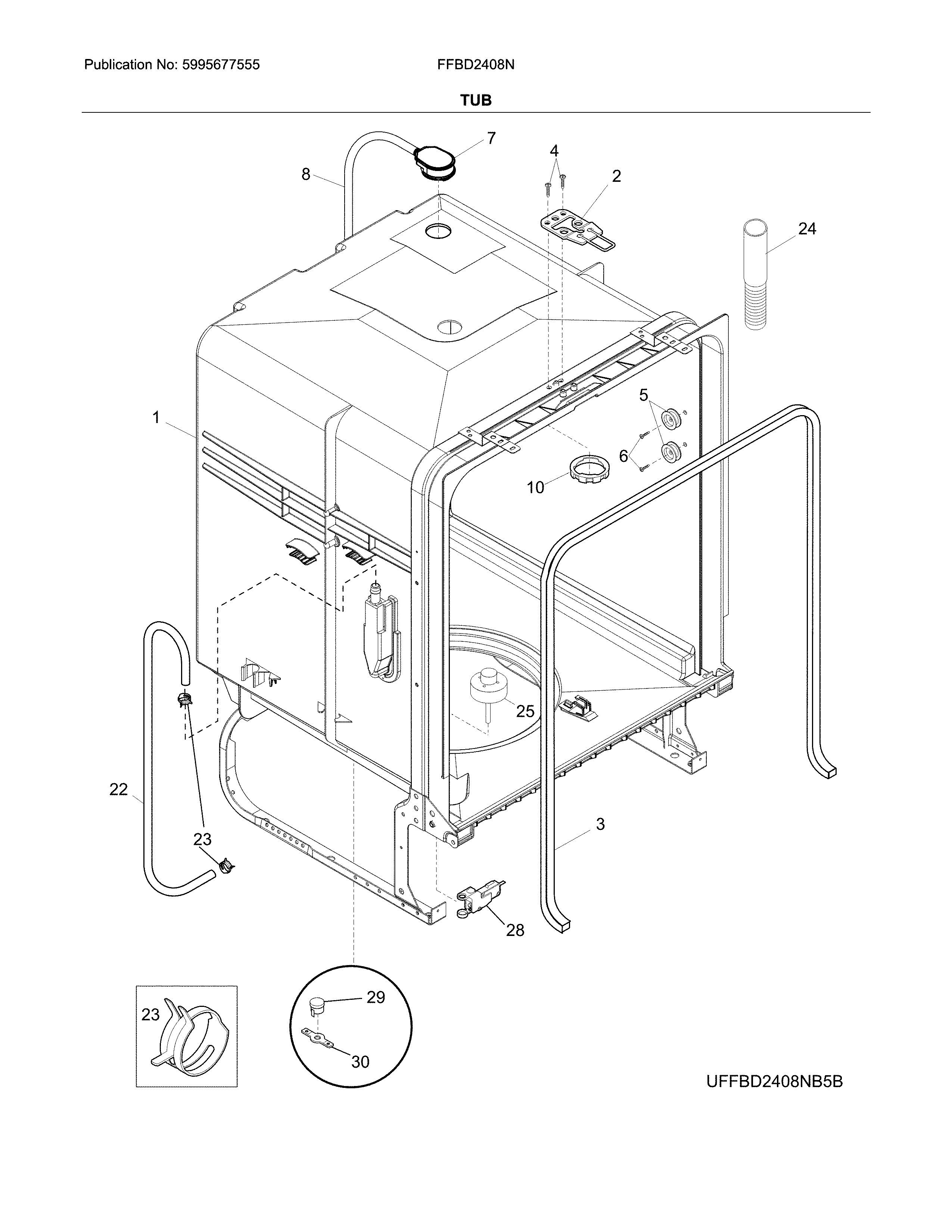

Tub diagram
Frigidaire dishwasher door seal
Part #154827601
4.46 (37)
$26.69 |
18% OFF Phone Price : $32.69
In Stock
Qty
#24

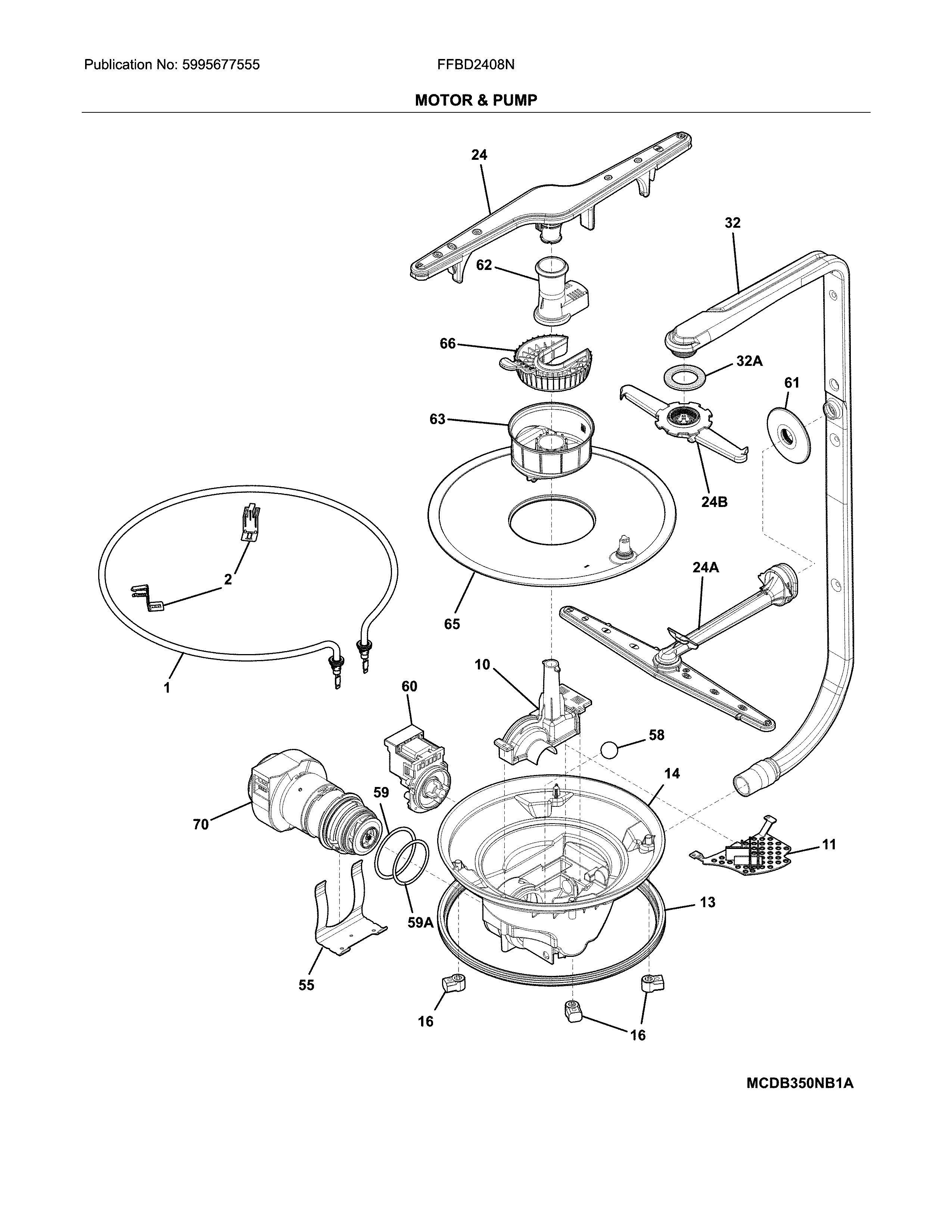

Motor & pump diagram
Dishwasher lower spray arm
Part #5304506526
Replaced by #5304517203
?
Manufacturer substitution
This part replaces 5304506526. Substitute parts can look different from the original.
4.52 (27)
$33.33 |
15% OFF Phone Price : $39.33
In Stock
Qty
#60
Motor & pump diagram
Drain pump a
Part #5304492415
Replaced by #A00126401
?
Manufacturer substitution
This part replaces 5304492415. Substitute parts can look different from the original.
4.29 (14)
$87.46 |
6% OFF Phone Price : $93.46
In Stock
Qty
#70
Motor & pump diagram
Dishwasher pump and motor assembly
Part #154844301
4.45 (11)
$183.41 |
6% OFF Phone Price : $195.41
In Stock
Qty
#62
Motor & pump diagram
Dishwasher lower spray arm support
Part #5304506515
Replaced by #5304518968
?
Manufacturer substitution
This part replaces 5304506515. Substitute parts can look different from the original.
5 (3)
$14.37 |
12% OFF Phone Price : $16.37
In Stock
Qty
#49

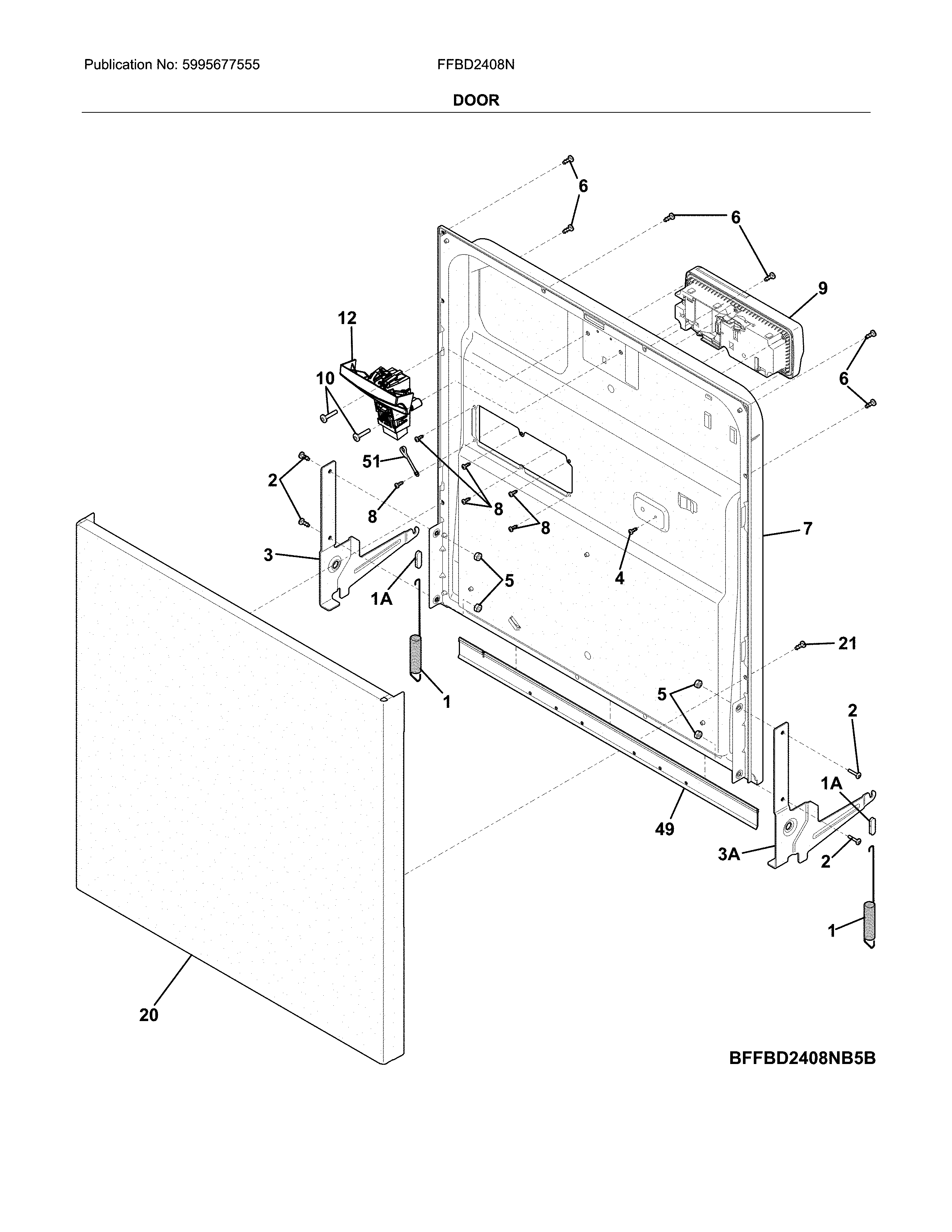

Door diagram
Dishwasher door bottom seal
Part #5304500204
4 (4)
$26.29 |
19% OFF Phone Price : $32.29
In Stock
Qty
#59A
Motor & pump diagram
Dishwasher pump o-ring, front
Part #154247001
$38.32 |
14% OFF Phone Price : $44.32
In Stock
Qty
#59
Motor & pump diagram
Dishwasher pump o-ring, rear
Part #154246901
1 (1)
$38.32 |
14% OFF Phone Price : $44.32
In Stock
Qty
#24
Tub diagram
Dishwasher drain hose
Part #807117001
3.71 (7)
$30.29 |
17% OFF Phone Price : $36.29
In Stock
Qty
#24A
Motor & pump diagram
Dishwasher spray arm assembly
Part #5304506740
4.5 (6)
$33.75 |
15% OFF Phone Price : $39.75
In Stock
Qty
