Model # FDB949GFS2 Official Frigidaire dishwasher - p5995307351
Here are the diagrams and repair parts for Official Frigidaire FDB949GFS2 dishwasher - p5995307351, as well as links to manuals and error code tables, if available.
By Schematic
By Part

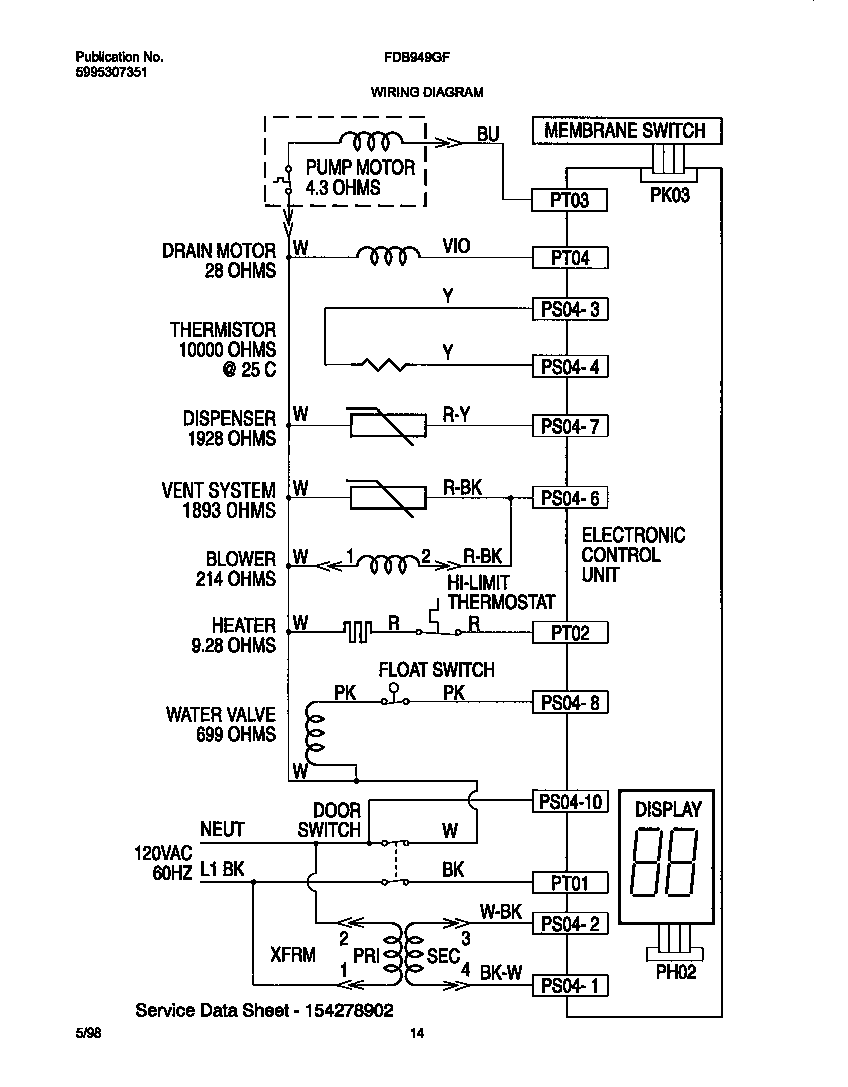

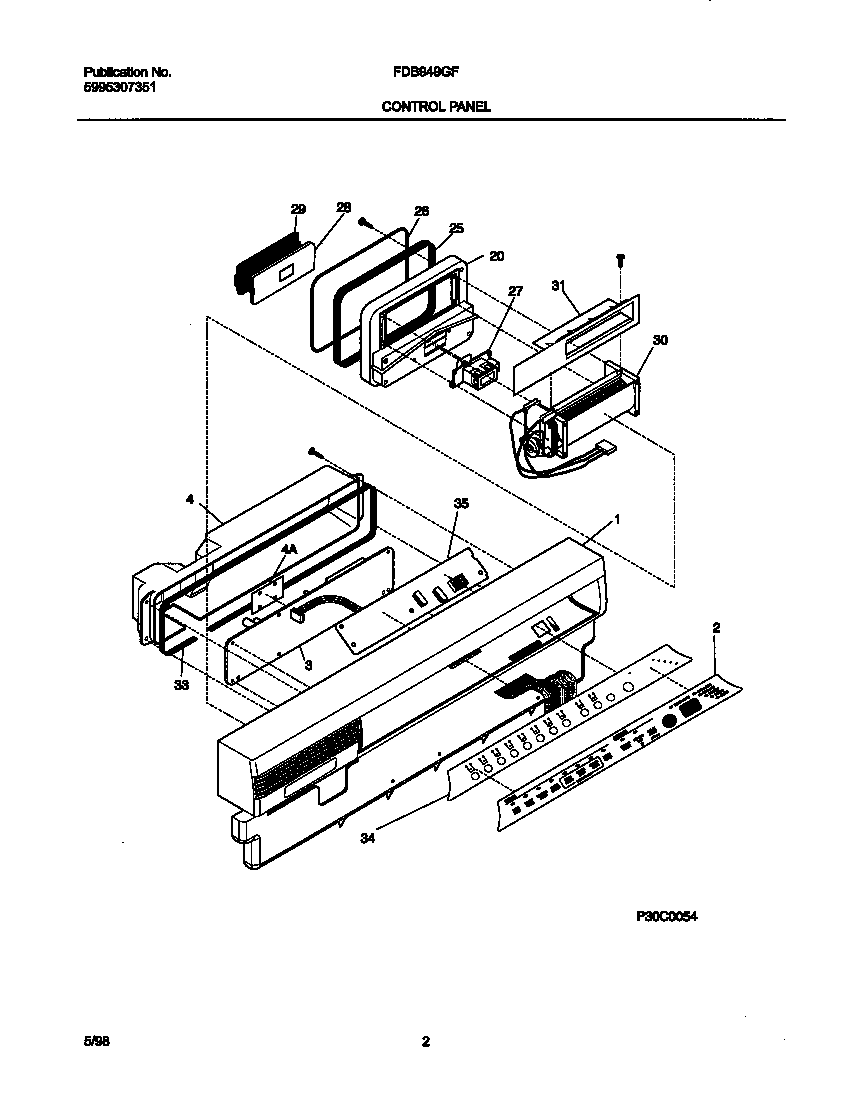

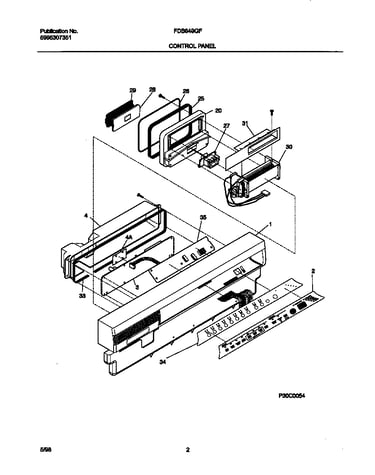

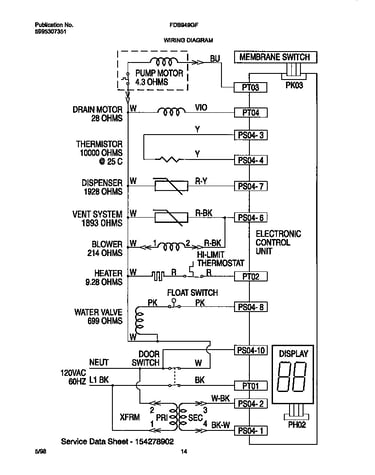

SELECT DIAGRAM
Browse Parts forFDB949GFS2 Dishwasher - P5995307351
- #3

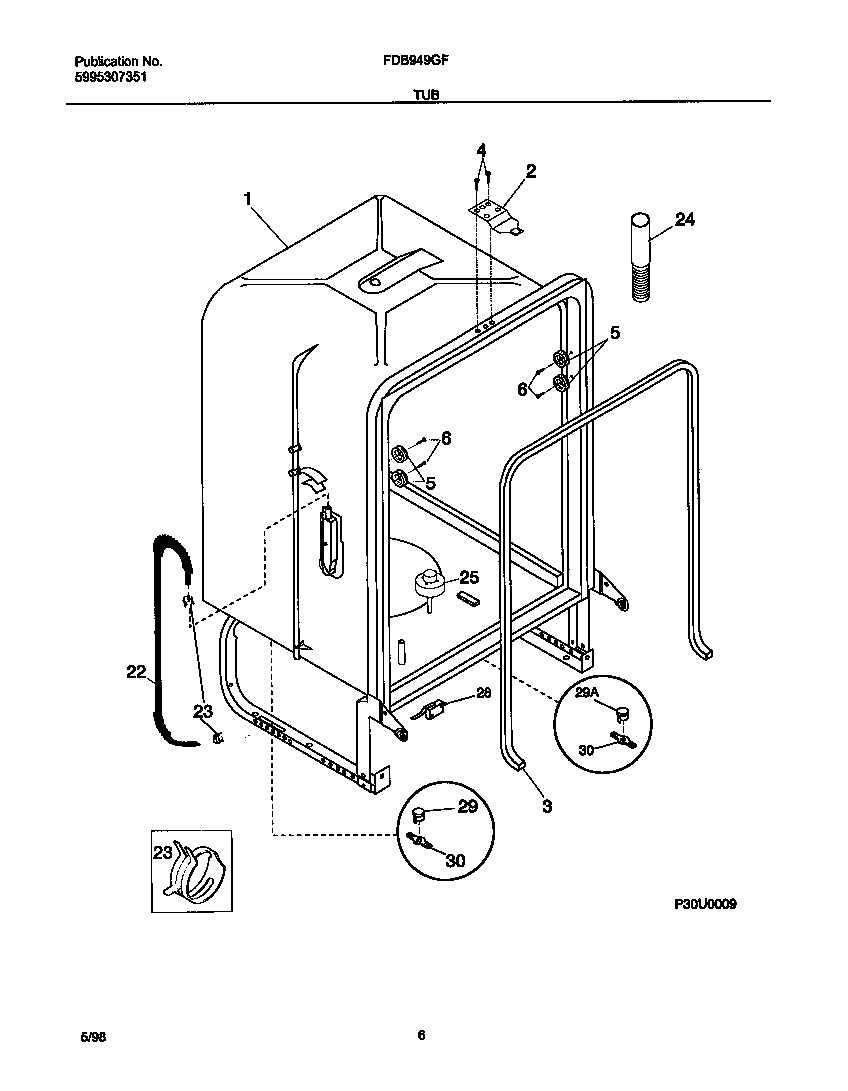

Tub diagram
GasketPart #154211801
Replaced by #154827601
?Manufacturer substitutionThis part replaces 154211801. Substitute parts can look different from the original.$26.94 |18% OFF Phone Price : $32.94In Stock - #24

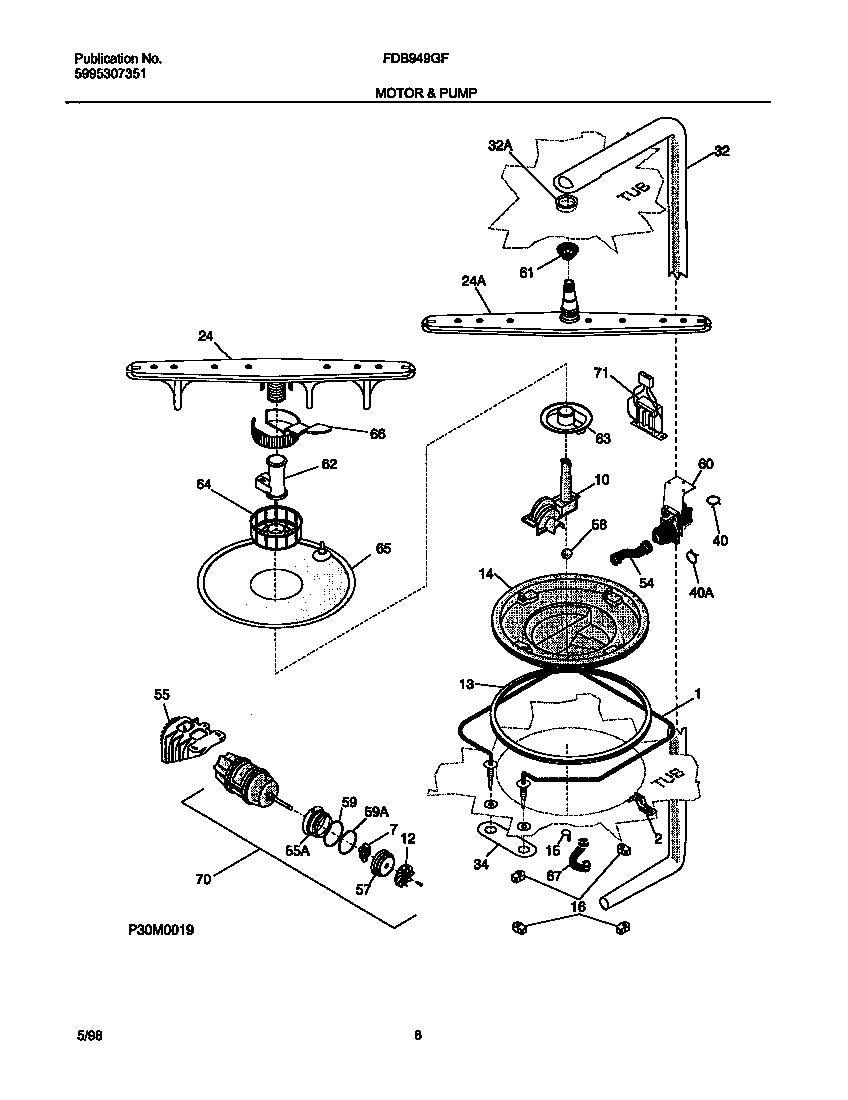

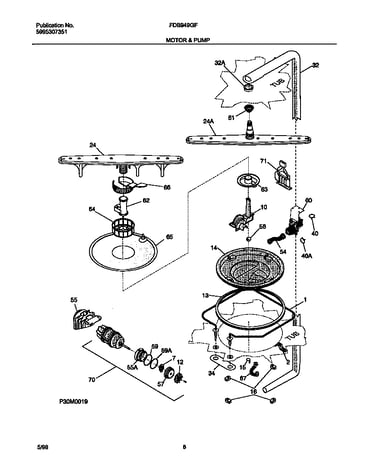

Motor and pump diagram
Lo spray armPart #154250901
Replaced by #5304517203
?Manufacturer substitutionThis part replaces 154250901. Substitute parts can look different from the original.$34.33 |15% OFF Phone Price : $40.33In Stock - #49

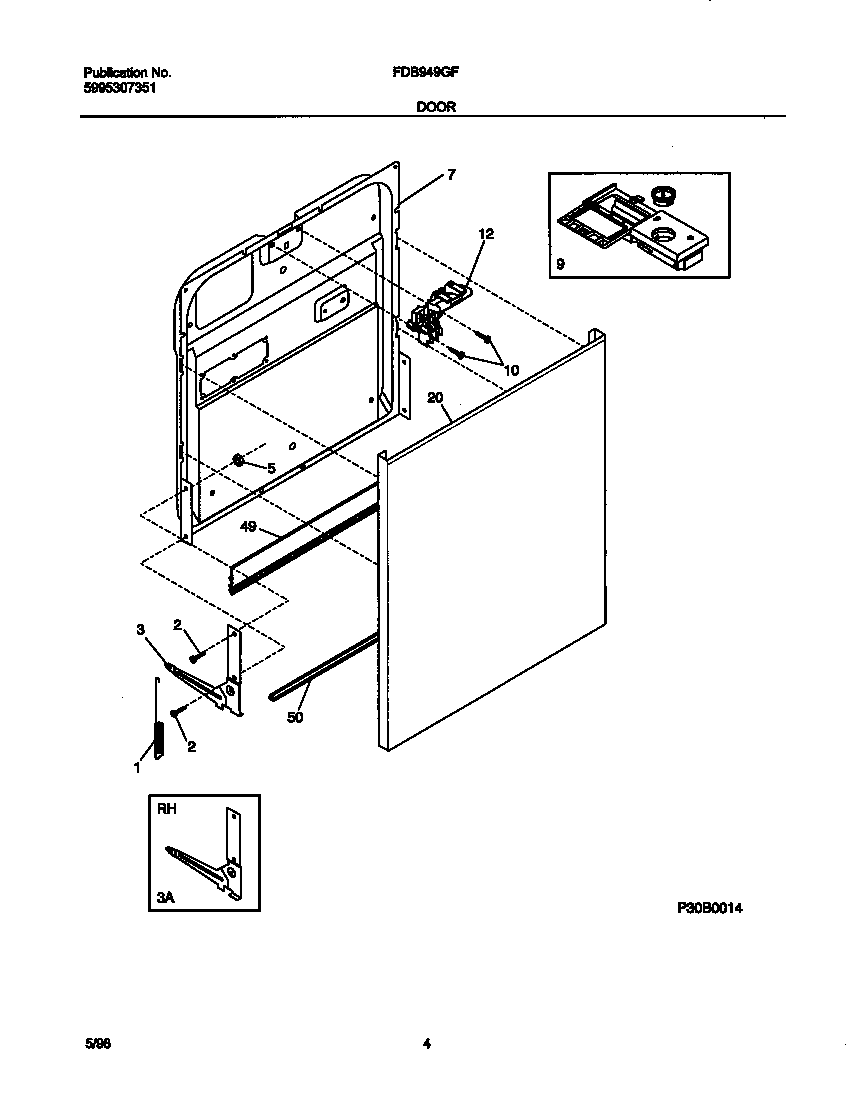

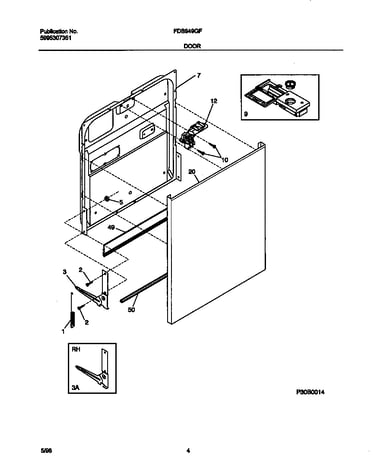

Door diagram
GasketPart #154297602
Replaced by #809006501
?Manufacturer substitutionThis part replaces 154297602. Substitute parts can look different from the original.$25.01 |19% OFF Phone Price : $31.01In Stock - #62
Motor and pump diagram
Dishwasher lower spray arm supportPart #154294101
Replaced by #5304518968
?Manufacturer substitutionThis part replaces 154294101. Substitute parts can look different from the original.$14.28 |12% OFF Phone Price : $16.28In Stock - #3

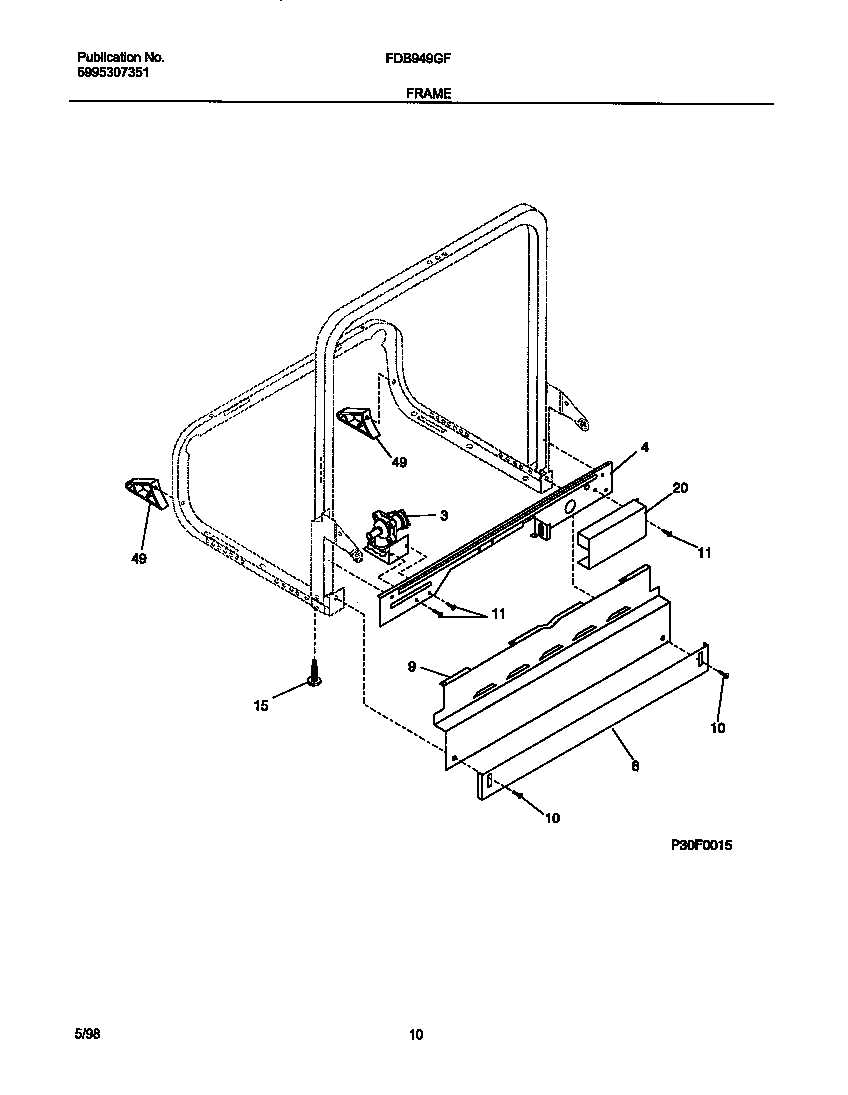

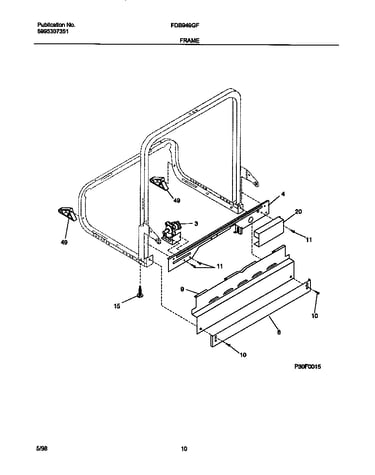

Frame diagram
Water valvePart #154219601
Replaced by #154637401
?Manufacturer substitutionThis part replaces 154219601. Substitute parts can look different from the original.$45.62 |12% OFF Phone Price : $51.62In Stock - #7

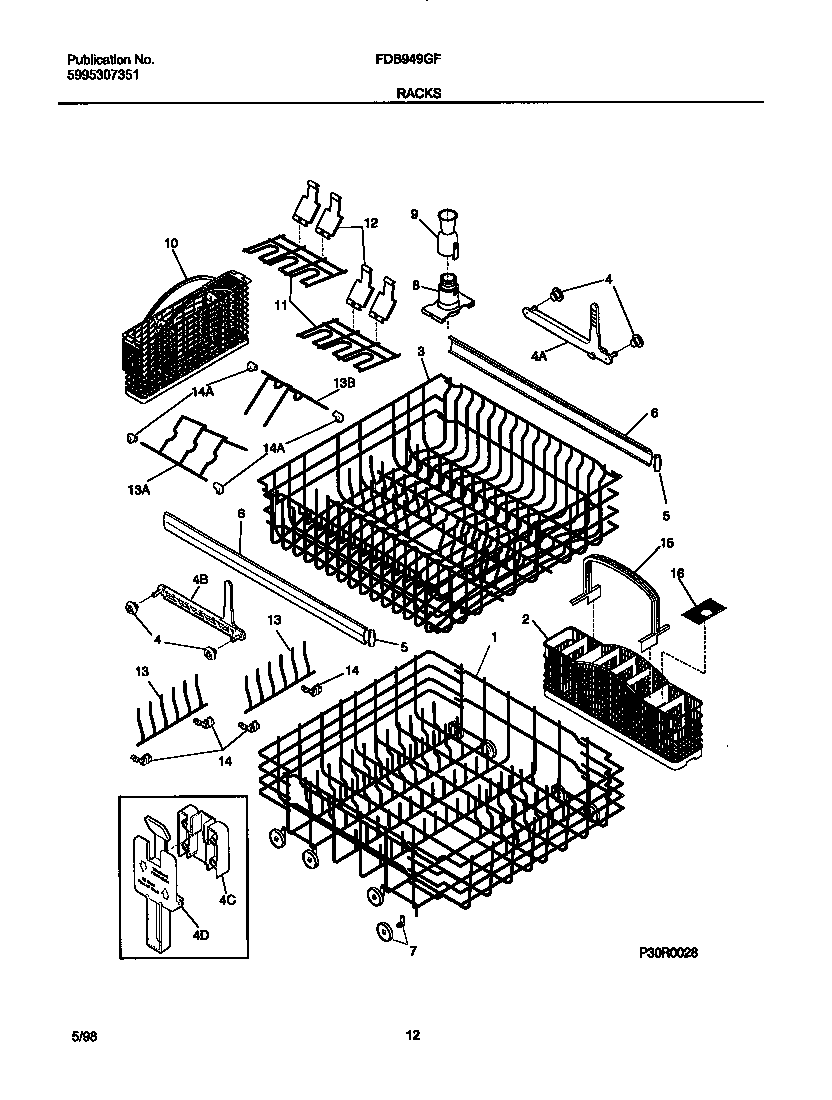

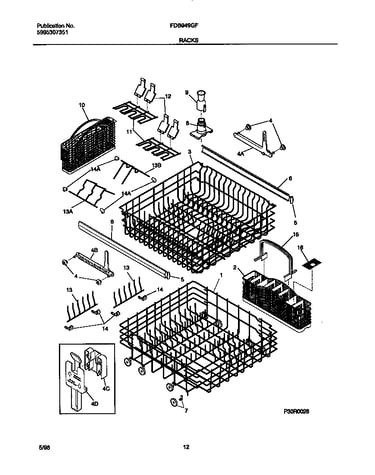

Racks diagram
Dishwasher wheelPart #154174501
Replaced by #5304532229
?Manufacturer substitutionThis part replaces 154174501. Substitute parts can look different from the original.This item is not returnable$4.69 |18% OFF Phone Price : $5.69In Stock - #1
Door diagram
SpringPart #154226002
Replaced by #154430501
?Manufacturer substitutionThis part replaces 154226002. Substitute parts can look different from the original.$29.37 |17% OFF Phone Price : $35.37In Stock - #12
Door diagram
Latch w/handPart #154308102
Replaced by #5304442175
?Manufacturer substitutionThis part replaces 154308102. Substitute parts can look different from the original.$117.68 |9% OFF Phone Price : $129.68In Stock - #12
Door diagram
Latch w/handPart #154308101
Replaced by #5304442175
?Manufacturer substitutionThis part replaces 154308101. Substitute parts can look different from the original.$117.68 |9% OFF Phone Price : $129.68In Stock - #12
Door diagram
Latch w/handPart #154308103
Replaced by #5304442175
?Manufacturer substitutionThis part replaces 154308103. Substitute parts can look different from the original.$117.68 |9% OFF Phone Price : $129.68In Stock
