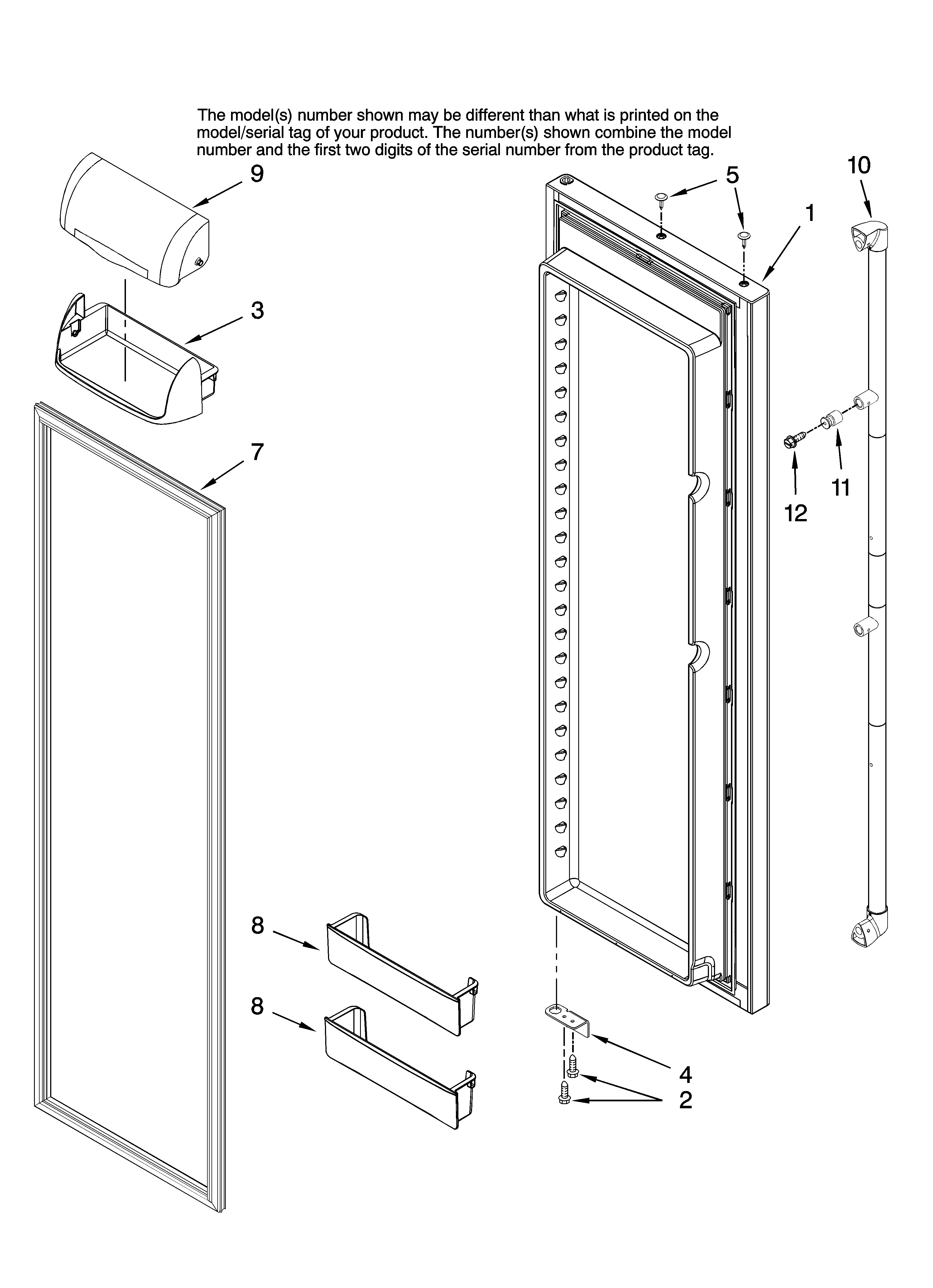

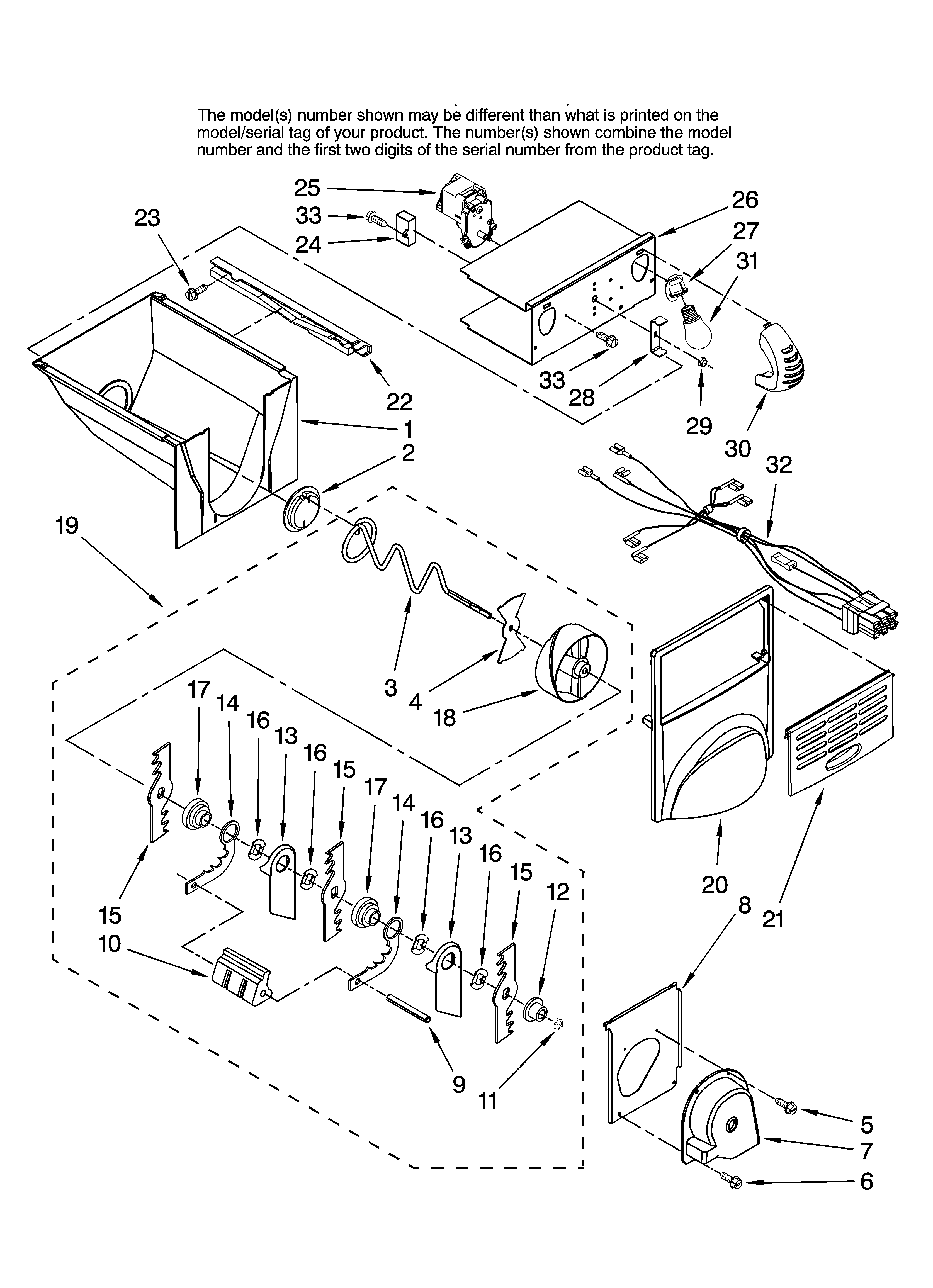

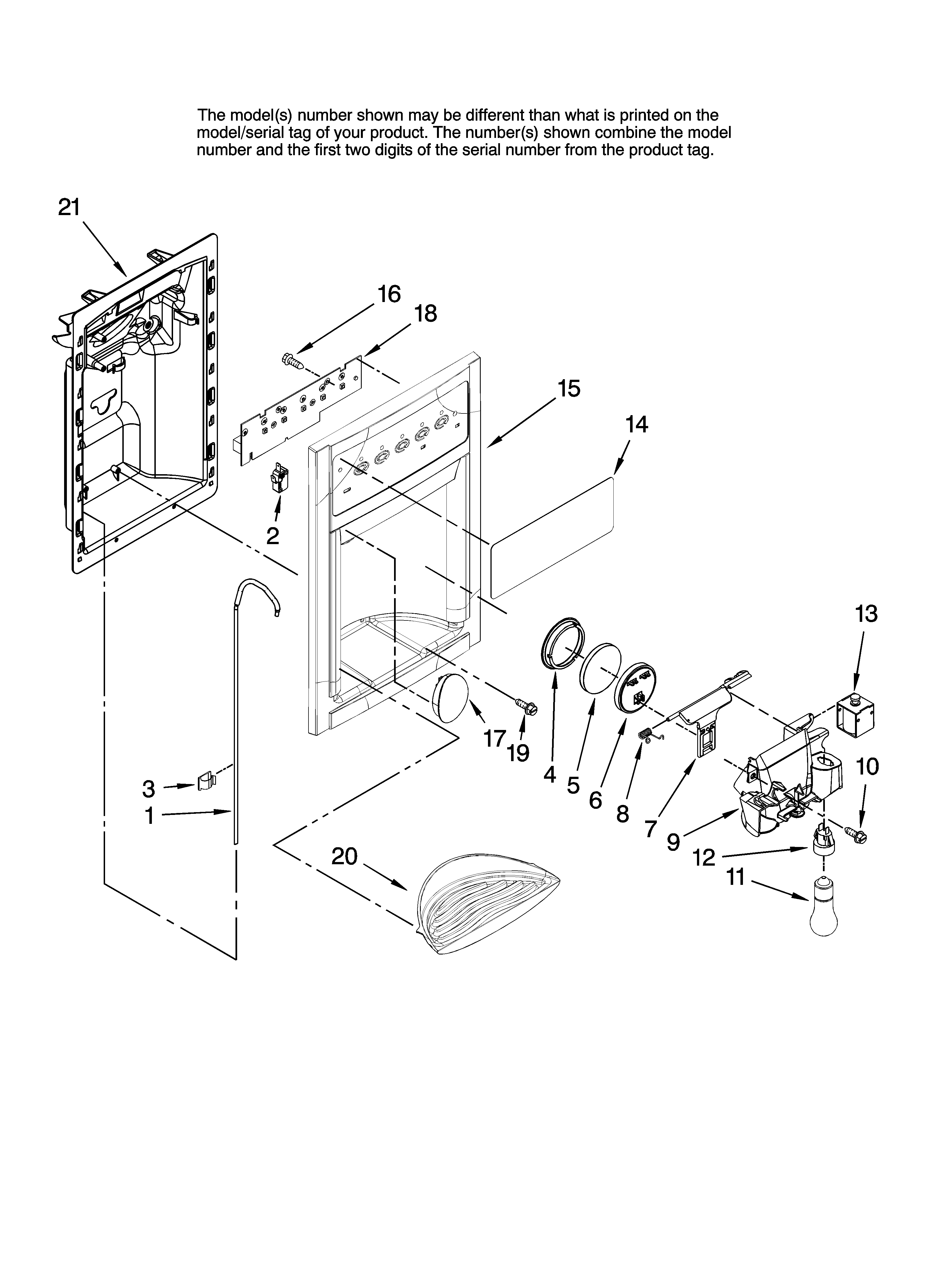

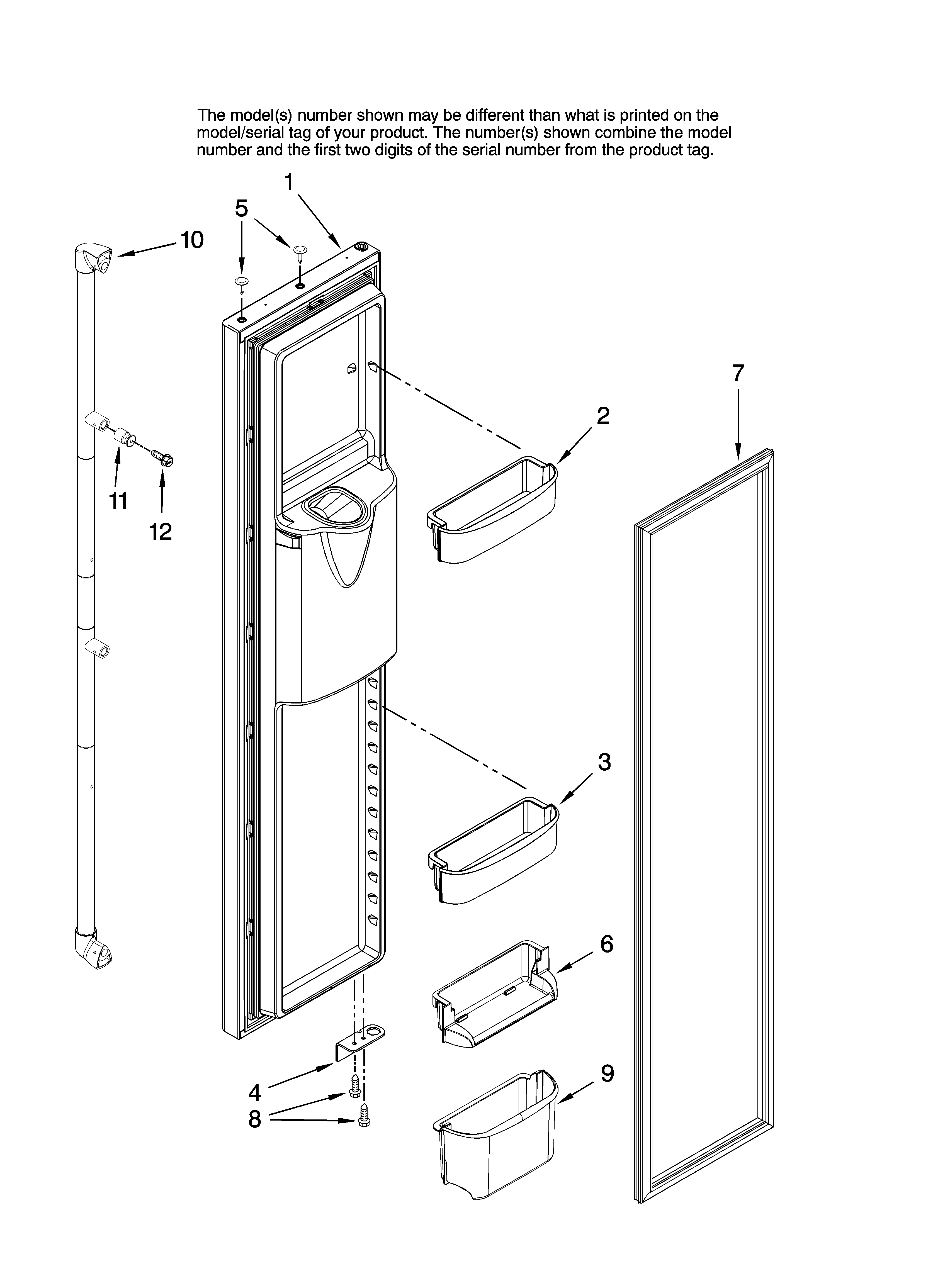

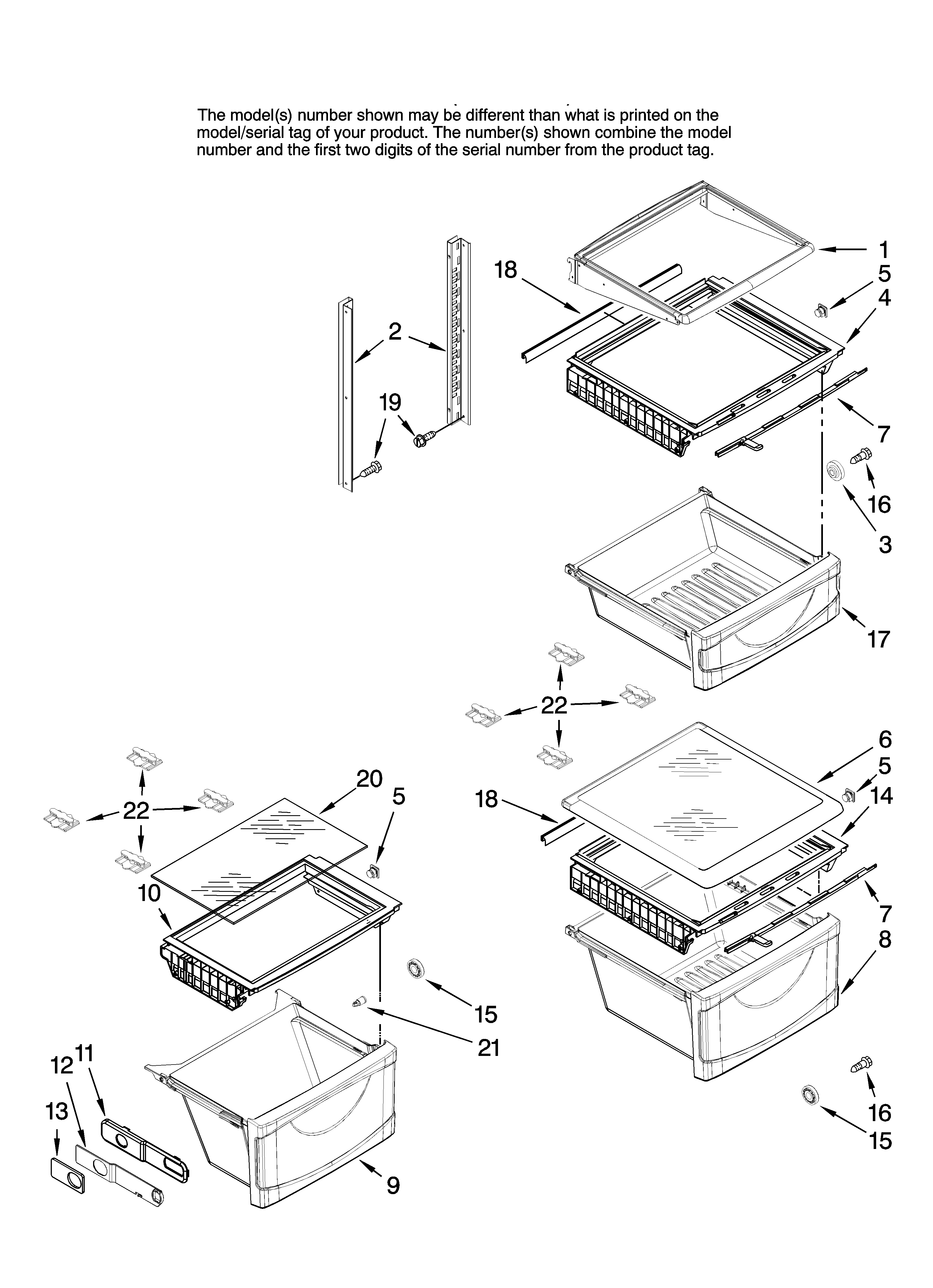

Model # AC2224GEKS13 Official Amana side-by-side refrigerator

Here are the diagrams and repair parts for Official Amana AC2224GEKS13 side-by-side refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

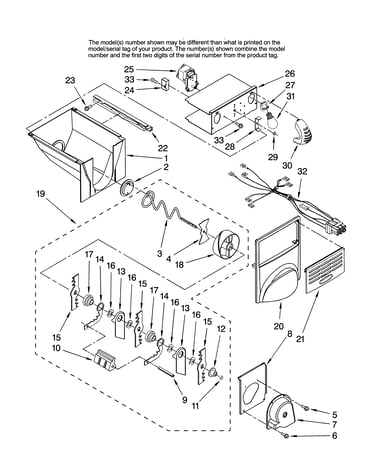

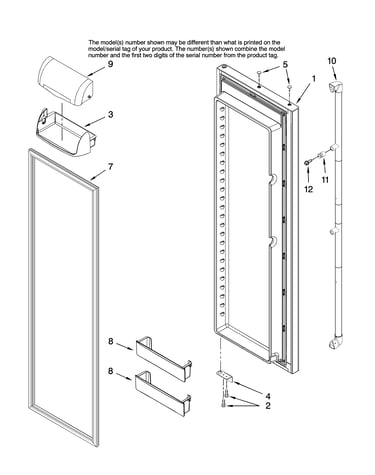

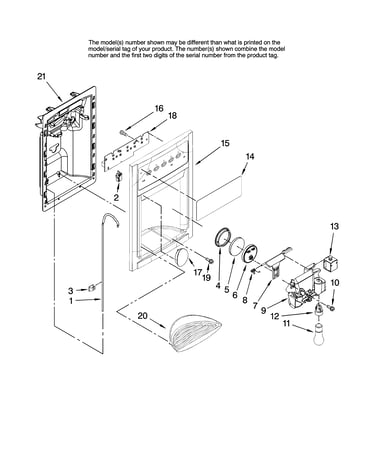

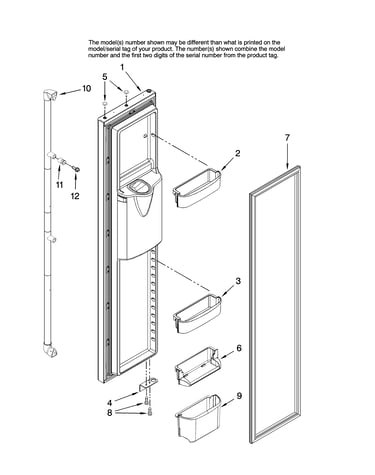

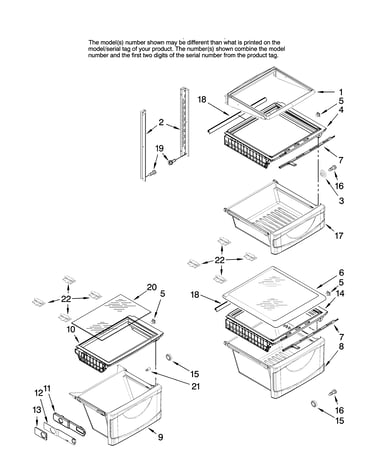

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forAC2224GEKS13 Refrigerators

  • Refrigerator Uv Filter Dryer W10143759
    #24

    Unit parts diagram

    Refrigerator uv filter dryer

    Part #W10143759

    Replaced by #WPW10143759

    ?
    Manufacturer substitution
    This part replaces W10143759. Substitute parts can look different from the original.
    BEST SELLER
    $20.04
    23% OFF Phone Price : $26.04
    In Stock
  • Refrigerator Light Switch 12466103
    #11

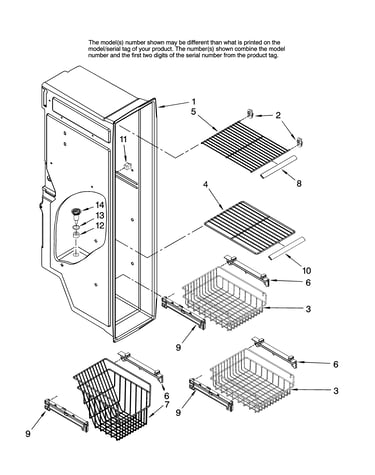

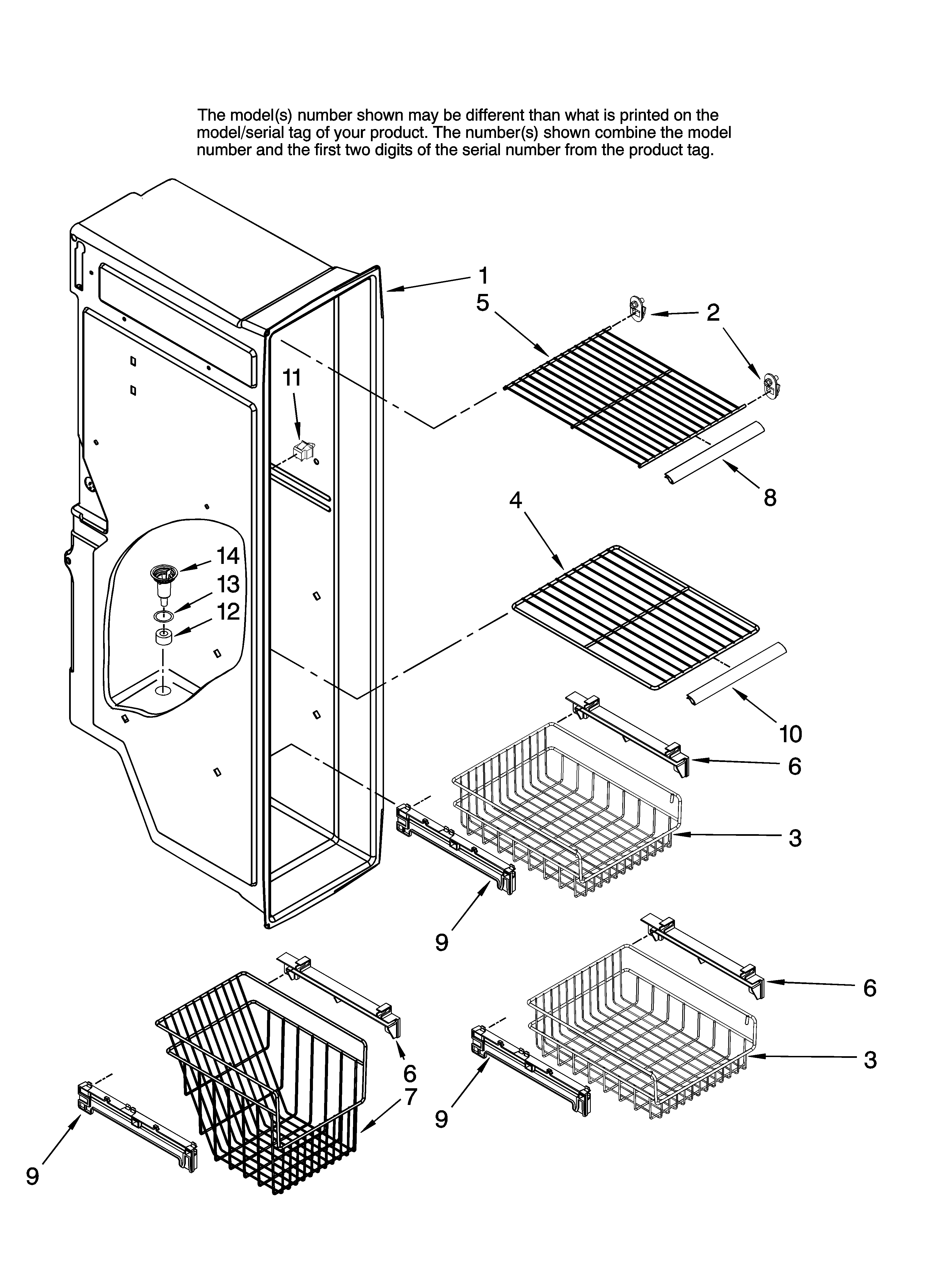

    Freezer liner parts diagram

    Refrigerator light switch

    Part #12466103

    Replaced by #W11396033

    ?
    Manufacturer substitution
    This part replaces 12466103. Substitute parts can look different from the original.
    BEST SELLER
    $20.16
    23% OFF Phone Price : $26.16
    In Stock
  • Refrigerator Tube B5705323
    #2

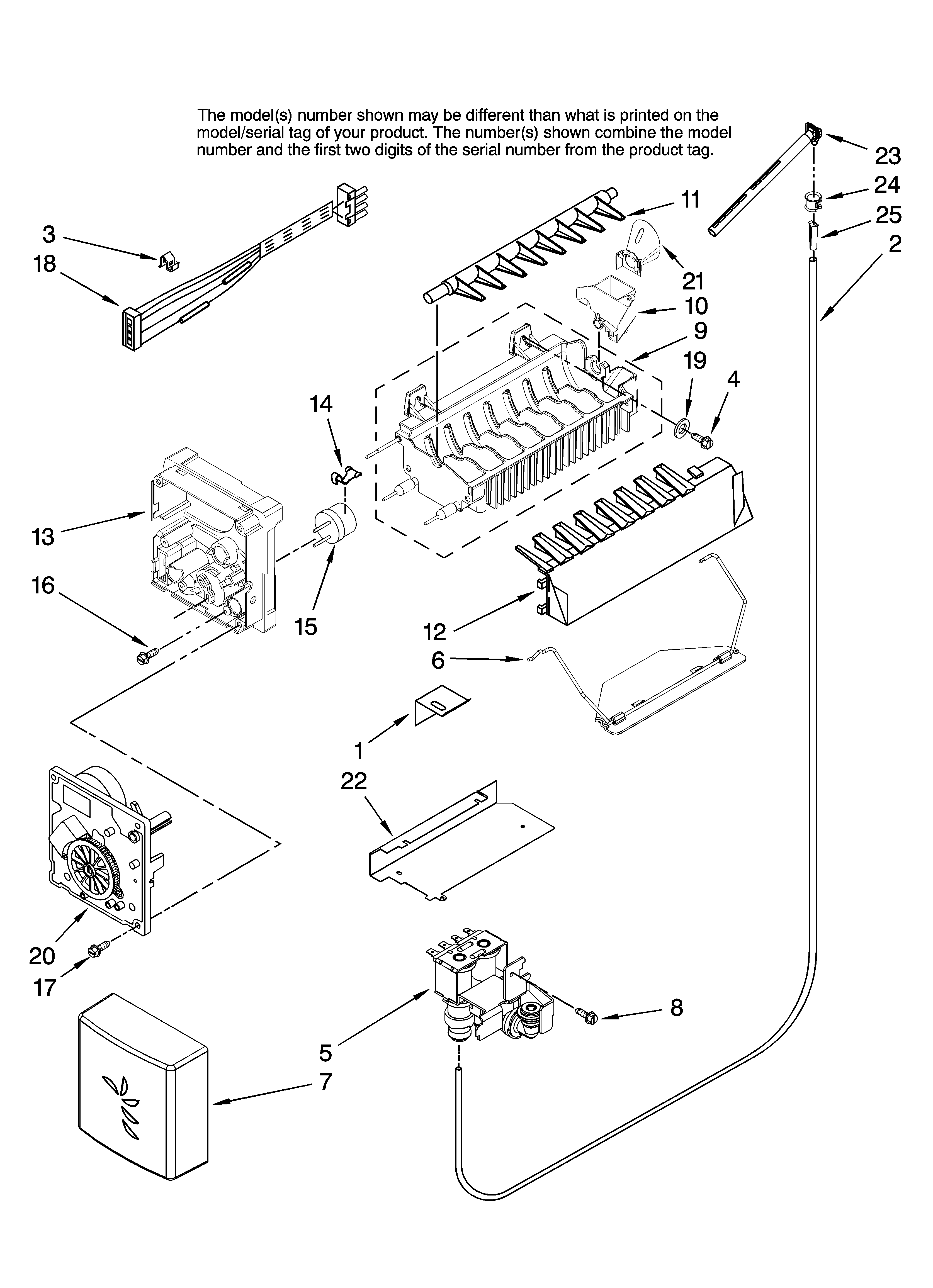

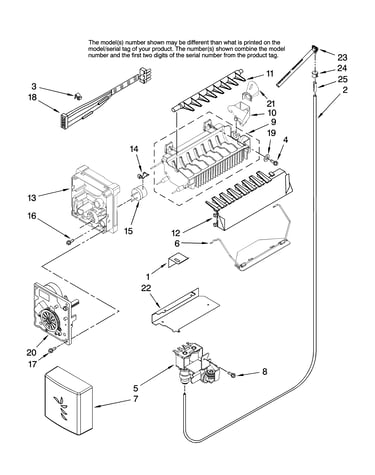

    Icemaker parts diagram

    Refrigerator tube

    Part #B5705323

    Replaced by #W10823511

    ?
    Manufacturer substitution
    This part replaces B5705323. Substitute parts can look different from the original.
    BEST SELLER
    $32.17
    16% OFF Phone Price : $38.17
    In Stock
  • Refrigerator Screw 67006838
    #37

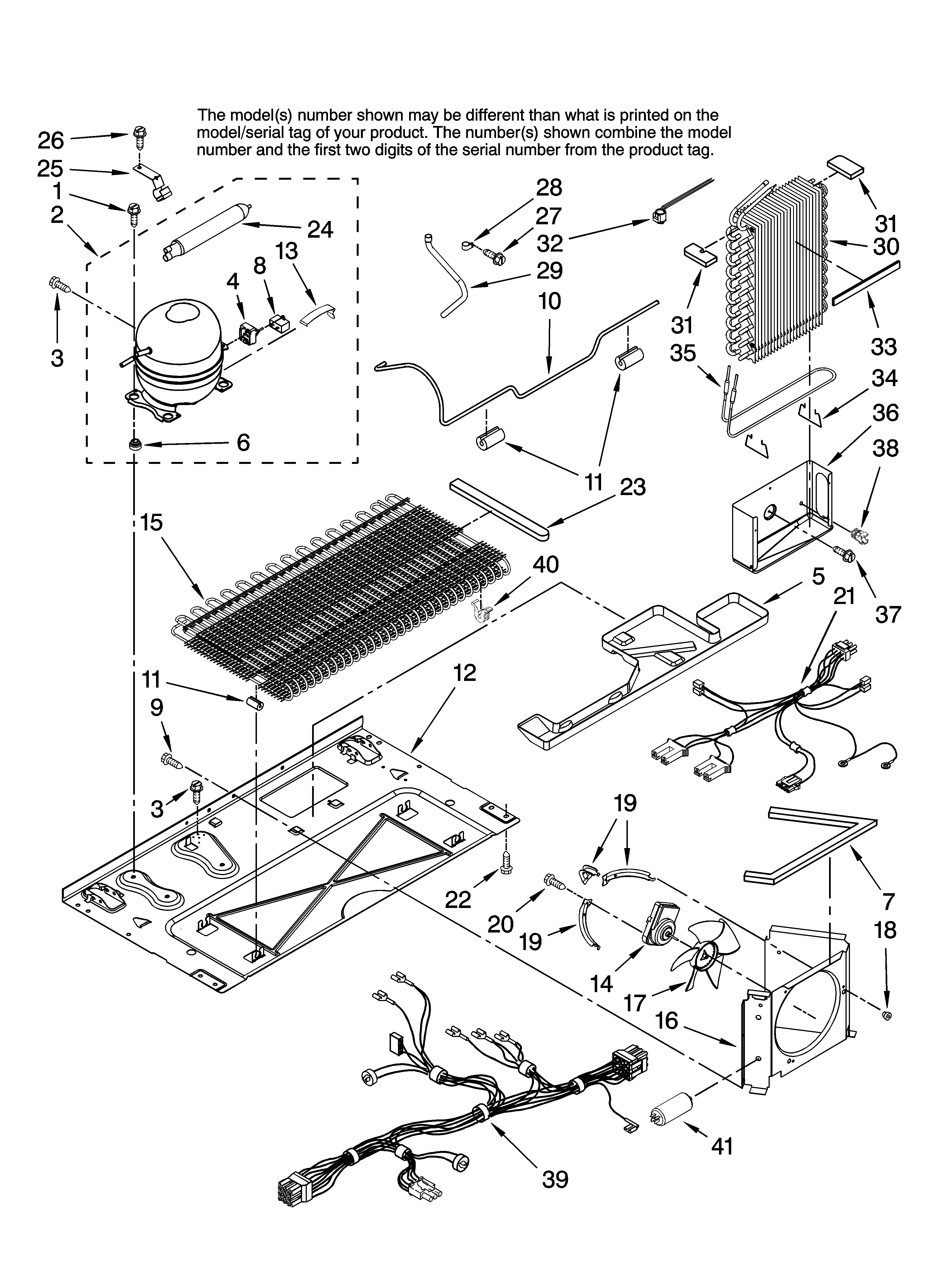

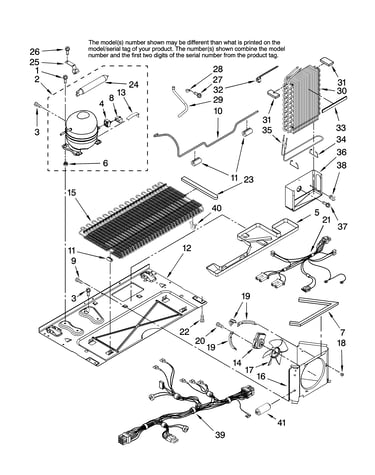

    Unit parts diagram

    Refrigerator screw

    Part #67006838

    The manufacturer no longer makes this part, and there's no substitute part

  • Refrigerator Water Supply Tube Union, 5/16 X 5/16-in 61006182
    #8

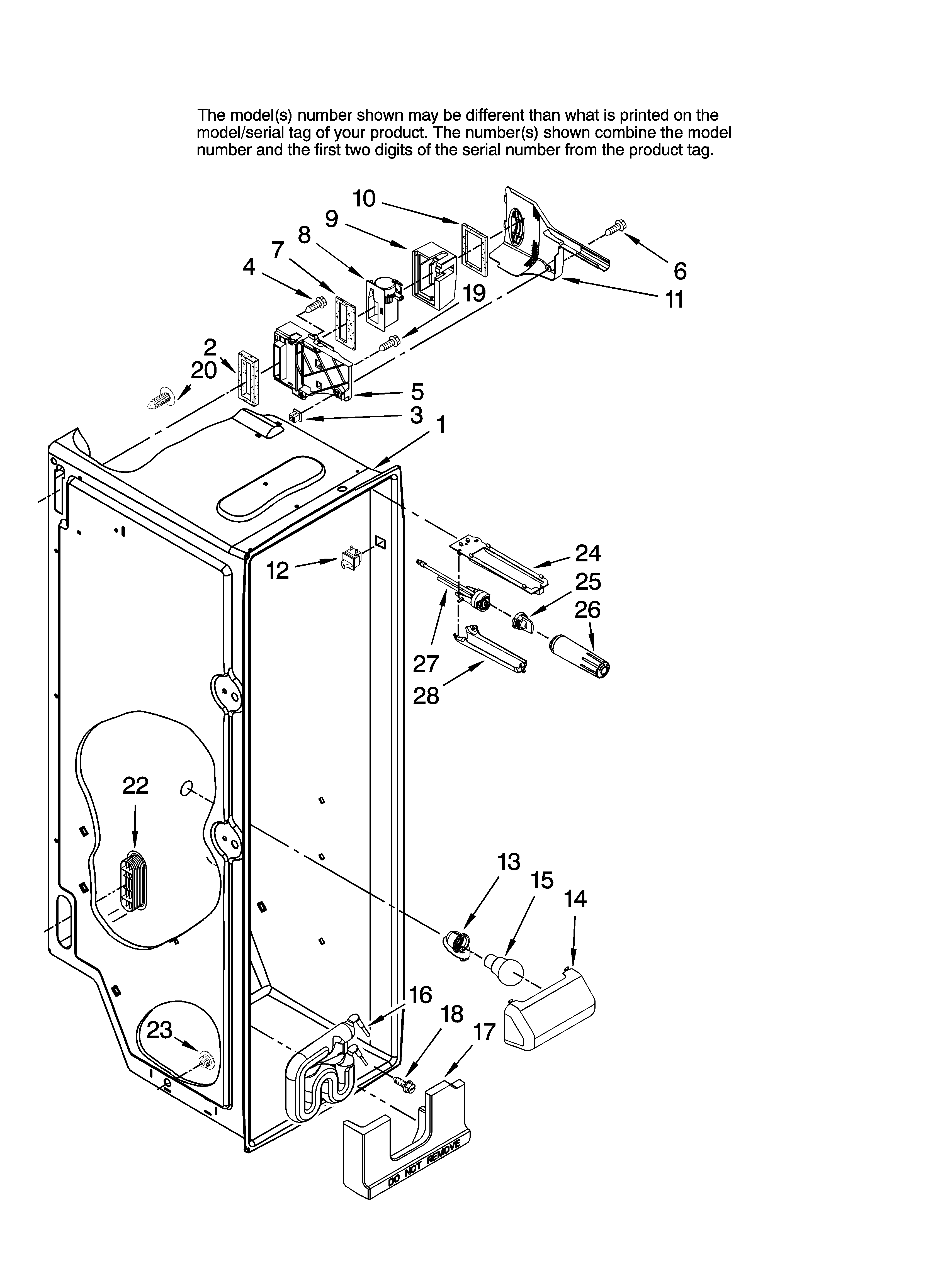

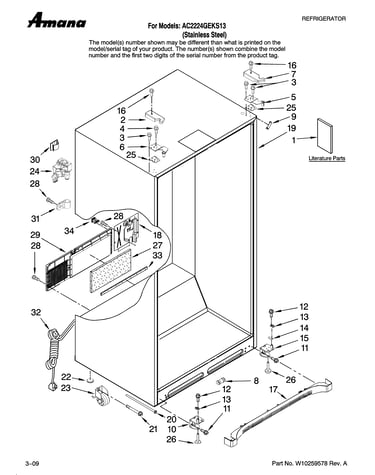

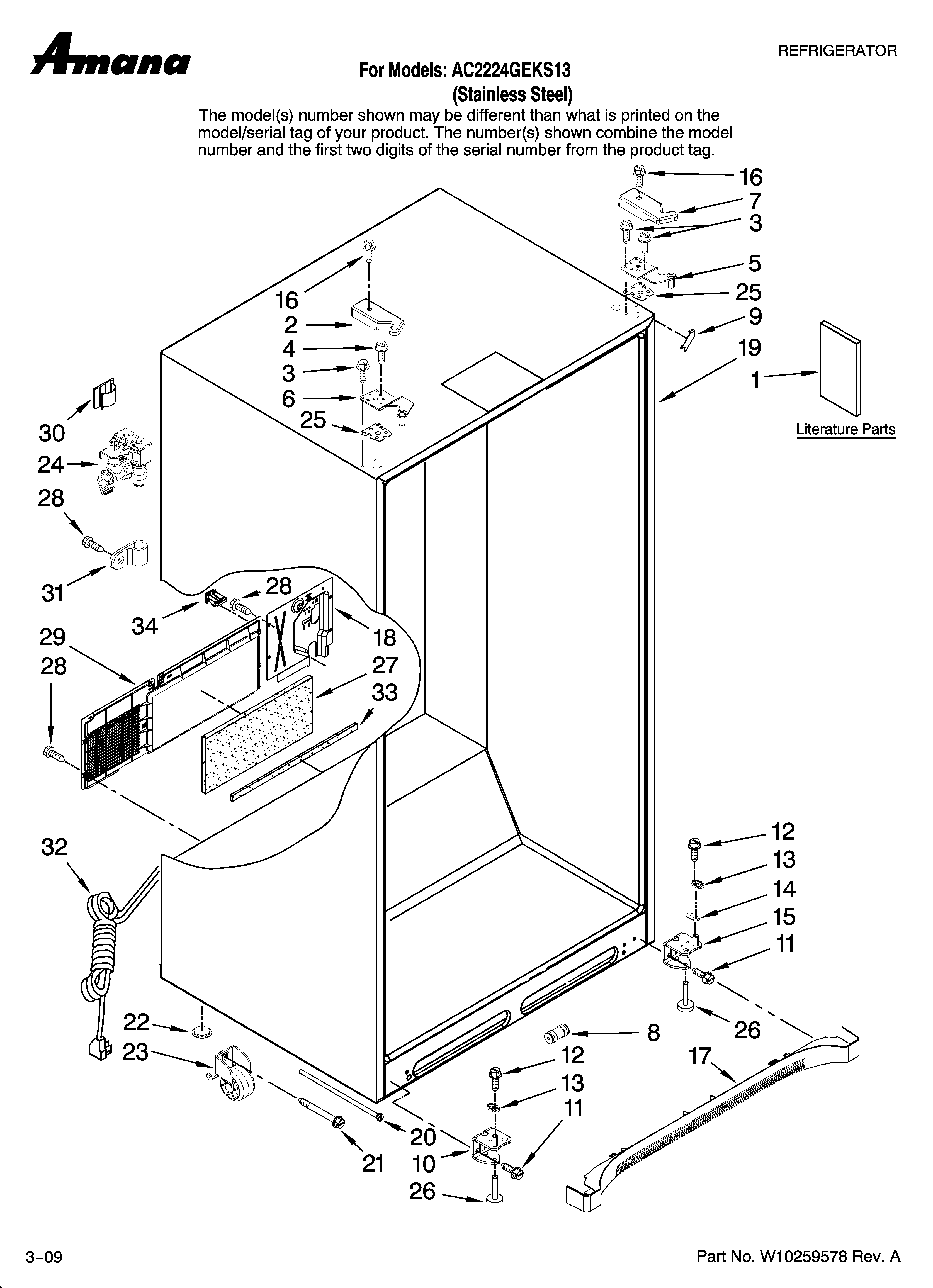

    Cabinet parts diagram

    Refrigerator water supply tube union, 5/16 x 5/16-in

    Part #61006182

    Replaced by #WP2300868

    ?
    Manufacturer substitution
    This part replaces 61006182. Substitute parts can look different from the original.
    BEST SELLER
    $15.55
    11% OFF Phone Price : $17.55
    In Stock

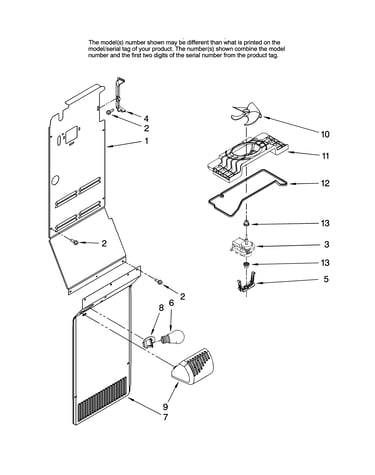

  • Refrigerator Fan Blade W10162928
    #17

    Unit parts diagram

    Refrigerator fan blade

    Part #W10162928

    Replaced by #W10156818

    ?
    Manufacturer substitution
    This part replaces W10162928. Substitute parts can look different from the original.
    BEST SELLER
    $44.74
    12% OFF Phone Price : $50.74
    In Stock
  • Refrigerator Water Filter Housing 12568001
    #28

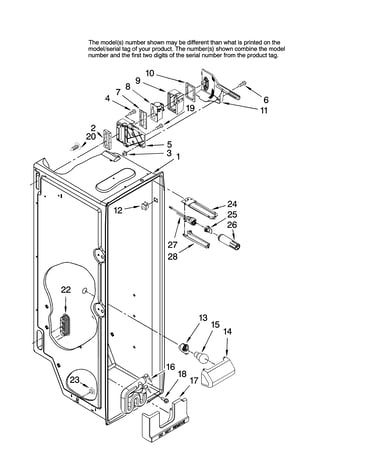

    Refrigerator liner parts diagram

    Refrigerator water filter housing

    Part #12568001

    Replaced by #WP12568001

    ?
    Manufacturer substitution
    This part replaces 12568001. Substitute parts can look different from the original.
    BEST SELLER
    $58.86
    9% OFF Phone Price : $64.86
    In Stock
  • Refrigerator Water Filter Bypass 12664501
    #25

    Refrigerator liner parts diagram

    Refrigerator water filter bypass

    Part #12664501

    Replaced by #W11395888

    ?
    Manufacturer substitution
    This part replaces 12664501. Substitute parts can look different from the original.
    BEST SELLER
    $31.98
    16% OFF Phone Price : $37.98
    In Stock

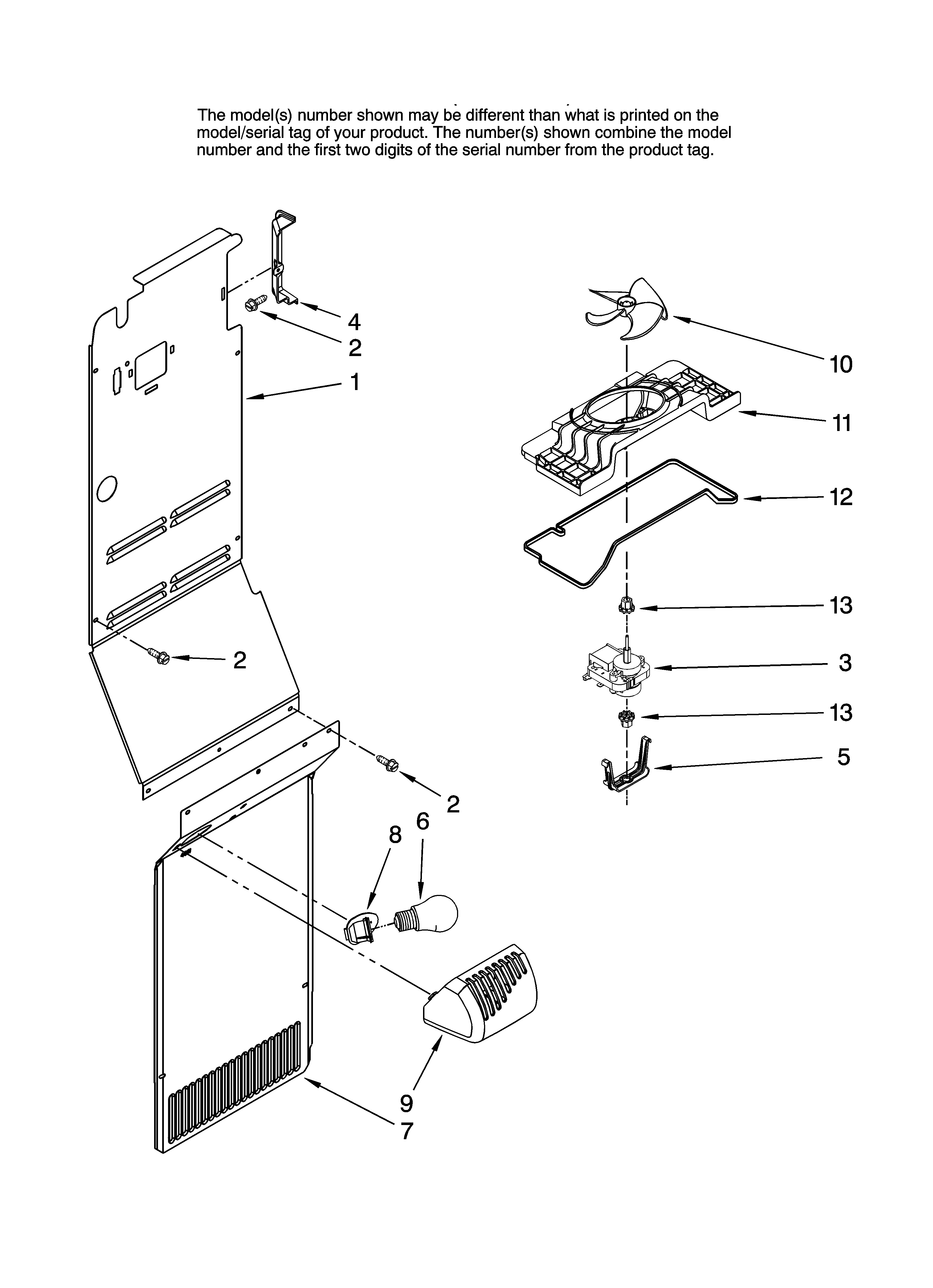

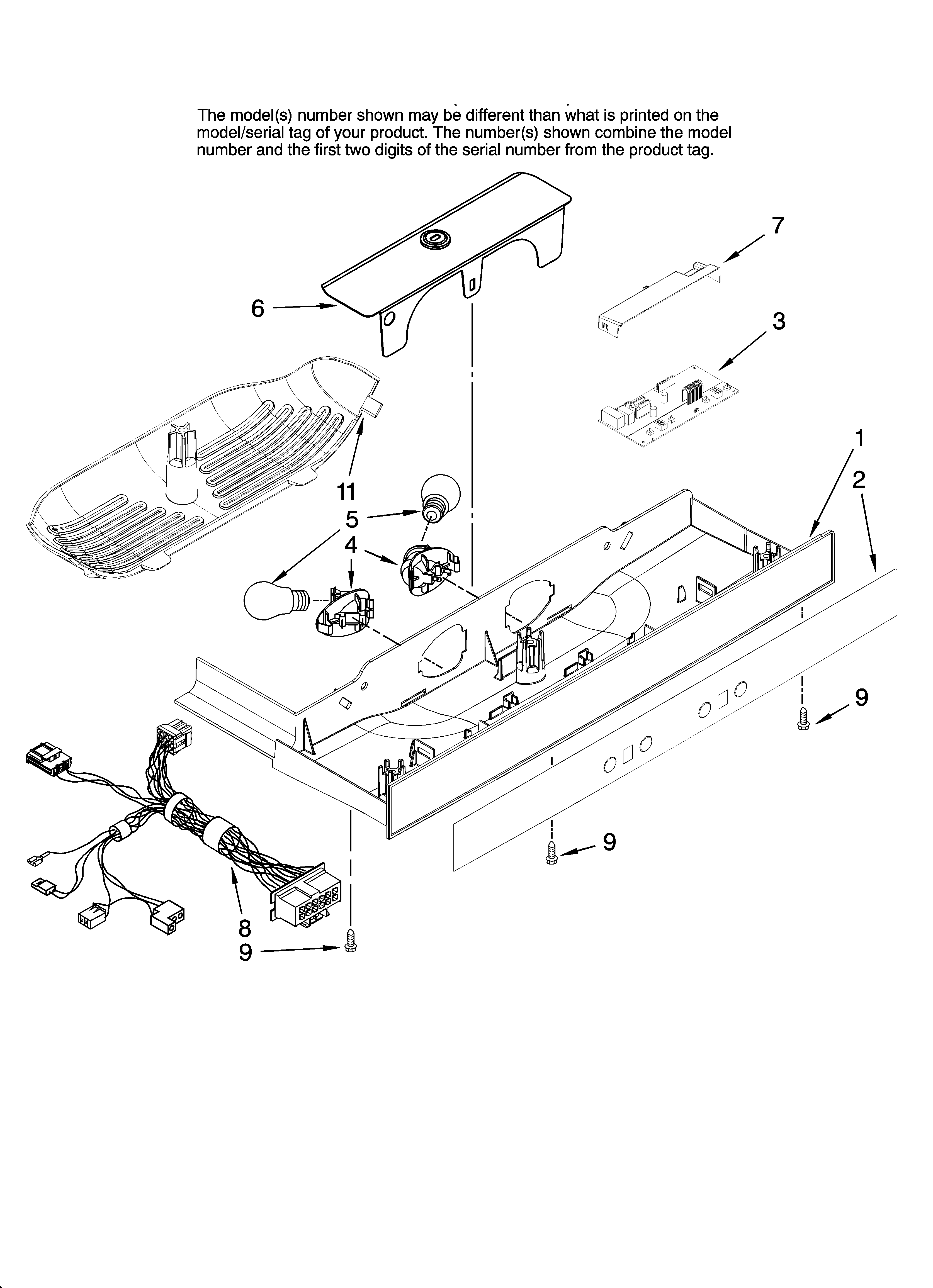

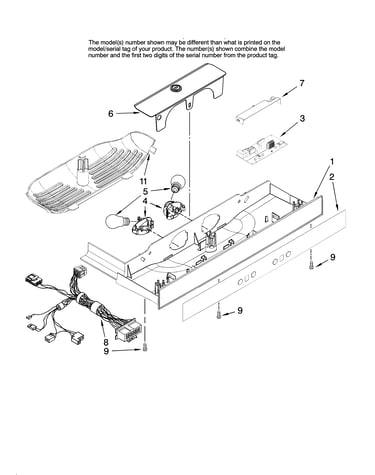

  • Refrigerator Light Socket 67005886
    Refrigerator light socket

    Part #67005886

    Replaced by #W11447232

    ?
    Manufacturer substitution
    This part replaces 67005886. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $7.82
    11% OFF Phone Price : $8.82
    In Stock
  • Refrigerator Screw 67006492
    #12

    Cabinet parts diagram

    Refrigerator screw

    Part #67006492

    Replaced by #WP489483

    ?
    Manufacturer substitution
    This part replaces 67006492. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $8.12
    11% OFF Phone Price : $9.12
    In Stock
