Model # S21ZPR Official Lawn-Boy lawn mower

Here are the diagrams and repair parts for Official Lawn-Boy S21ZPR lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

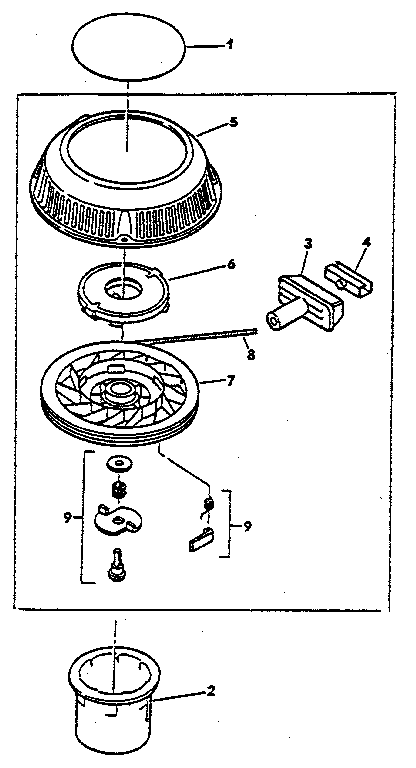

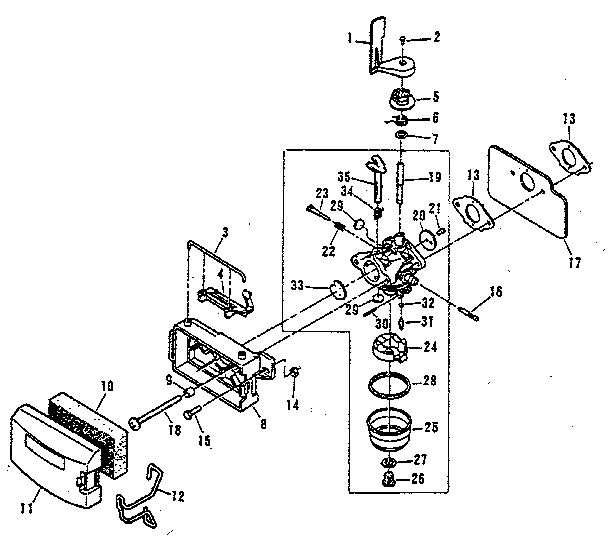

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 185 parts  |
Belt, 21-in 683682
#32

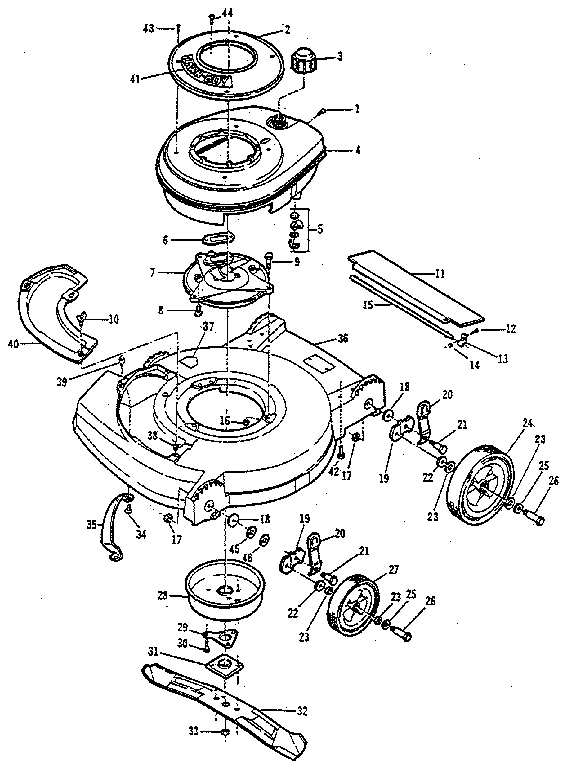

Housing and shroud group diagram

Belt, 21-in

Part #683682

Replaced by #612543-03

?
Manufacturer substitution
This part replaces 683682. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$31.17 |
19% OFF Was : $38.29
In Stock
Screw 145498
#20

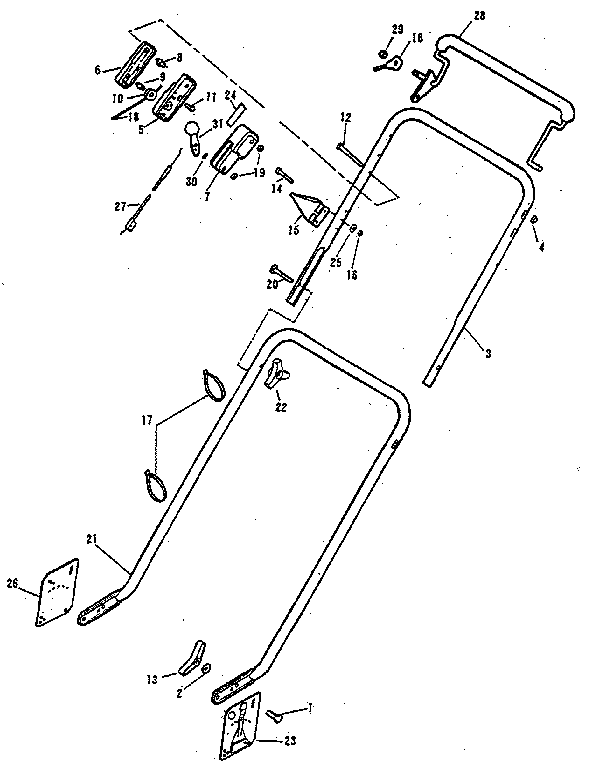

Handle group diagram

Screw

Part #145498

Replaced by #614697

?
Manufacturer substitution
This part replaces 145498. Substitute parts can look different from the original.
This item is not returnable
$5.29
In Stock
Carriage Bolt 800358
#1

Handle group diagram

Carriage bolt

Part #800358

Replaced by #3230-22

?
Manufacturer substitution
This part replaces 800358. Substitute parts can look different from the original.
This item is not returnable
$4.20
In Stock
Screw 611774
#9

Housing and shroud group diagram

Screw

Part #611774

Replaced by #611774

?
Manufacturer substitution
This part replaces 611774. Substitute parts can look different from the original.
This item is not returnable
$6.97
In Stock
Lock Strap 612740
#9

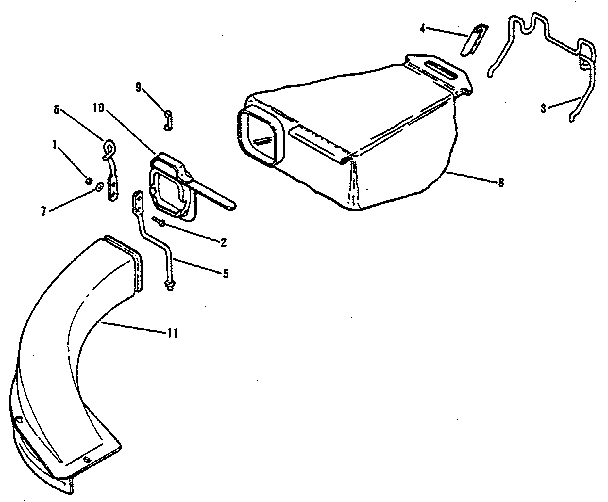

Rear grass catcher group diagram

Lock strap

Part #612740

Replaced by #92-1039

?
Manufacturer substitution
This part replaces 612740. Substitute parts can look different from the original.
$39.11
In Stock
Screw 612428
#44

Housing and shroud group diagram

Screw

Part #612428

Replaced by #612428

?
Manufacturer substitution
This part replaces 612428. Substitute parts can look different from the original.
This item is not returnable
$4.29
In Stock
Wire Lead Assembly 683821
#50

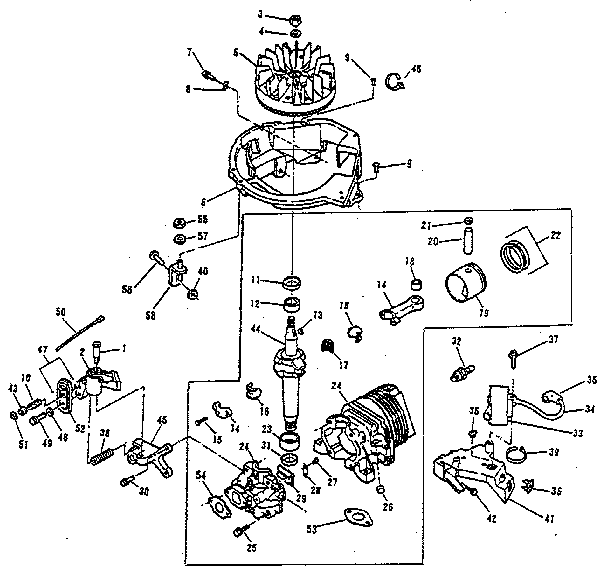

Engine group diagram

Wire lead assembly

Part #683821

Replaced by #683821

?
Manufacturer substitution
This part replaces 683821. Substitute parts can look different from the original.
$21.51
In Stock
Collar Plate 677525
#31

Housing and shroud group diagram

Collar plate

Part #677525

Replaced by #677525

?
Manufacturer substitution
This part replaces 677525. Substitute parts can look different from the original.
$30.89
In Stock
Nut 130743
#3

Engine group diagram

Nut

Part #130743

Replaced by #130743

?
Manufacturer substitution
This part replaces 130743. Substitute parts can look different from the original.
This item is not returnable
$5.29
In Stock
Bag Assembly 684168
Bag assembly

Part #684168

Replaced by #100-6362

?
Manufacturer substitution
This part replaces 684168. Substitute parts can look different from the original.
$217.11
In Stock
