Model # WA45H7200AP/A2-00 Official Samsung washer
Here are the diagrams and repair parts for Official Samsung WA45H7200AP/A2-00 washer, as well as links to manuals and error code tables, if available.
By Schematic
By Part

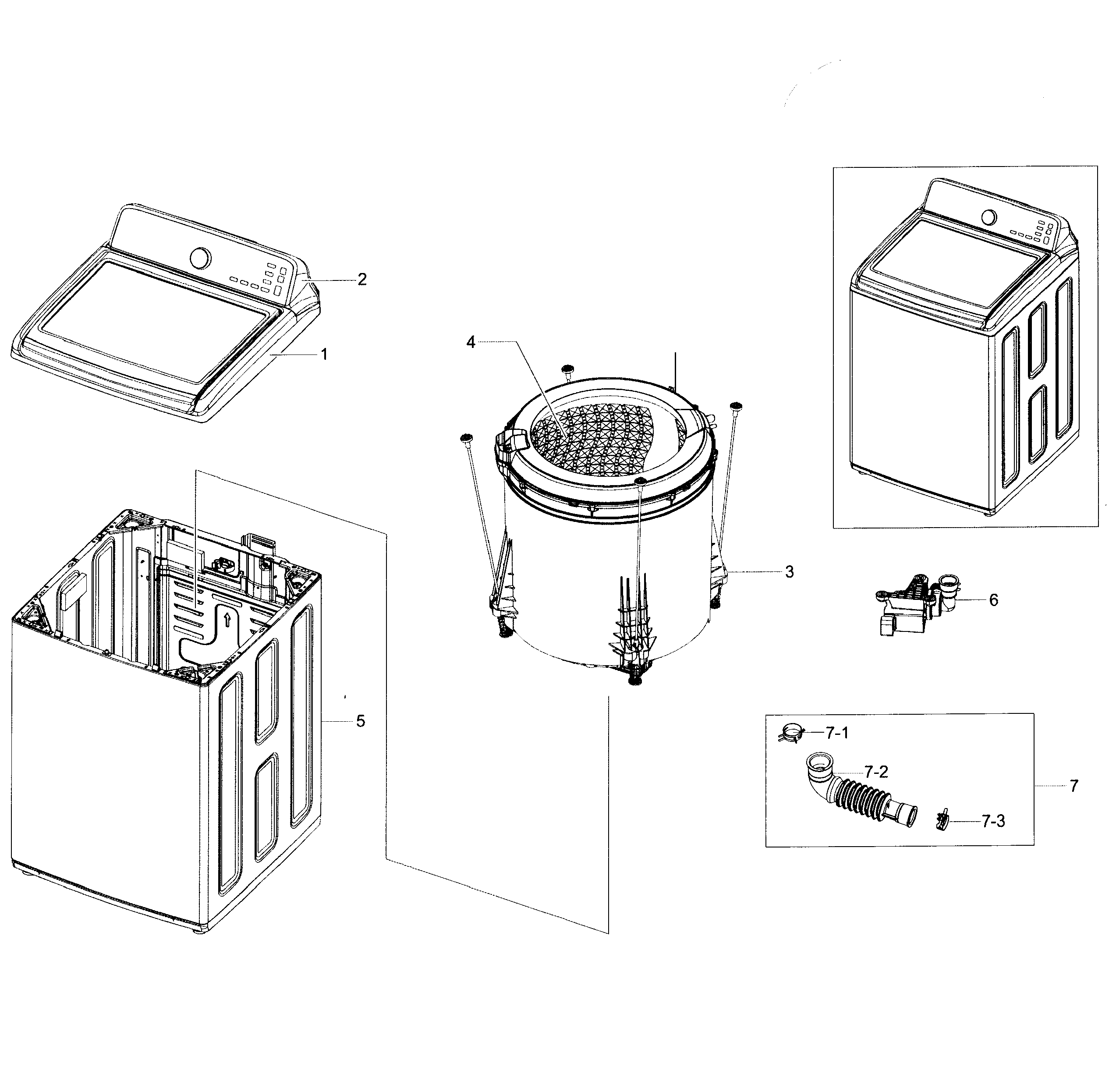

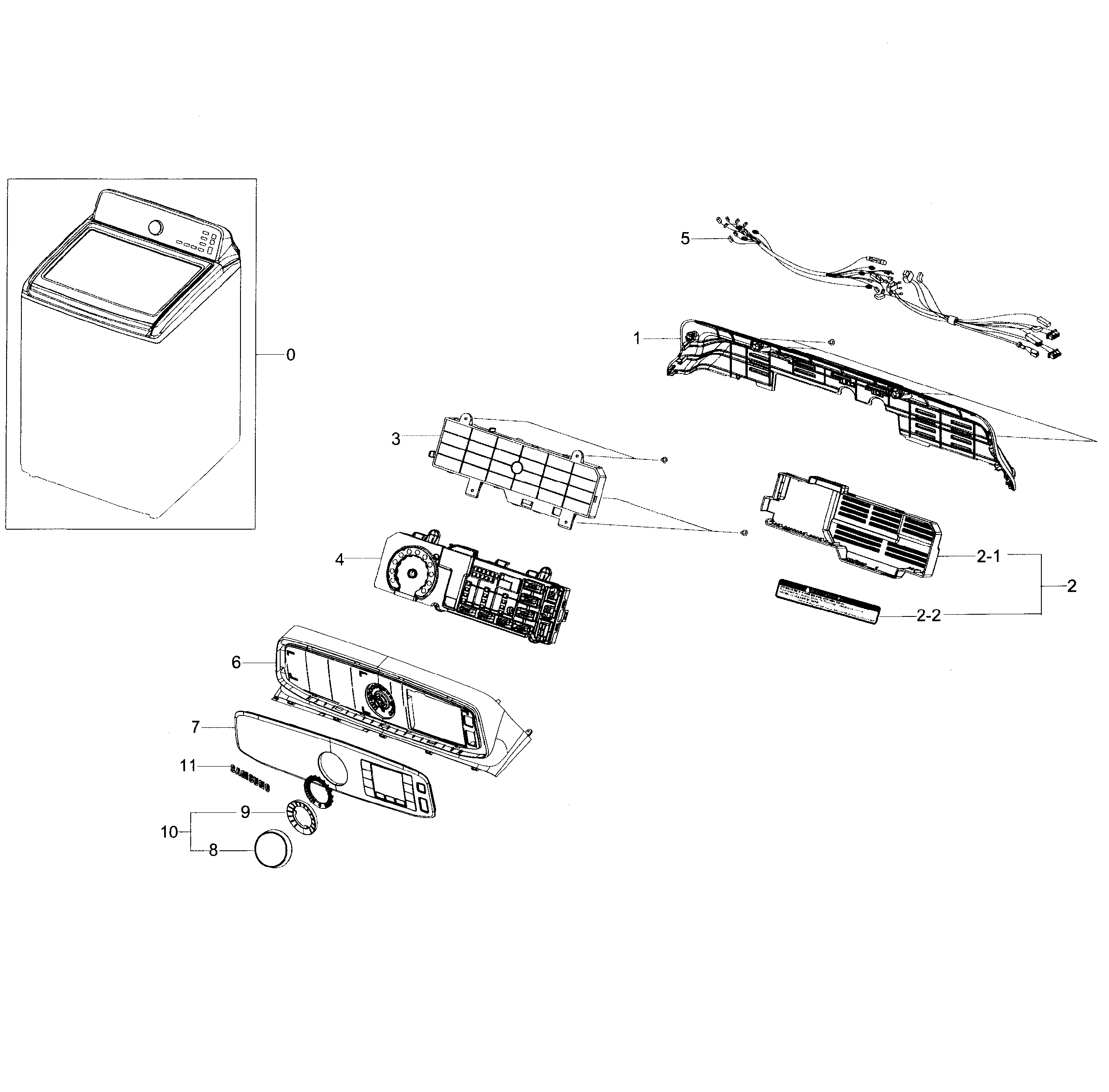

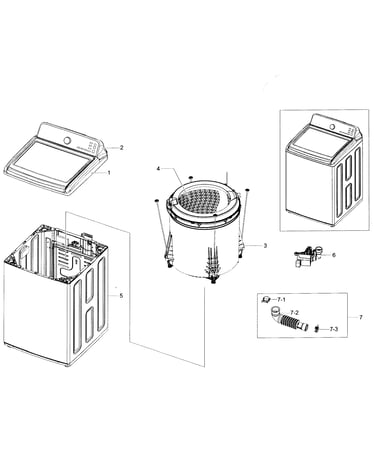

SELECT DIAGRAM
Browse Parts for
WA45H7200AP/A2-00 Washer
#10

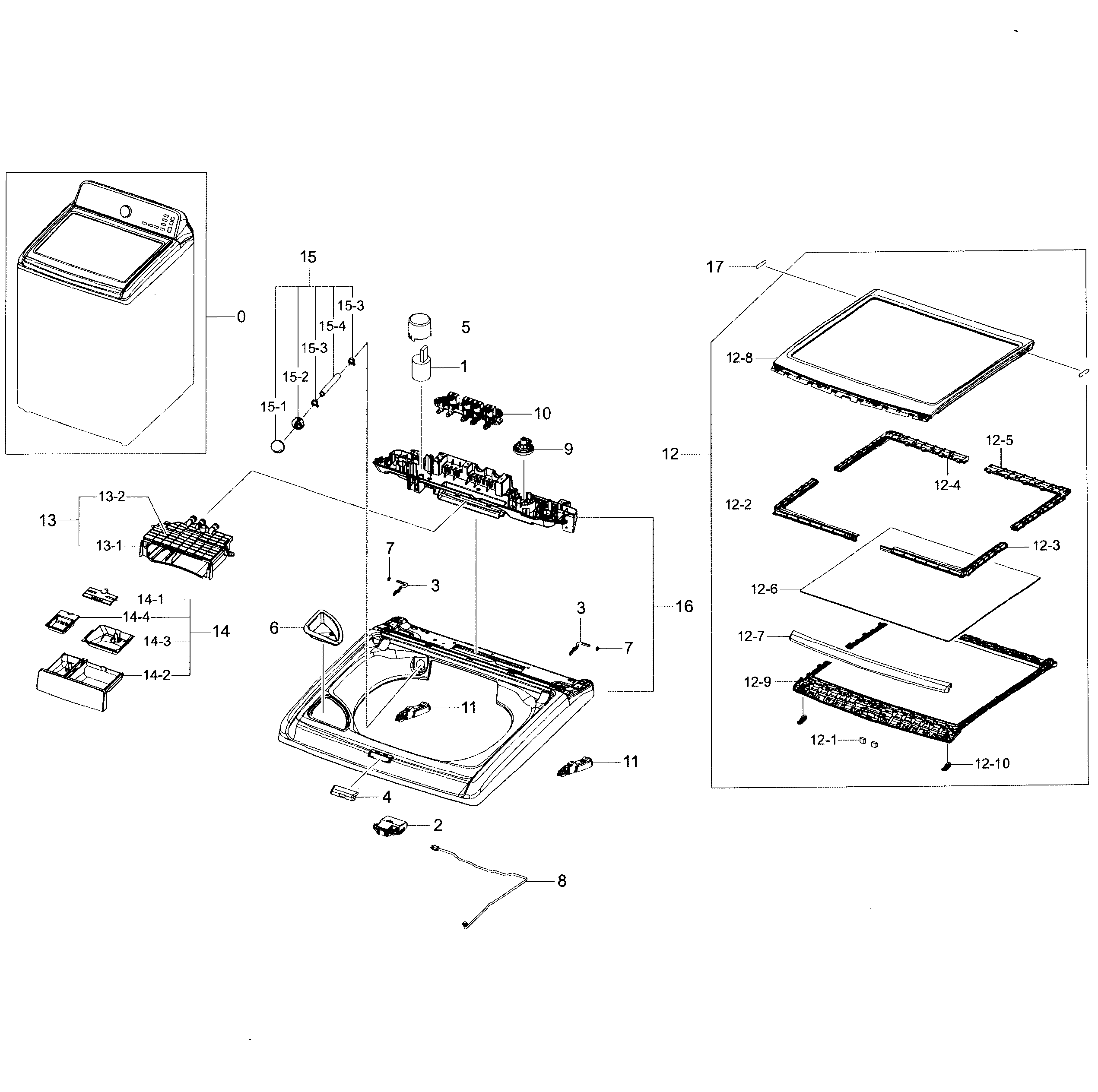

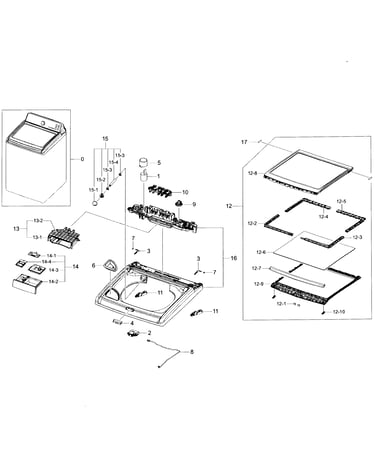

Cover-top diagram
Washer water inlet valve
Part #DC97-15459G
$99.48 |
11% OFF Phone Price : $111.48
In Stock
#2
Cover-top diagram
Washer door lock assembly
Part #DC34-00025A
Replaced by #DC34-00025E
?
Manufacturer substitution
This part replaces DC34-00025A. Substitute parts can look different from the original.
$113.95 |
10% OFF Phone Price : $125.95
In Stock
#1-11

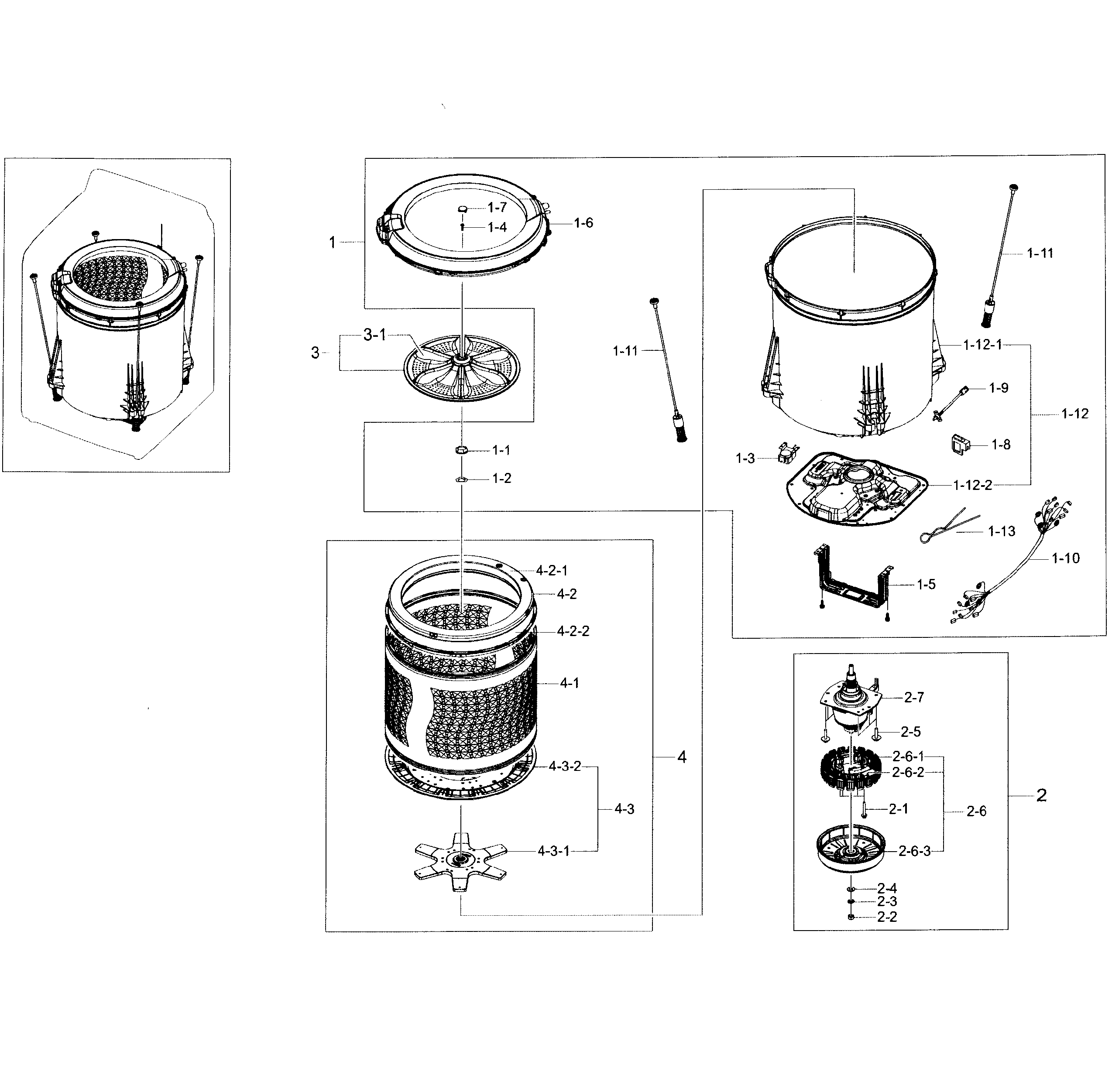

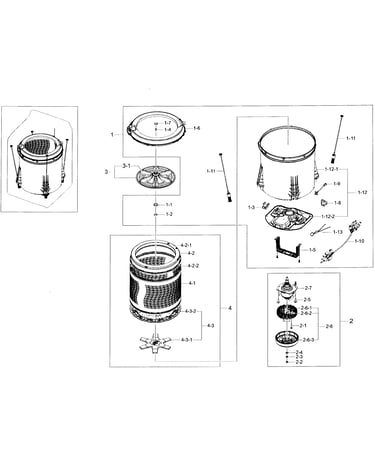

Tub parts diagram
Washer damper
Part #DC97-16350E
$89.62 |
6% OFF Phone Price : $95.62
In Stock
#5-1

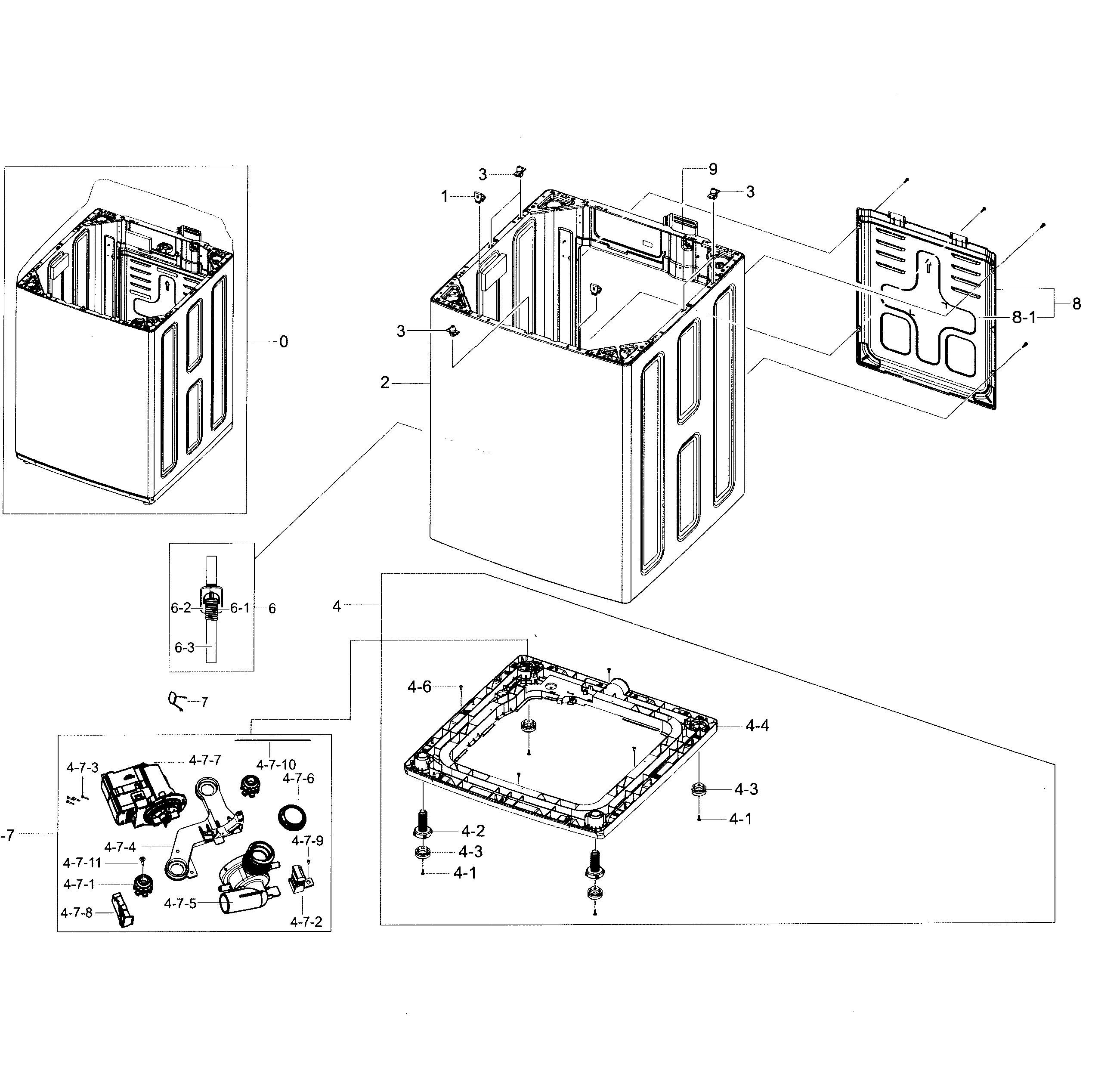

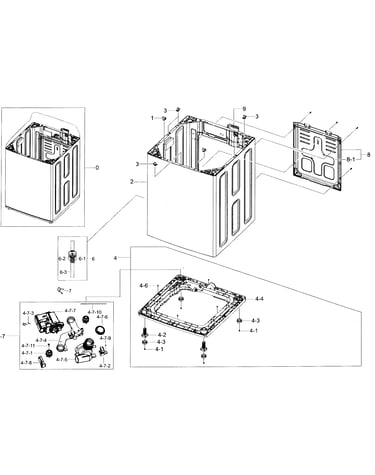

Frame diagram
Washer nut
Part #DC61-00201A
This item is not returnable
$3.64 |
22% OFF Phone Price : $4.64
In Stock
#1-8
Tub parts diagram
Washer thermistor (replaces dc90-10128h)
Part #DC90-10128N
$43.26 |
12% OFF Phone Price : $49.26
In Stock
Refrigerator screw (replaces 6002-000231, 6002-000494)
Part #6002-000213
This item is not returnable
$30.77
Back Order
#9
Cover-top diagram
Washer water-level pressure switch
Part #DC96-01703C
$66.28 |
8% OFF Phone Price : $72.28
In Stock
#3
Tub parts diagram
Samsung washer washplate
Part #DC97-18154A
$151.13 |
7% OFF Phone Price : $163.13
In Stock
#1-4
Tub parts diagram
Washer bolt
Part #DC60-40133A
This item is not returnable
$7.07 |
12% OFF Phone Price : $8.07
In Stock
#4-2
Frame diagram
Washer leveling leg
Part #DC61-01722B
This item is not returnable
$7.36 |
12% OFF Phone Price : $8.36
In Stock
