GE
Electric Wall Oven

Model # JTP35WM2WW Official GE electric oven

Here are the diagrams and repair parts for Official GE JTP35WM2WW electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

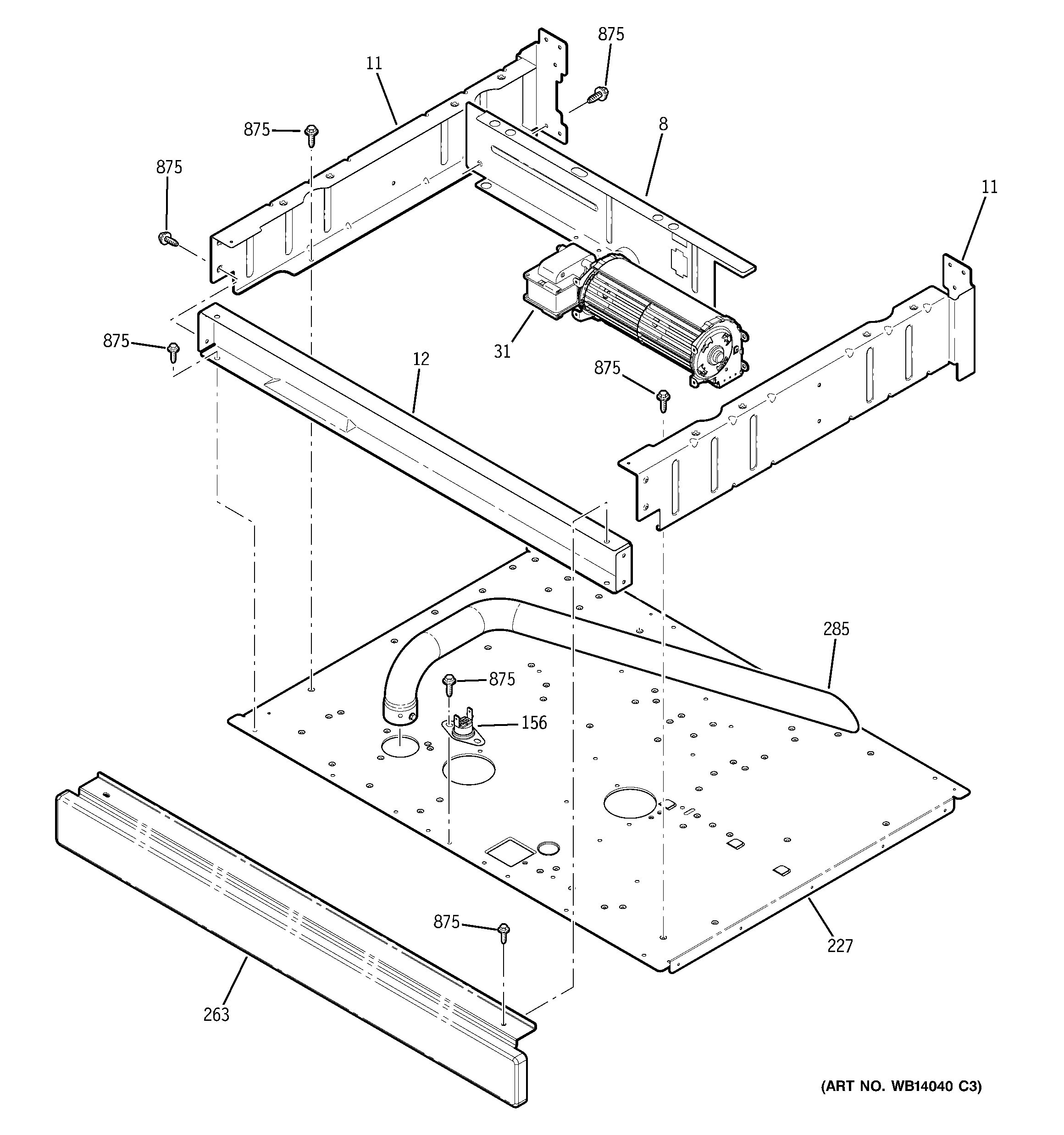

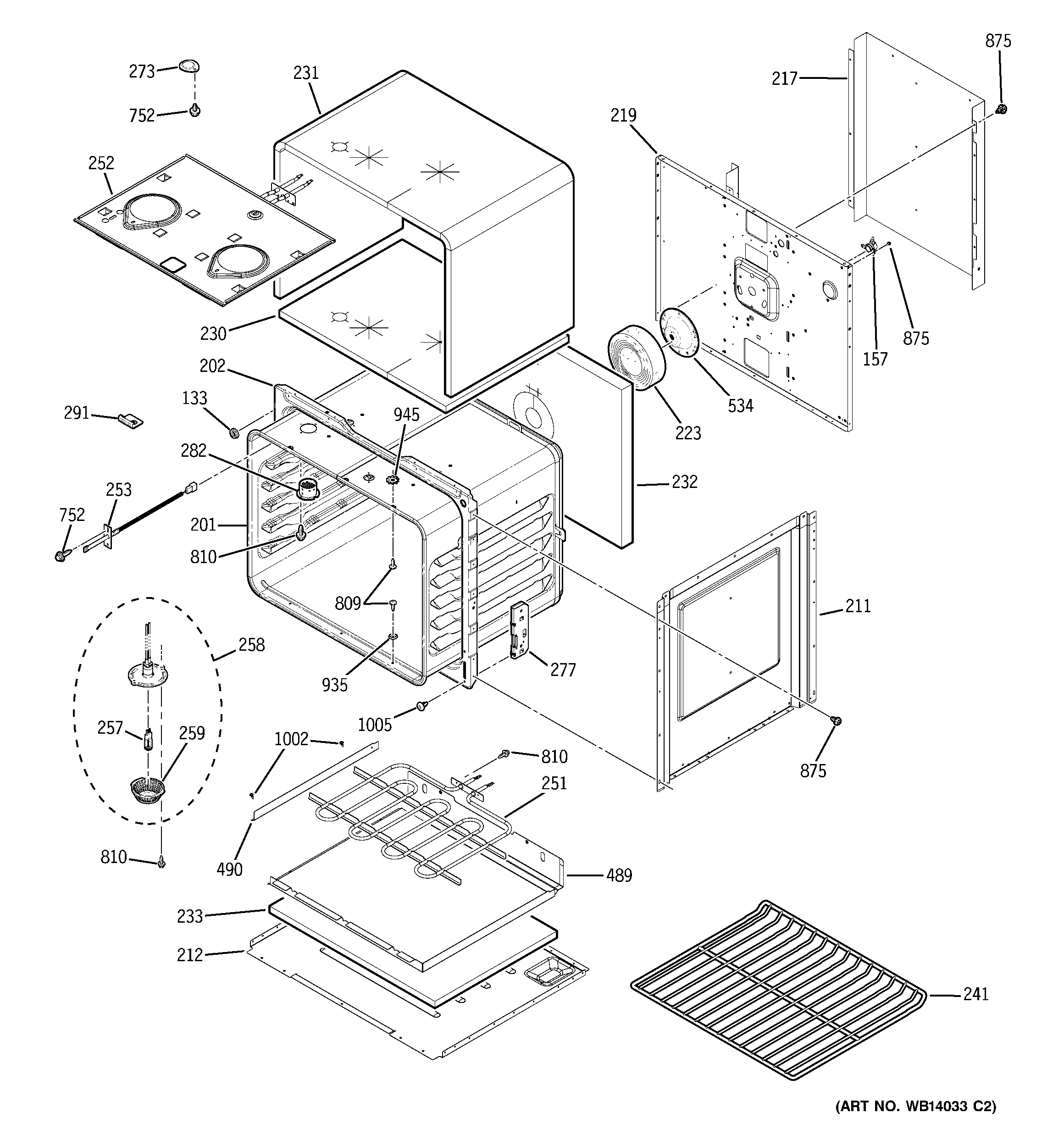

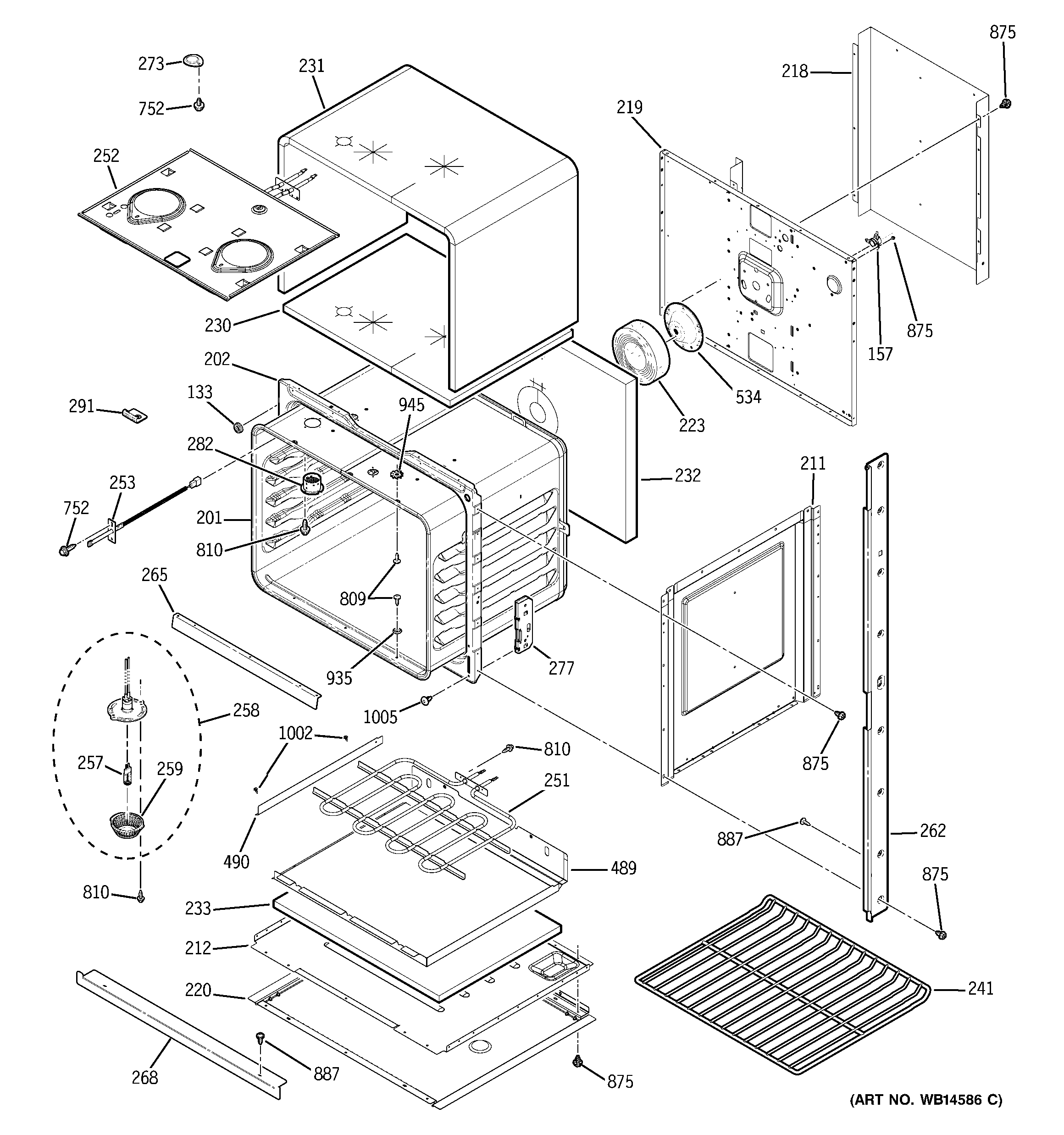

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |
Oven Lamp WB08T10022
Oven lamp

Part #WB08T10022

Replaced by #40A15

?
Manufacturer substitution
This part replaces WB08T10022. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Wall Oven Temperature Sensor WB23T10015
Wall oven temperature sensor

Part #WB23T10015

BEST SELLER
$26.19 |
19% OFF Phone Price : $32.19
In Stock
Pack Window WB56T10152
#338

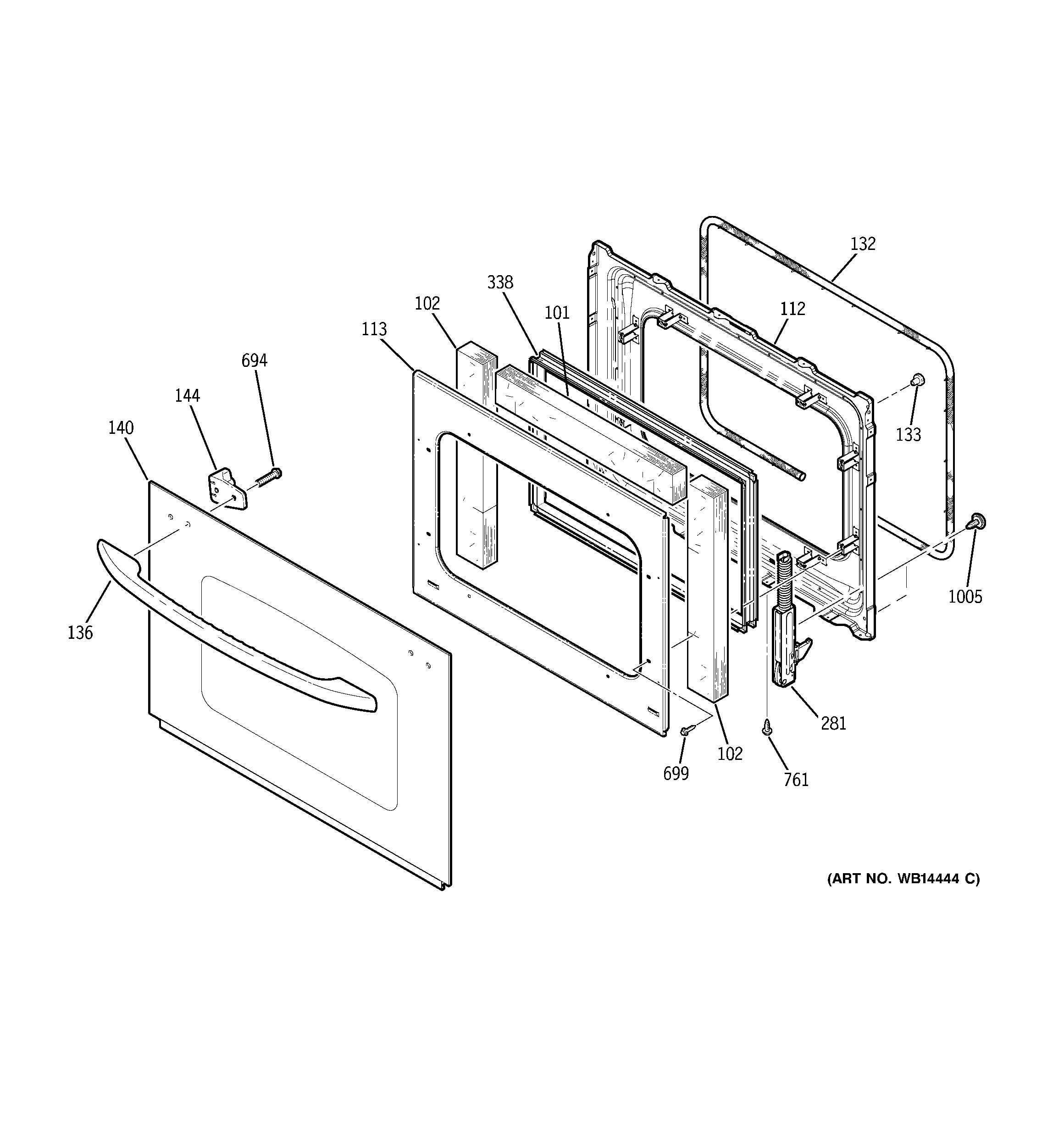

Door diagram

Pack window

Part #WB56T10152

Replaced by #WB56X22160

?
Manufacturer substitution
This part replaces WB56T10152. Substitute parts can look different from the original.
BEST SELLER
$359.05 |
$12.00 OFF Phone Price : $371.05
In Stock
Oven Lamp Holder WB08T10002
Oven lamp holder

Part #WB08T10002

Replaced by #WB08T10002

?
Manufacturer substitution
This part replaces WB08T10002. Substitute parts can look different from the original.
BEST SELLER
$34.45 |
15% OFF Phone Price : $40.45
In Stock
Cooking Appliance Screw, #10-32 (replaces Wb1t10008) WB01T10008
Cooking appliance screw, #10-32 (replaces wb1t10008)

Part #WB01T10008

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Blower Fan WB26T10048
#32

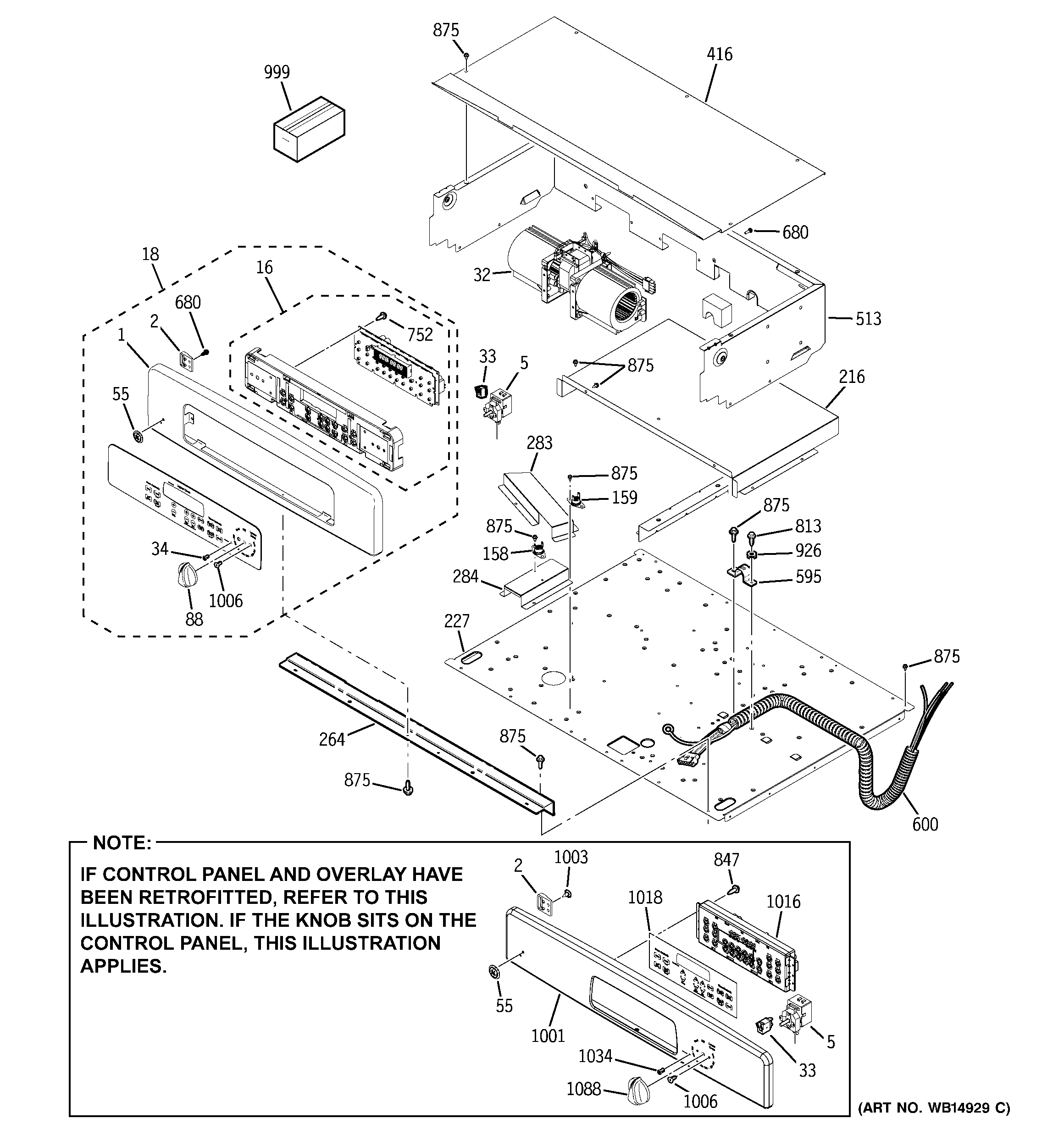

Control panel diagram

Blower fan

Part #WB26T10048

Replaced by #WB26X10264

?
Manufacturer substitution
This part replaces WB26T10048. Substitute parts can look different from the original.
$117.68 |
9% OFF Phone Price : $129.68
In Stock
Screw WB01K5150
#699

Door diagram

Screw

Part #WB01K5150

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01K5150. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Screw-10-32 WB01X1130
Screw-10-32

Part #WB01X1130

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces WB01X1130. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WH02X0930
Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Door Gasket WB04T10050
#132

Door diagram

Range oven door gasket

Part #WB04T10050

$48.78 |
11% OFF Phone Price : $54.78
In Stock
