Kenmore
Gas Range

Model # 1033136560 Official Kenmore gas counter unit

Here are the diagrams and repair parts for Official Kenmore 1033136560 gas counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |
Speed Nut 71351
#50

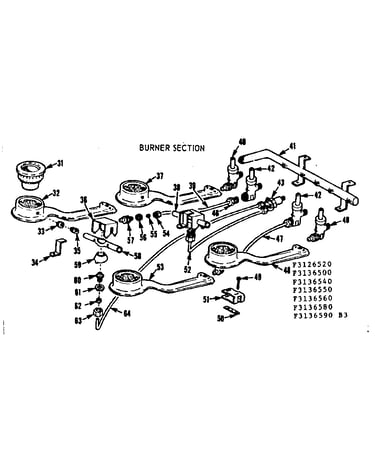

Burner section diagram

Speed nut

Part #71351

This item is not returnable
$2.16
In Stock
Pilot Nut 102064
#61

Burner section diagram

Pilot nut

Part #102064

This item is not returnable
$2.16
In Stock
Tube 102706
Tube

Part #102706

Replaced by #100108370

?
Manufacturer substitution
This part replaces 102706. Substitute parts can look different from the original.
$36.67
In Stock
Loxit Nut 79719
#46

Burner section diagram

Loxit nut

Part #79719

Replaced by #100108370

?
Manufacturer substitution
This part replaces 79719. Substitute parts can look different from the original.
$36.67
In Stock
Pilot Housng 102065
#59

Burner section diagram

Pilot housng

Part #102065

The manufacturer no longer makes this part, and there's no substitute part

Orifice Fitting 79830
#57

Burner section diagram

Orifice fitting

Part #79830

The manufacturer no longer makes this part, and there's no substitute part

Burner Head 103736
#31

Burner section diagram

Burner head

Part #103736

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 85177
#55

Burner section diagram

Sleeve

Part #85177

The manufacturer no longer makes this part, and there's no substitute part

Burner Valve 102729
#40

Burner section diagram

Burner valve

Part #102729

The manufacturer no longer makes this part, and there's no substitute part

Valve Knob 113104
#4

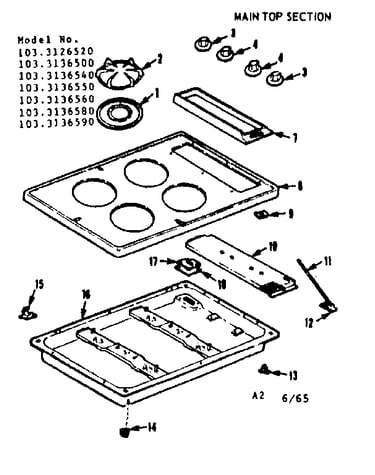

Main top section diagram

Valve knob

Part #113104

The manufacturer no longer makes this part, and there's no substitute part
