Model # VWXR4100T8WB Official Hotpoint washer
Here are the diagrams and repair parts for Official Hotpoint VWXR4100T8WB washer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
VWXR4100T8WB Washer
#325

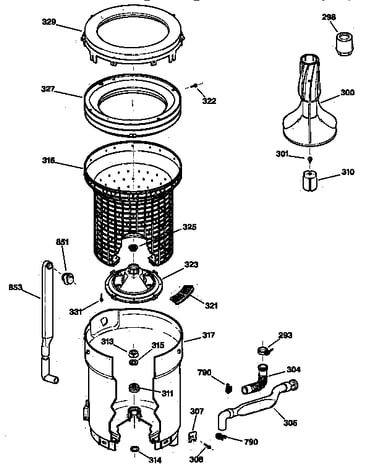

Tub, basket & agitator diagram
Washer hub nut (replaces wh02x1193)
Part #WH2X1193
$10.38 |
16% OFF Phone Price : $12.38
In Stock
#311
Tub, basket & agitator diagram
Seal
Part #WH2X1196
Replaced by #WH02X10383
?
Manufacturer substitution
This part replaces WH2X1196. Substitute parts can look different from the original.
$11.56 |
15% OFF Phone Price : $13.56
In Stock
#315
Tub, basket & agitator diagram
Washer tub mounting hub washer (replaces wh02x1199)
Part #WH2X1199
$6.94 |
13% OFF Phone Price : $7.94
In Stock
#314
Tub, basket & agitator diagram
Washer tub bearing washer (replaces wh02x1197)
Part #WH2X1197
$8.00 |
11% OFF Phone Price : $9.00
In Stock
#655

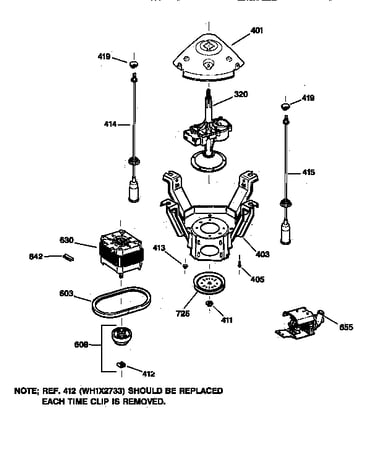

Suspension, pump & drive components diagram
Pump bracket label
Part #WH23X91
Replaced by #WH23X10030
?
Manufacturer substitution
This part replaces WH23X91. Substitute parts can look different from the original.
$58.79 |
9% OFF Phone Price : $64.79
Back Order
#415
Suspension, pump & drive components diagram
Washer suspension rod kit (replaces wh16x0543)
Part #WH16X543
$33.98 |
15% OFF Phone Price : $39.98
In Stock
#825

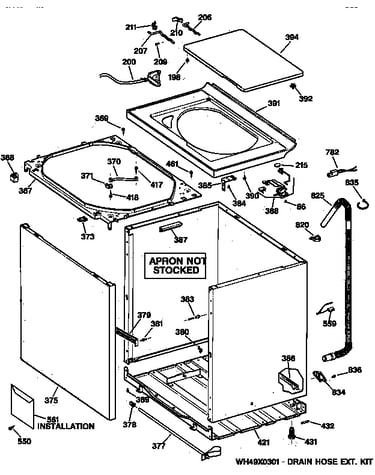

Cabinet, cover & front panel diagram
Hose dr ex
Part #WH41X367
Replaced by #WH41X10096
?
Manufacturer substitution
This part replaces WH41X367. Substitute parts can look different from the original.
$22.74 |
21% OFF Phone Price : $28.74
In Stock
#310
Tub, basket & agitator diagram
Coupl agit
Part #WH43X137
Replaced by #WH49X10042
?
Manufacturer substitution
This part replaces WH43X137. Substitute parts can look different from the original.
$21.12 |
22% OFF Phone Price : $27.12
In Stock
#301
Tub, basket & agitator diagram
Screw
Part #WH2X1200
Replaced by #WH49X10042
?
Manufacturer substitution
This part replaces WH2X1200. Substitute parts can look different from the original.
$21.12 |
22% OFF Phone Price : $27.12
In Stock
#811

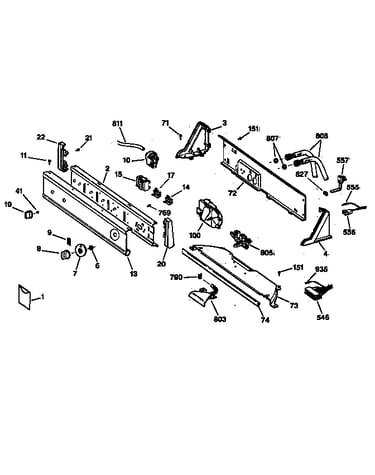

Controls & backsplash diagram
Washer water-level pressure switch hose (replaces wh41x0365)
Part #WH41X365
$7.88 |
11% OFF Phone Price : $8.88
In Stock
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
- $15.47 |11% OFF Phone Price : $17.47
- $37.67
- $34.67
Most common symptoms to help you fix your washers
Choose a symptom to see related washer repairs.
Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…
