GE
Microwave/Hood Combo

Model # JNM1541LP2CS Official GE microwave

Here are the diagrams and repair parts for Official GE JNM1541LP2CS microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Switch-micro WB24X10038
#25

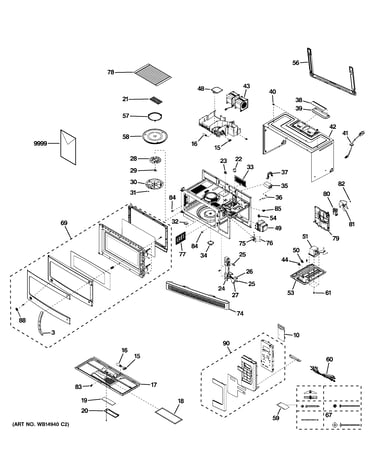

Microwave diagram

Switch-micro

Part #WB24X10038

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X10038. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Micro-switch WB24X10075
#26

Microwave diagram

Micro-switch

Part #WB24X10075

Replaced by #WB24X830

?
Manufacturer substitution
This part replaces WB24X10075. Substitute parts can look different from the original.
BEST SELLER
$26.26 |
19% OFF Phone Price : $32.26
In Stock
Microwave Magnetron (replaces Wb27t10545) WB27X11079
#49

Microwave diagram

Microwave magnetron (replaces wb27t10545)

Part #WB27X11079

BEST SELLER
$125.59 |
9% OFF Phone Price : $137.59
In Stock
Microwave Latch Body WB06X10676
#24

Microwave diagram

Microwave latch body

Part #WB06X10676

BEST SELLER
$58.66 |
9% OFF Phone Price : $64.66
In Stock
Microwave Noise Filter WB02X11200
#75

Microwave diagram

Microwave noise filter

Part #WB02X11200

BEST SELLER
$95.29 |
11% OFF Phone Price : $107.29
In Stock
Microwave High-voltage Capacitor (replaces Wb27x598) WB27X10240
#35

Microwave diagram

Microwave high-voltage capacitor (replaces wb27x598)

Part #WB27X10240

BEST SELLER
$89.57 |
6% OFF Phone Price : $95.57
In Stock
Microwave High-voltage Transformer WB20X10043
#51

Microwave diagram

Microwave high-voltage transformer

Part #WB20X10043

BEST SELLER
$133.23 |
8% OFF Phone Price : $145.23
Back Order
Microwave Turntable Motor WB26X10233
#34

Microwave diagram

Microwave turntable motor

Part #WB26X10233

BEST SELLER
$32.99 |
15% OFF Phone Price : $38.99
In Stock
Microwave Light Bulb (replaces Wb2x4235, Wb36x0898, Wb36x0936, Wb36x10306, Wb36x898, Wb36x936, Wb6x15) WB36X10003
#16

Microwave diagram

Microwave light bulb (replaces wb2x4235, wb36x0898, wb36x0936, wb36x10306, wb36x898, wb36x936, wb6x15)

Part #WB36X10003

This item is not returnable
$13.60 |
13% OFF Phone Price : $15.60
In Stock
Microwave Magnetron Thermostat WB27X11095
#54

Microwave diagram

Microwave magnetron thermostat

Part #WB27X11095

$7.88 |
11% OFF Phone Price : $8.88
In Stock
