Admiral
Gas Range

Model # 676WJ-KSVW Official Admiral gas freestanding range

Here are the diagrams and repair parts for Official Admiral 676WJ-KSVW gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |
Bake Igniter 7432P052-60
#7

Control system diagram

Bake igniter

Part #7432P052-60

Replaced by #12400035

?
Manufacturer substitution
This part replaces 7432P052-60. Substitute parts can look different from the original.
BEST SELLER
$39.28 |
13% OFF Phone Price : $45.28
In Stock
Bake Igniter 7432P062-60
#7A

Control system diagram

Bake igniter

Part #7432P062-60

Replaced by #12400035

?
Manufacturer substitution
This part replaces 7432P062-60. Substitute parts can look different from the original.
BEST SELLER
$39.28 |
13% OFF Phone Price : $45.28
In Stock
Screw 7101P115-60
#10

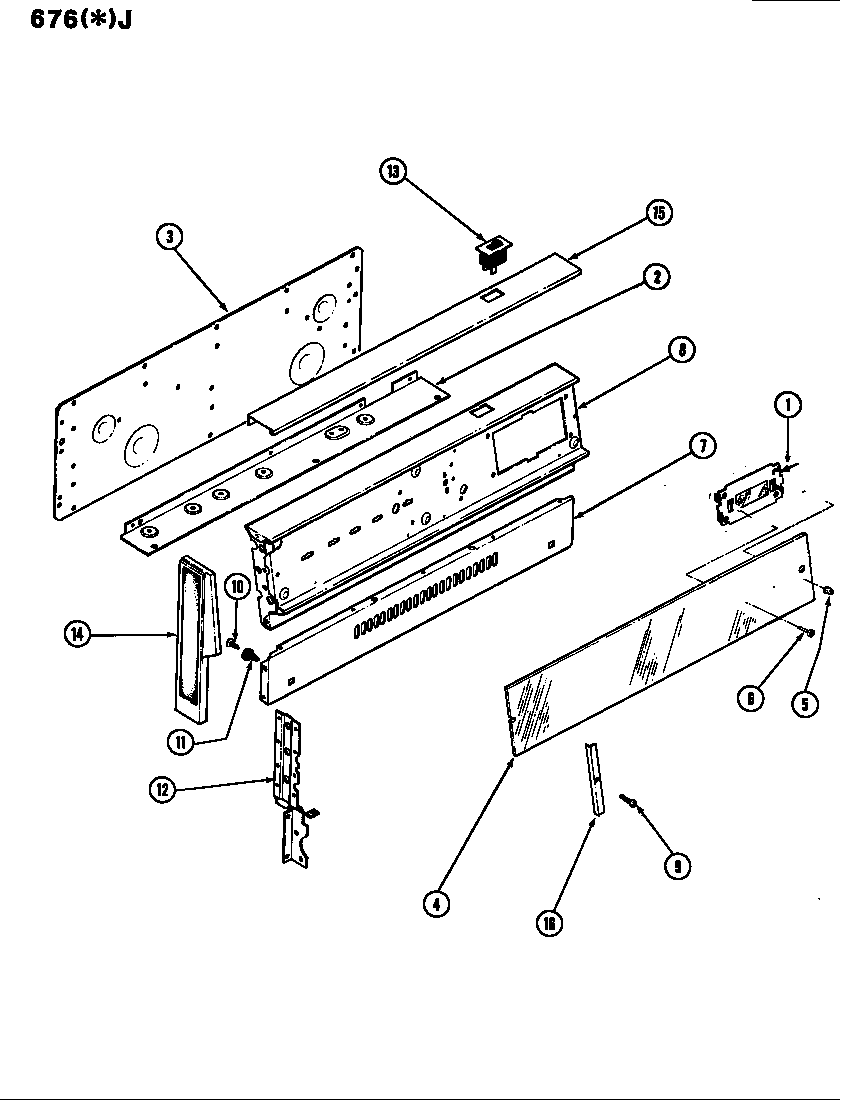

Control panel diagram

Screw

Part #7101P115-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P115-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Spring 7803P002-60
Spring

Part #7803P002-60

Replaced by #WP7803P058-60

?
Manufacturer substitution
This part replaces 7803P002-60. Substitute parts can look different from the original.
This item is not returnable
$11.16 |
15% OFF Phone Price : $13.16
In Stock
Range Screw 7101P126-60
#17

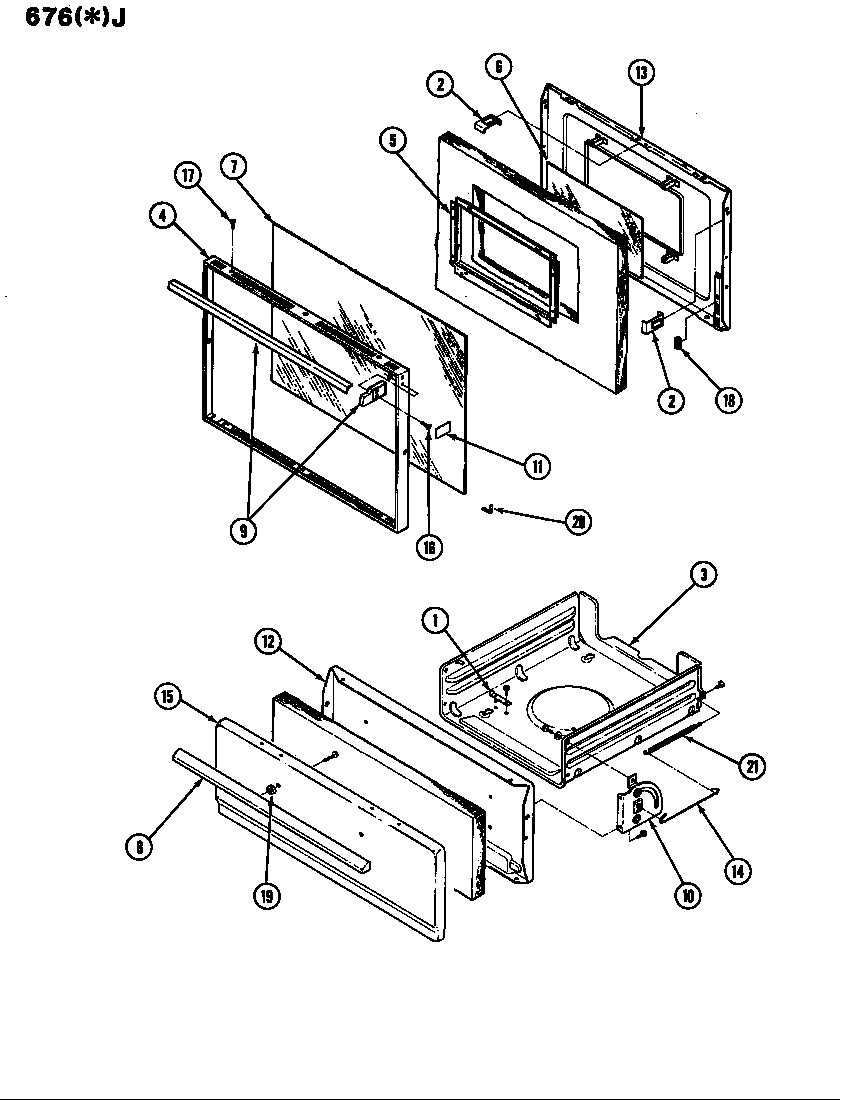

Door diagram

Range screw

Part #7101P126-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P126-60. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Thermostat Clip 7112P004-60
#9A

Body diagram

Thermostat clip

Part #7112P004-60

Replaced by #WP7112P004-60

?
Manufacturer substitution
This part replaces 7112P004-60. Substitute parts can look different from the original.
This item is not returnable
$8.99 |
10% OFF Phone Price : $9.99
In Stock
Seal 7208P011-60
#18

Door diagram

Seal

Part #7208P011-60

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 7208P011-60. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Switch 7403P041-60
#14

Control system diagram

Switch

Part #7403P041-60

Replaced by #WP7403P190-60

?
Manufacturer substitution
This part replaces 7403P041-60. Substitute parts can look different from the original.
$54.58 |
10% OFF Phone Price : $60.58
In Stock
Range Wing Nut 7103P030-60
#9

Control system diagram

Range wing nut

Part #7103P030-60

$8.49 |
11% OFF Phone Price : $9.49
In Stock
Broiler Pan 3401F004-23
#23

Body diagram

Broiler pan

Part #3401F004-23

Replaced by #4396923

?
Manufacturer substitution
This part replaces 3401F004-23. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
