Air Compressor

Model # 283150460 Official Craftsman air compressor

Here are the diagrams and repair parts for Official Craftsman 283150460 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Cord 633794
#25

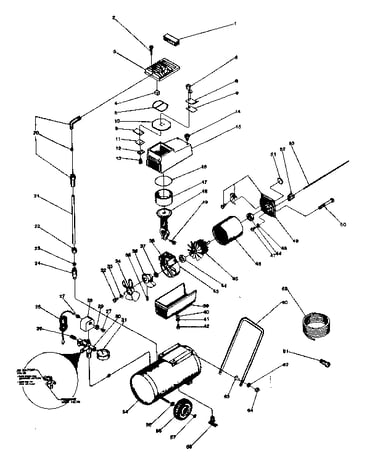

Unit parts diagram

Cord

Part #633794

The manufacturer no longer makes this part, and there's no substitute part

Drain Fittng 624200
#58

Unit parts diagram

Drain fittng

Part #624200

The manufacturer no longer makes this part, and there's no substitute part

Bearing Assembly 663082
#45

Unit parts diagram

Bearing assembly

Part #663082

The manufacturer no longer makes this part, and there's no substitute part

Plain Washer 626046
#55

Unit parts diagram

Plain washer

Part #626046

The manufacturer no longer makes this part, and there's no substitute part

Check Valve 633816
#24

Unit parts diagram

Check valve

Part #633816

The manufacturer no longer makes this part, and there's no substitute part

Screw 625349
#63

Unit parts diagram

Screw

Part #625349

The manufacturer no longer makes this part, and there's no substitute part

Fan 633653
#34

Unit parts diagram

Fan

Part #633653

The manufacturer no longer makes this part, and there's no substitute part

Exhaust Tube 615653
#21

Unit parts diagram

Exhaust tube

Part #615653

The manufacturer no longer makes this part, and there's no substitute part

Screw 625413
#47

Unit parts diagram

Screw

Part #625413

The manufacturer no longer makes this part, and there's no substitute part

Tank 661674-313
#54

Unit parts diagram

Tank

Part #661674-313

The manufacturer no longer makes this part, and there's no substitute part
