Model # NGM8065UC/02 Official Bosch cooktop

Here are the diagrams and repair parts for Official Bosch NGM8065UC-02 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Range Surface Burner Igniter (replaces 631633) 00631633
#207

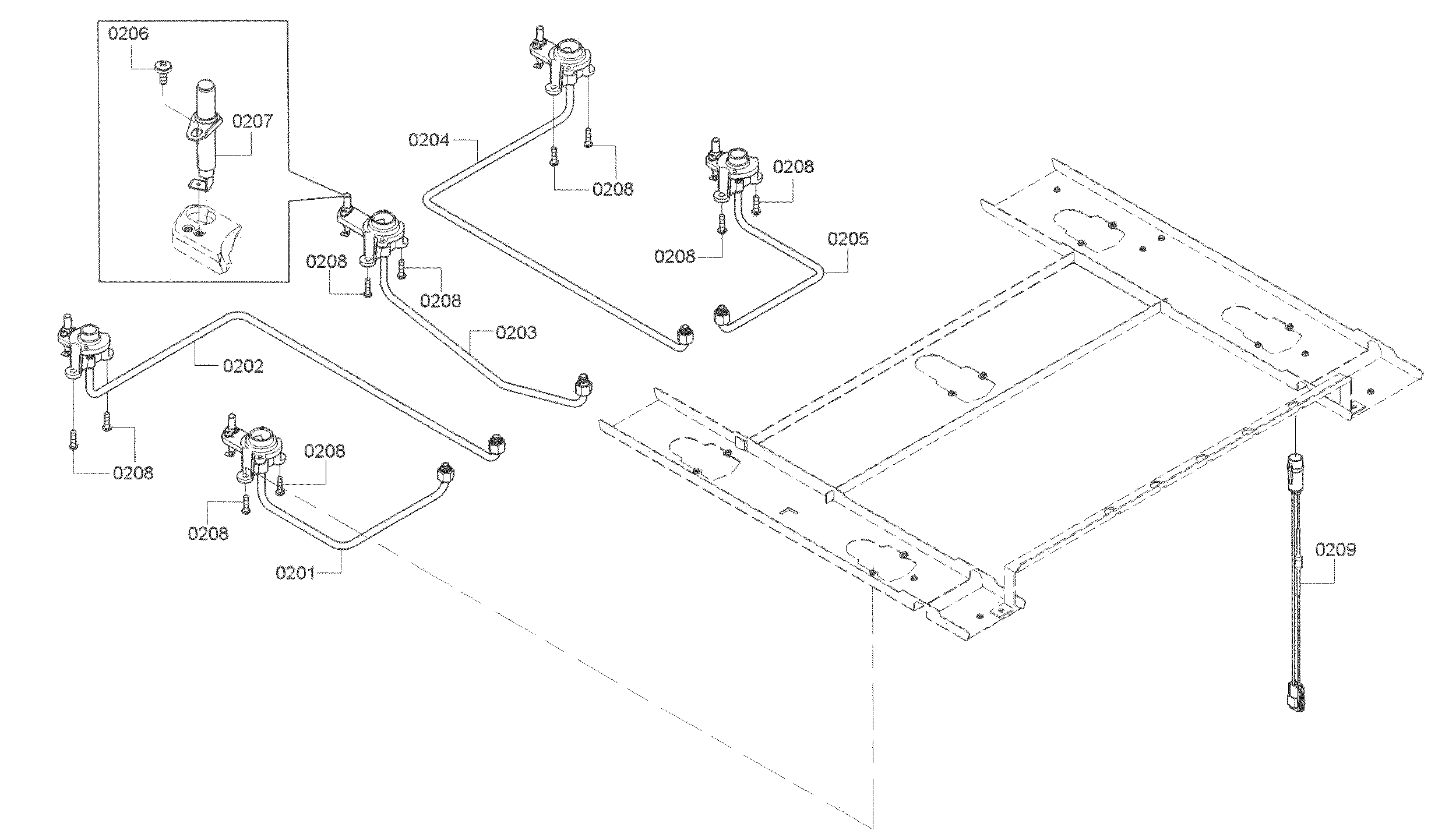

Electrode asy diagram

Range surface burner igniter (replaces 631633)

Part #00631633

BEST SELLER
$28.55 |
17% OFF Phone Price : $34.55
In Stock
Cooktop Burner Igniter Switch (replaces 00619527, 627235) 00627235
#307

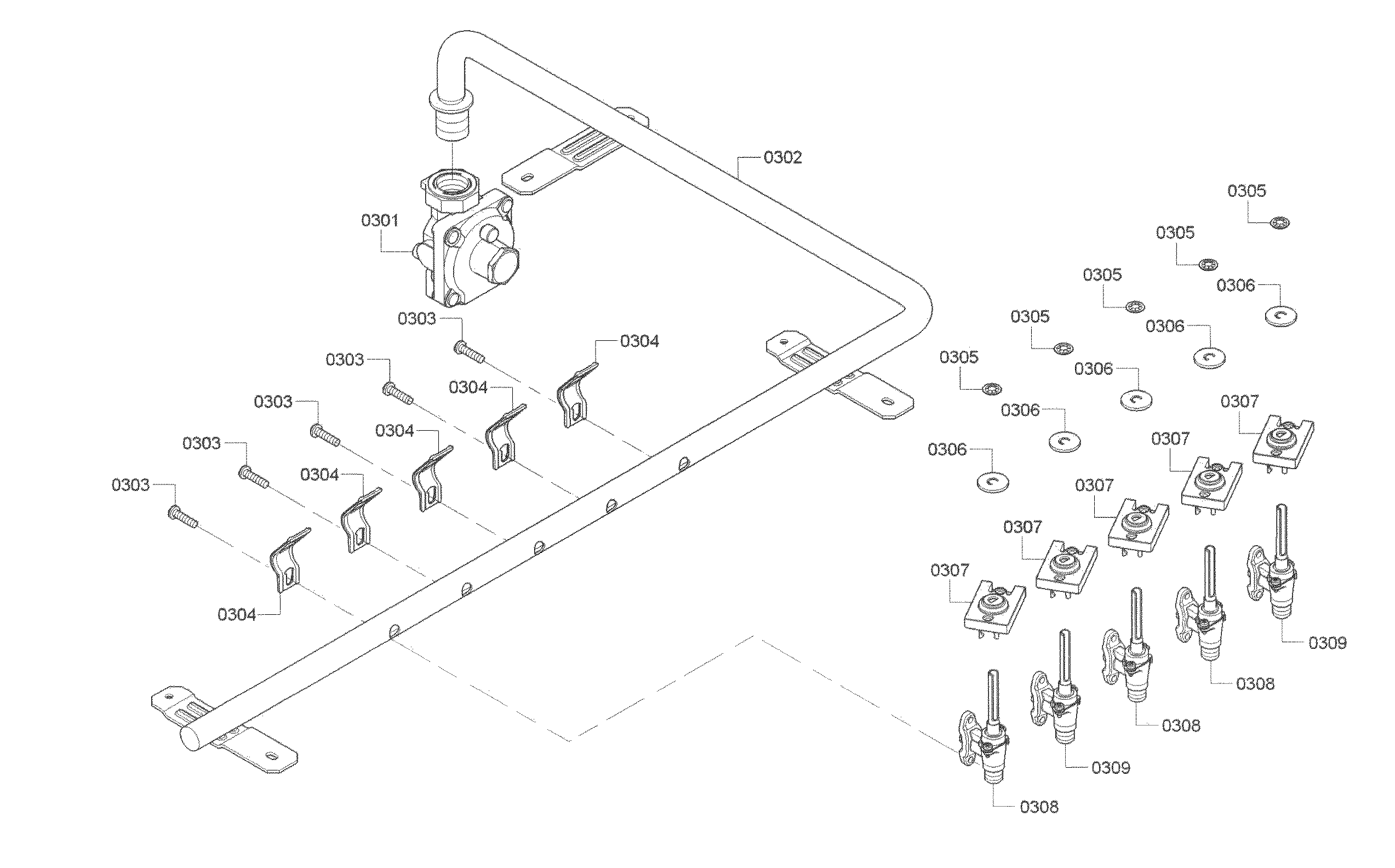

Valve asy diagram

Cooktop burner igniter switch (replaces 00619527, 627235)

Part #00627235

$35.49 |
14% OFF Phone Price : $41.49
In Stock
Range Spark Module 12004873
#405

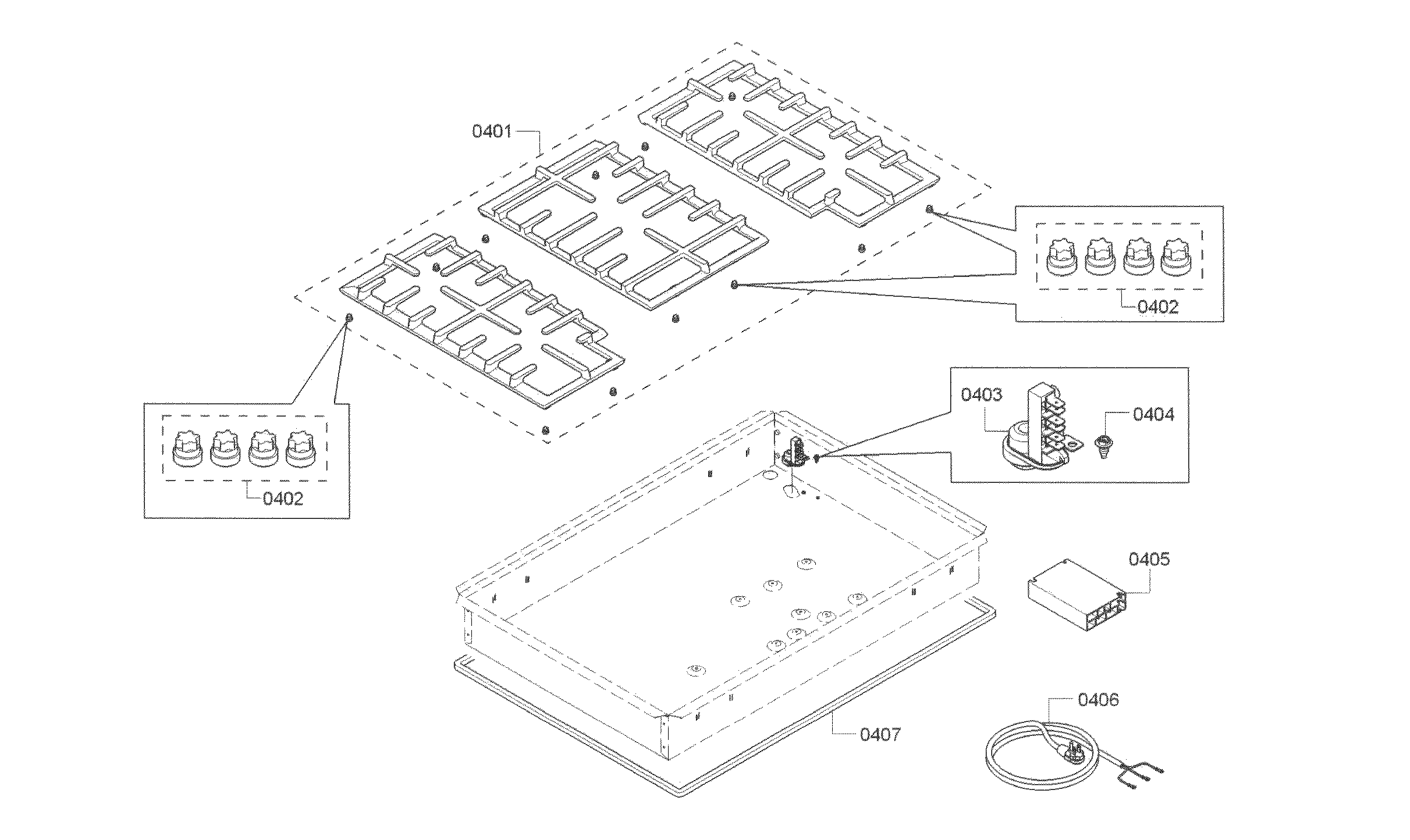

Grid asy diagram

Range spark module

Part #12004873

$133.37 |
8% OFF Phone Price : $145.37
In Stock
Cooktop Burner Igniter And Orifice Holder (replaces 771237) 00771237
#203

Electrode asy diagram

Cooktop burner igniter and orifice holder (replaces 771237)

Part #00771237

$35.49 |
14% OFF Phone Price : $41.49
In Stock
Range Surface Burner Head (replaces 631630) 00631630
#106

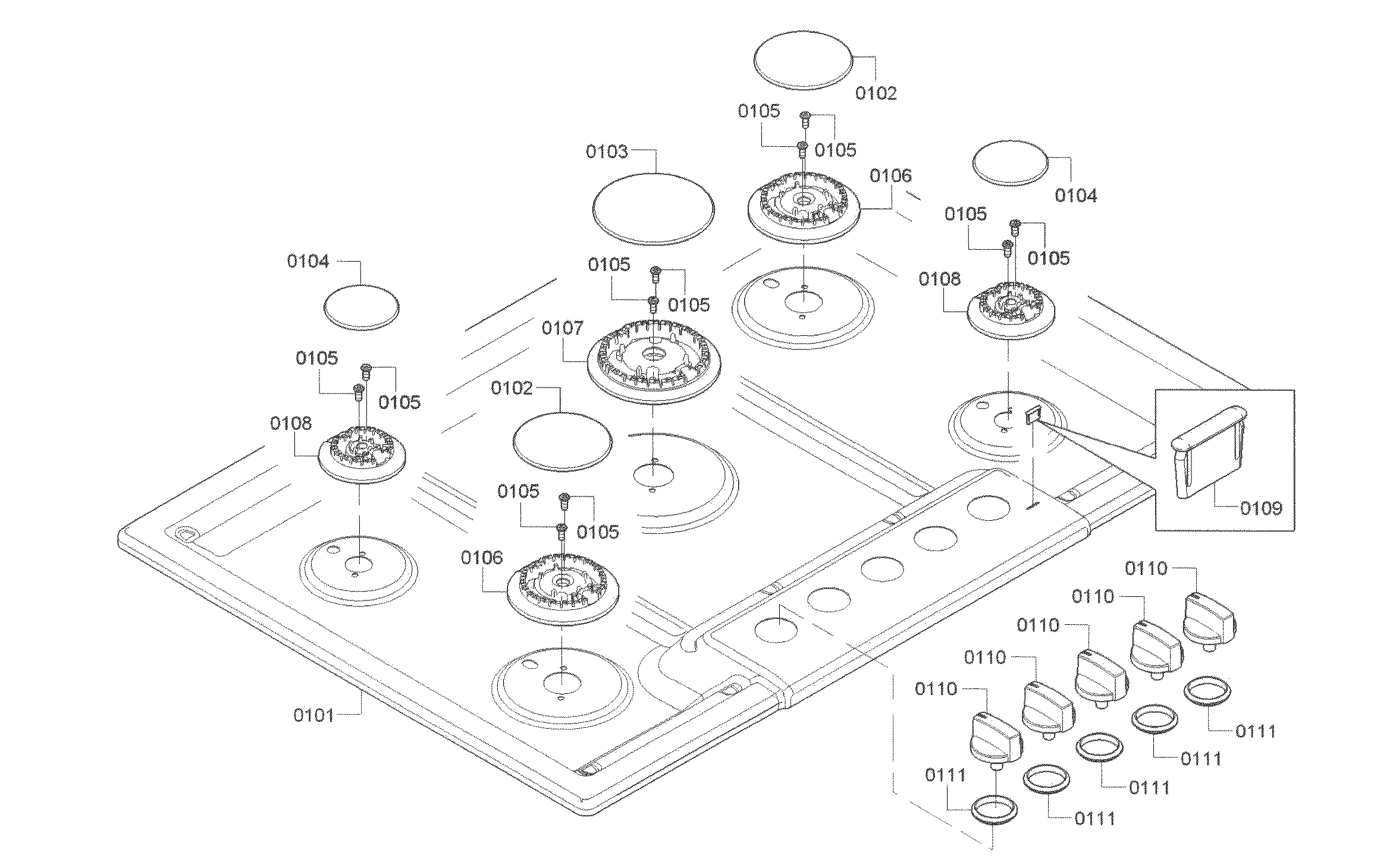

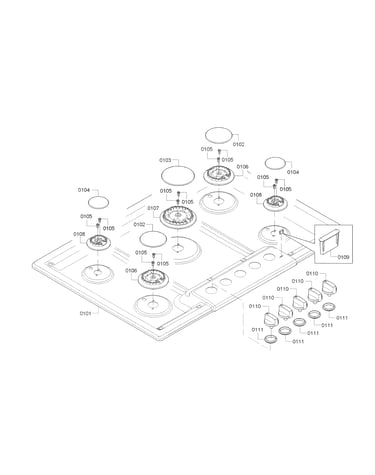

Burner asy diagram

Range surface burner head (replaces 631630)

Part #00631630

This item is not returnable
$25.49 |
19% OFF Phone Price : $31.49
In Stock
Cooktop Burner Cap 00631627
#103

Burner asy diagram

Cooktop burner cap

Part #00631627

$39.29 |
13% OFF Phone Price : $45.29
In Stock
Range Surface Burner 00631629
#108

Burner asy diagram

Range surface burner

Part #00631629

This item is not returnable
$23.31
In Stock
Range Ultra Rapid Surface Burner Base (replaces 631631) 00631631
#107

Burner asy diagram

Range ultra rapid surface burner base (replaces 631631)

Part #00631631

$29.19 |
17% OFF Phone Price : $35.19
In Stock
Cooktop Knob Grommet 00611956
#111

Burner asy diagram

Cooktop knob grommet

Part #00611956

$32.29 |
16% OFF Phone Price : $38.29
In Stock
Holder Assembly 00757870
#205

Electrode asy diagram

Holder assembly

Part #00757870

$29.73
In Stock
