Model # 11066514692 Official Kenmore dryer
Here are the diagrams and repair parts for Official Kenmore 11066514692 dryer, as well as links to manuals and error code tables, if available.
By Schematic
By Part

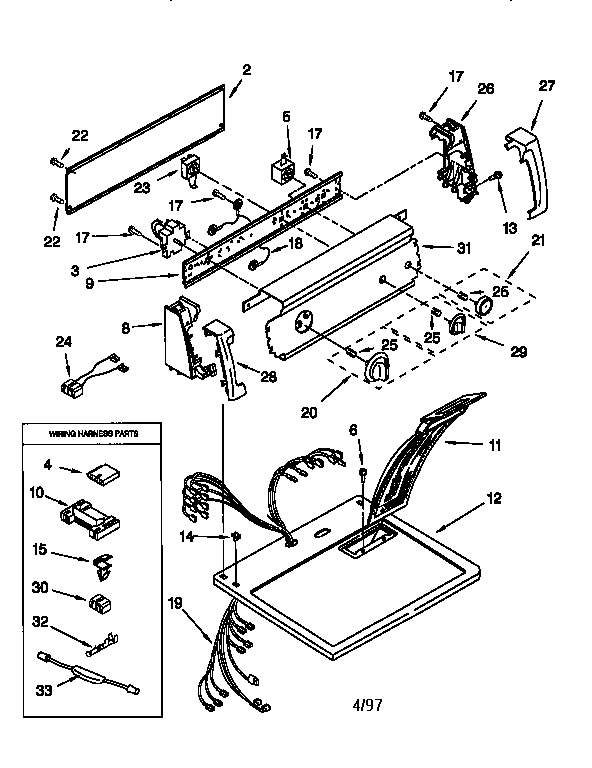

SELECT DIAGRAM
Browse Parts for11066514692 Dryer
- #56

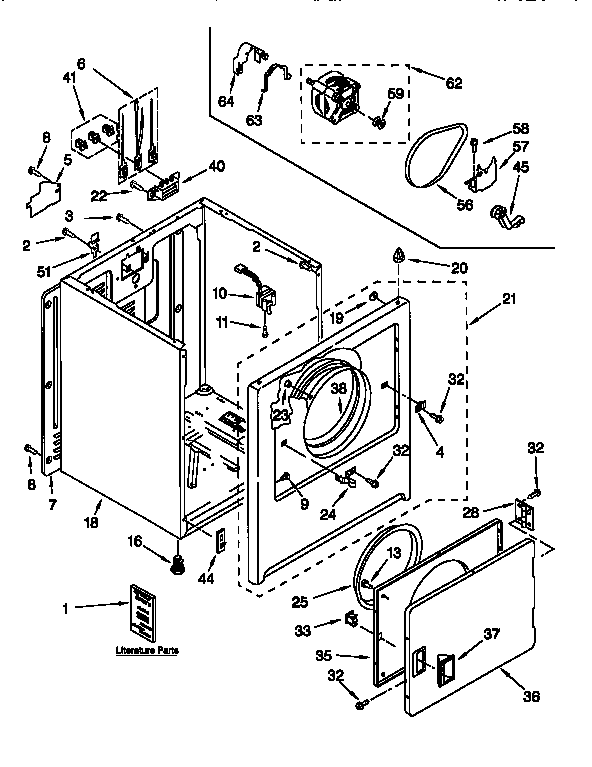

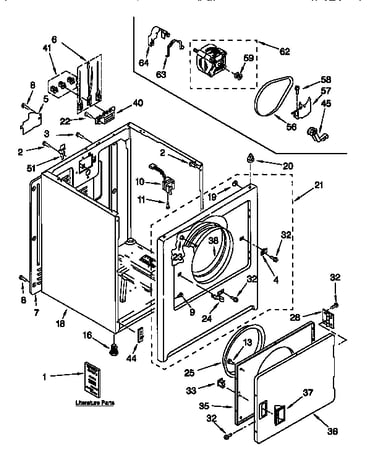

Cabinet diagram
Drum beltPart #660996
Replaced by #341241
?Manufacturer substitutionThis part replaces 660996. Substitute parts can look different from the original.$9.89 |9% OFF Phone Price : $10.89In Stock - #17

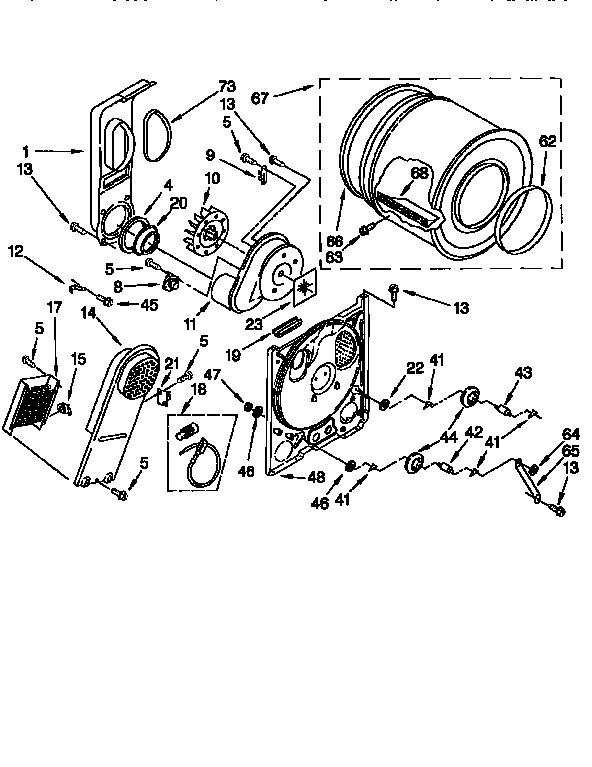

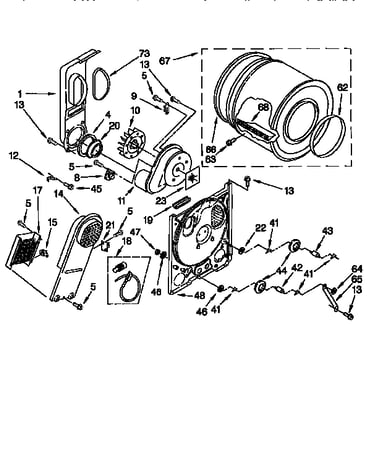

Bulkhead diagram
Dryer elementPart #3403585
Replaced by #279838
?Manufacturer substitutionThis part replaces 3403585. Substitute parts can look different from the original.$46.02 |12% OFF Phone Price : $52.02In Stock - #21
Bulkhead diagram
Cut-off kitPart #3399848
Replaced by #279816
?Manufacturer substitutionThis part replaces 3399848. Substitute parts can look different from the original.$47.84 |11% OFF Phone Price : $53.84In Stock - #62
Cabinet diagram
Drive motorPart #3395652
Replaced by #279827
?Manufacturer substitutionThis part replaces 3395652. Substitute parts can look different from the original.$81.17 |7% OFF Phone Price : $87.17In Stock - #8
Bulkhead diagram
Dryer operating thermostatPart #3387134
Replaced by #WP3387134
?Manufacturer substitutionThis part replaces 3387134. Substitute parts can look different from the original.$17.96 |10% OFF Phone Price : $19.96In Stock - #10
Bulkhead diagram
Dryer blower wheelPart #694089
Replaced by #WP694089
?Manufacturer substitutionThis part replaces 694089. Substitute parts can look different from the original.$23.60 |20% OFF Phone Price : $29.60In Stock - #33
Cabinet diagram
CatchPart #690081
Replaced by #279570
?Manufacturer substitutionThis part replaces 690081. Substitute parts can look different from the original.This item is not returnable$4.25 |19% OFF Phone Price : $5.25In Stock - #15
Bulkhead diagram
Dryer thermostatPart #3399693
Replaced by #WP3977767
?Manufacturer substitutionThis part replaces 3399693. Substitute parts can look different from the original.$12.91 |13% OFF Phone Price : $14.91In Stock - #59
Cabinet diagram
Motor pulleyPart #3401143
Replaced by #WP8066184
?Manufacturer substitutionThis part replaces 3401143. Substitute parts can look different from the original.$34.55 |15% OFF Phone Price : $40.55In Stock - #41
Bulkhead diagram
Dryer tri-ring retainerPart #690997
Replaced by #WPW10512946
?Manufacturer substitutionThis part replaces 690997. Substitute parts can look different from the original.$7.11 |12% OFF Phone Price : $8.11In Stock
