Model # PGB980ZEJ1SS Official GE gas range

Here are the diagrams and repair parts for Official GE PGB980ZEJ1SS gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

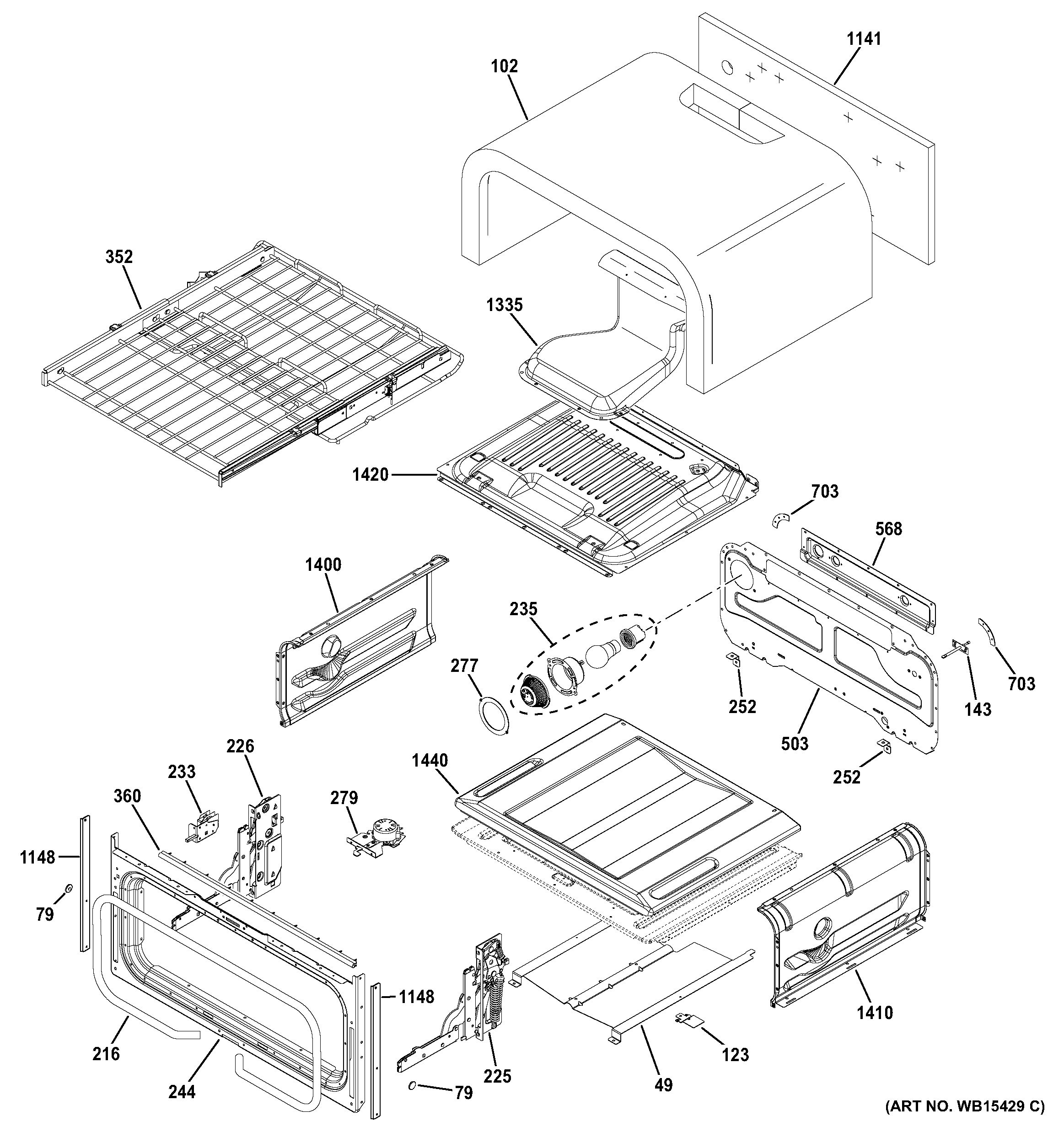

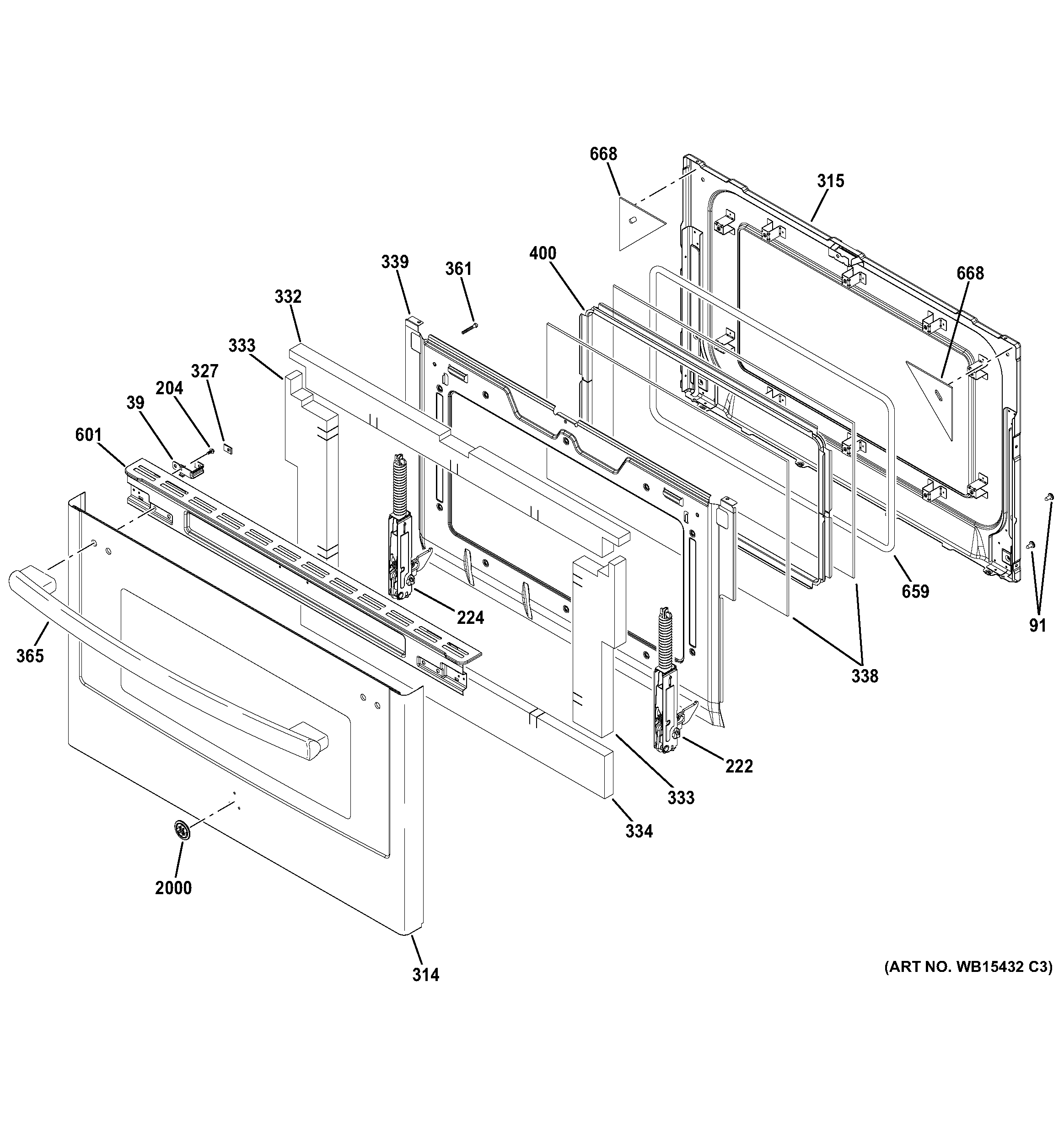

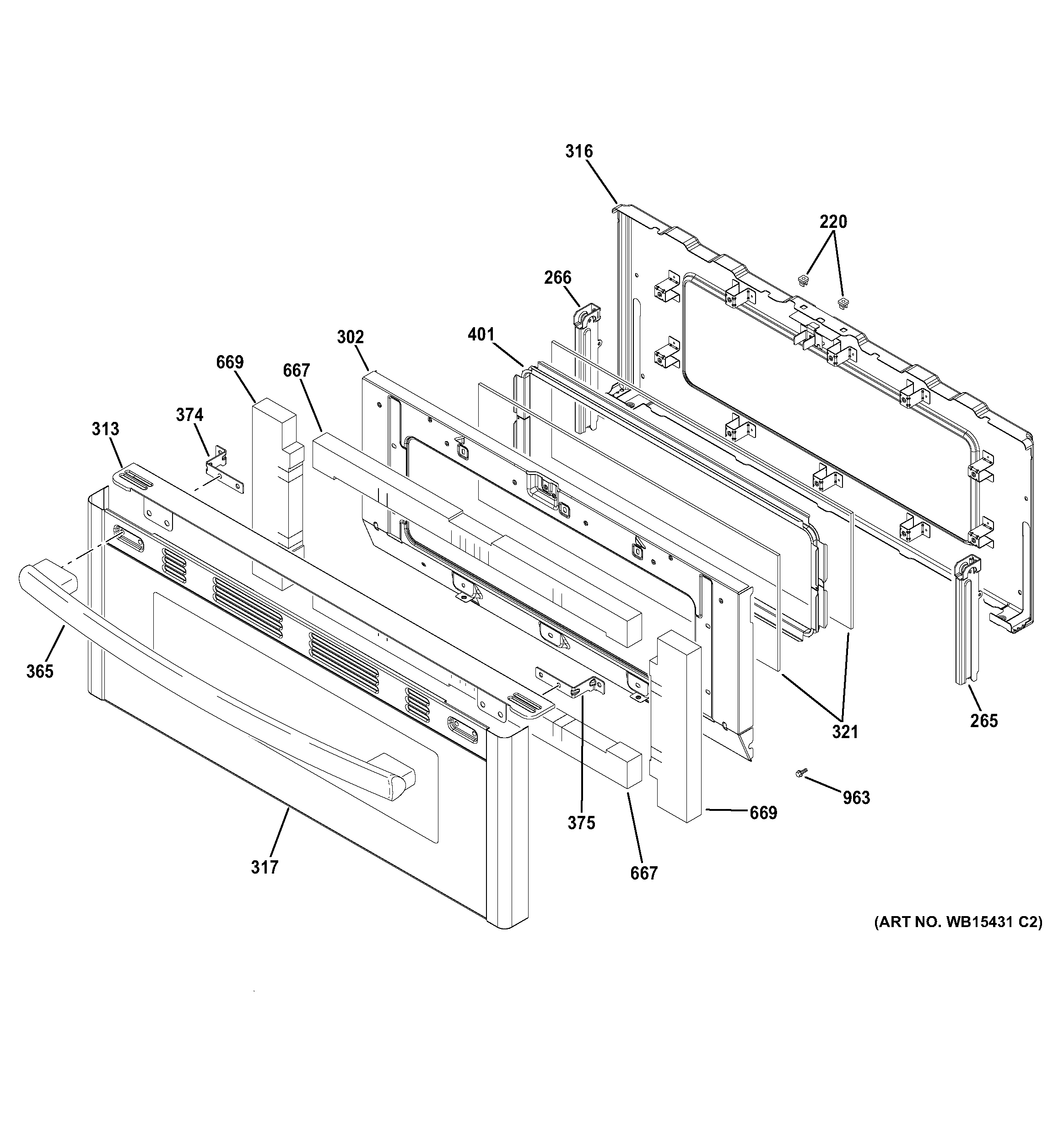

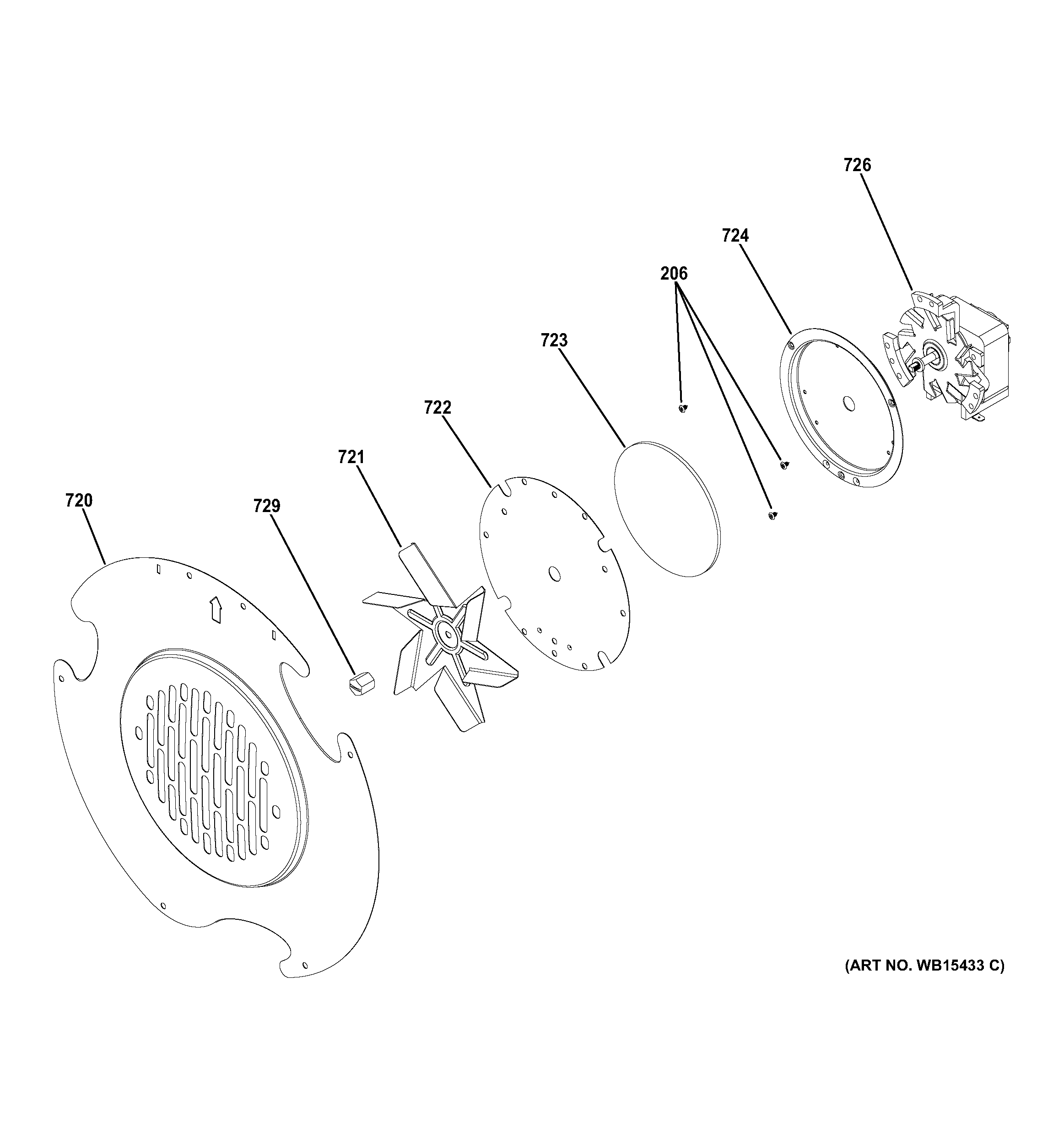

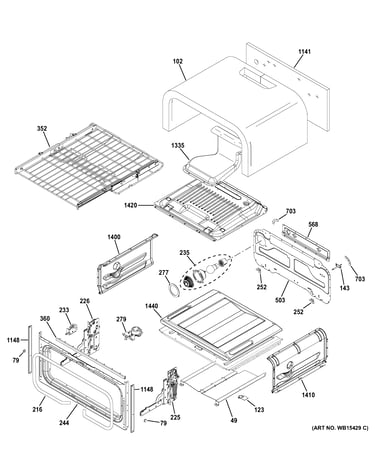

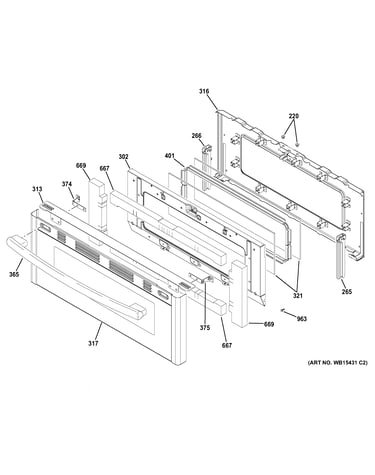

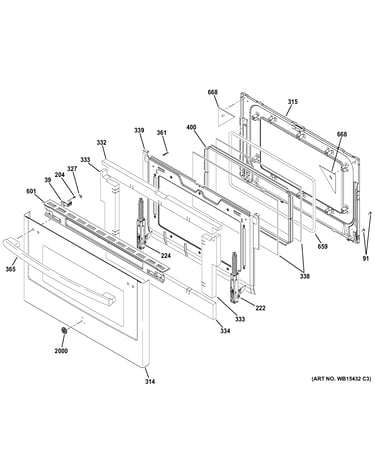

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 233 parts  |
Range Extra Large Surface Burner, 18,000-btu WB16X24722
#156

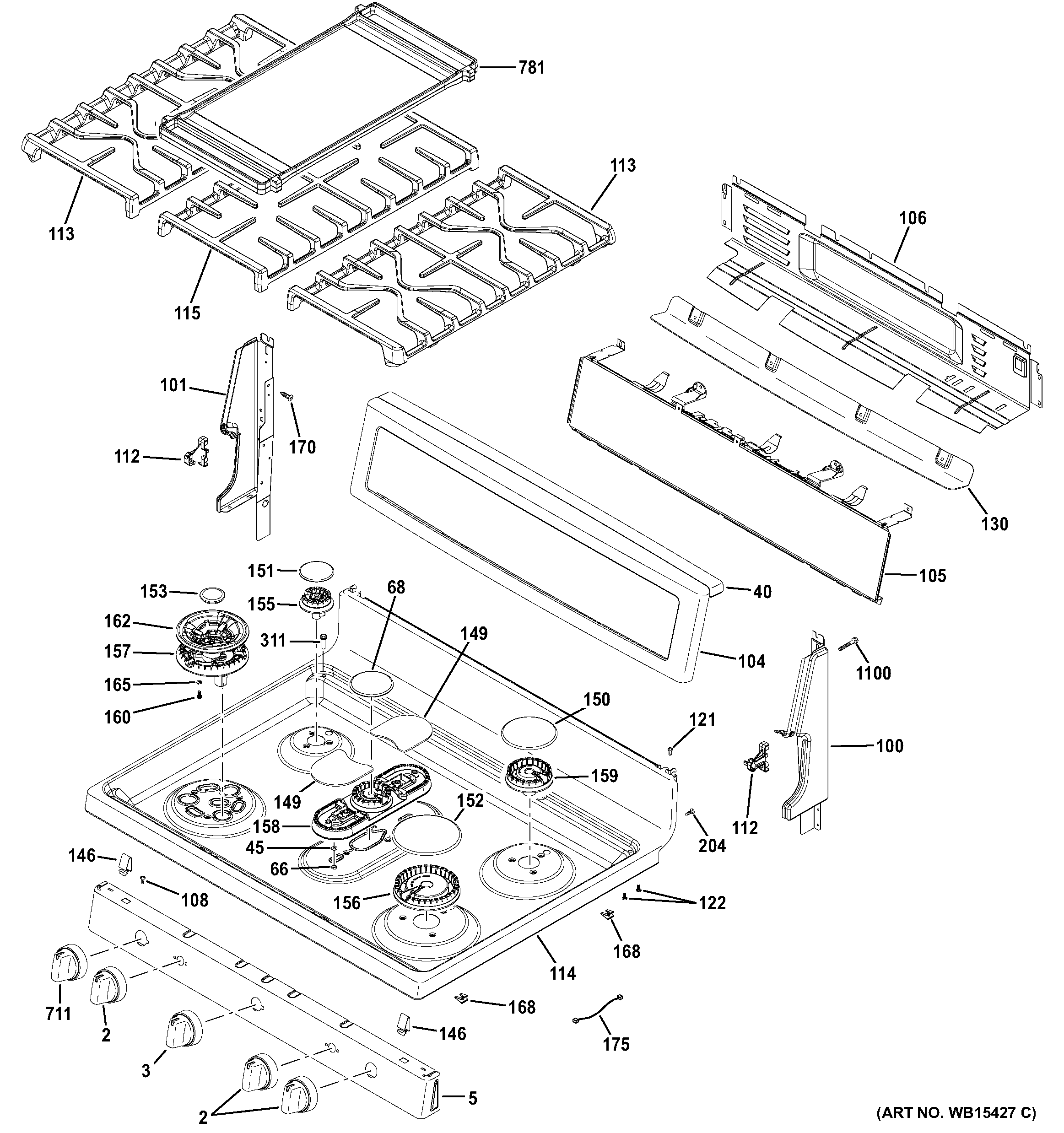

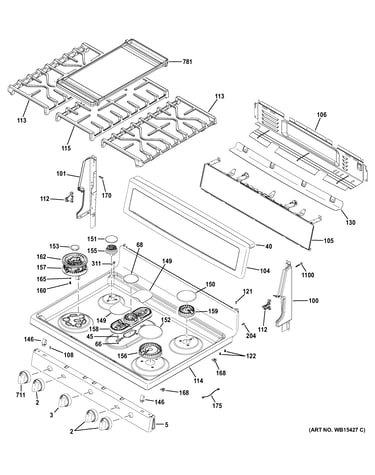

Control panel & cooktop diagram

Range extra large surface burner, 18,000-btu

Part #WB16X24722

BEST SELLER
This item is not returnable
$29.95 |
17% OFF Phone Price : $35.95
In Stock
Range Oven Temperature Sensor WB24X25557
#43

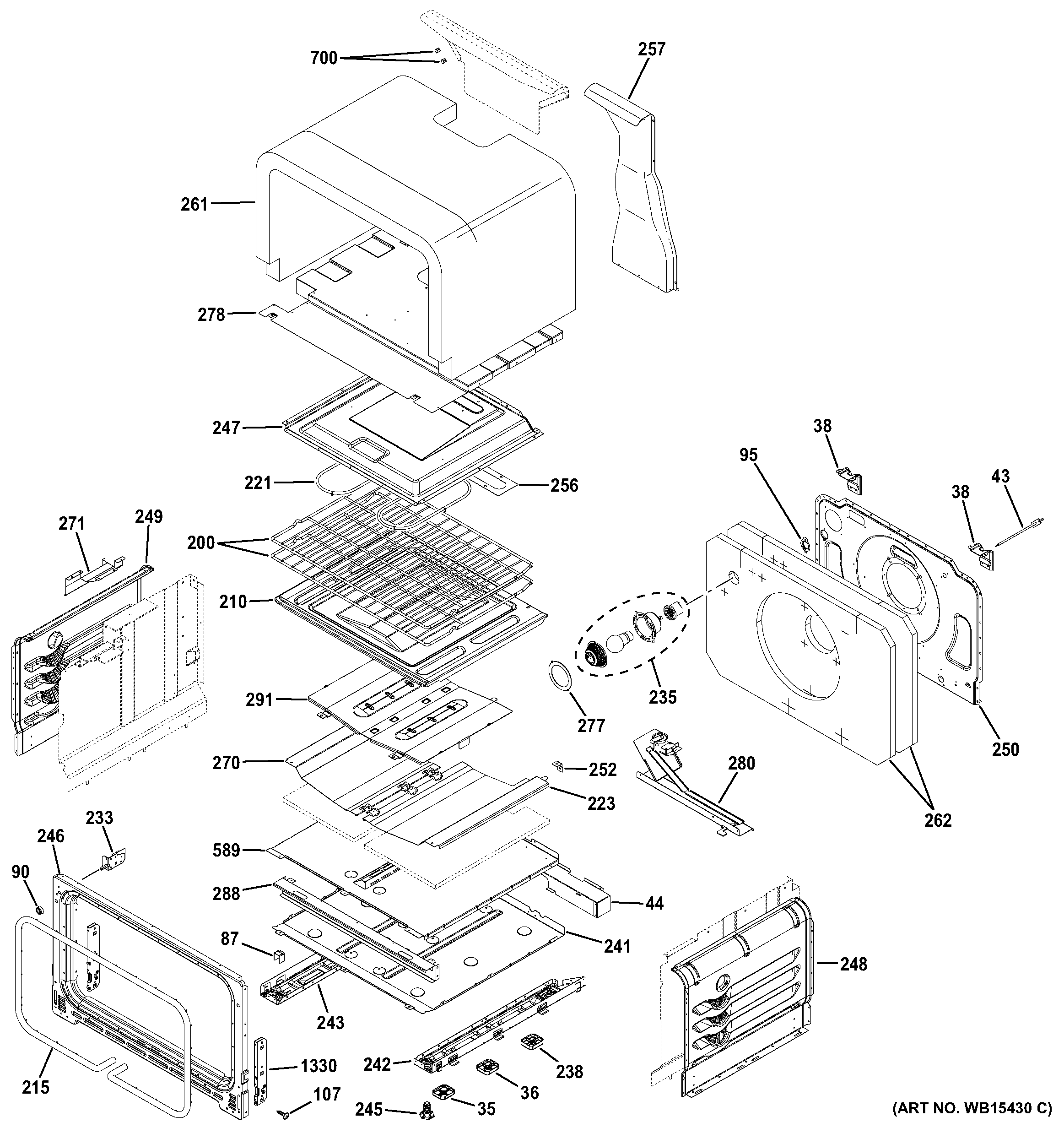

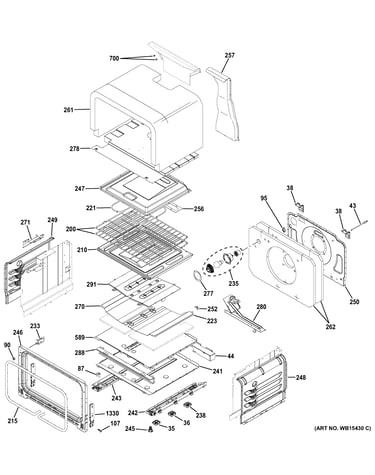

Lower oven diagram

Range oven temperature sensor

Part #WB24X25557

BEST SELLER
$25.27 |
19% OFF Phone Price : $31.27
In Stock
Range Surface Burner Valve WB21X20612
#59

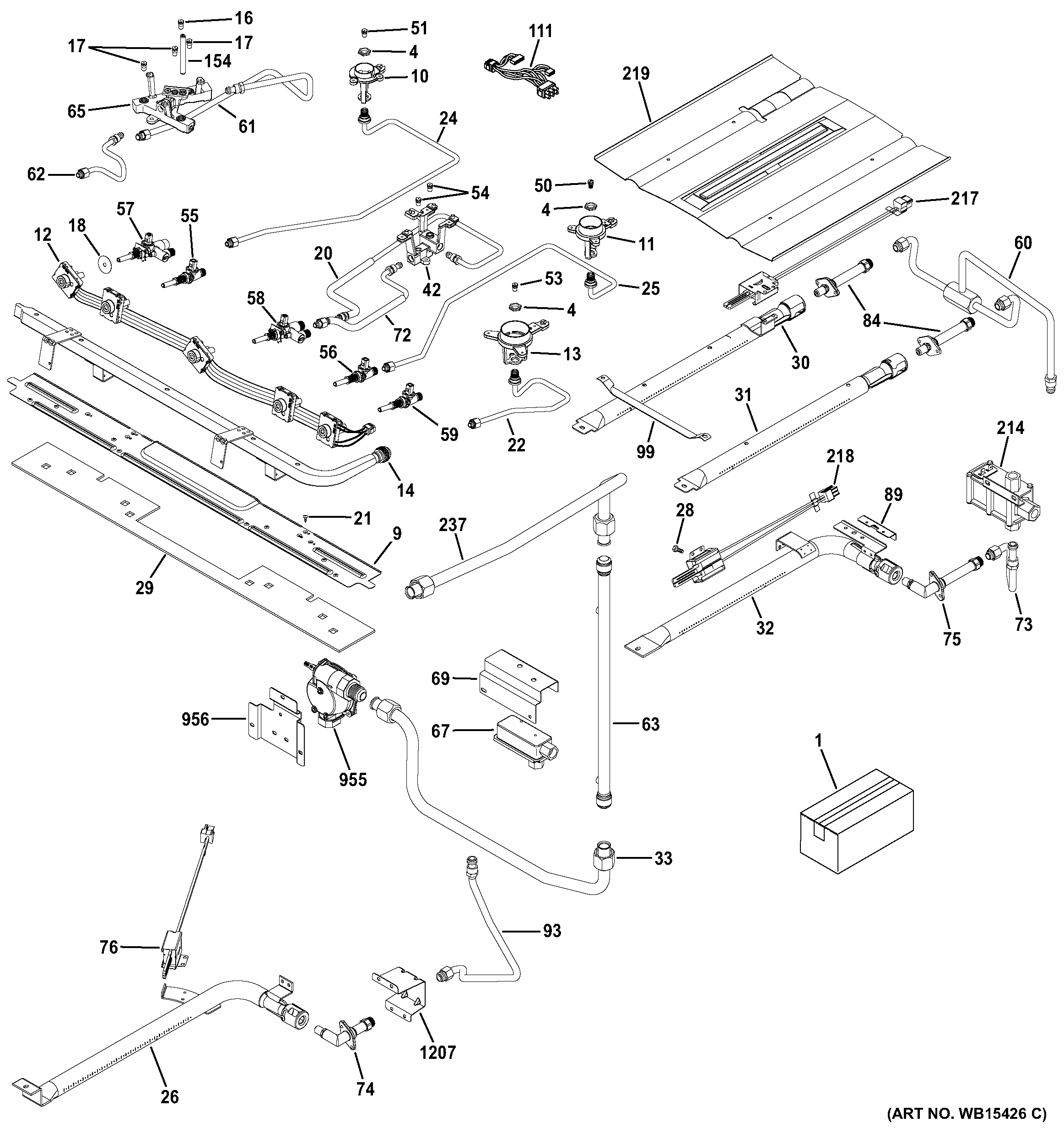

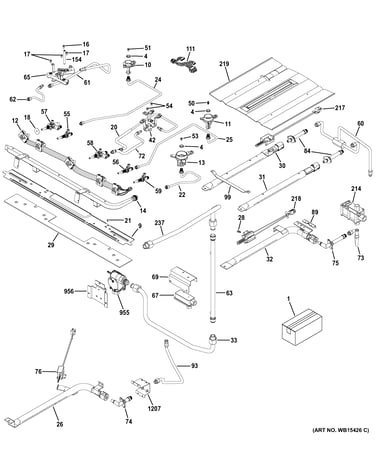

Gas & burner parts diagram

Range surface burner valve

Part #WB21X20612

BEST SELLER
This item is not returnable
$22.33 |
21% OFF Phone Price : $28.33
In Stock
Range Bake Igniter WB13X24924
#218

Gas & burner parts diagram

Range bake igniter

Part #WB13X24924

BEST SELLER
$82.08 |
7% OFF Phone Price : $88.08
In Stock
Oven Lamp Holder WB08T10002
Oven lamp holder

Part #WB08T10002

Replaced by #WB08T10002

?
Manufacturer substitution
This part replaces WB08T10002. Substitute parts can look different from the original.
BEST SELLER
$34.45 |
15% OFF Phone Price : $40.45
In Stock
Range Spark Module WB13K10033
#110

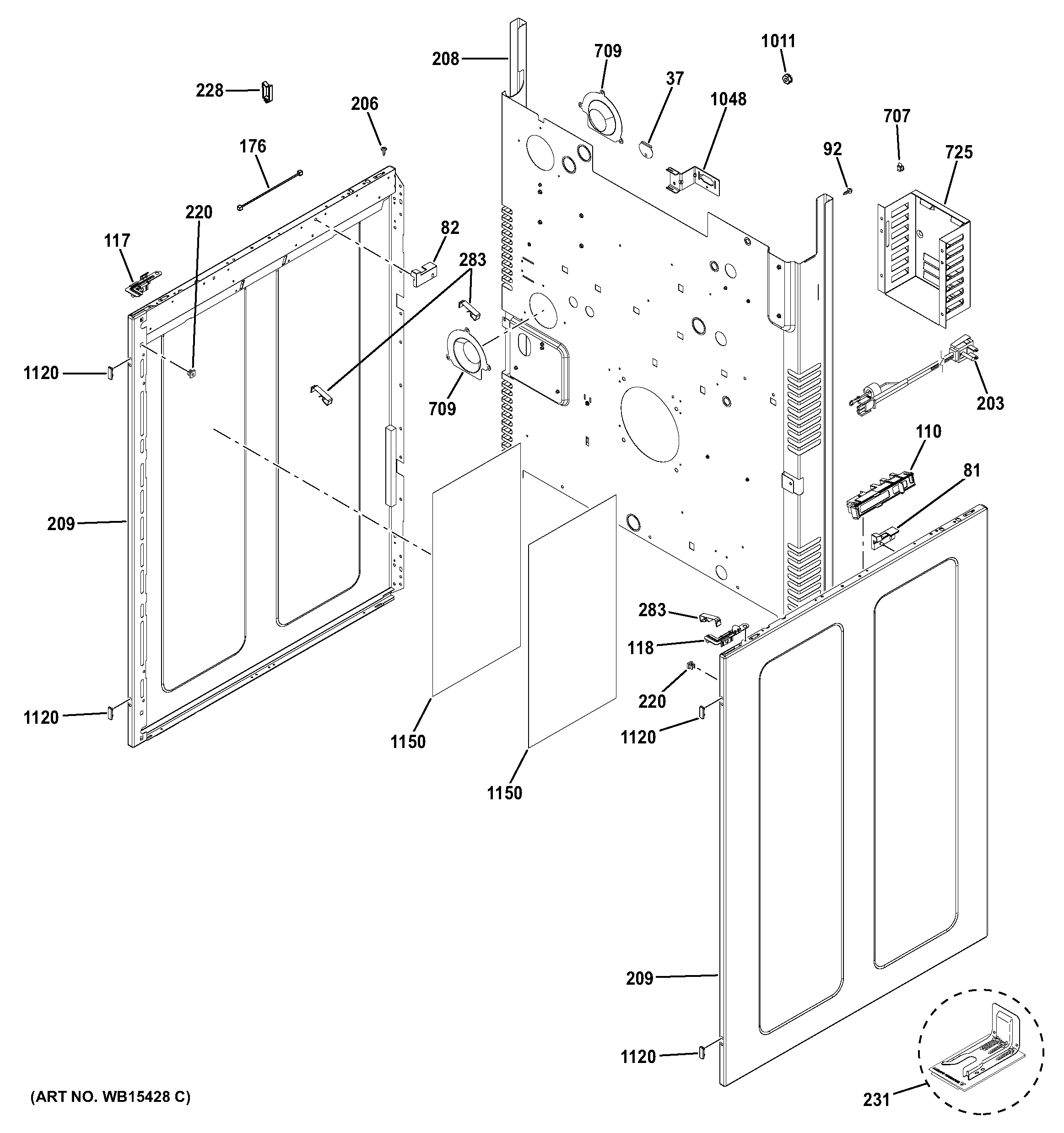

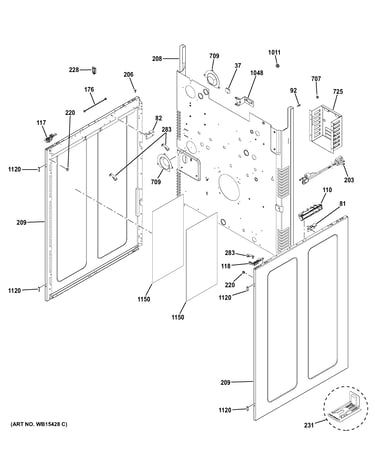

Body parts diagram

Range spark module

Part #WB13K10033

Replaced by #WB13X26360

?
Manufacturer substitution
This part replaces WB13K10033. Substitute parts can look different from the original.
BEST SELLER
$67.88 |
8% OFF Phone Price : $73.88
In Stock
Range Surface Burner Valve WB21X20470
#56

Gas & burner parts diagram

Range surface burner valve

Part #WB21X20470

BEST SELLER
$28.44 |
17% OFF Phone Price : $34.44
In Stock
Injet, Xl V2 WB02X24725
#13

Gas & burner parts diagram

Injet, xl v2

Part #WB02X24725

BEST SELLER
$93.16 |
6% OFF Phone Price : $99.16
In Stock
Range Surface Burner Cap, Outer WB29K10044
#162

Control panel & cooktop diagram

Range surface burner cap, outer

Part #WB29K10044

$87.37 |
6% OFF Phone Price : $93.37
In Stock
Range Screw WB01X24735
#122

Control panel & cooktop diagram

Range screw

Part #WB01X24735

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
