Kenmore
Garbage Disposal

Model # 17568570 Official Kenmore garbage disposal

Here are the diagrams and repair parts for Official Kenmore 17568570 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Mounting Gasket 1010-A
#13

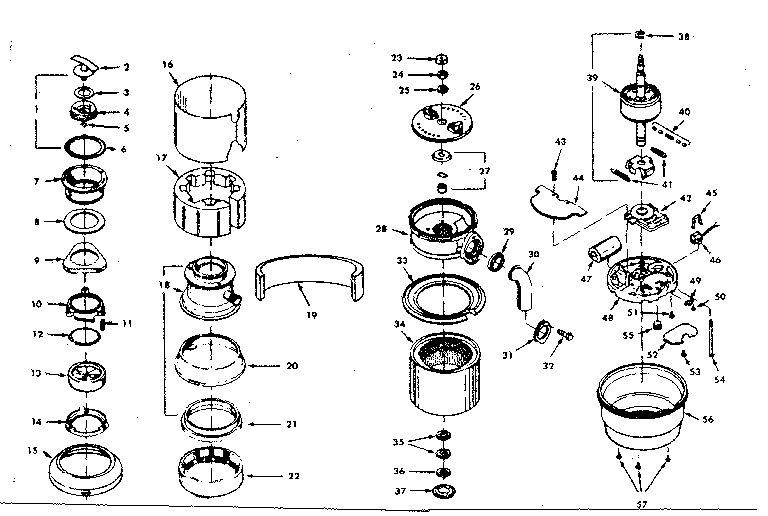

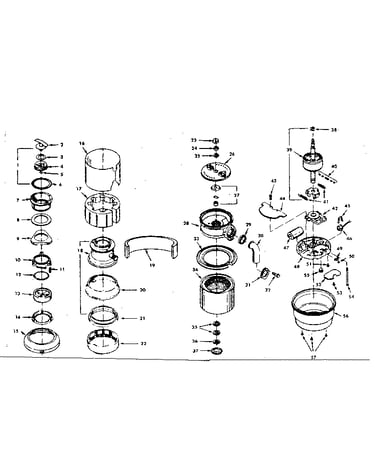

Replacement parts diagram

Mounting gasket

Part #1010-A

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Tailpipe Gasket 1470
#29

Replacement parts diagram

Insinkerator garbage disposal tailpipe gasket

Part #1470

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Drain Stopper Gasket 5029
#6

Replacement parts diagram

Garbage disposal drain stopper gasket

Part #5029

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Screw 1491
#32

Replacement parts diagram

Insinkerator garbage disposal screw

Part #1491

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Sink Flange 5141
#10

Replacement parts diagram

Insinkerator garbage disposal sink flange

Part #5141

The manufacturer no longer makes this part, and there's no substitute part

Screw 1614
#57

Replacement parts diagram

Screw

Part #1614

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Gasket 4395
#21

Replacement parts diagram

Insinkerator gasket

Part #4395

The manufacturer no longer makes this part, and there's no substitute part

Screw 8221
Screw

Part #8221

The manufacturer no longer makes this part, and there's no substitute part

Bx Clamp 5060
#49

Replacement parts diagram

Bx clamp

Part #5060

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Support Ring 5166
#12

Replacement parts diagram

Insinkerator garbage disposal support ring

Part #5166

The manufacturer no longer makes this part, and there's no substitute part
