Model # 020245-1 Official Troybilt pressure washer

Here are the diagrams and repair parts for Official Troybilt 020245-1 pressure washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Pressure Washer Hose 196006GS
#4

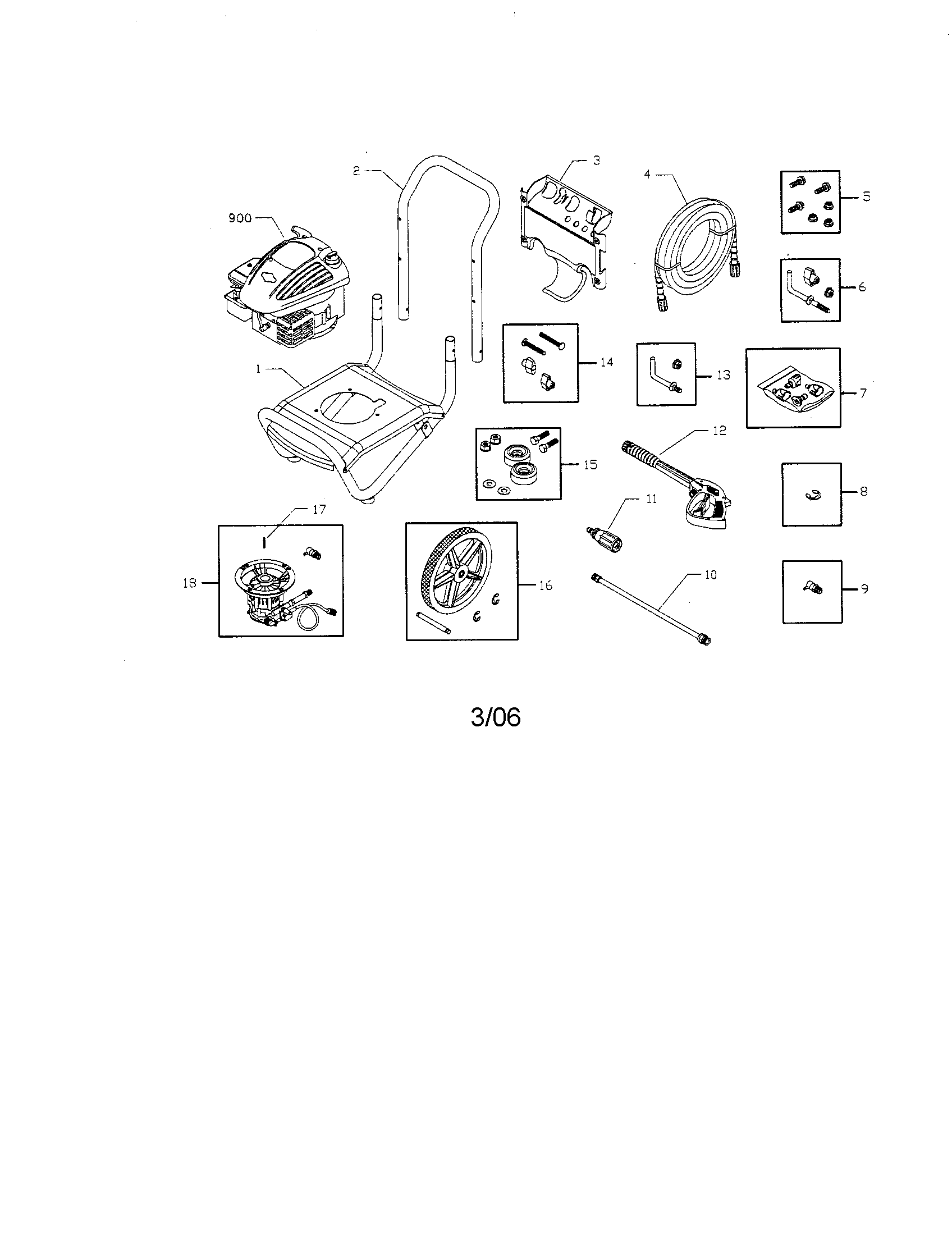

Main unit diagram

Pressure washer hose

Part #196006GS

Replaced by #84006753

?
Manufacturer substitution
This part replaces 196006GS. Substitute parts can look different from the original.
BEST SELLER
$83.66 |
7% OFF Phone Price : $89.66
In Stock
Snapper Pressure Washer Pump Manifold (replaces 190574gs) 190627GS
#28

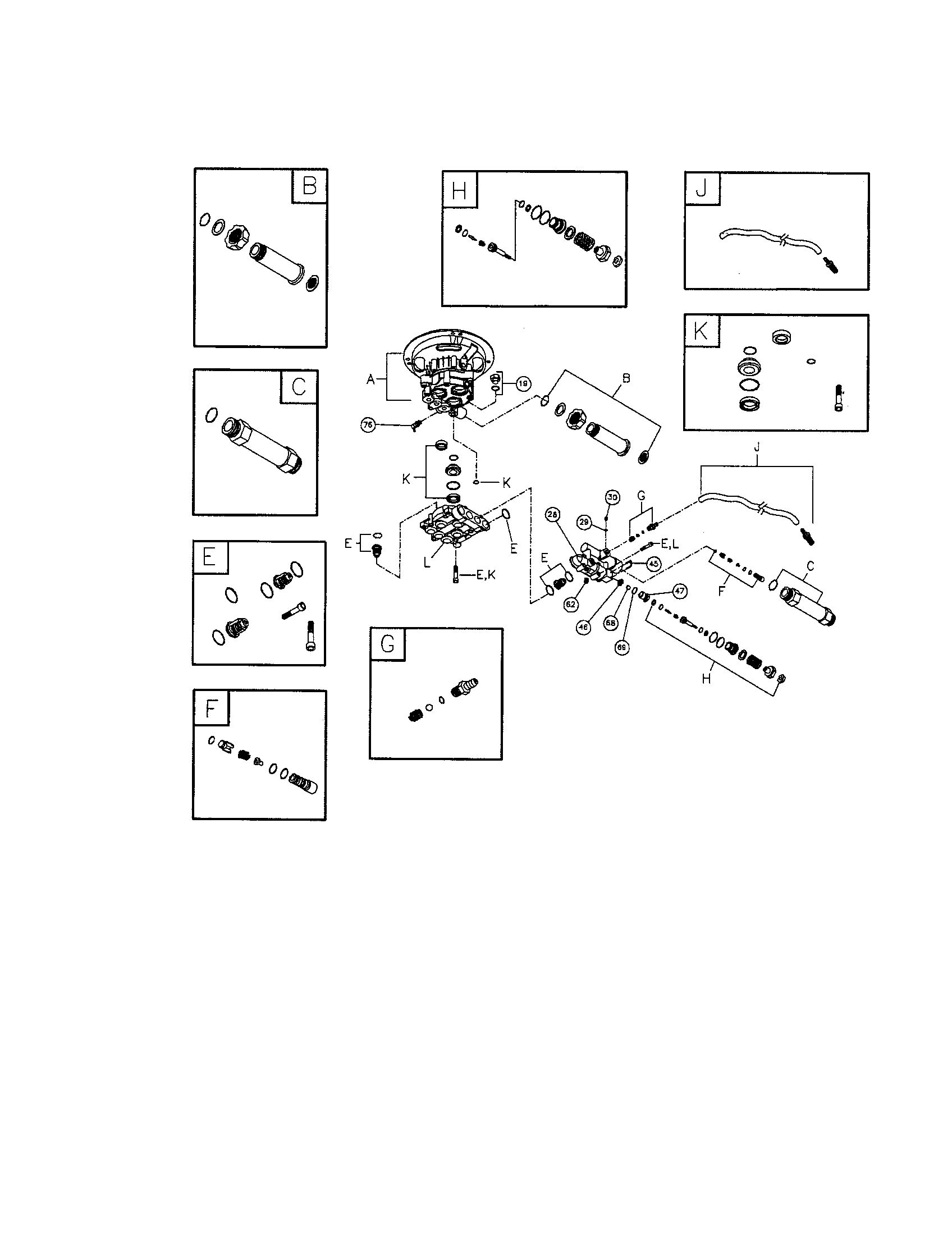

Pump diagram

Snapper pressure washer pump manifold (replaces 190574gs)

Part #190627GS

$94.28 |
6% OFF Phone Price : $100.28
In Stock
Briggs & Stratton Pressure Washer Pump Saver (replaces 100515gs) 6039

#NI11

All parts diagram

Briggs & stratton pressure washer pump saver (replaces 100515gs)

Part #6039

$16.56 |
11% OFF Phone Price : $18.56
In Stock
Snapper Pressure Washer Pump Shaft Key (replaces 23139) 23139GS
#17

Main unit diagram

Snapper pressure washer pump shaft key (replaces 23139)

Part #23139GS

This item is not returnable
$7.29 |
12% OFF Phone Price : $8.29
In Stock
Briggs & Stratton Pressure Washer Wheel 196439GS
#16

Main unit diagram

Briggs & stratton pressure washer wheel

Part #196439GS

$96.56 |
11% OFF Phone Price : $108.56
In Stock
Nozzle 195842AEGS
#7B

Main unit diagram

Nozzle

Part #195842AEGS

Replaced by #195983AEGS

?
Manufacturer substitution
This part replaces 195842AEGS. Substitute parts can look different from the original.
This item is not returnable
$18.09 |
10% OFF Phone Price : $20.09
In Stock
Husqvarna Pressure Washer Handle Attachment Kit (replaces B2203) B2203GS
#14

Main unit diagram

Husqvarna pressure washer handle attachment kit (replaces b2203)

Part #B2203GS

This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
Pressure Washer Retainer Clip, 4-pack 195964GS
#3A

Main unit diagram

Pressure washer retainer clip, 4-pack

Part #195964GS

This item is not returnable
$7.69 |
12% OFF Phone Price : $8.69
In Stock
Pressure Washer Pump Head Kit 198106GS
#D

Pump diagram

Pressure washer pump head kit

Part #198106GS

$88.72 |
6% OFF Phone Price : $94.72
In Stock
Pressure Washer Inlet Check Valve Kit (replaces 190592) 190592GS
#F

Pump diagram

Pressure washer inlet check valve kit (replaces 190592)

Part #190592GS

This item is not returnable
$28.47 |
17% OFF Phone Price : $34.47
In Stock
