Craftsman
Dump Cart Attachment

Model # 486243201 Official Craftsman convertible cart

Here are the diagrams and repair parts for Official Craftsman 486243201 convertible cart, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Lawn Tractor Lawn Vacuum Attachment Wheel Assembly 48497
#3

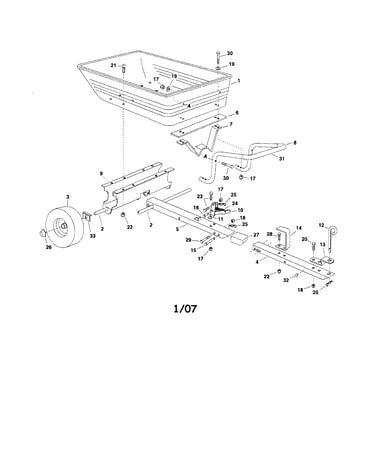

Cart diagram

Lawn tractor lawn vacuum attachment wheel assembly

Part #48497

Replaced by #40880G

?
Manufacturer substitution
This part replaces 48497. Substitute parts can look different from the original.
BEST SELLER
$28.72 |
17% OFF Phone Price : $34.72
Back Order
Lawn Tractor Nut 47810
#22

Cart diagram

Lawn tractor nut

Part #47810

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Lawn & Garden Equipment Hex Bolt 43661
#23

Cart diagram

Lawn & garden equipment hex bolt

Part #43661

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Attachment Screw, 3/8-16 X 1-in 43001
#20

Cart diagram

Lawn tractor attachment screw, 3/8-16 x 1-in

Part #43001

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Spring Clip 43000
#24

Cart diagram

Lawn & garden equipment spring clip

Part #43000

This item is not returnable
$3.08
In Stock
Lawn & Garden Equipment Hex Bolt 1509-69
#30

Cart diagram

Lawn & garden equipment hex bolt

Part #1509-69

This item is not returnable
$2.16
In Stock
Lawn Tractor Lawn Vacuum Attachment Wheel Axle 24908
#2

Cart diagram

Lawn tractor lawn vacuum attachment wheel axle

Part #24908

This item is not returnable
$13.22
In Stock
Tractor Accessories Lawn Tractor Attachment Flat Washer, 1/4-in 43088
#19

Cart diagram

Tractor accessories lawn tractor attachment flat washer, 1/4-in

Part #43088

This item is not returnable
$2.16
Back Order
Lawn Tractor Dump Cart Attachment Drawbar, Front 24392
#4

Cart diagram

Lawn tractor dump cart attachment drawbar, front

Part #24392

Replaced by #24392BL3

?
Manufacturer substitution
This part replaces 24392. Substitute parts can look different from the original.
This item is not returnable
$20.09 |
23% OFF Phone Price : $26.09
In Stock
Lawn Tractor Attachment Clevis Pin 45091
#16

Cart diagram

Lawn tractor attachment clevis pin

Part #45091

This item is not returnable
$2.16
In Stock
