Craftsman
Wet/Dry Vacuum

Model # 31516981 Official Craftsman home 'n shop dust collector

Here are the diagrams and repair parts for Official Craftsman 31516981 home 'n shop dust collector, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Washer 2-725381-00
#11

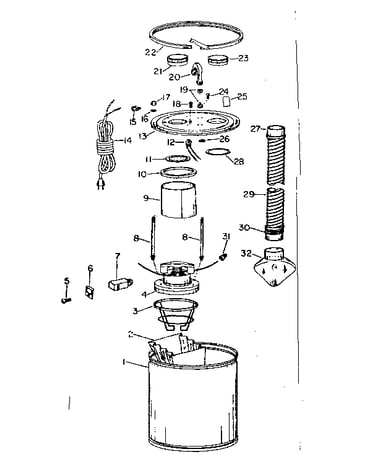

Unit parts diagram

Washer

Part #2-725381-00

The manufacturer no longer makes this part, and there's no substitute part

Pal Nut 1-703777-02
#17

Unit parts diagram

Pal nut

Part #1-703777-02

The manufacturer no longer makes this part, and there's no substitute part

Mtr Mt Assem 3-624958-01
#9

Unit parts diagram

Mtr mt assem

Part #3-624958-01

The manufacturer no longer makes this part, and there's no substitute part

Adapter 3-725378-00
#27

Unit parts diagram

Adapter

Part #3-725378-00

The manufacturer no longer makes this part, and there's no substitute part

Vacum Cover 2-621250-00
#30

Unit parts diagram

Vacum cover

Part #2-621250-00

The manufacturer no longer makes this part, and there's no substitute part

Hose W/ferrl 3-725376-00
#29

Unit parts diagram

Hose w/ferrl

Part #3-725376-00

The manufacturer no longer makes this part, and there's no substitute part

Cord With Plug 1-713637-00
#14

Unit parts diagram

Cord with plug

Part #1-713637-00

The manufacturer no longer makes this part, and there's no substitute part

Crnr Nozzle 4-725373-00
#32

Unit parts diagram

Crnr nozzle

Part #4-725373-00

The manufacturer no longer makes this part, and there's no substitute part

Power Cord Strain Relief 1-888493-01
#15

Unit parts diagram

Power cord strain relief

Part #1-888493-01

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Blower Assembly 3-624813-01
#4

Unit parts diagram

Vacuum blower assembly

Part #3-624813-01

The manufacturer no longer makes this part, and there's no substitute part
