Model # ZGG36N20YSS Official GE outdoor grill

Here are the diagrams and repair parts for Official GE ZGG36N20YSS outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Monogram Logo WB02X10349
#29

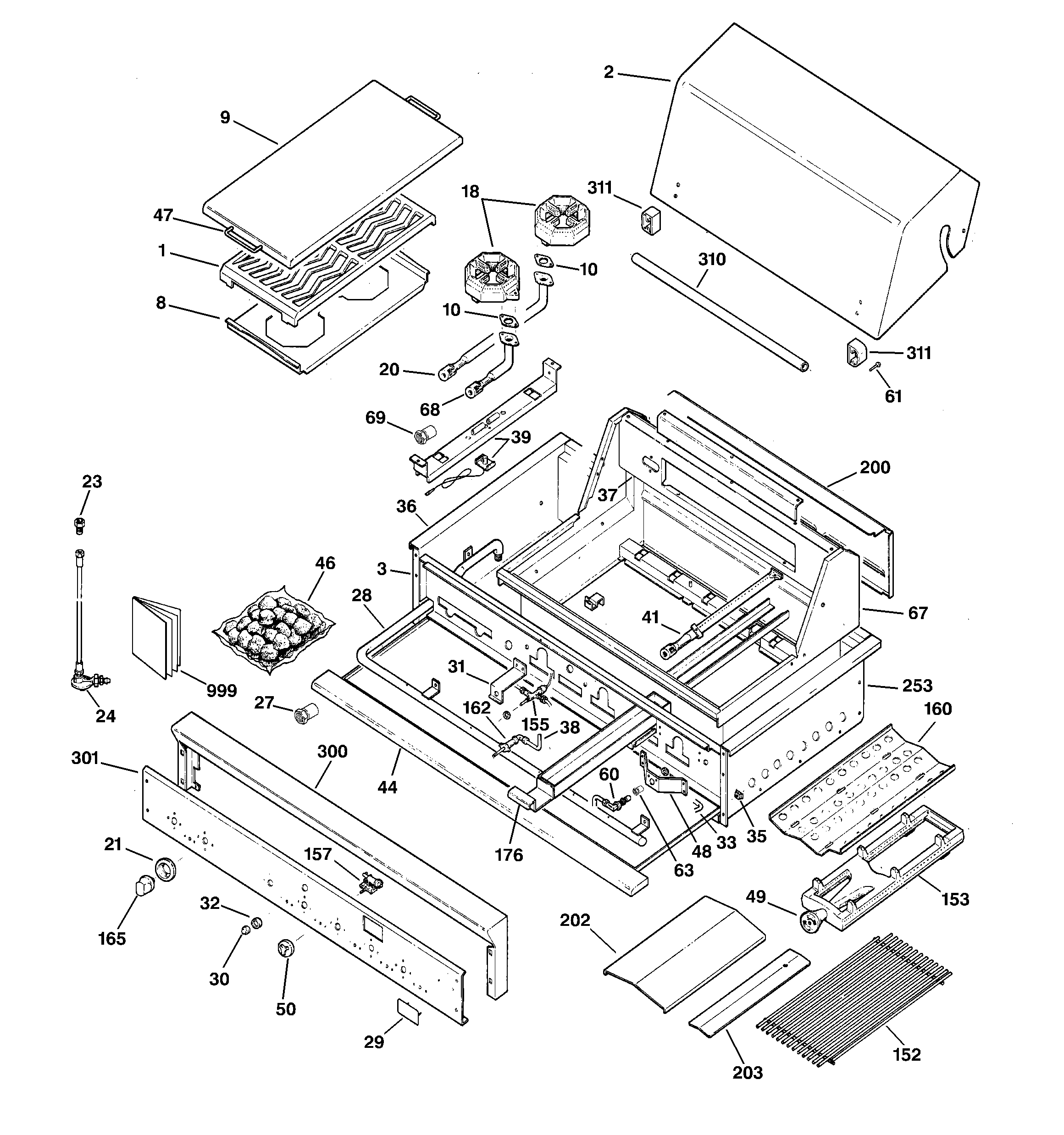

Gas grill parts diagram

Monogram logo

Part #WB02X10349

$21.49
In Stock
H-burner WB28X10008
#153

Gas grill parts diagram

H-burner

Part #WB28X10008

Replaced by #WB28X10021

?
Manufacturer substitution
This part replaces WB28X10008. Substitute parts can look different from the original.
$249.52 |
5% OFF Phone Price : $261.52
In Stock
Uc Only Outd 49-8822
#999

Gas grill parts diagram

Uc only outd

Part #49-8822

Replaced by #049-80377

?
Manufacturer substitution
This part replaces 49-8822. Substitute parts can look different from the original.
$17.99
In Stock
Gas Grill Smoker Drawer WB32X10002
#176

Gas grill parts diagram

Gas grill smoker drawer

Part #WB32X10002

The manufacturer no longer makes this part, and there's no substitute part

Safety Bezel WB07X10041
#32

Gas grill parts diagram

Safety bezel

Part #WB07X10041

The manufacturer no longer makes this part, and there's no substitute part

Venturi WB38X10006
#20

Gas grill parts diagram

Venturi

Part #WB38X10006

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Burner Knob WB03X10015
#165

Gas grill parts diagram

Gas grill burner knob

Part #WB03X10015

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill H-burner Heat Shield WB07X10043
#202

Gas grill parts diagram

Gas grill h-burner heat shield

Part #WB07X10043

The manufacturer no longer makes this part, and there's no substitute part

Range Surface Burner Grate WB49X5591
#1

Gas grill parts diagram

Range surface burner grate

Part #WB49X5591

The manufacturer no longer makes this part, and there's no substitute part

Shoulder Bolt WB01X10018
#61

Gas grill parts diagram

Shoulder bolt

Part #WB01X10018

The manufacturer no longer makes this part, and there's no substitute part
