Model # DW80J9945US/AA-00 Official Samsung dishwasher

Here are the diagrams and repair parts for Official Samsung DW80J9945US-AA-00 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

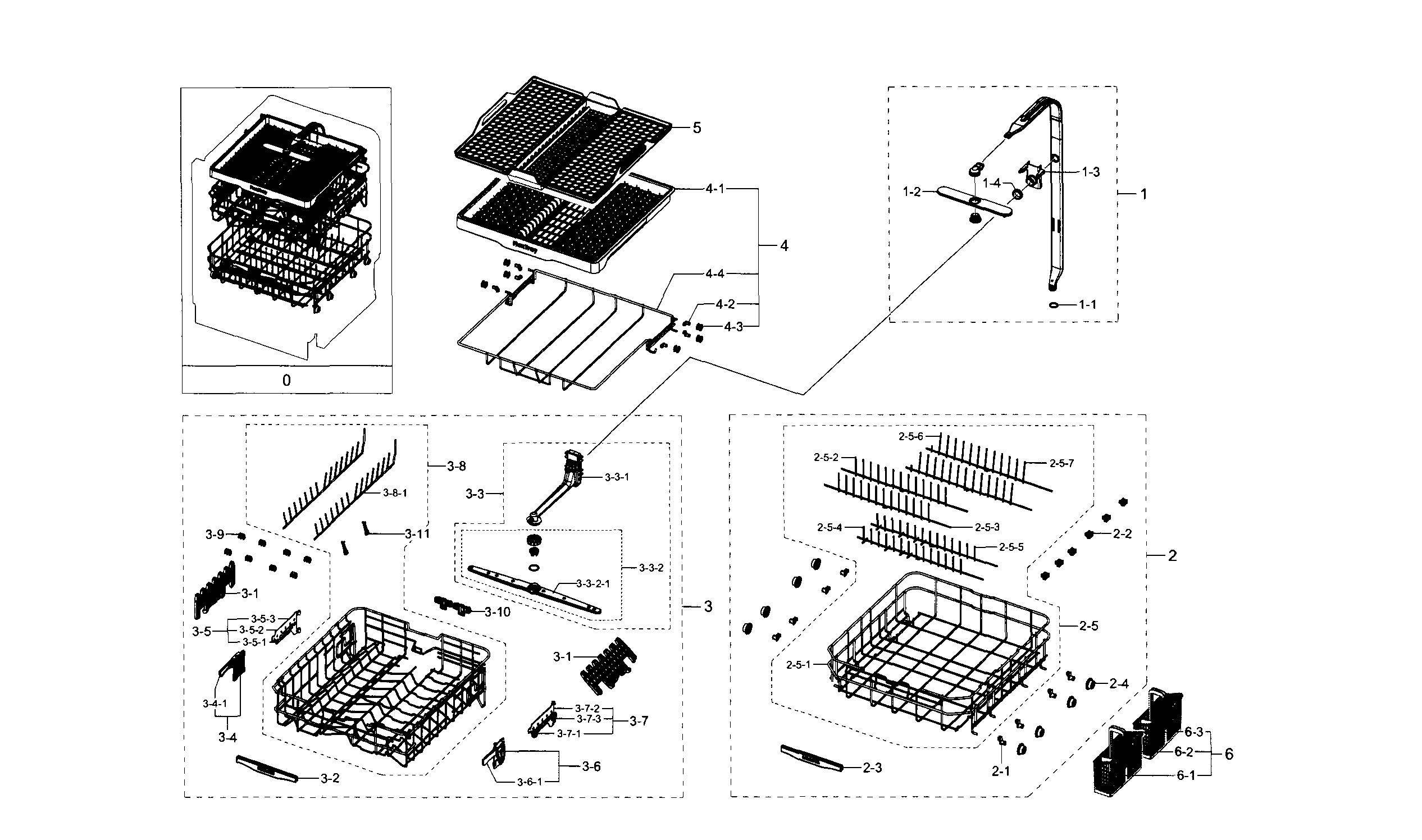

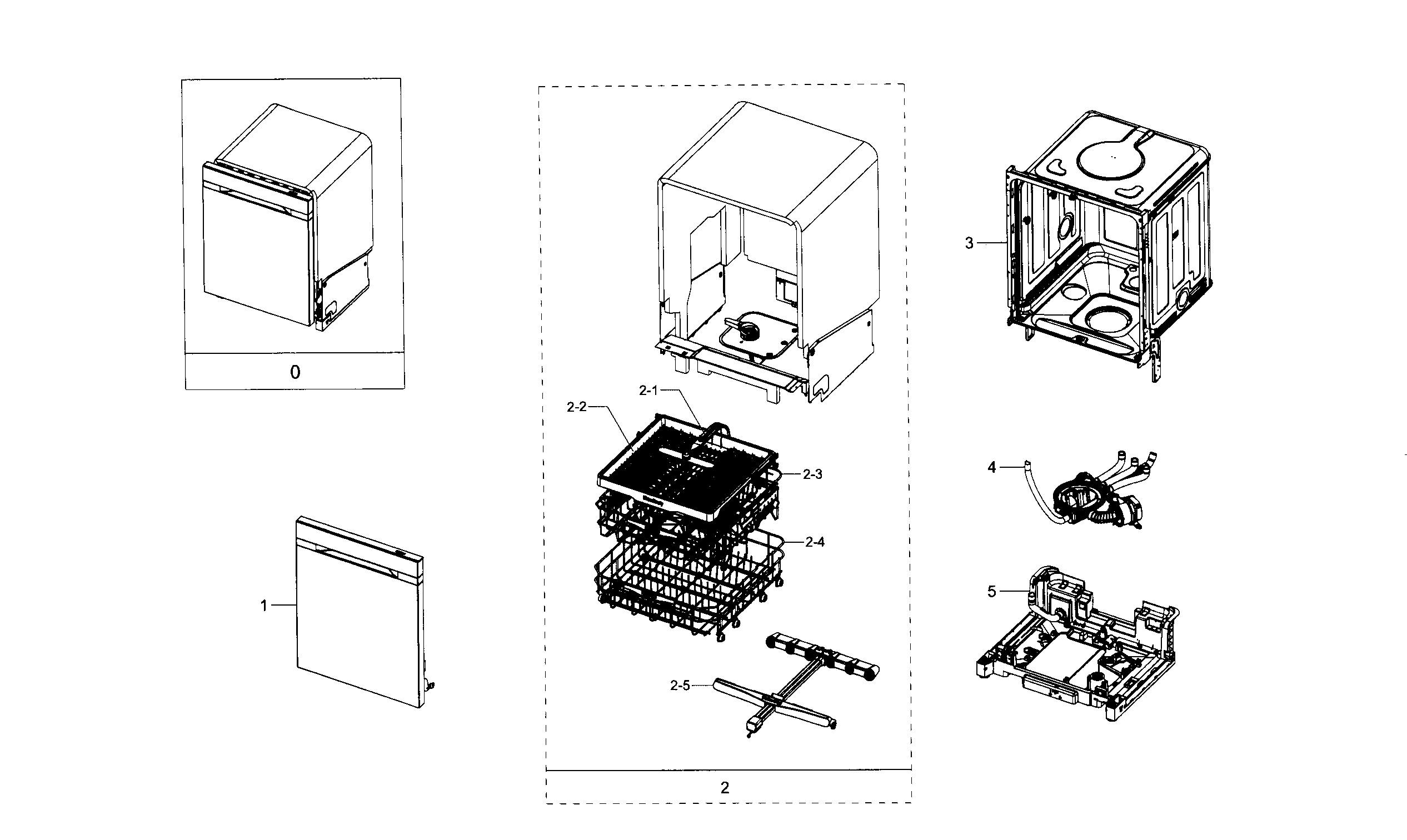

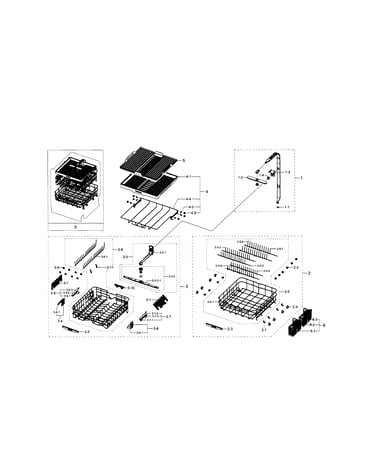

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 219 parts  |
Dishwasher Drain Pump DD31-00016A
#1

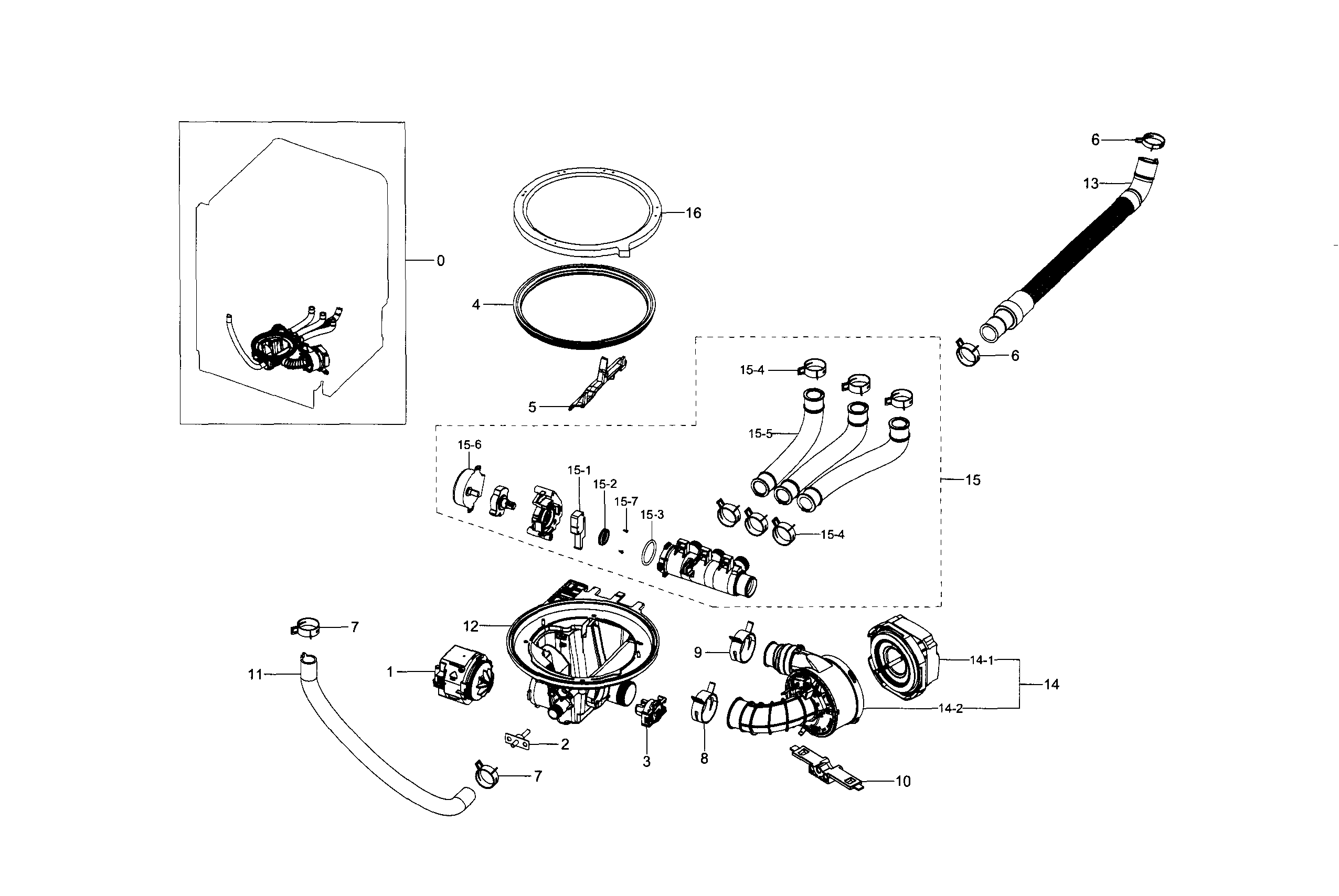

Sump diagram

Dishwasher drain pump

Part #DD31-00016A

BEST SELLER
$146.69 |
8% OFF Phone Price : $158.69
In Stock
Dishwasher Vent Seal DD63-00072A
#23

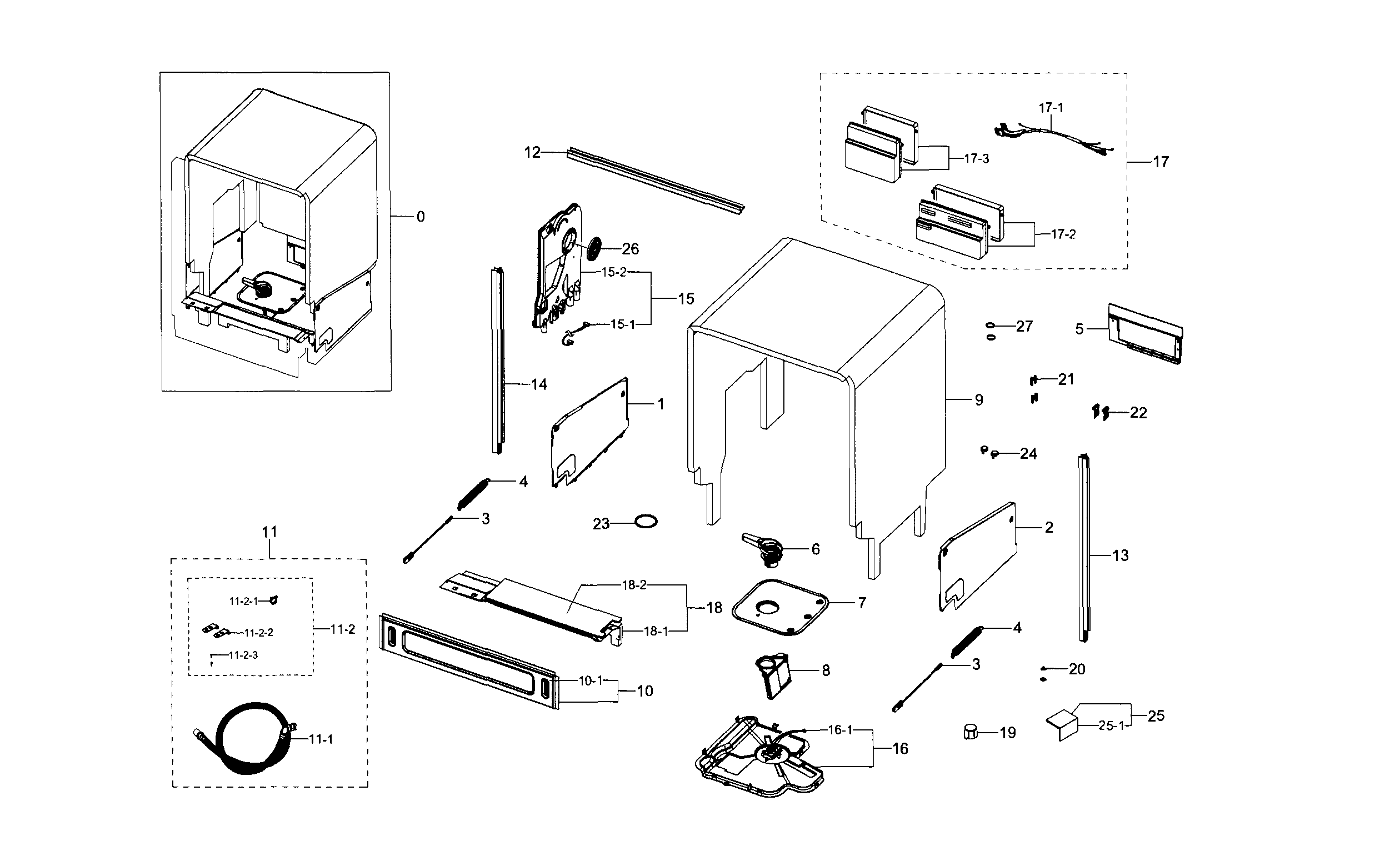

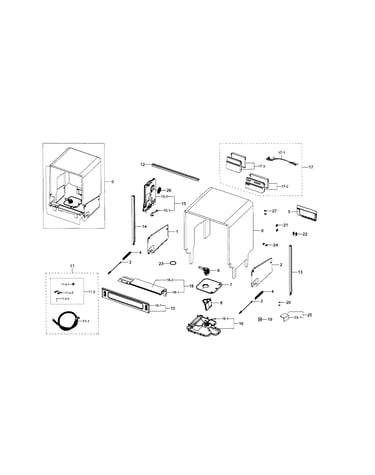

Case diagram

Dishwasher vent seal

Part #DD63-00072A

BEST SELLER
This item is not returnable
$5.64 |
15% OFF Phone Price : $6.64
In Stock
Dishwasher Installation Bracket DD61-00465A
#1122

Case diagram

Dishwasher installation bracket

Part #DD61-00465A

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Dishwasher Door Switch DD34-00007A
#8-1

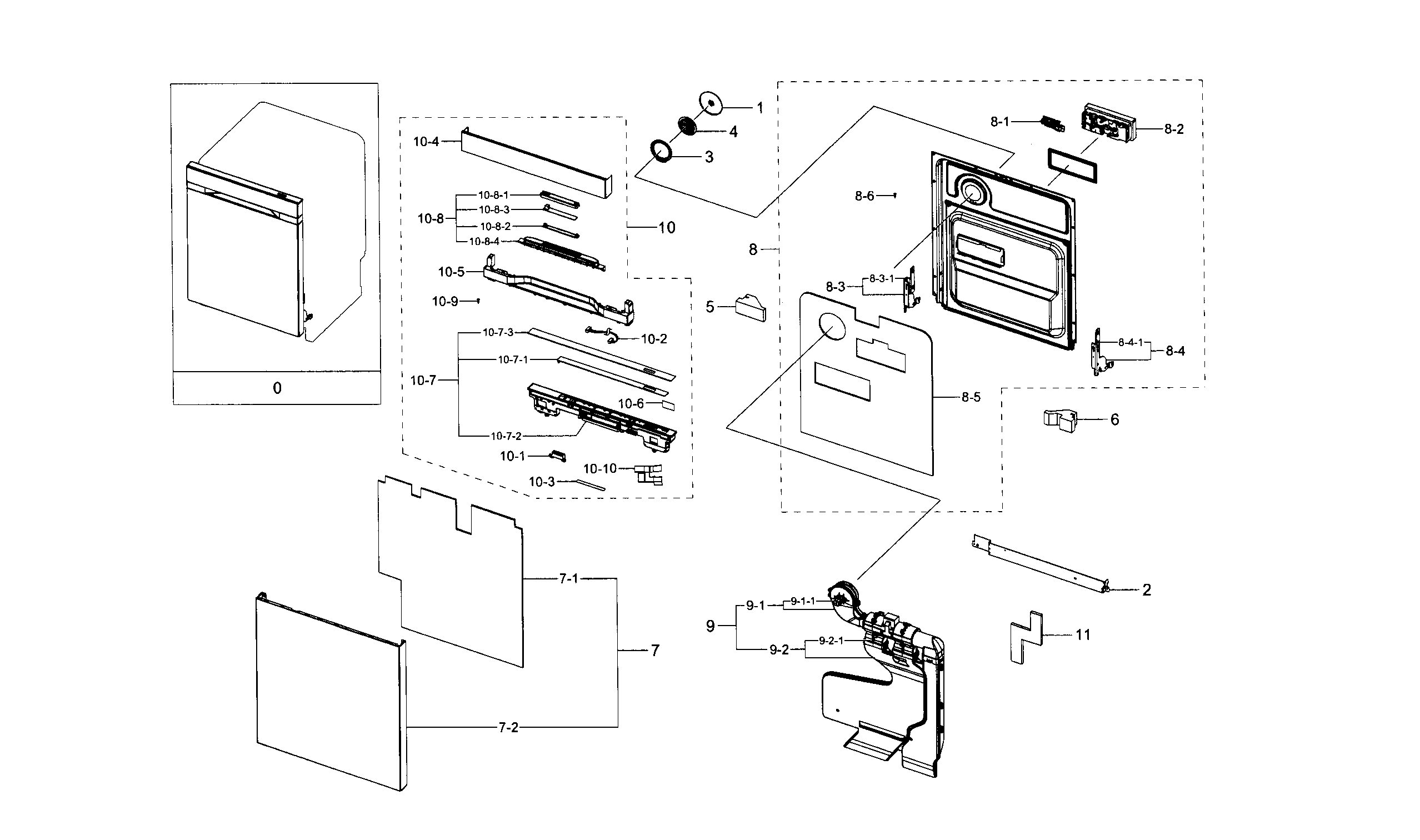

Door diagram

Dishwasher door switch

Part #DD34-00007A

BEST SELLER
$22.76 |
21% OFF Phone Price : $28.76
In Stock
Dishwasher Motor Shaft Seal DD62-00053A
#21-3

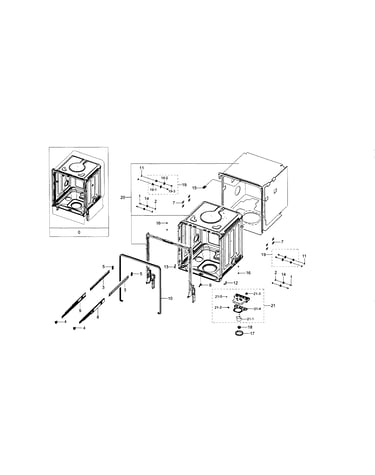

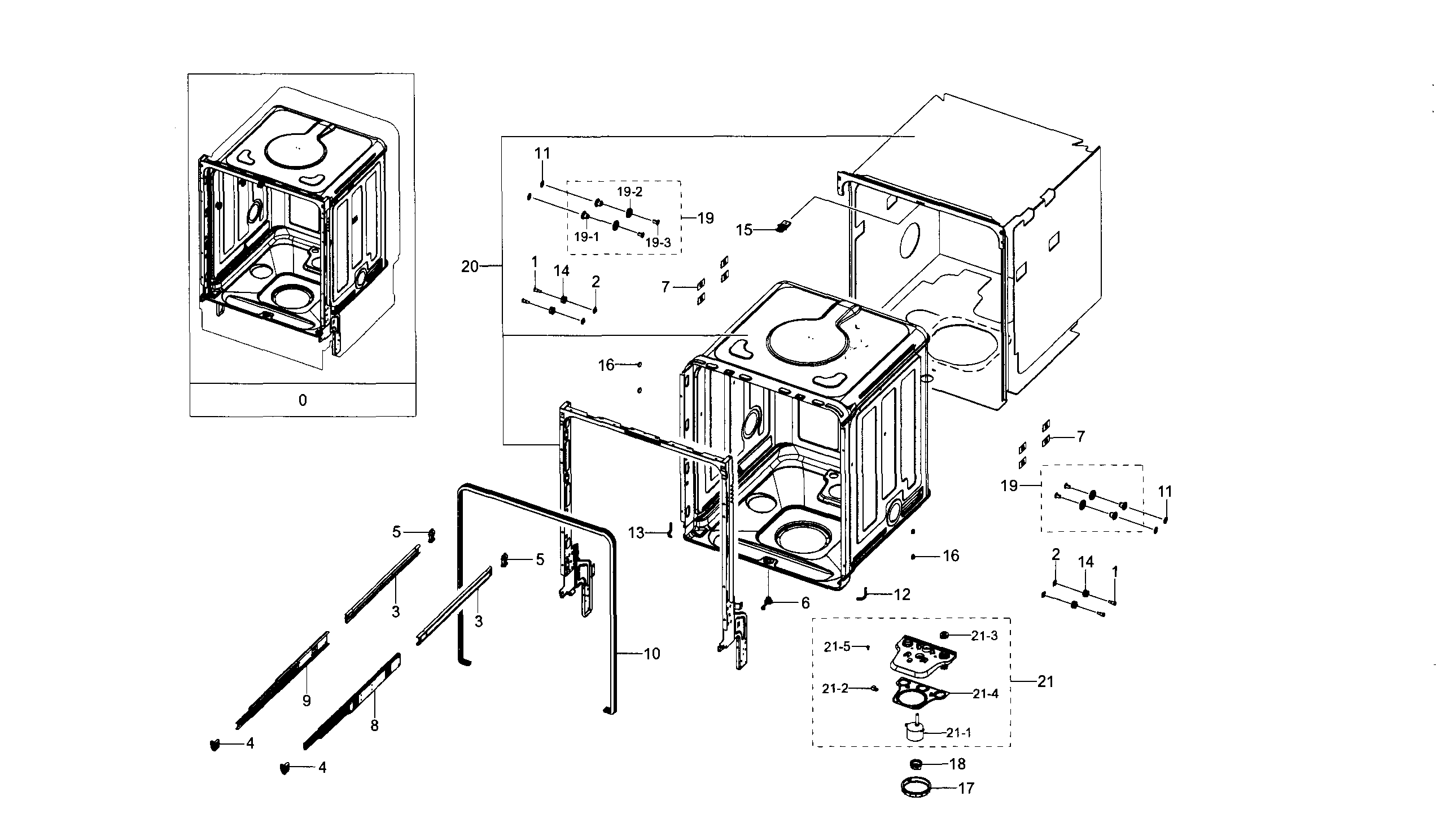

Tub diagram

Dishwasher motor shaft seal

Part #DD62-00053A

BEST SELLER
This item is not returnable
$30.96 |
16% OFF Phone Price : $36.96
In Stock
Dishwasher Water Feed Tube And Spinner Assembly DD97-00184A
Dishwasher water feed tube and spinner assembly

Part #DD97-00184A

$28.49 |
17% OFF Phone Price : $34.49
In Stock
Dishwasher Leveling Leg DD61-00331B
#5

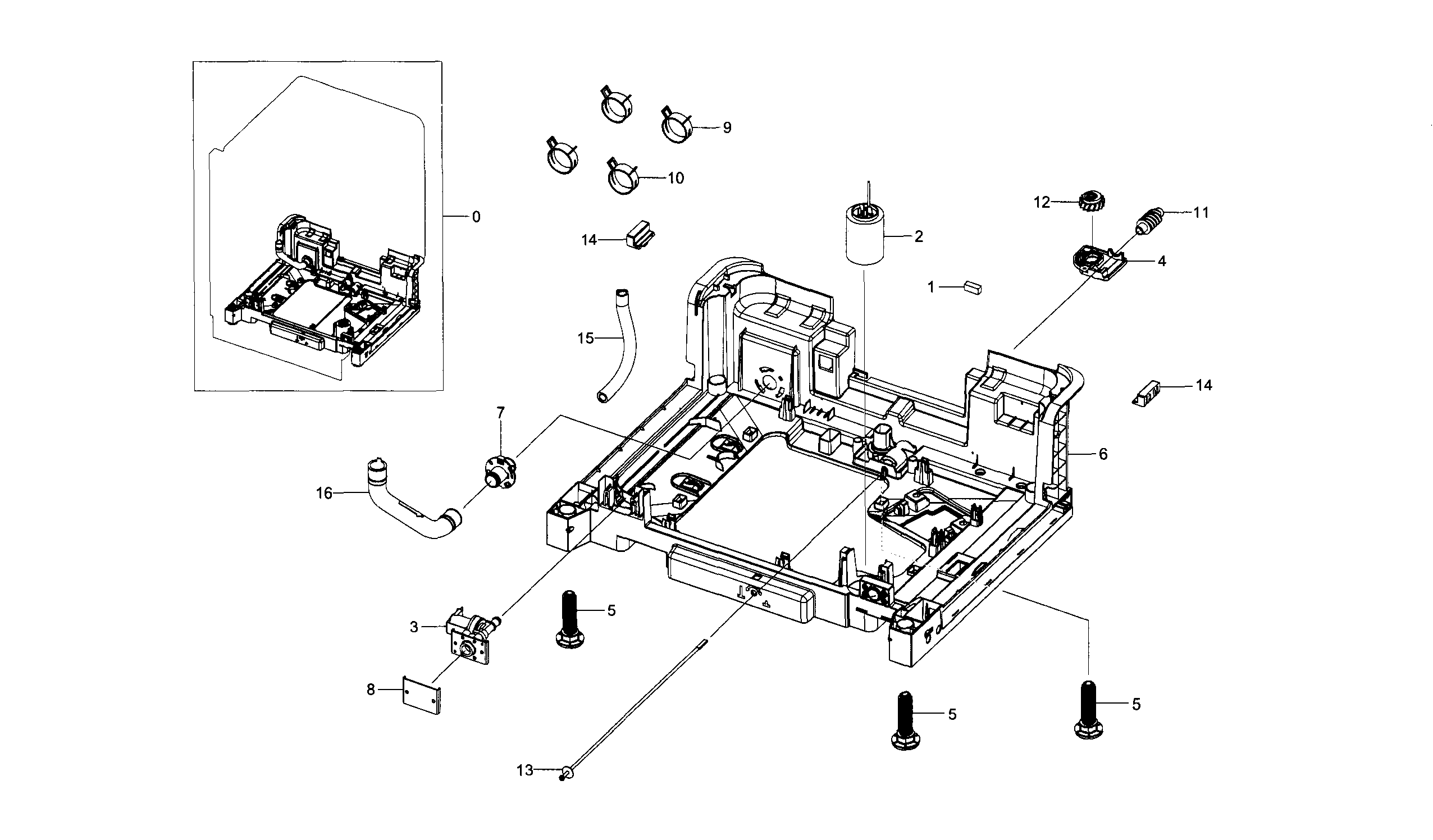

Base diagram

Dishwasher leveling leg

Part #DD61-00331B

This item is not returnable
$16.00 |
11% OFF Phone Price : $18.00
In Stock
Dishwasher Pump And Motor Assembly DD93-01010A
#14

Sump diagram

Dishwasher pump and motor assembly

Part #DD93-01010A

$223.56 |
5% OFF Phone Price : $235.56
In Stock
Dishwasher Waterwall Spray Arm Assembly DD97-00206A
#1

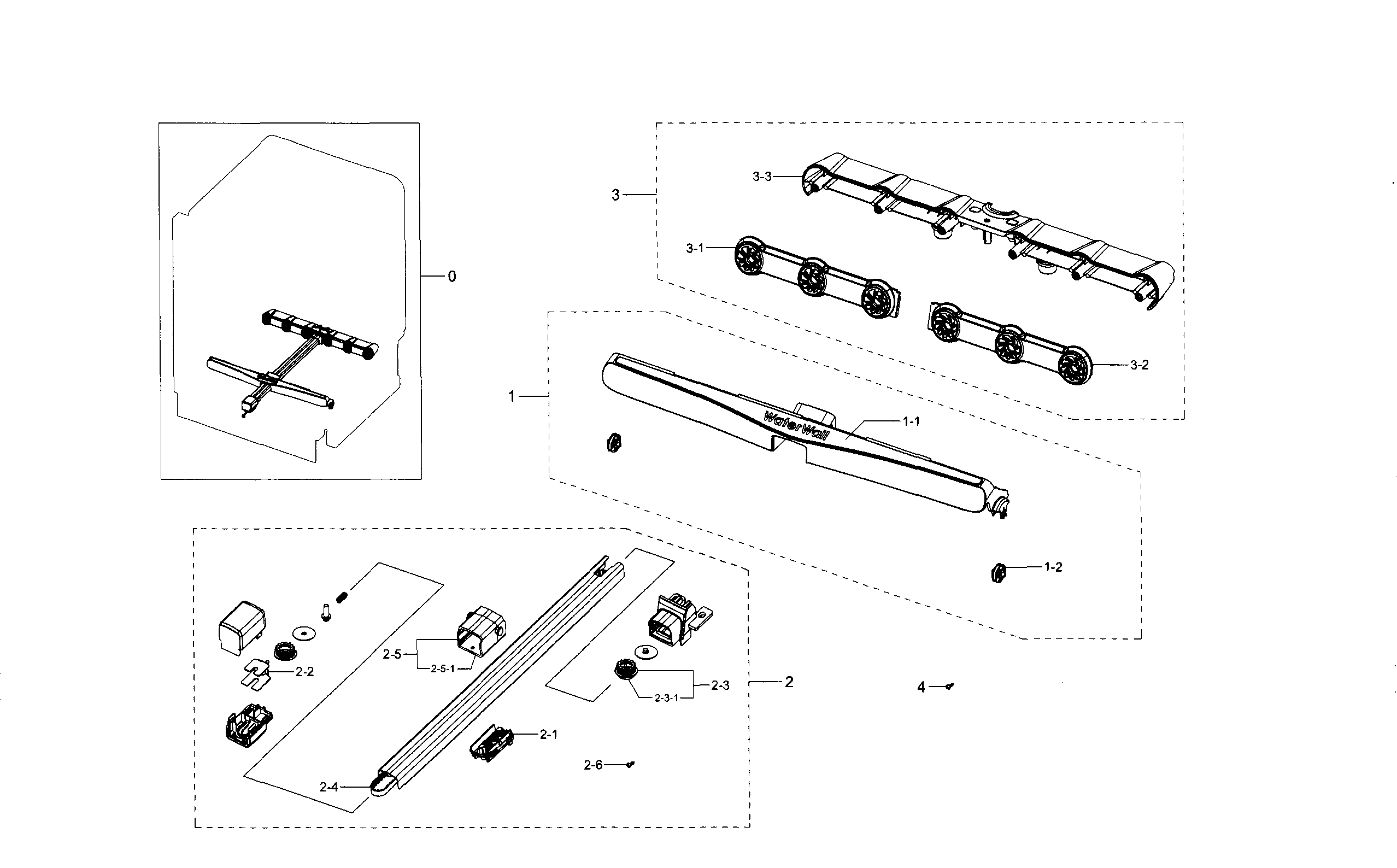

Case/motion diagram

Dishwasher waterwall spray arm assembly

Part #DD97-00206A

$68.85 |
8% OFF Phone Price : $74.85
In Stock
Dishwasher Wash Vane Sensor DD32-00011A
#21-2

Tub diagram

Dishwasher wash vane sensor

Part #DD32-00011A

$42.89 |
12% OFF Phone Price : $48.89
In Stock
