Whirlpool
Chest Freezer

Model # EH150FXEN00 Official Whirlpool chest freezer

Here are the diagrams and repair parts for Official Whirlpool EH150FXEN00 chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Drier Tube 4356332
#4

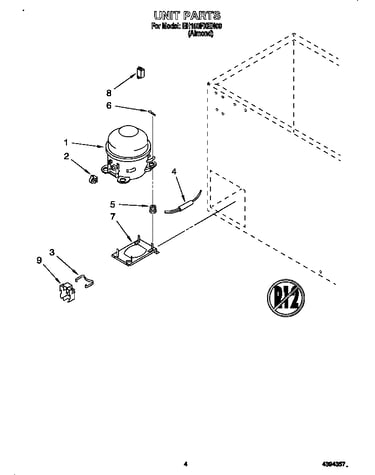

Unit diagram

Drier tube

Part #4356332

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4356332. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Light Bulb 4356311
#11

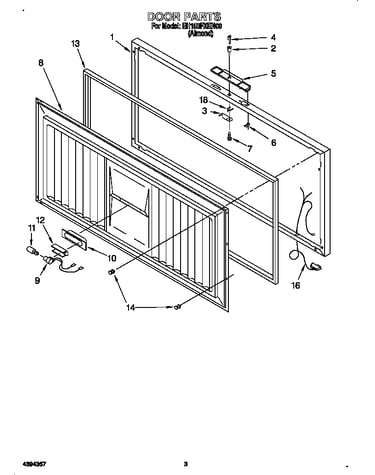

Door diagram

Light bulb

Part #4356311

Replaced by #W10873798

?
Manufacturer substitution
This part replaces 4356311. Substitute parts can look different from the original.
$8.66
In Stock
Paint (almond) 350956

#NI

All parts diagram

Paint (almond)

Part #350956

Replaced by #350956

?
Manufacturer substitution
This part replaces 350956. Substitute parts can look different from the original.
This item is not returnable
$20.89 |
22% OFF Phone Price : $26.89
In Stock
Grommet 4356321
#4

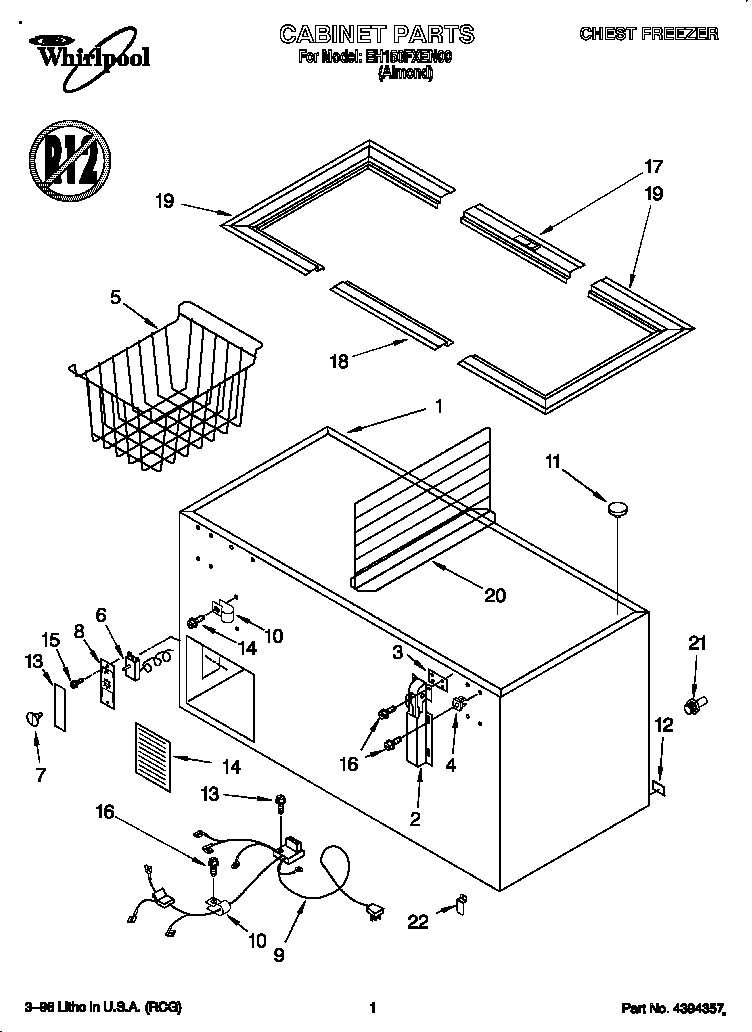

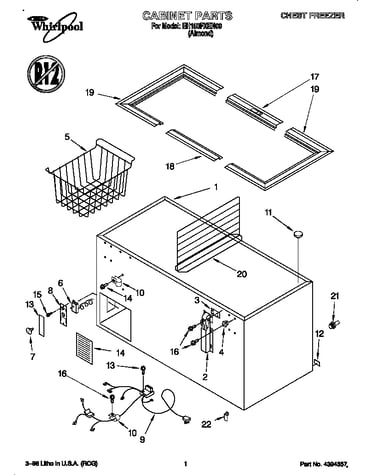

Cabinet diagram

Grommet

Part #4356321

$15.29 |
12% OFF Phone Price : $17.29
In Stock
Screw 4356491
#16

Cabinet diagram

Screw

Part #4356491

$11.59
In Stock
Cover 4356559
#12

Cabinet diagram

Cover

Part #4356559

This item is not returnable
$7.13
In Stock
Touch Up 72107

#NI

All parts diagram

Touch up

Part #72107

Replaced by #WP72107

?
Manufacturer substitution
This part replaces 72107. Substitute parts can look different from the original.
This item is not returnable
$8.07 |
11% OFF Phone Price : $9.07
In Stock
Screw 4356583
#15

Cabinet diagram

Screw

Part #4356583

Replaced by #3-24004-049

?
Manufacturer substitution
This part replaces 4356583. Substitute parts can look different from the original.
This item is not returnable
$7.29
In Stock
Hook 4356608
#3

Door diagram

Hook

Part #4356608

Replaced by #2-35195-002

?
Manufacturer substitution
This part replaces 4356608. Substitute parts can look different from the original.
$35.24
In Stock
Screw 4356609
#7

Door diagram

Screw

Part #4356609

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 4356609. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
