Model # KXD4630YSS4 Official KitchenAid ventilation system
Here are the diagrams and repair parts for Official KitchenAid KXD4630YSS4 ventilation system, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
KXD4630YSS4 Ventilation System
#21

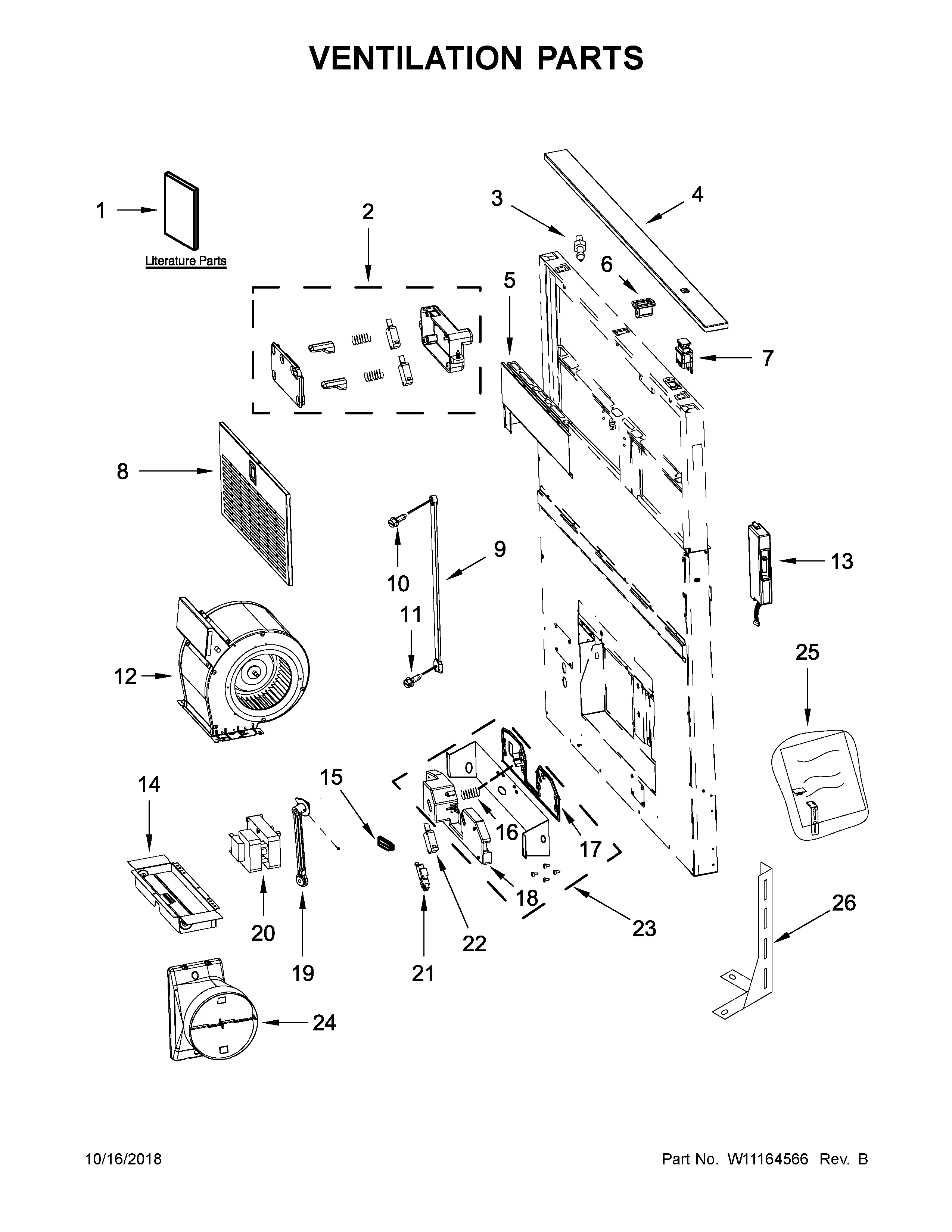

Ventilation parts diagram
Oven switch
Part #W10398341
Replaced by #WPW10398341
?
Manufacturer substitution
This part replaces W10398341. Substitute parts can look different from the original.
$35.79 |
14% OFF Phone Price : $41.79
In Stock
#24
Ventilation parts diagram
Range hood damper
Part #W10313841
Replaced by #WPW10313841
?
Manufacturer substitution
This part replaces W10313841. Substitute parts can look different from the original.
$75.99 |
7% OFF Phone Price : $81.99
In Stock
#NI
Ventilation parts diagram
Downdraft vent top trim, 30-in (white)
Part #W10388169
$163.09 |
7% OFF Phone Price : $175.09
In Stock
#23
Ventilation parts diagram
Switch cover
Part #W10801493
Replaced by #W10833182
?
Manufacturer substitution
This part replaces W10801493. Substitute parts can look different from the original.
$100.22 |
11% OFF Phone Price : $112.22
In Stock
#13
Ventilation parts diagram
Electronic control
Part #W11088233
Replaced by #W11088943
?
Manufacturer substitution
This part replaces W11088233. Substitute parts can look different from the original.
$312.56 |
$12.00 OFF Phone Price : $324.56
In Stock
#9
Ventilation parts diagram
Arm motor
Part #W10421280
Replaced by #WPW10421280
?
Manufacturer substitution
This part replaces W10421280. Substitute parts can look different from the original.
$74.29
In Stock
#2
Ventilation parts diagram
Kit, switch filter
Part #W11097349
Replaced by #W11666423
?
Manufacturer substitution
This part replaces W11097349. Substitute parts can look different from the original.
$100.34
In Stock
#5
Ventilation parts diagram
Cover
Part #W10798407
$329.29
In Stock
#NI
Ventilation parts diagram
Downdraft vent top trim
Part #W10388170
$178.37 |
6% OFF Phone Price : $190.37
In Stock
#8
Ventilation parts diagram
Downdraft vent grease filter
Part #W10422877
$134.18 |
10% OFF Was : $149.09
In Stock
Most common symptoms to help you fix your downdraft ventilation systems
Choose a symptom to see related downdraft vent repairs.
Main causes: lack of electrical power, up/down activation switch failure, bad vent gear motor…
Main causes: electrical power failure, up/down activation switch problems, vent gear motor failure…
Main causes: problems with the vent limit switches, up/down activation switch failure…
Main causes: fan control switch failure, bad blower fan motor, broken blower wheel, wiring failure…
Main causes: clogged grease filters, air duct problems, fan motor failure, broken blower wheel…
Most common repair guides to help fix your downdraft ventilation systems
These step-by-step repair guides will help you safely fix what’s broken on your downdraft vent.

How to replace a downdraft vent up/down switch
The up/down switch starts the gear motor to raise and lower the air vent. Replace the up/down switch if defective.…
Repair difficulty
Time required
15 minutes or less

How to replace a downdraft vent blower motor
The blower motor spins the fan blade that removes smoke and steam from the cooktop area. Replace the blower motor if it …
Repair difficulty
Time required
15 minutes or less

How to replace a downdraft vent gear motor
The gear motor raises and lowers the air vent when you push the activating switch. Replace the gear motor if defective.…
Repair difficulty
Time required
15 minutes or less
Effective articles & videos to help repair your downdraft ventilation systems
Use the advice and tips in these articles to get the most out of your downdraft vent.

Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…

Get answers to frequently asked questions about Sears and Sears PartsDirect.…

Learn how to repair broken, frayed or damaged wires in your appliances.…
