Model # ZIDI240HAII Official GE double drawer refrigerator

Here are the diagrams and repair parts for Official GE ZIDI240HAII double drawer refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Beverage Cooler Power Control Board (replaces Wr17x11680, Wr55x10407, Wr55x10507, Wr55x10508, Wr55x10509, Wr55x10510, Wr55x10511, Wr55x10512) WR55X10430
#828

Machine compartment diagram

Beverage cooler power control board (replaces wr17x11680, wr55x10407, wr55x10507, wr55x10508, wr55x10509, wr55x10510, wr55x10511, wr55x10512)

Part #WR55X10430

$454.55 |
$12.00 OFF Phone Price : $466.55
In Stock
Wine Cooler Compressor Start Relay WR07X10072
#31

Machine compartment diagram

Wine cooler compressor start relay

Part #WR07X10072

$96.54 |
11% OFF Phone Price : $108.54
In Stock
Refrigerator Compressor WR87X10112
#210

Machine compartment diagram

Refrigerator compressor

Part #WR87X10112

$672.35
In Stock
Reed Switch WR23X10378
#475

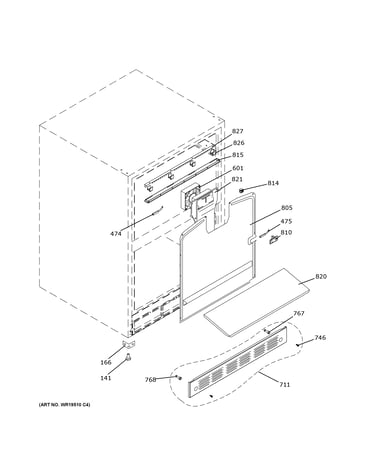

Cabinet & shelves diagram

Reed switch

Part #WR23X10378

$58.80
In Stock
Refrigeration Appliance Evaporator Fan Motor And Blade WR60X10165
#601

Cabinet & shelves diagram

Refrigeration appliance evaporator fan motor and blade

Part #WR60X10165

$226.00 |
5% OFF Phone Price : $238.00
In Stock
Wine Cooler Switch Holder WR02X11823
#810

Cabinet & shelves diagram

Wine cooler switch holder

Part #WR02X11823

$26.32
In Stock
Drawer Support WR02X11818
#795

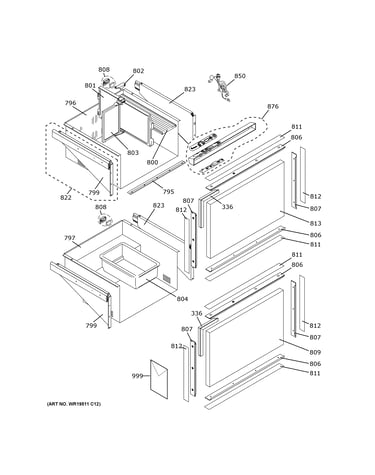

Doors diagram

Drawer support

Part #WR02X11818

$34.07
In Stock
Drawer Guide WR17X11681
#799

Doors diagram

Drawer guide

Part #WR17X11681

$345.98
In Stock
Evaporator WR02X11824
#814

Cabinet & shelves diagram

Evaporator

Part #WR02X11824

$22.00
In Stock
Frame WR72X10159
#811

Doors diagram

Frame

Part #WR72X10159

$135.08 |
8% OFF Phone Price : $147.08
In Stock
