Reciprocating Saw

Model # 172231110 Official Craftsman reciprocating saw

Here are the diagrams and repair parts for Official Craftsman 172231110 reciprocating saw, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
172231110 Power Tools
Top Cover SB09.0.05.31-00
#5

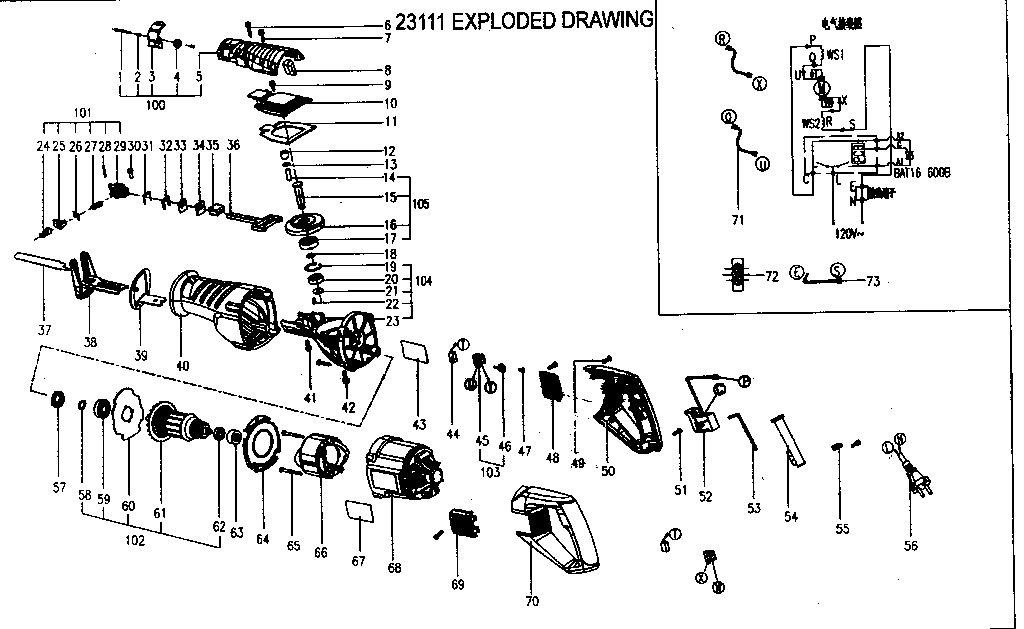

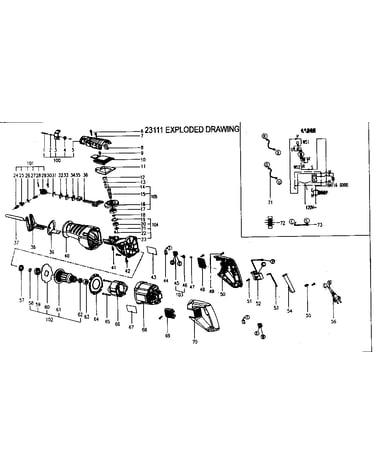

Saw diagram

Top cover

Part #SB09.0.05.31-00

The manufacturer no longer makes this part, and there's no substitute part

Saw Blade SB09F.01-00
#37

Saw diagram

Saw blade

Part #SB09F.01-00

The manufacturer no longer makes this part, and there's no substitute part

Housing SB48.1.01-00
#68

Saw diagram

Housing

Part #SB48.1.01-00

The manufacturer no longer makes this part, and there's no substitute part

Handle SB48.0.01-00
#70

Saw diagram

Handle

Part #SB48.0.01-00

The manufacturer no longer makes this part, and there's no substitute part

Reciprocating Saw Gear Case Cover Bracket SB09.0.09-00
#10

Saw diagram

Reciprocating saw gear case cover bracket

Part #SB09.0.09-00

The manufacturer no longer makes this part, and there's no substitute part

Cord Clamp ST08.01.07-00
#55

Saw diagram

Cord clamp

Part #ST08.01.07-00

The manufacturer no longer makes this part, and there's no substitute part

Stator STB50.03.30-00
#66

Saw diagram

Stator

Part #STB50.03.30-00

The manufacturer no longer makes this part, and there's no substitute part

Ring SW61.55.0-00
#58

Saw diagram

Ring

Part #SW61.55.0-00

The manufacturer no longer makes this part, and there's no substitute part

Washer ST14.02.01-00
#21

Saw diagram

Washer

Part #ST14.02.01-00

The manufacturer no longer makes this part, and there's no substitute part

Gasket SB09.0.12.B-00
#31

Saw diagram

Gasket

Part #SB09.0.12.B-00

The manufacturer no longer makes this part, and there's no substitute part
