Model # 225581740 Official Craftsman 15-hp outboard motor

Here are the diagrams and repair parts for Official Craftsman 225581740 15-hp outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

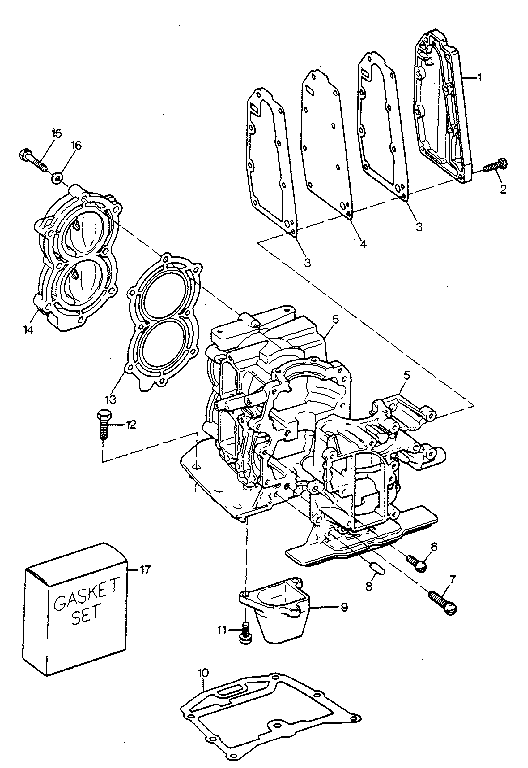

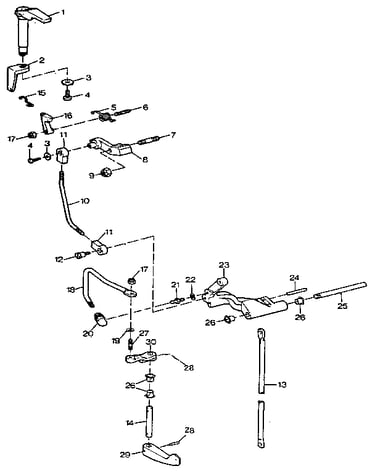

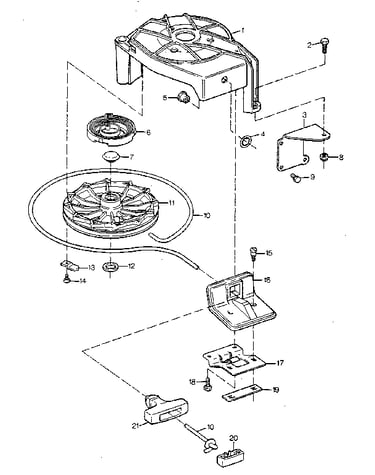

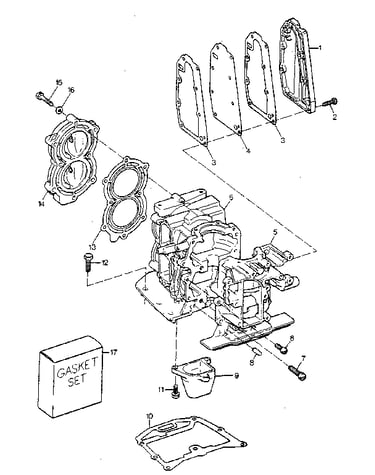

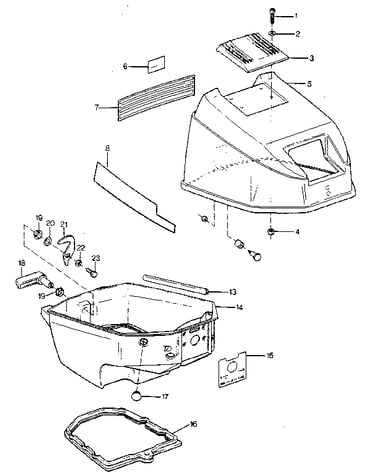

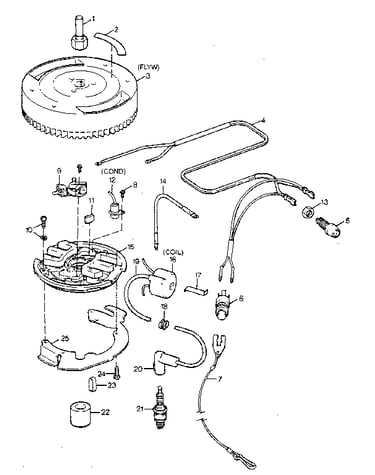

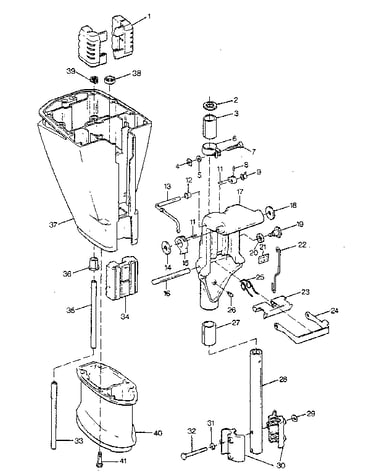

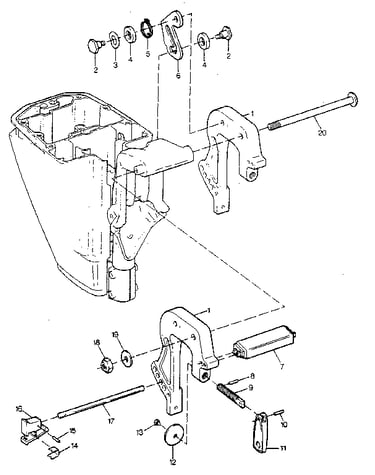

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 352 parts  |

Fuel Bowl O15366
#12

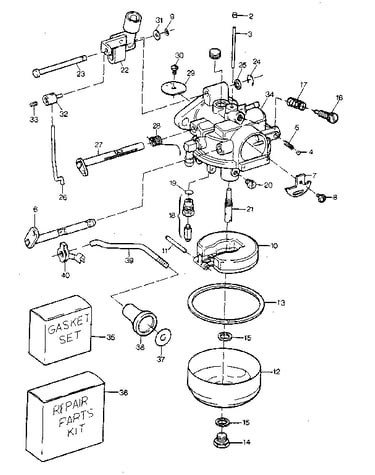

Carburetor 7.5 hp diagram

Fuel bowl

Part #O15366

The manufacturer no longer makes this part, and there's no substitute part

Impeller Drive Pin (silver) 901563
#42

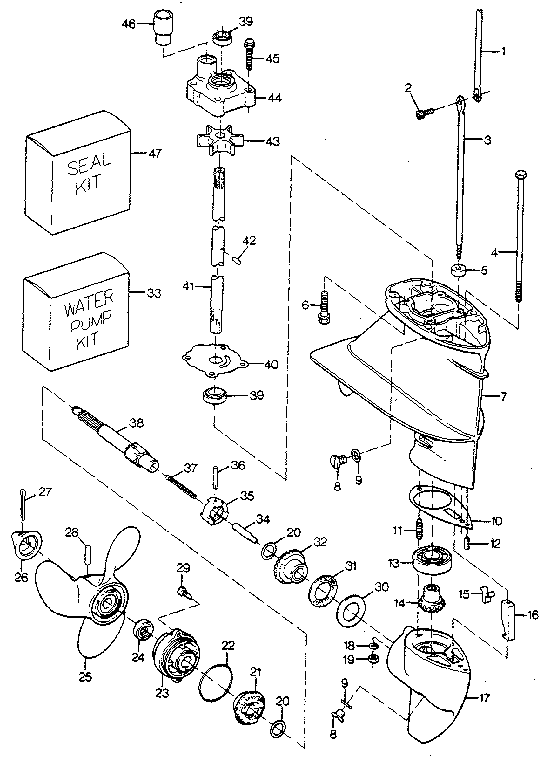

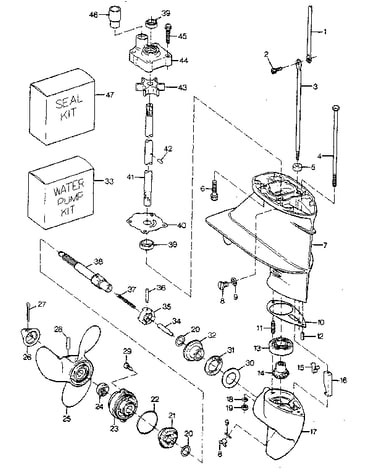

Gearhousing diagram

Impeller drive pin (silver)

Part #901563

The manufacturer no longer makes this part, and there's no substitute part

Exercise Equipment Screw 1859
#26

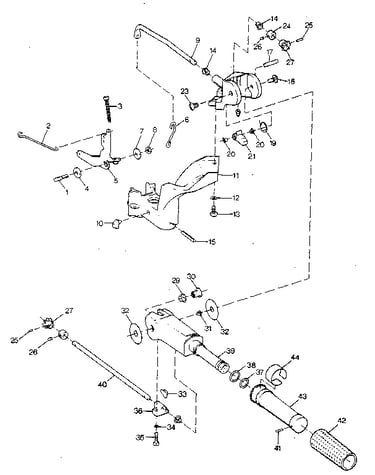

Tiller handle and throttle linkage diagram

Exercise equipment screw

Part #1859

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Seal 901307-2
Boat motor seal

Part #901307-2

The manufacturer no longer makes this part, and there's no substitute part

Exercise Equipment Screw 2030
#45

Gearhousing diagram

Exercise equipment screw

Part #2030

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Primer Bulb 681046
#34

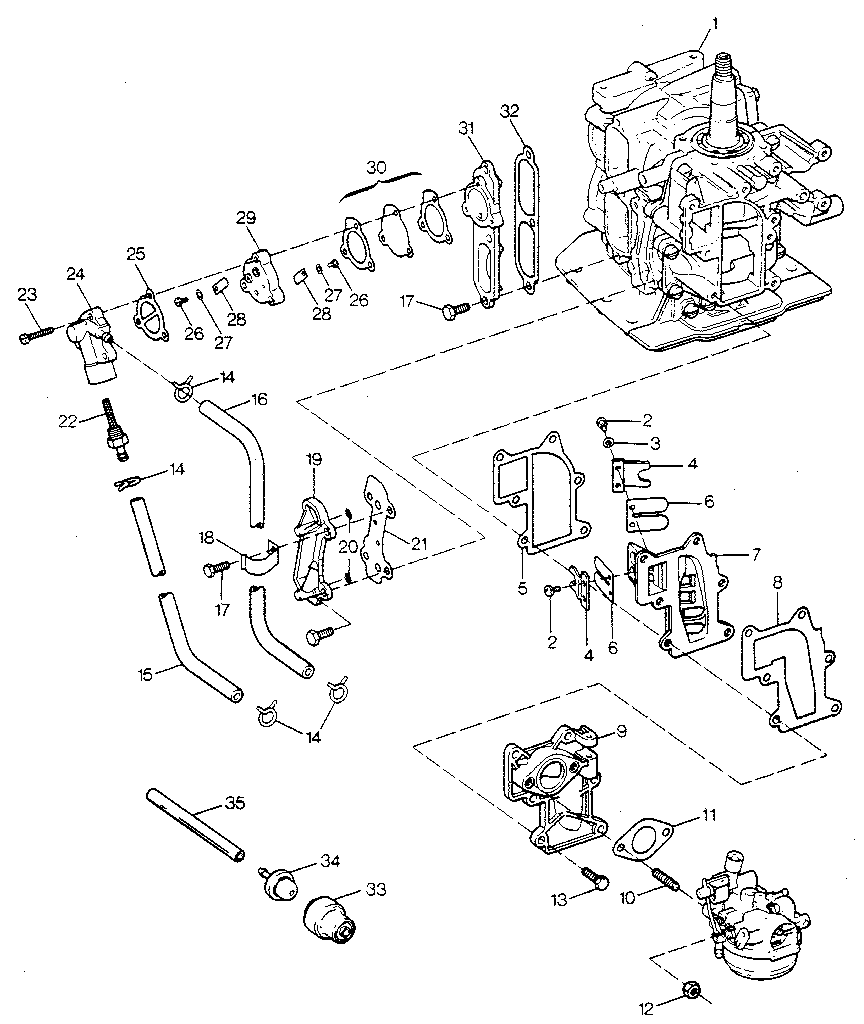

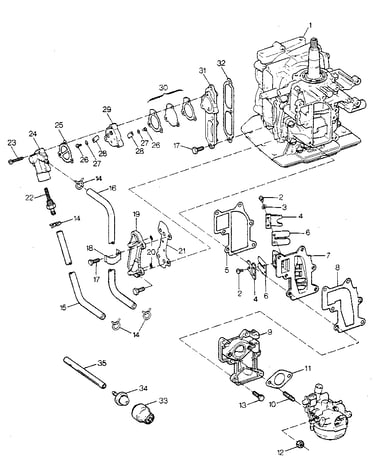

Fuel intake and recirculation system diagram

Boat motor primer bulb

Part #681046

The manufacturer no longer makes this part, and there's no substitute part

Seal (black) 17816
#1

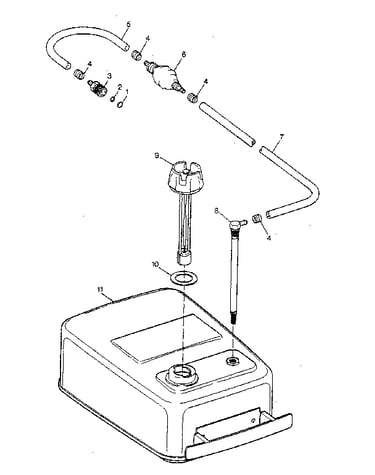

Fuel tank and line diagram

Seal (black)

Part #17816

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Propeller P6430
#25

Gearhousing diagram

Boat motor propeller

Part #P6430

The manufacturer no longer makes this part, and there's no substitute part

Bearing A286155
#8

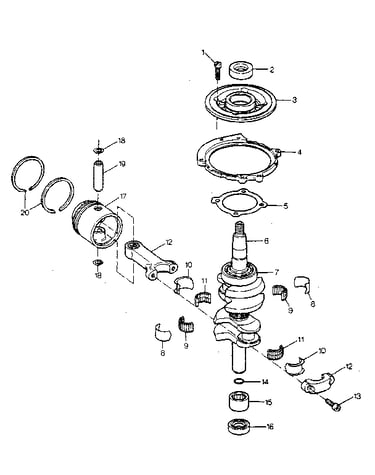

Crankshaft and piston diagram

Bearing

Part #A286155

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Carburetor Float Bowl Gasket O15623
#13

Carburetor 7.5 hp diagram

Boat motor carburetor float bowl gasket

Part #O15623

The manufacturer no longer makes this part, and there's no substitute part
