Model # JBP63BY1WH Official GE electric range
Here are the diagrams and repair parts for Official GE JBP63BY1WH electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forJBP63BY1WH Ranges
- #1024

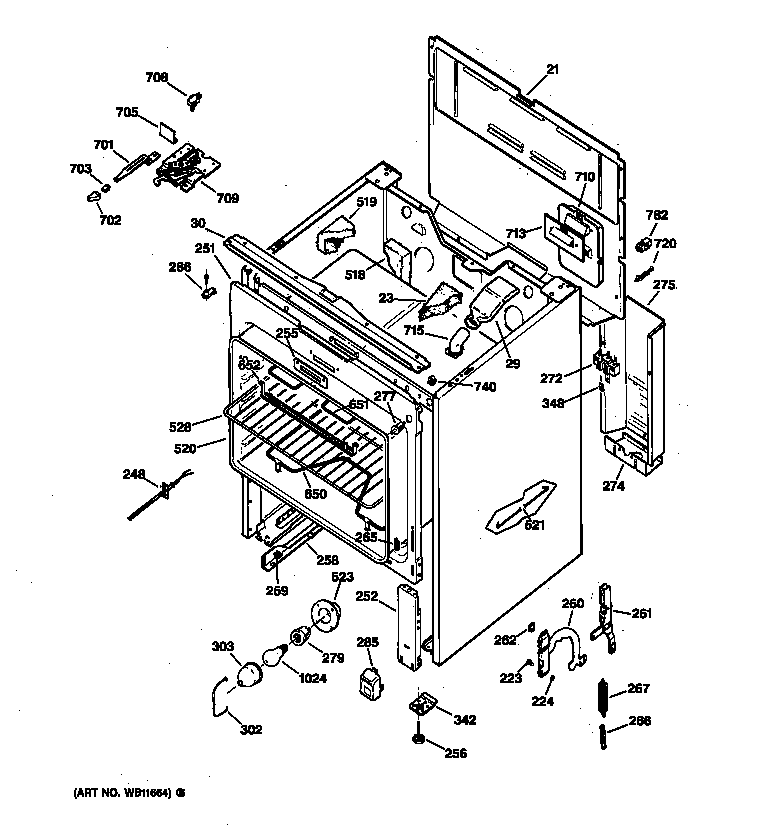

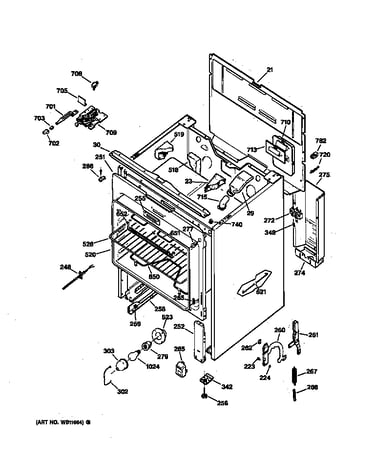

Body parts diagram
Range oven light bulbPart #WX12X1510
Replaced by #40A15
?Manufacturer substitutionThis part replaces WX12X1510. Substitute parts can look different from the original.$14.03 |12% OFF Phone Price : $16.03In Stock - #650
Body parts diagram
Bake unitPart #WB44X10003
Replaced by #WB44X5082
?Manufacturer substitutionThis part replaces WB44X10003. Substitute parts can look different from the original.$55.70 |10% OFF Phone Price : $61.70In Stock - #397

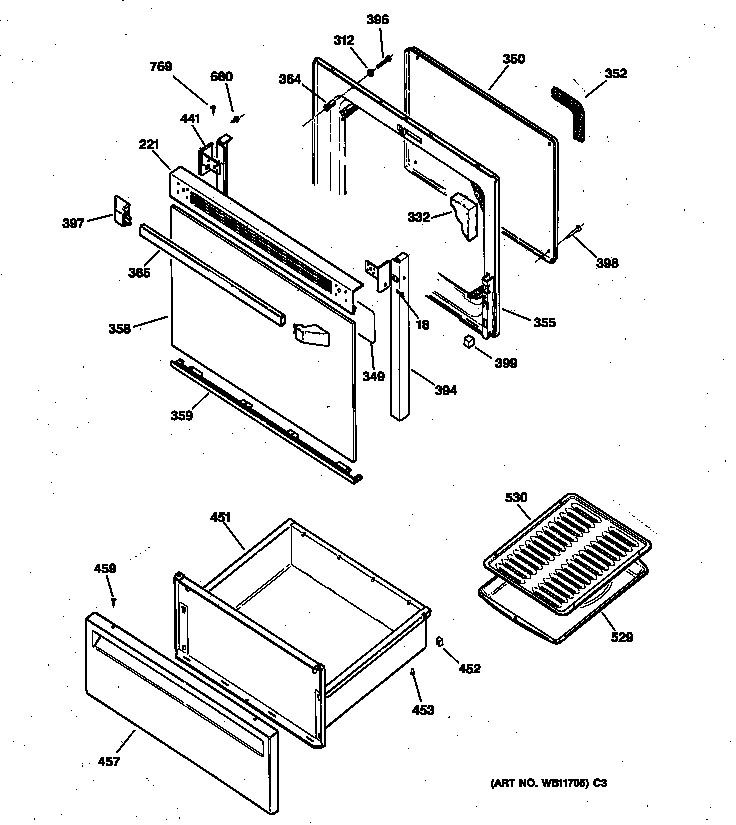

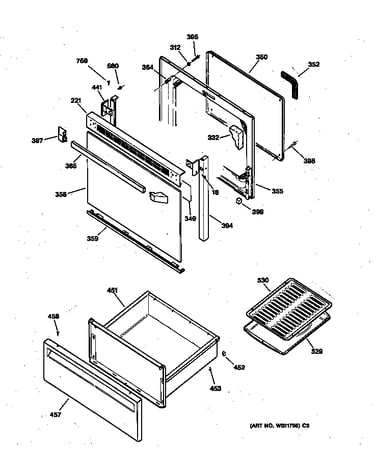

Door & drawer parts diagram
End cap hPart #WB7X10034
Replaced by #WB07X10034
?Manufacturer substitutionThis part replaces WB7X10034. Substitute parts can look different from the original.$32.92 |15% OFF Phone Price : $38.92In Stock - #58

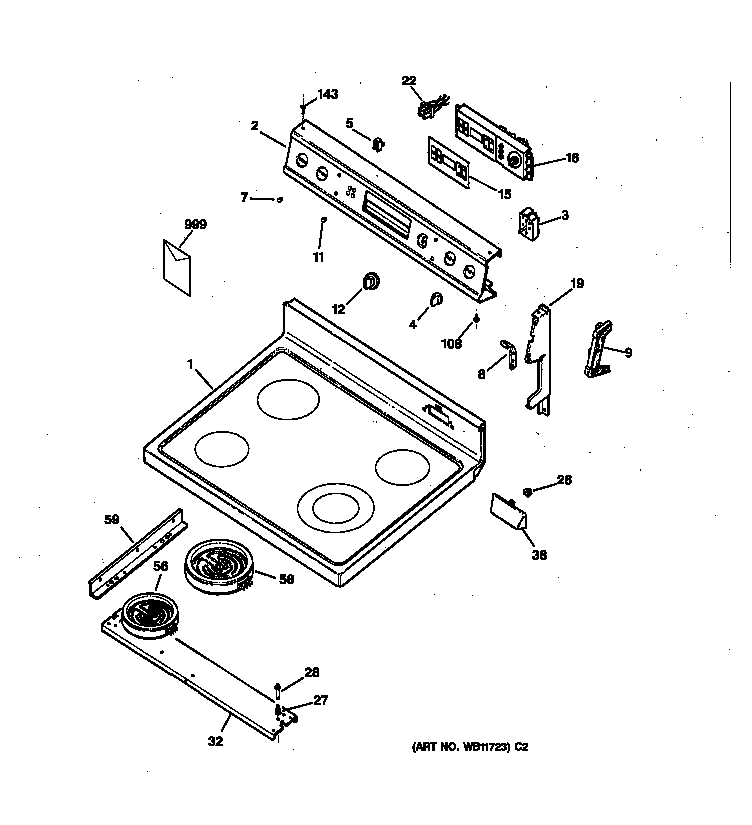

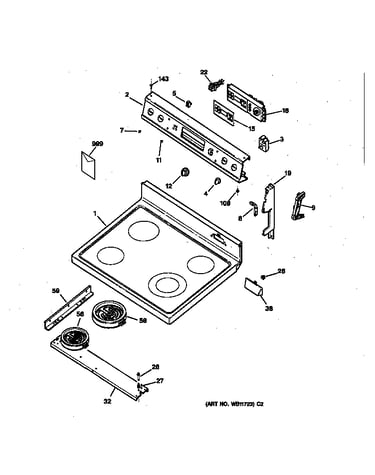

Control panel & cooktop diagram
Halogen elementPart #WB30K5031
Replaced by #WB30T10045
?Manufacturer substitutionThis part replaces WB30K5031. Substitute parts can look different from the original.$186.90 |6% OFF Phone Price : $198.90In Stock - #999C
Control panel & cooktop diagram
CleanerPart #WB64X93
Replaced by #PM10X310
?Manufacturer substitutionThis part replaces WB64X93. Substitute parts can look different from the original.$17.86In Stock - #56
Control panel & cooktop diagram
Halogen elementPart #WB30K5033
Replaced by #WB30X44826
?Manufacturer substitutionThis part replaces WB30K5033. Substitute parts can look different from the original.$186.58In Stock - #359
Door & drawer parts diagram
TrimPart #WB7X7195
Replaced by #WB07K10232
?Manufacturer substitutionThis part replaces WB7X7195. Substitute parts can look different from the original.This item is not returnable$22.91 |21% OFF Phone Price : $28.91In Stock - #15
Control panel & cooktop diagram
Range oven control faceplatePart #WB27X10055
$114.56 |9% OFF Phone Price : $126.56In Stock - #530
Door & drawer parts diagram
Grid broiler panPart #WB48X5107
Replaced by #WB48X10056
?Manufacturer substitutionThis part replaces WB48X5107. Substitute parts can look different from the original.$31.87 |16% OFF Phone Price : $37.87In Stock - #769
Door & drawer parts diagram
ScrewPart #WB1X500
Replaced by #WB1X500D
?Manufacturer substitutionThis part replaces WB1X500. Substitute parts can look different from the original.This item is not returnable$8.22 |11% OFF Phone Price : $9.22In Stock
