Kenmore
Electric Wall Oven

Model # 79041399403 Official Kenmore electric oven

Here are the diagrams and repair parts for Official Kenmore 79041399403 electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

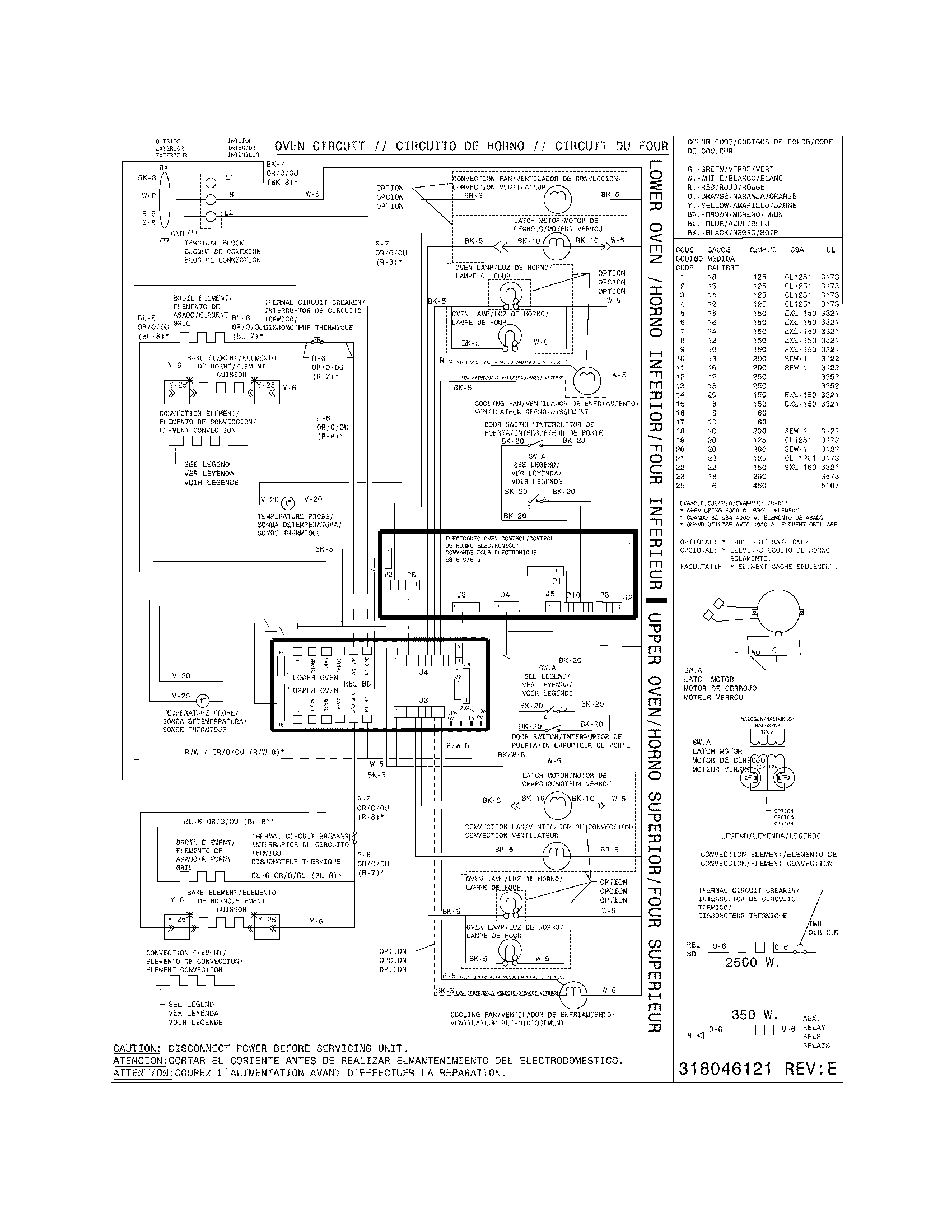

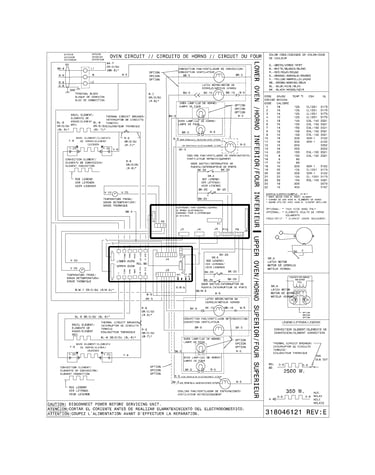

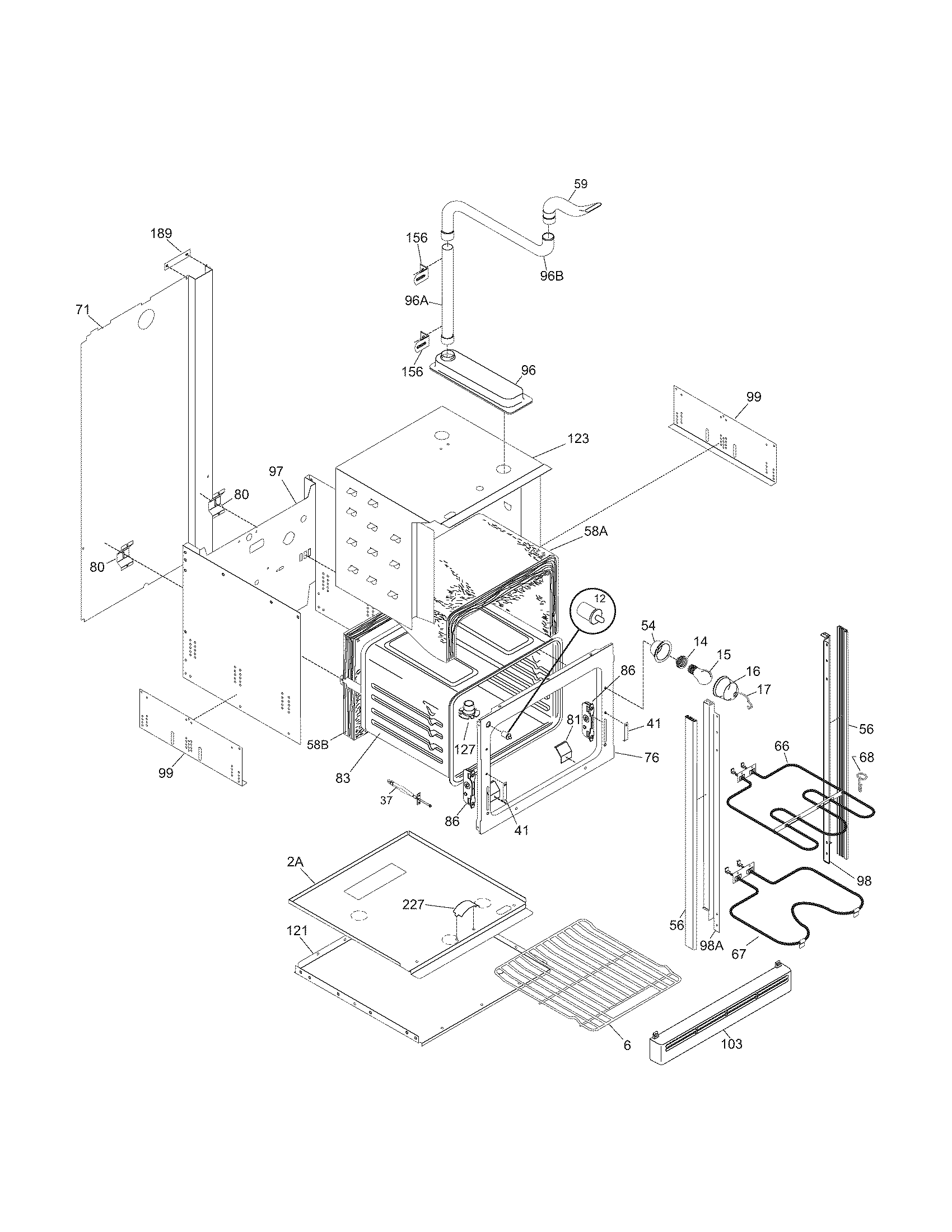

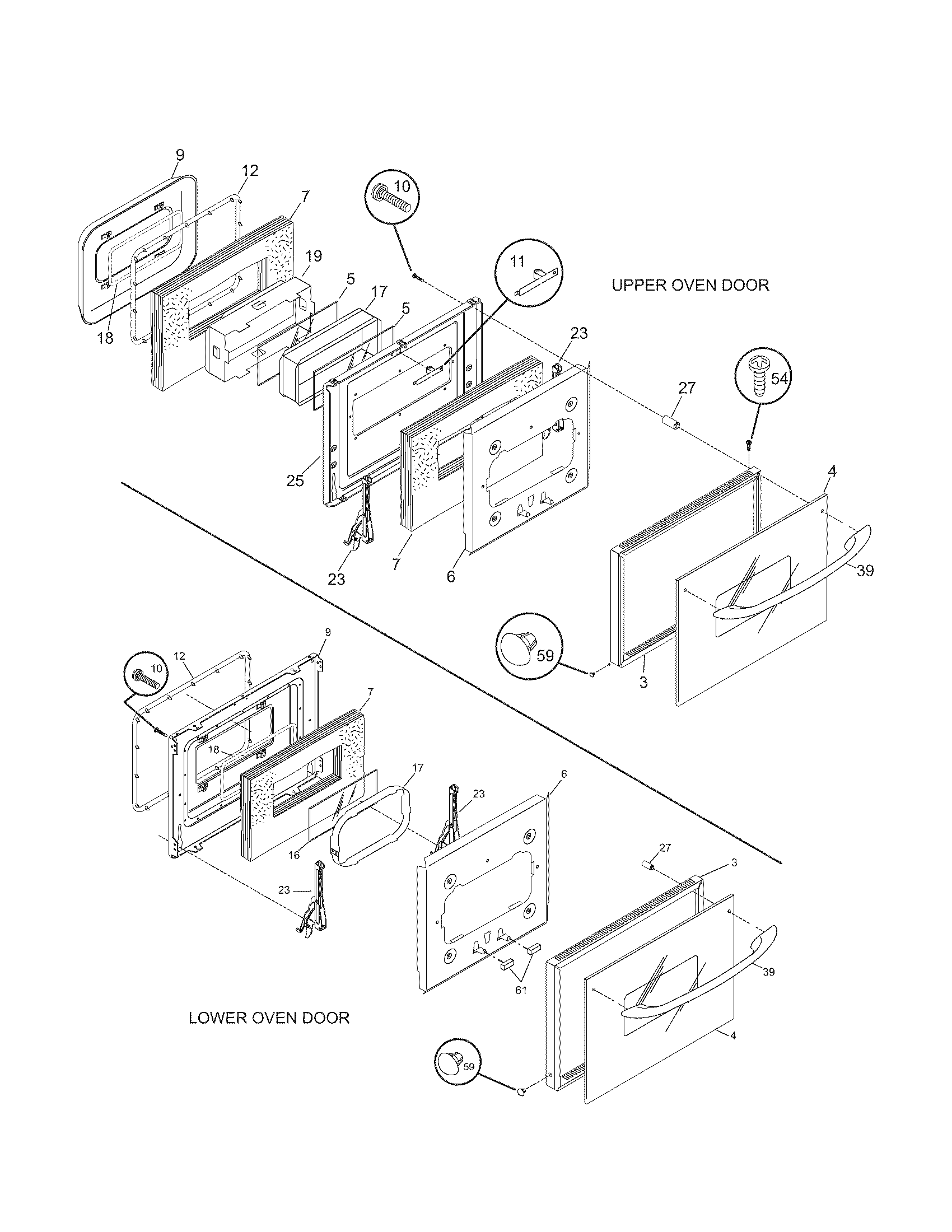

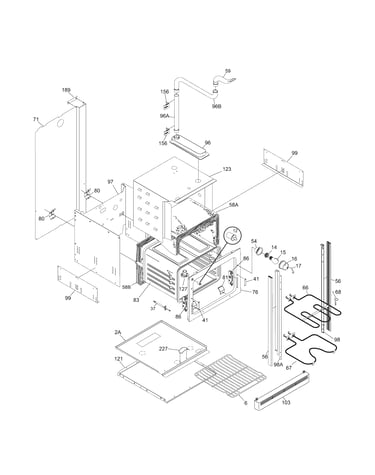

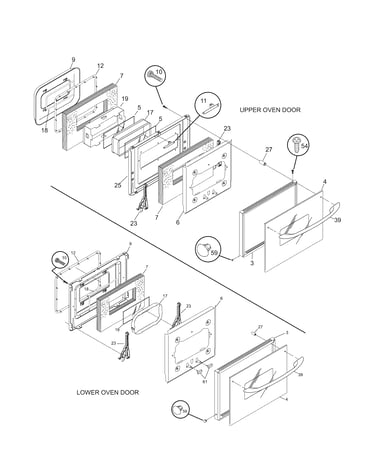

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 124 parts  |
Range Oven Light Bulb 5303013071
Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Range Oven Temperature Sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002) 316217002
Range oven temperature sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002)

Part #316217002

BEST SELLER
$43.55 |
12% OFF Phone Price : $49.55
In Stock
Terminal Block 316056000
#62

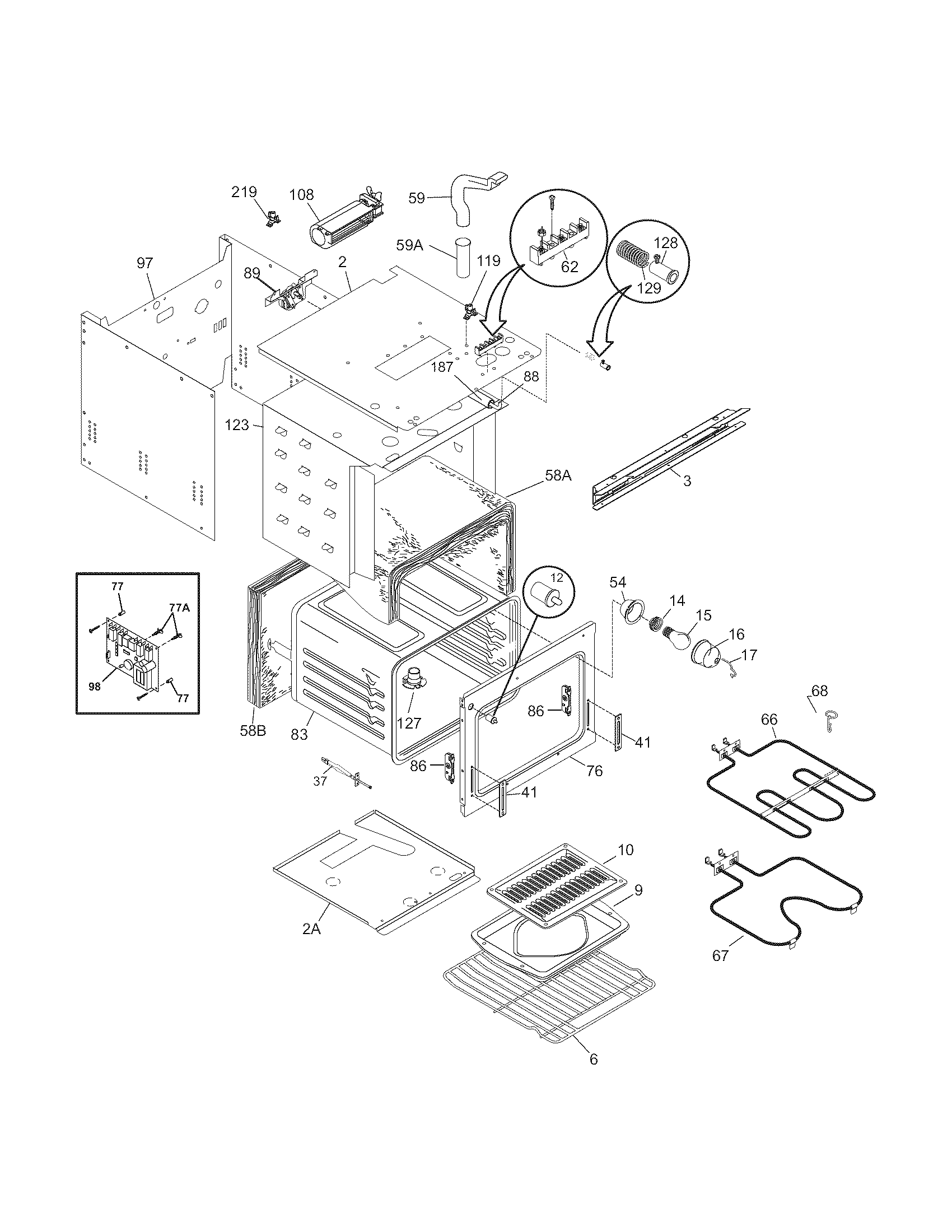

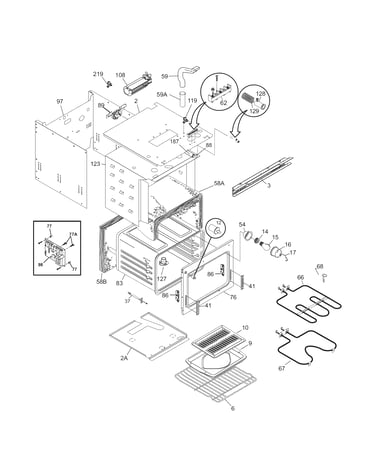

Upper oven diagram

Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Wall Oven Relay Control Board 316443913
#98

Upper oven diagram

Wall oven relay control board

Part #316443913

BEST SELLER
$258.28 |
$12.00 OFF Phone Price : $270.28
In Stock
Cover 08011086
Cover

Part #08011086

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 08011086. Substitute parts can look different from the original.
BEST SELLER
$13.90 |
13% OFF Phone Price : $15.90
In Stock
Wall Oven Control Board 316443816
#20

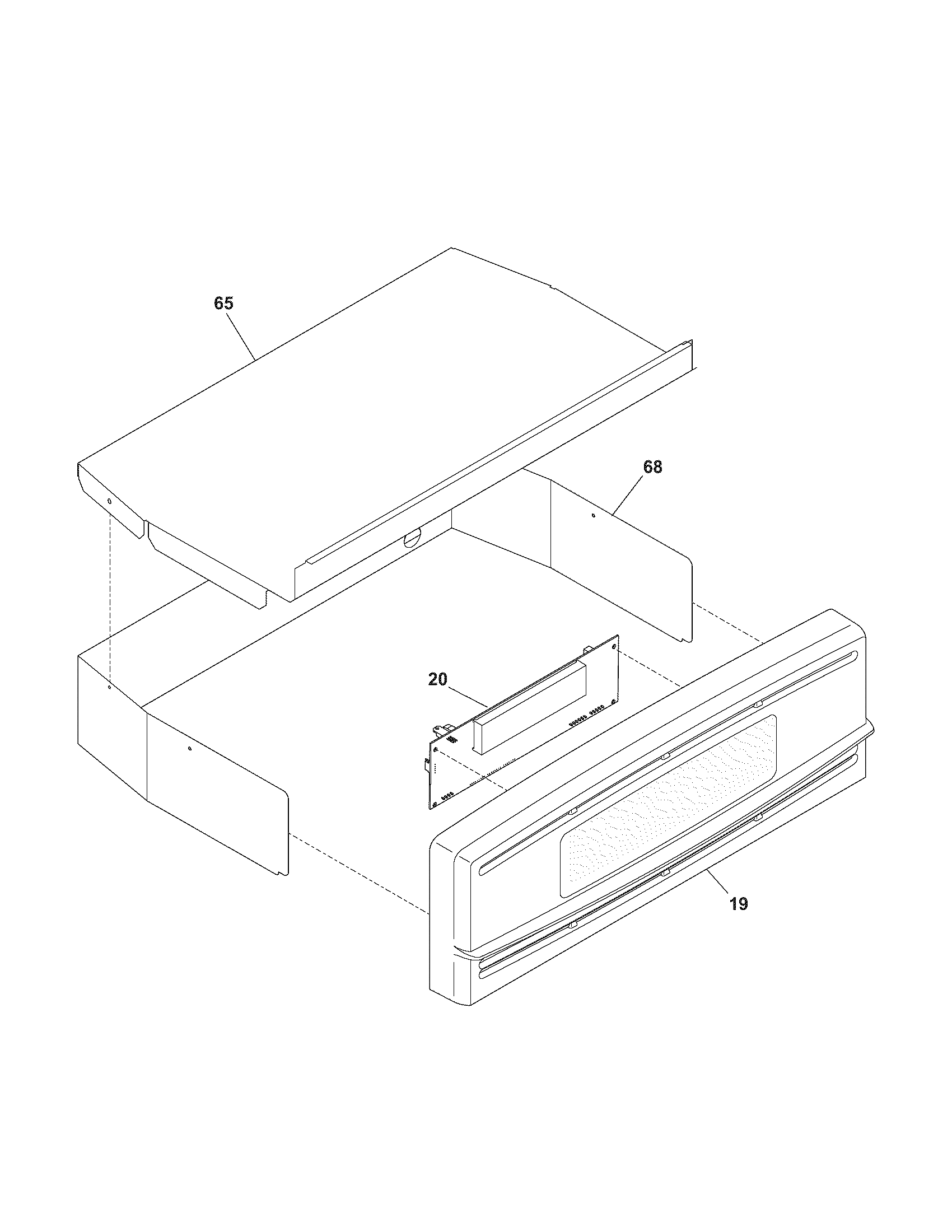

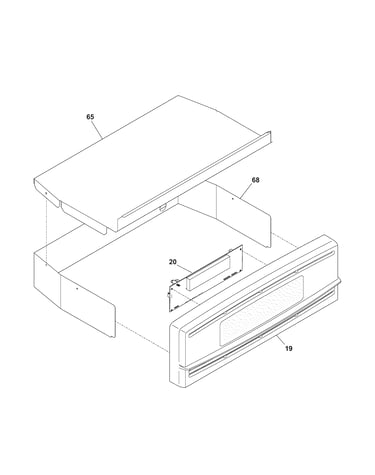

Control panel diagram

Wall oven control board

Part #316443816

$244.76 |
5% OFF Phone Price : $256.76
In Stock
Range Oven Light Socket (replaces 7318224000) 318224000
Range oven light socket (replaces 7318224000)

Part #318224000

This item is not returnable
$59.18 |
9% OFF Phone Price : $65.18
In Stock
Wall Oven Safety Thermostat 318003616
#219

Upper oven diagram

Wall oven safety thermostat

Part #318003616

$79.42 |
7% OFF Phone Price : $85.42
In Stock
Range Nut 5303323144
#NI

Upper oven diagram

Range nut

Part #5303323144

$8.83
In Stock
Wiring Harness 318231769
#NI

Control panel diagram

Wiring harness

Part #318231769

Replaced by #318370374

?
Manufacturer substitution
This part replaces 318231769. Substitute parts can look different from the original.
$120.99 |
9% OFF Phone Price : $132.99
In Stock

Most common symptoms to help you fix your wall oven

Choose a symptom to see related wall oven repairs.

View all

Why won't my wall oven door unlock?

Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…

Read more

Why won't my wall oven broil?

Main causes: broken broil element, faulty broil burner igniter, control system failure…

Read more

Why won't my wall oven bake?

Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…

Read more

Why isn't my wall oven at the temperature I set?

Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…

Read more

Why doesn't my wall oven work?

Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…

Read more

Why won't my wall oven heat?

Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…

Read more

Most common repair guides to help fix your wall oven

These step-by-step repair guides will help you safely fix what’s broken on your wall oven.

View all
How to replace a wall oven door outer glass panel

How to replace a wall oven door outer glass panel

Learn how to replace a damaged outer window panel on your wall oven door with these step-by-step instructions. …

Read more
Repair difficulty
Time required
 45 minutes or less
How to replace a wall oven control thermostat

How to replace a wall oven control thermostat

Get your oven temperature under your control by replacing a faulty oven control thermostat.…

Read more
Repair difficulty
Time required
 60 minutes or less
How to replace a wall oven thermal fuse

How to replace a wall oven thermal fuse

The thermal fuse trips to prevent the over from excessively overheating. The oven won't heat again until you replace the…

Read more
Repair difficulty
Time required
 60 minutes or less

Effective articles & videos to help repair your wall oven

Use the advice and tips in these articles and videos to get the most out of your wall oven.

View all
