Model # 137285540 Official Craftsman miter saw

Here are the diagrams and repair parts for Official Craftsman 137285540 miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 163 parts  |
Screw 2668BBDA49
Screw

Part #2668BBDA49

The manufacturer no longer makes this part, and there's no substitute part

Housing 83775251
#26

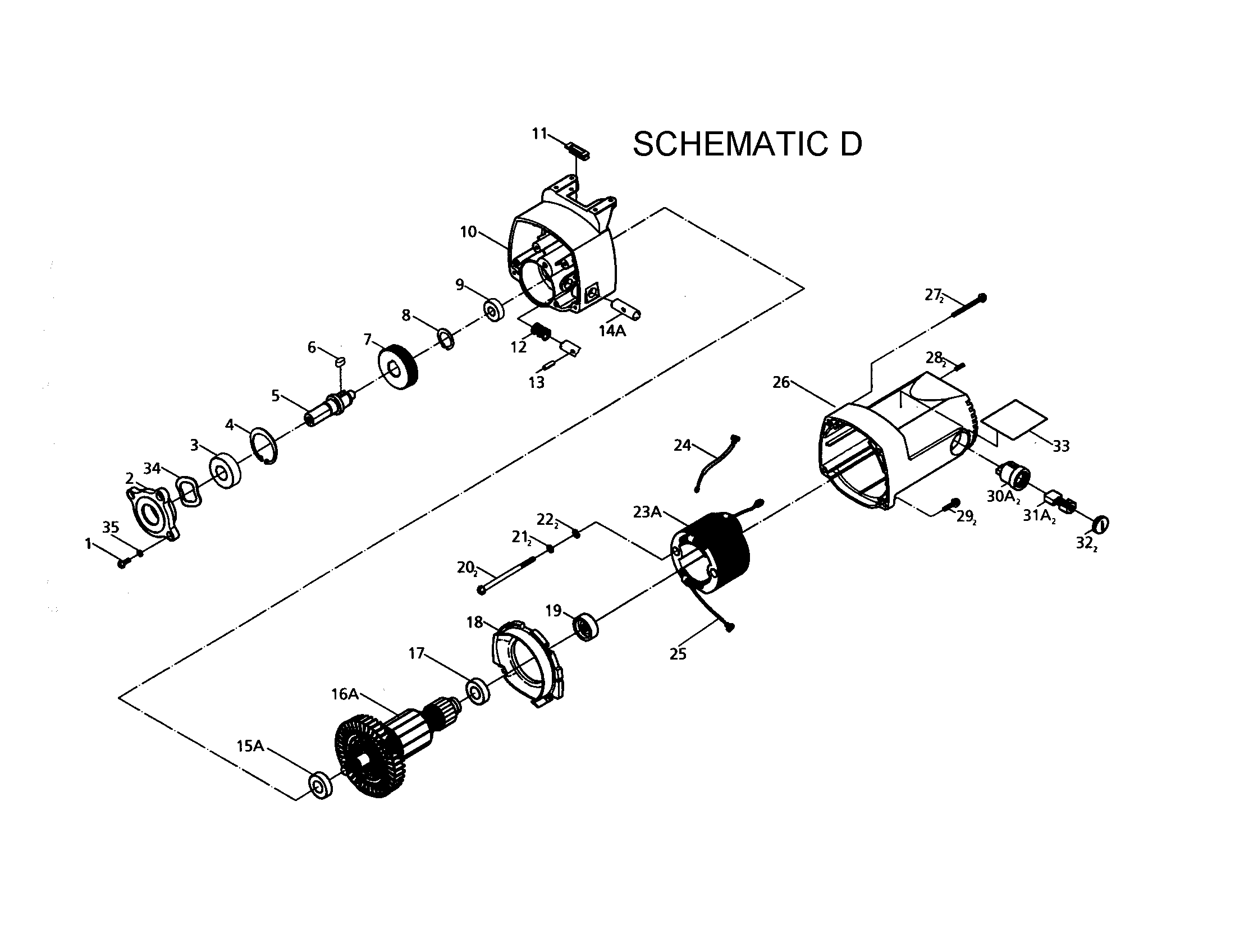

Motor housing and armatrue diagram

Housing

Part #83775251

The manufacturer no longer makes this part, and there's no substitute part

Spring 14910301
#65

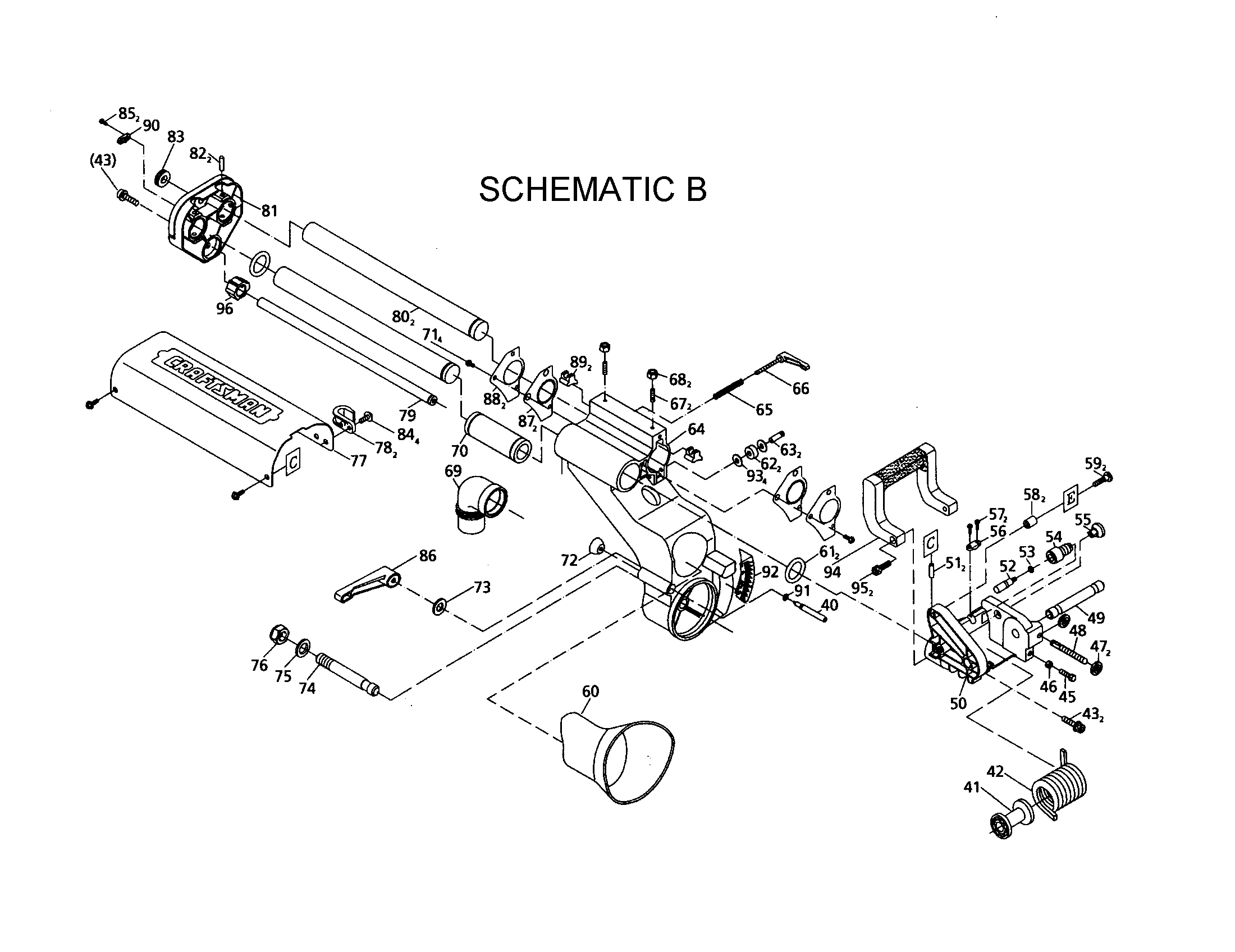

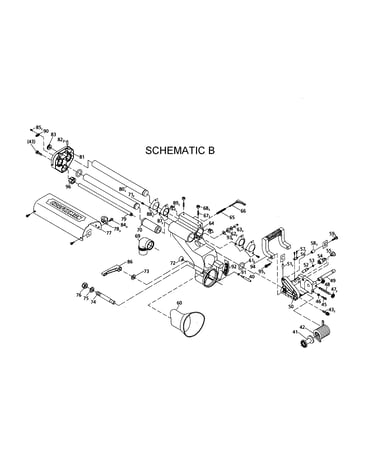

Miter bar and guide holder diagram

Spring

Part #14910301

The manufacturer no longer makes this part, and there's no substitute part

C-ring 2570BBN118
#8

Motor housing and armatrue diagram

C-ring

Part #2570BBN118

The manufacturer no longer makes this part, and there's no substitute part

Screw 2636BBDA39
#111

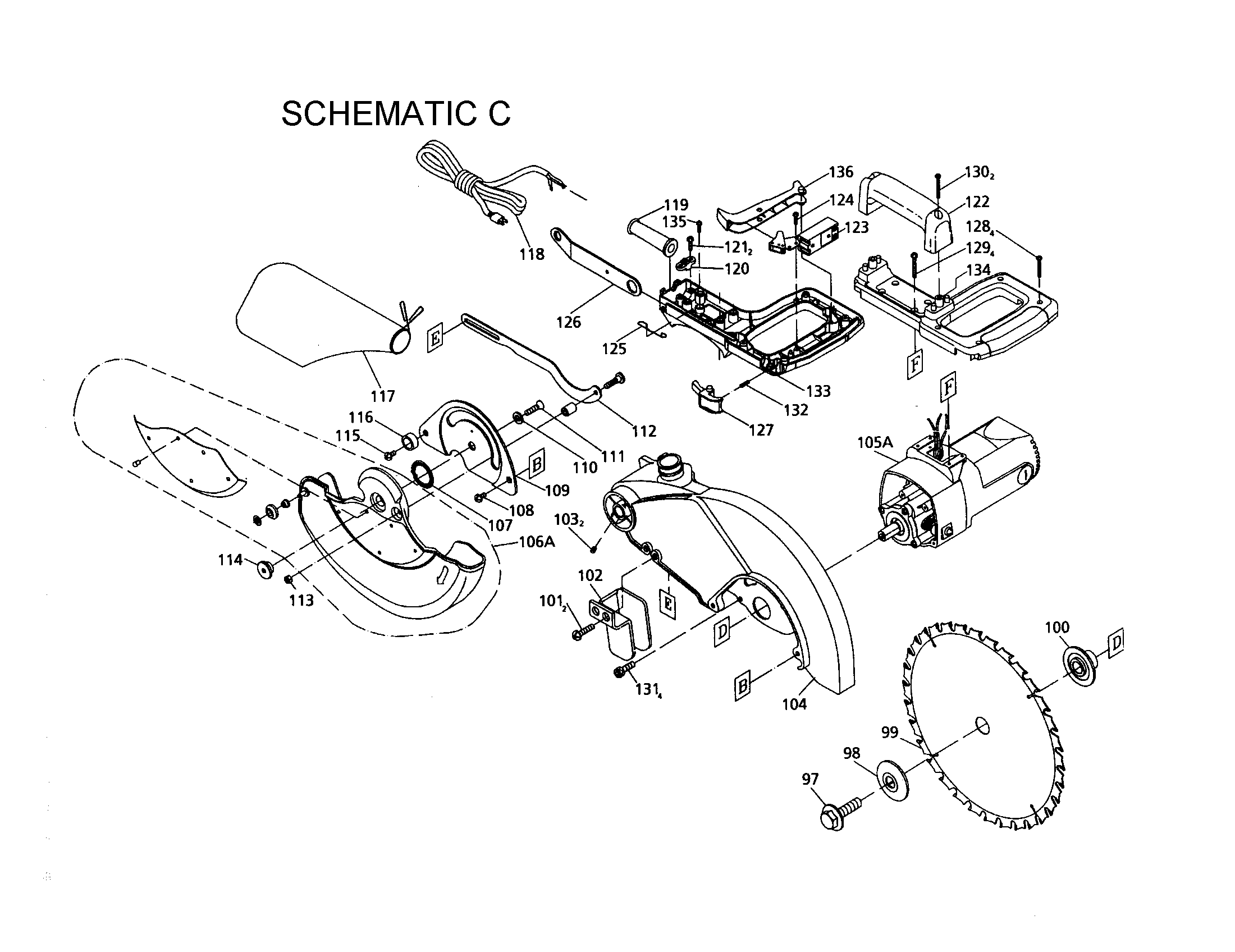

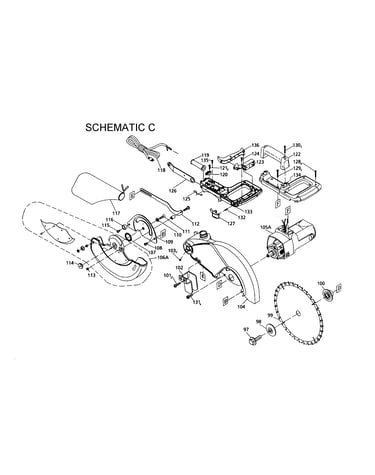

Motor and blade guard diagram

Screw

Part #2636BBDA39

The manufacturer no longer makes this part, and there's no substitute part

M8 Fl Wash 2501MBDN34
#110

Motor and blade guard diagram

M8 fl wash

Part #2501MBDN34

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 137212920002

#NI

All parts diagram

Owner's manual

Part #137212920002

The manufacturer no longer makes this part, and there's no substitute part

Screw 2668BBDA24
#1

Motor housing and armatrue diagram

Screw

Part #2668BBDA24

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Table Insert 19503001
#26

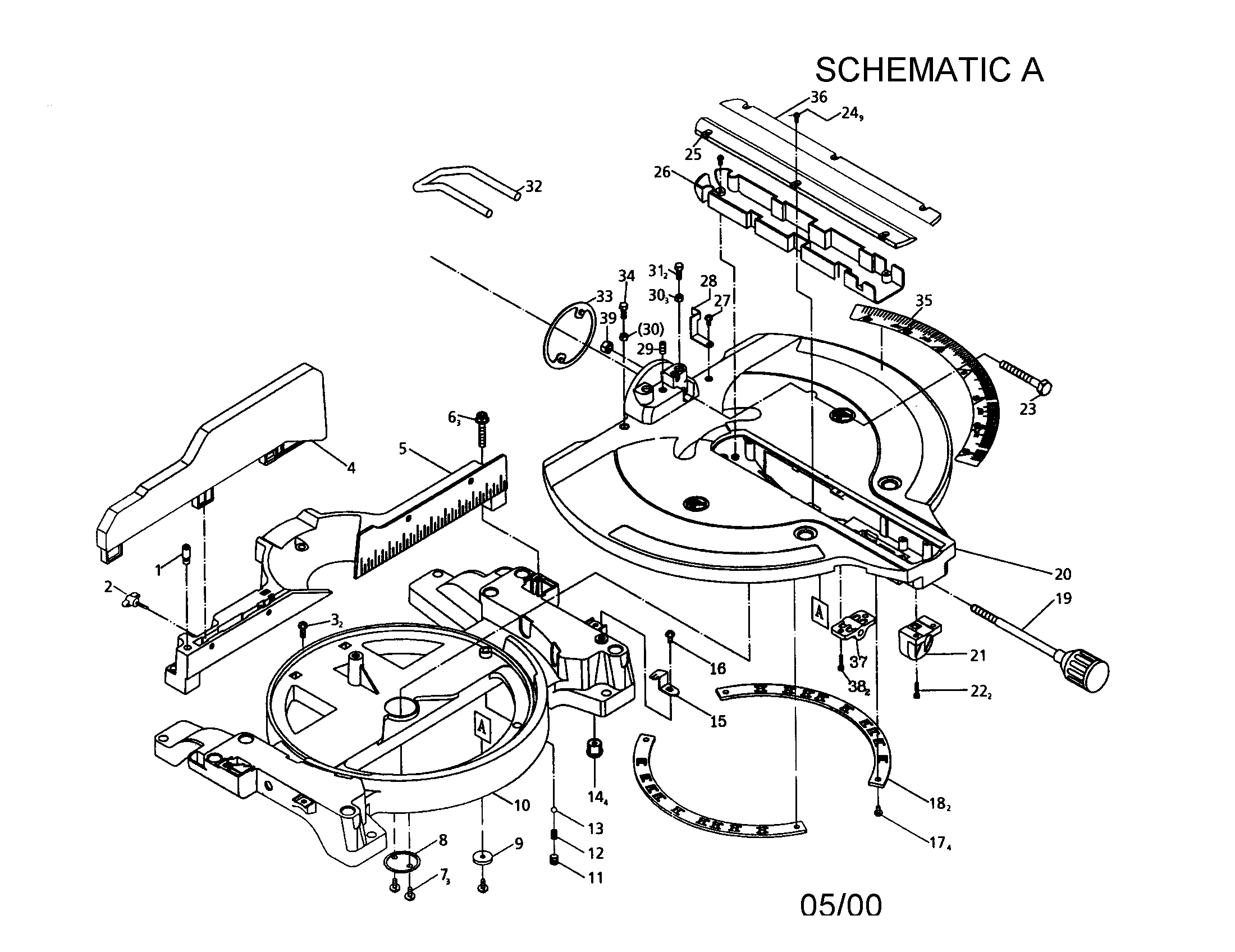

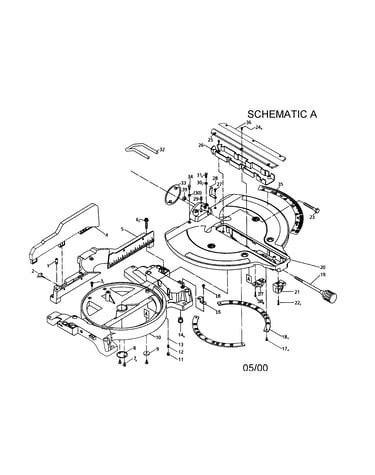

12" sliding compound miter saw diagram

Miter saw table insert

Part #19503001

The manufacturer no longer makes this part, and there's no substitute part

Hex. Soc. Hd. Cap Bolt M10x1.5-10 (2) 2617BB6D27
#43

Miter bar and guide holder diagram

Hex. soc. hd. cap bolt m10x1.5-10 (2)

Part #2617BB6D27

The manufacturer no longer makes this part, and there's no substitute part
