Model # GBK26FS0/P1142147NW Official Amana gas range

Here are the diagrams and repair parts for Official Amana GBK26FS0-P1142147NW gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 130 parts  |
Switch 0088874
#20

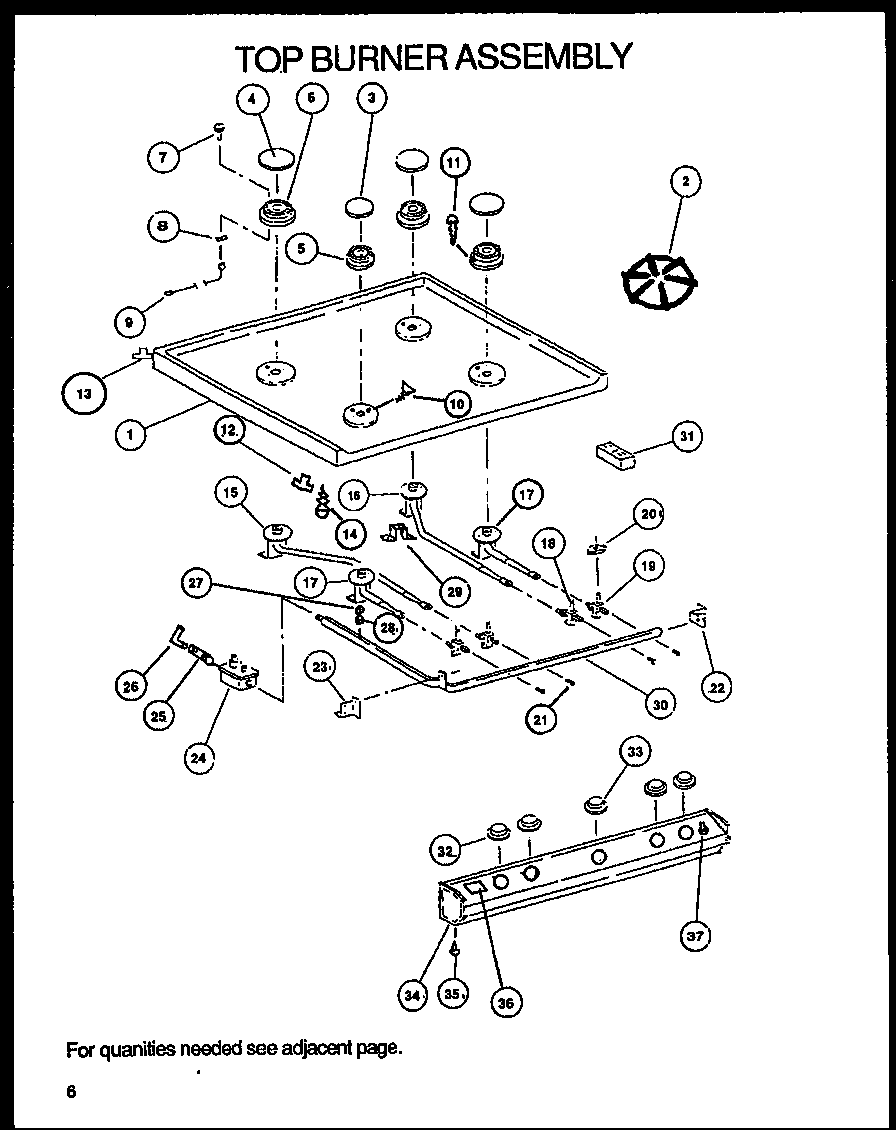

Top burner assembly diagram

Switch

Part #0088874

Replaced by #WP4157180

?
Manufacturer substitution
This part replaces 0088874. Substitute parts can look different from the original.
$47.09 |
11% OFF Phone Price : $53.09
In Stock
Door Frame Screw 0310804
#21

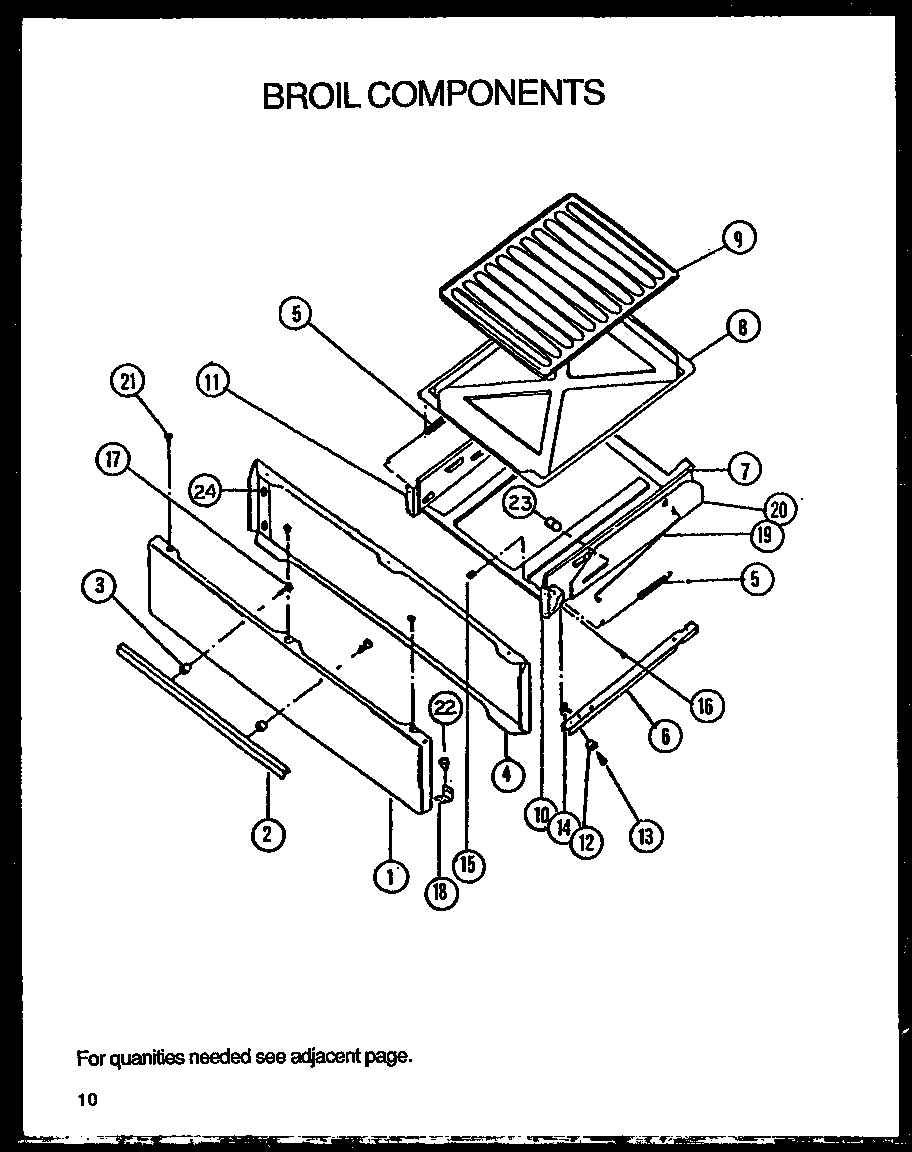

Broil components diagram

Door frame screw

Part #0310804

The manufacturer no longer makes this part, and there's no substitute part

Kit, Anit Tip 07687600
#31

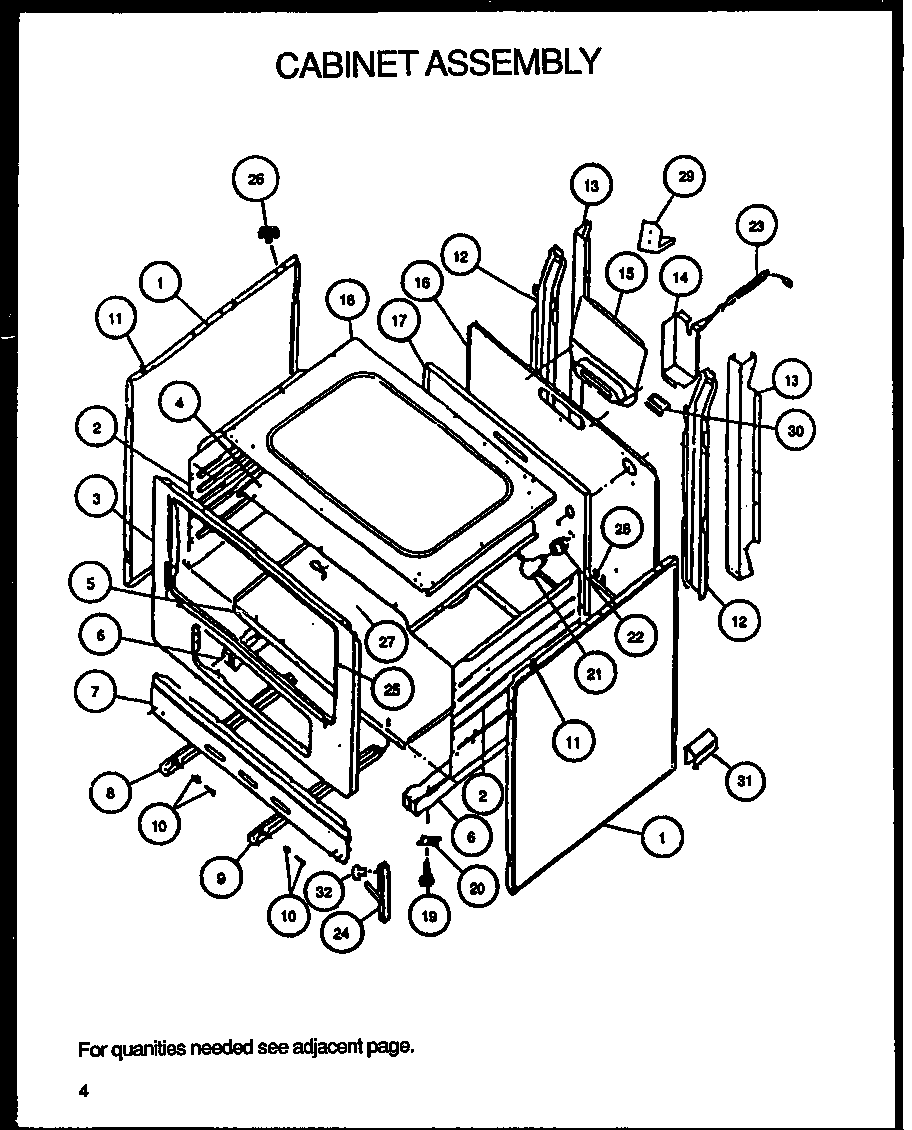

Cabinet assembly diagram

Kit, anit tip

Part #07687600

The manufacturer no longer makes this part, and there's no substitute part

Oven Thermostat 0057349
#1

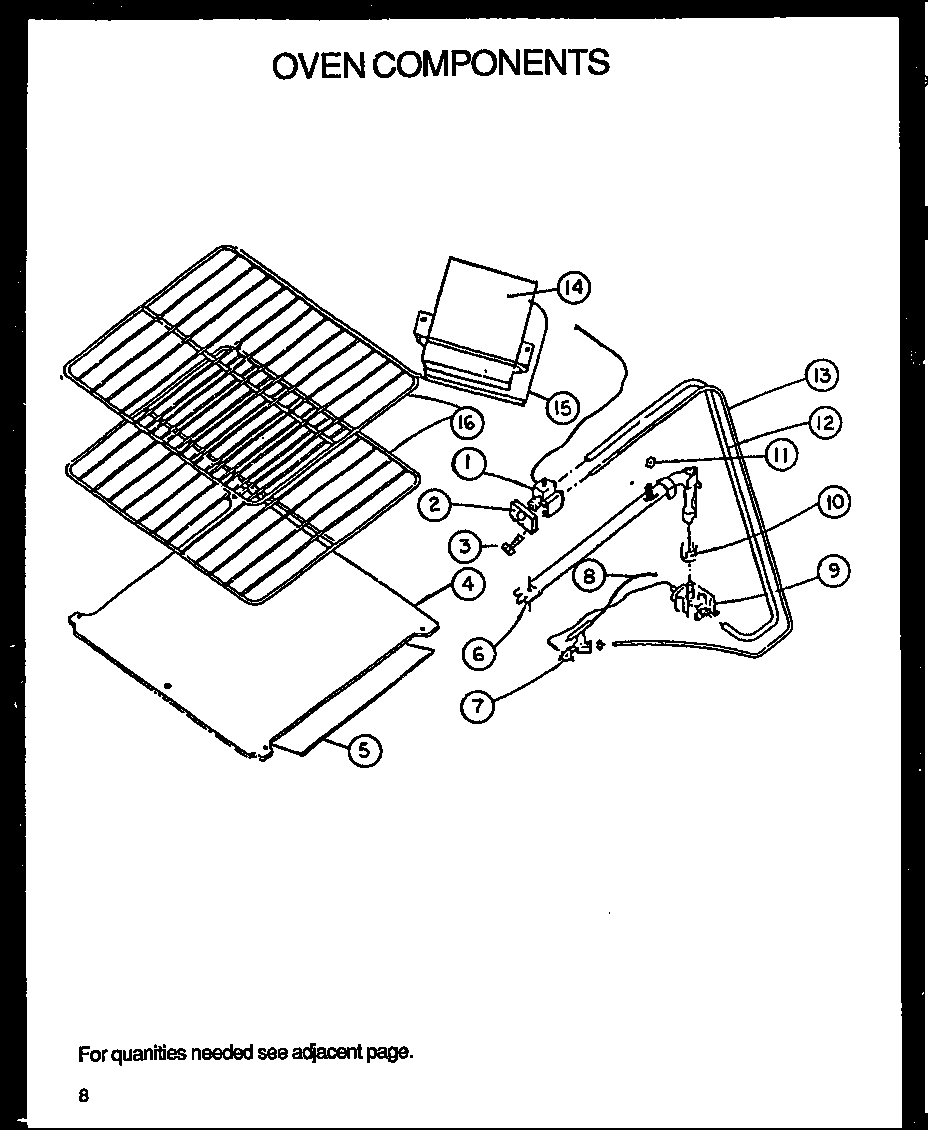

Oven components diagram

Oven thermostat

Part #0057349

The manufacturer no longer makes this part, and there's no substitute part

Spark Module Bracket 0087725
Spark module bracket

Part #0087725

The manufacturer no longer makes this part, and there's no substitute part

Back, Main Unit 0312000
#16

Cabinet assembly diagram

Back, main unit

Part #0312000

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Manifold R.h. 0057340
#22

Top burner assembly diagram

Bracket, manifold r.h.

Part #0057340

The manufacturer no longer makes this part, and there's no substitute part

Label, Econo-lite 0311567
#36

Top burner assembly diagram

Label, econo-lite

Part #0311567

The manufacturer no longer makes this part, and there's no substitute part

Rear Cover Plate 0310989
#5

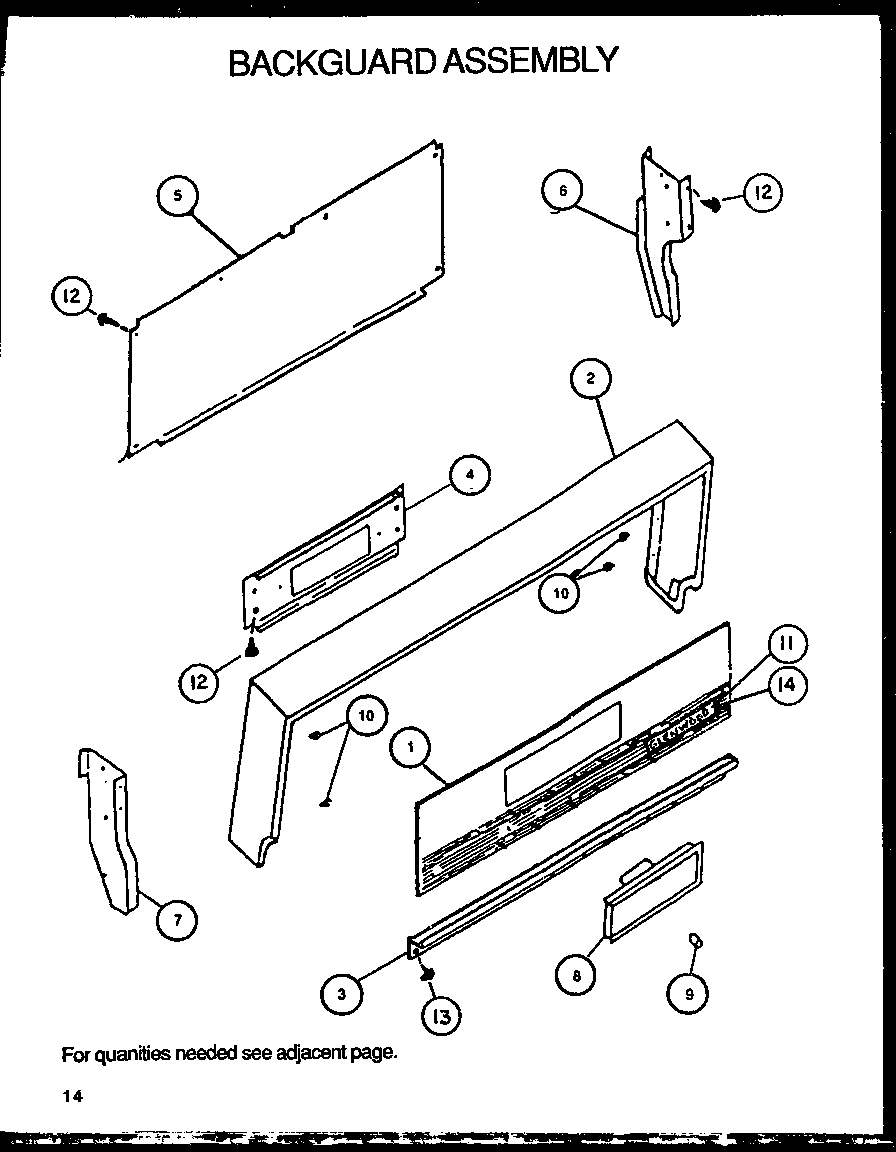

Backguard assembly diagram

Rear cover plate

Part #0310989

The manufacturer no longer makes this part, and there's no substitute part

Brnr-top, Cast,4" 0306074
#6

Top burner assembly diagram

Brnr-top, cast,4"

Part #0306074

The manufacturer no longer makes this part, and there's no substitute part
