Model # SDGT09WF Official Speed Queen dryer

Here are the diagrams and repair parts for Official Speed Queen SDGT09WF dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

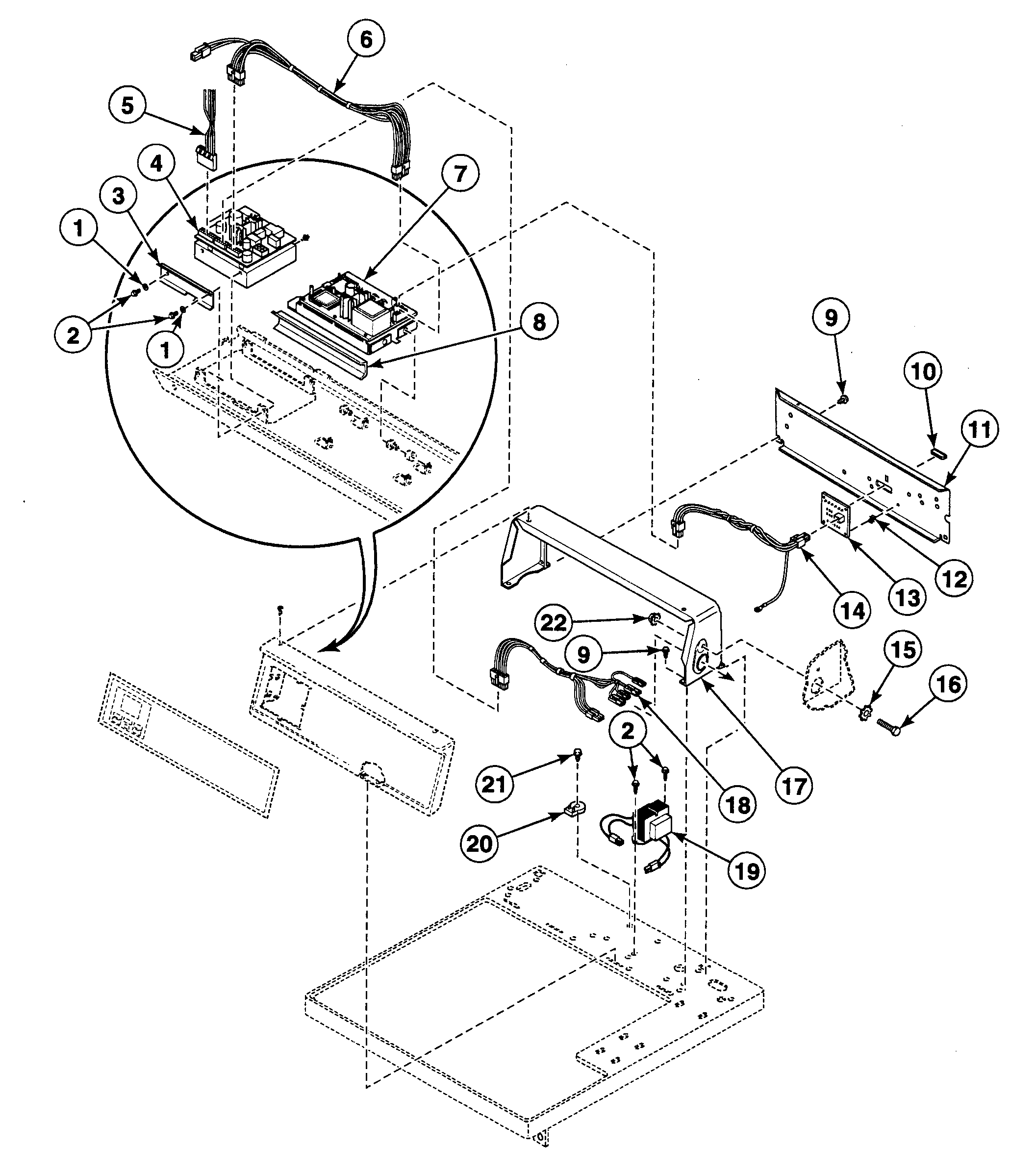

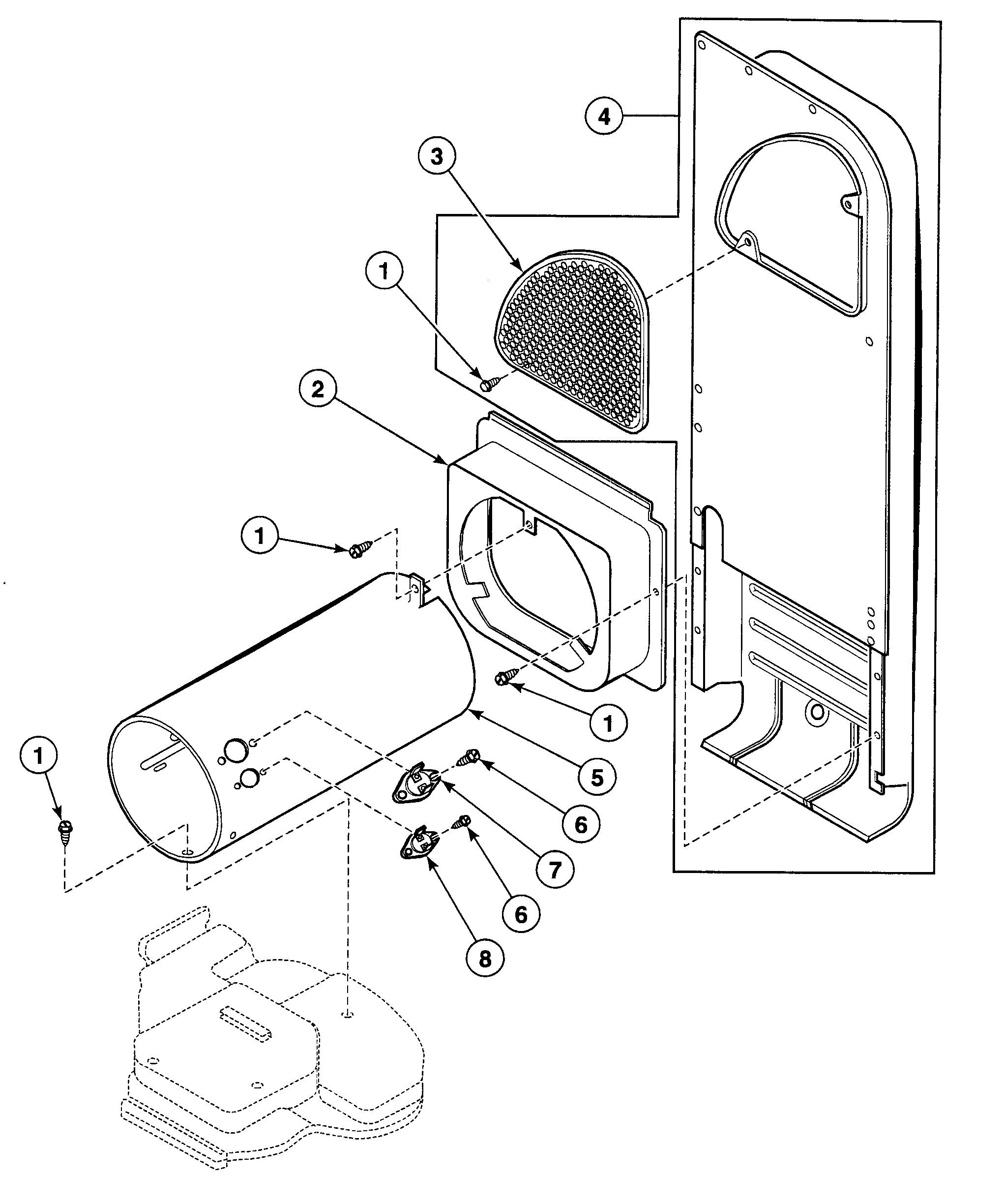

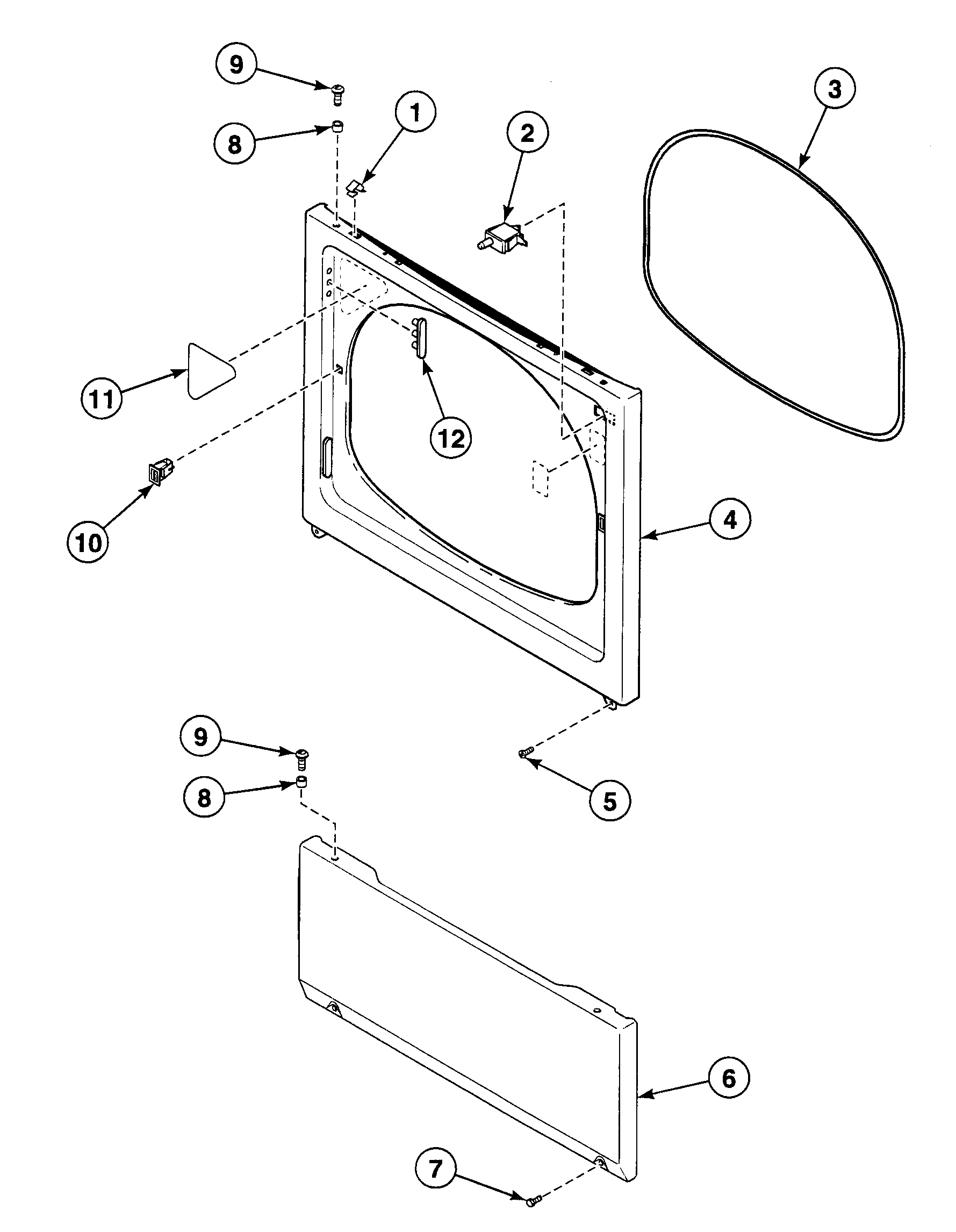

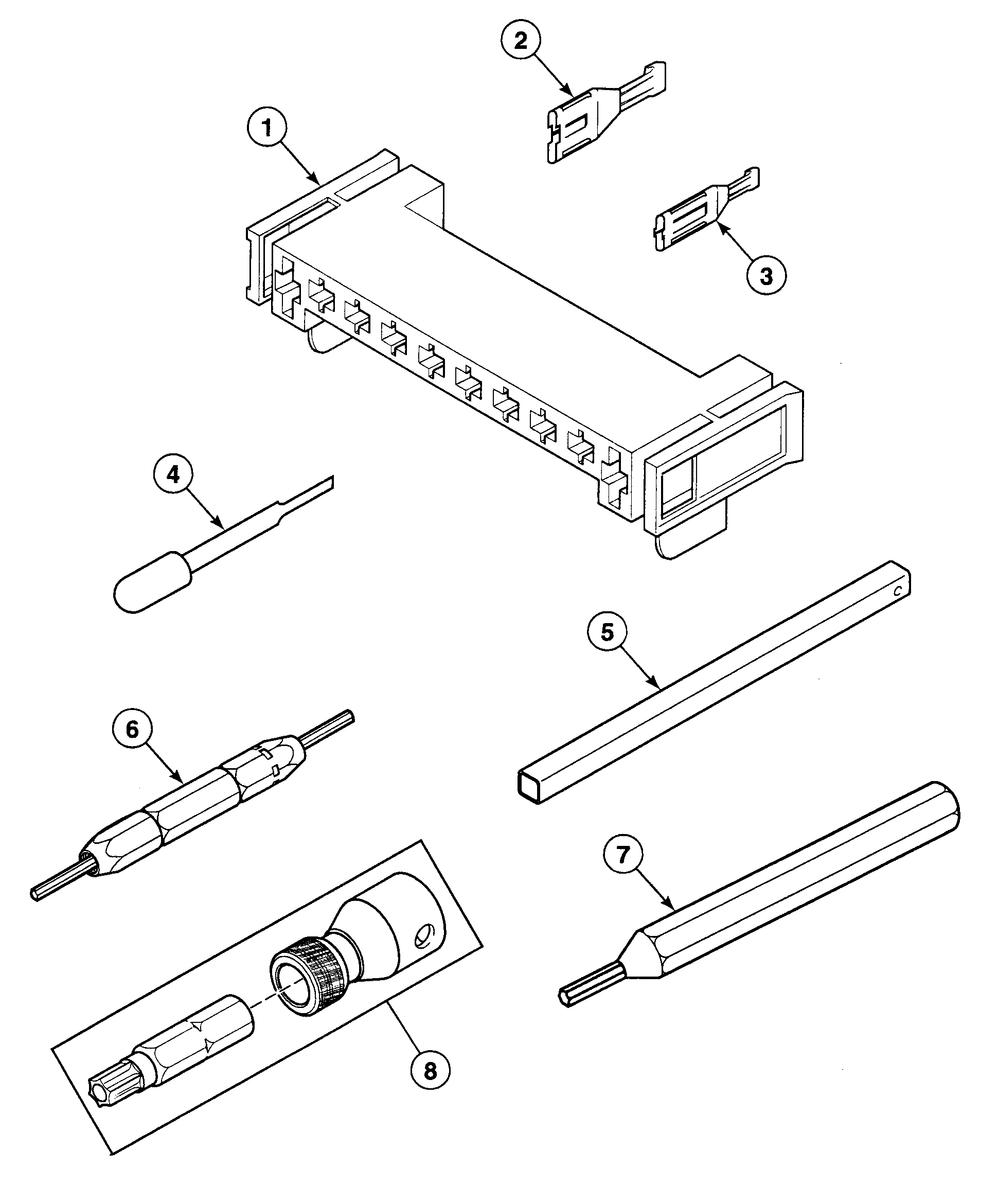

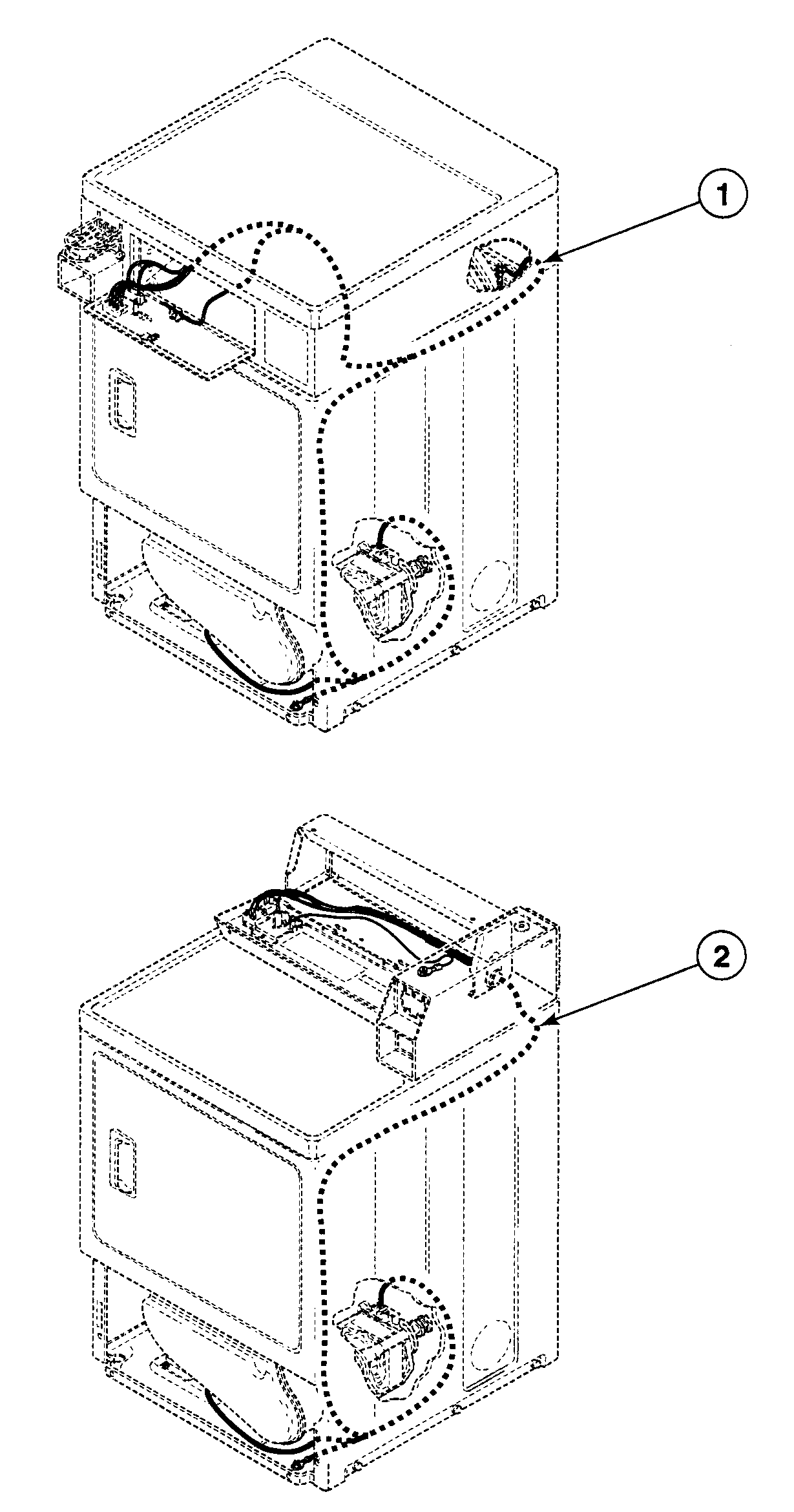

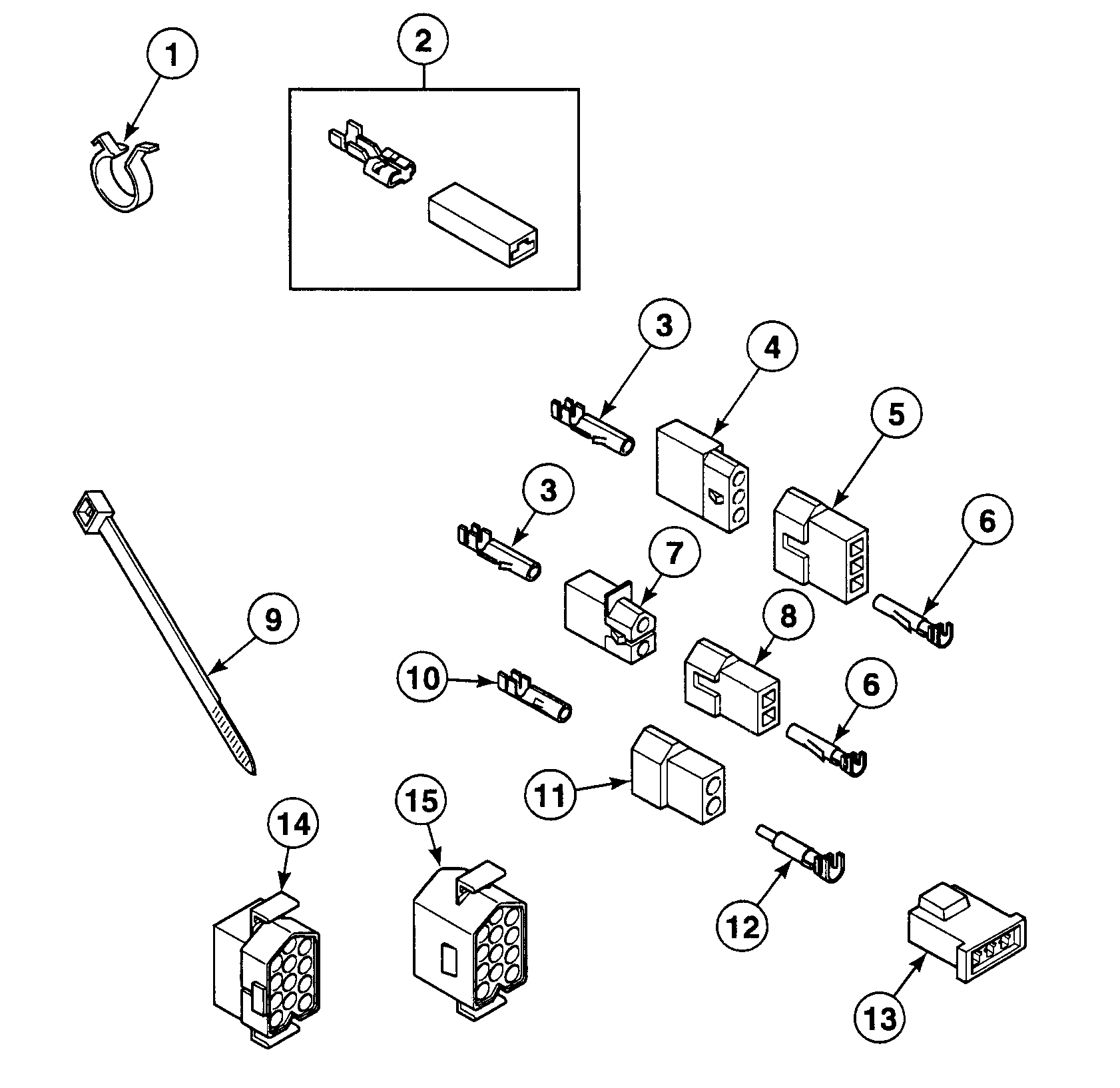

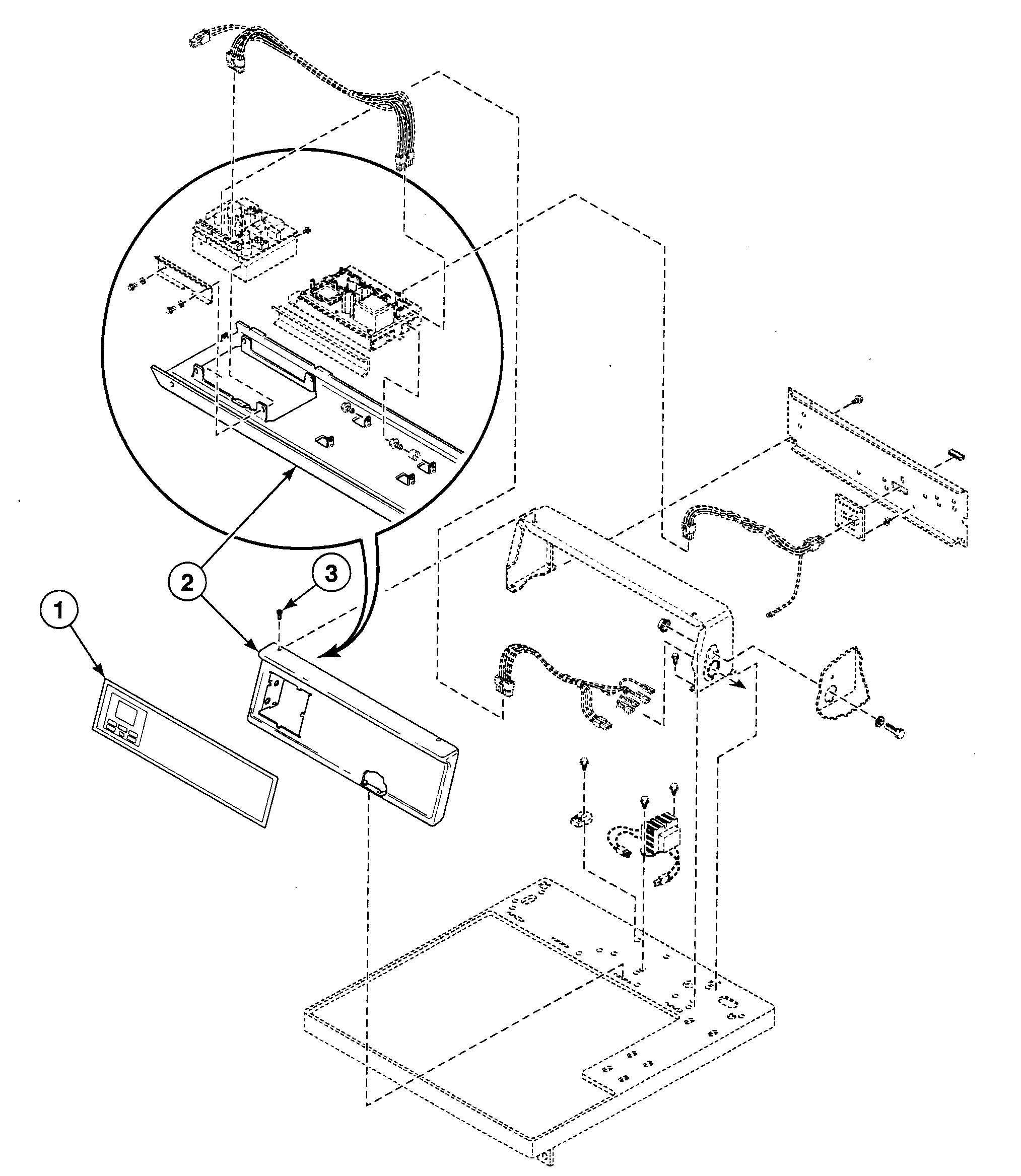

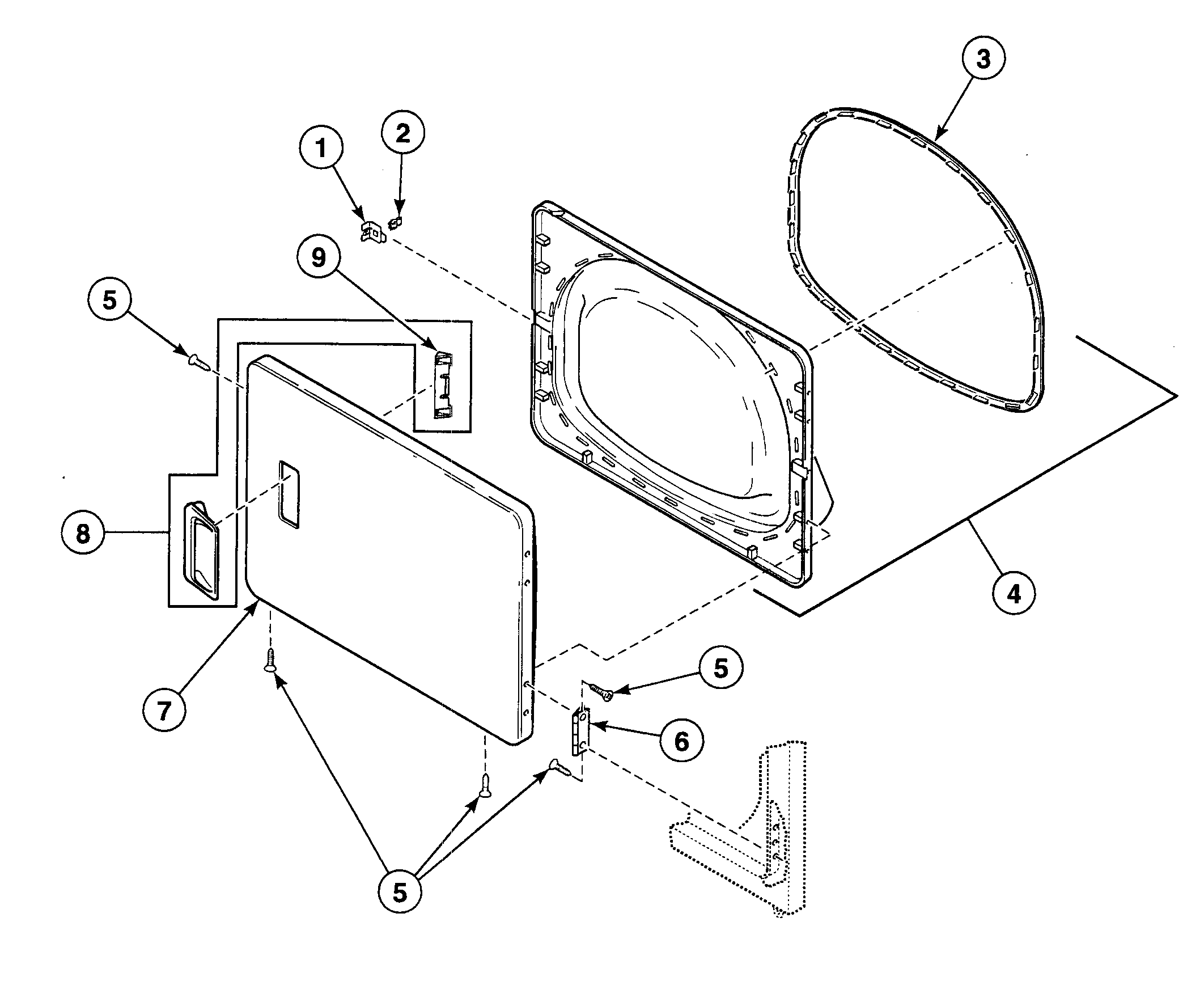

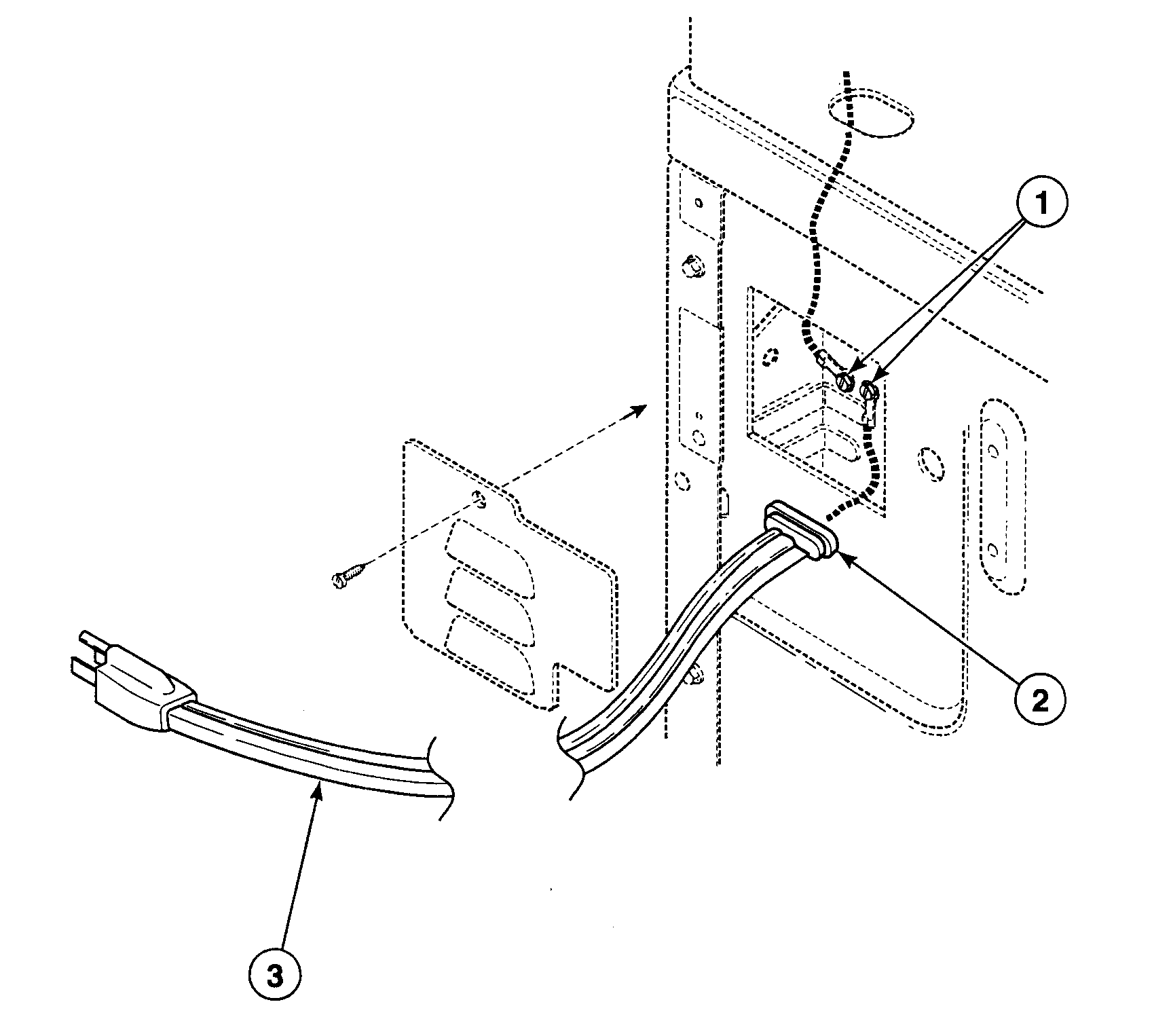

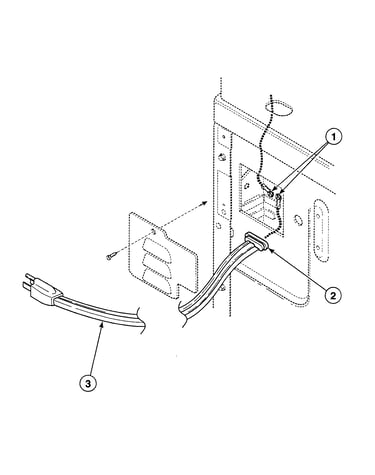

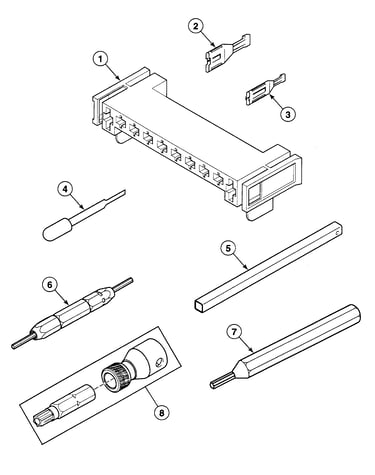

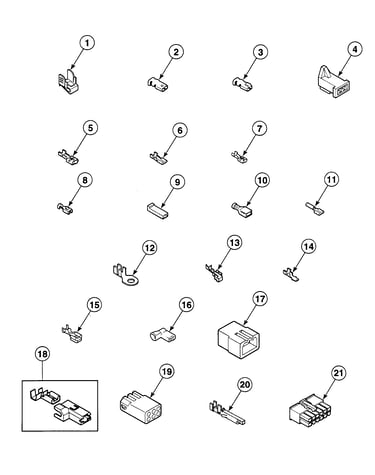

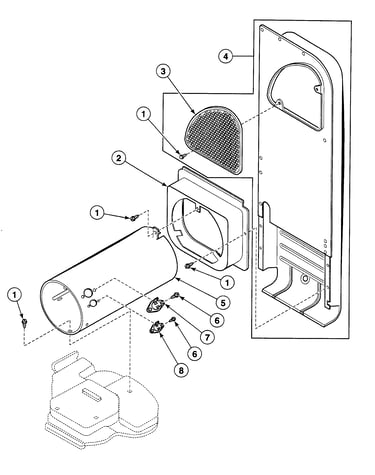

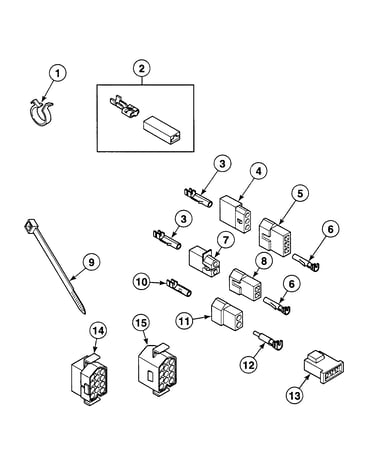

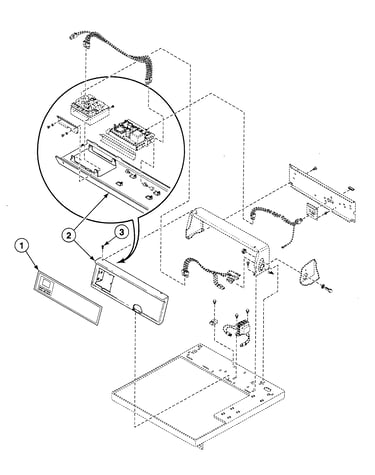

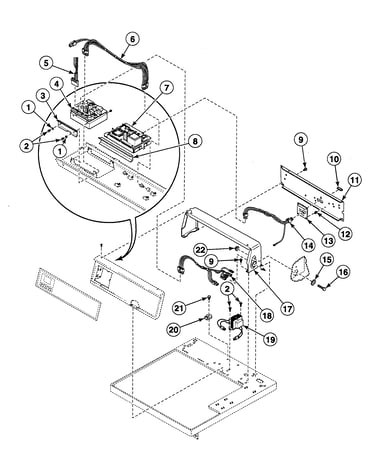

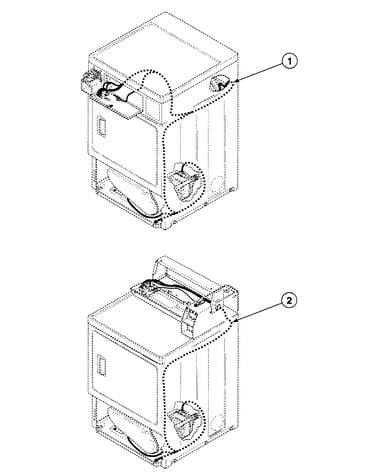

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 209 parts  |
Dryer Secondary Valve Coil 58804B
#10

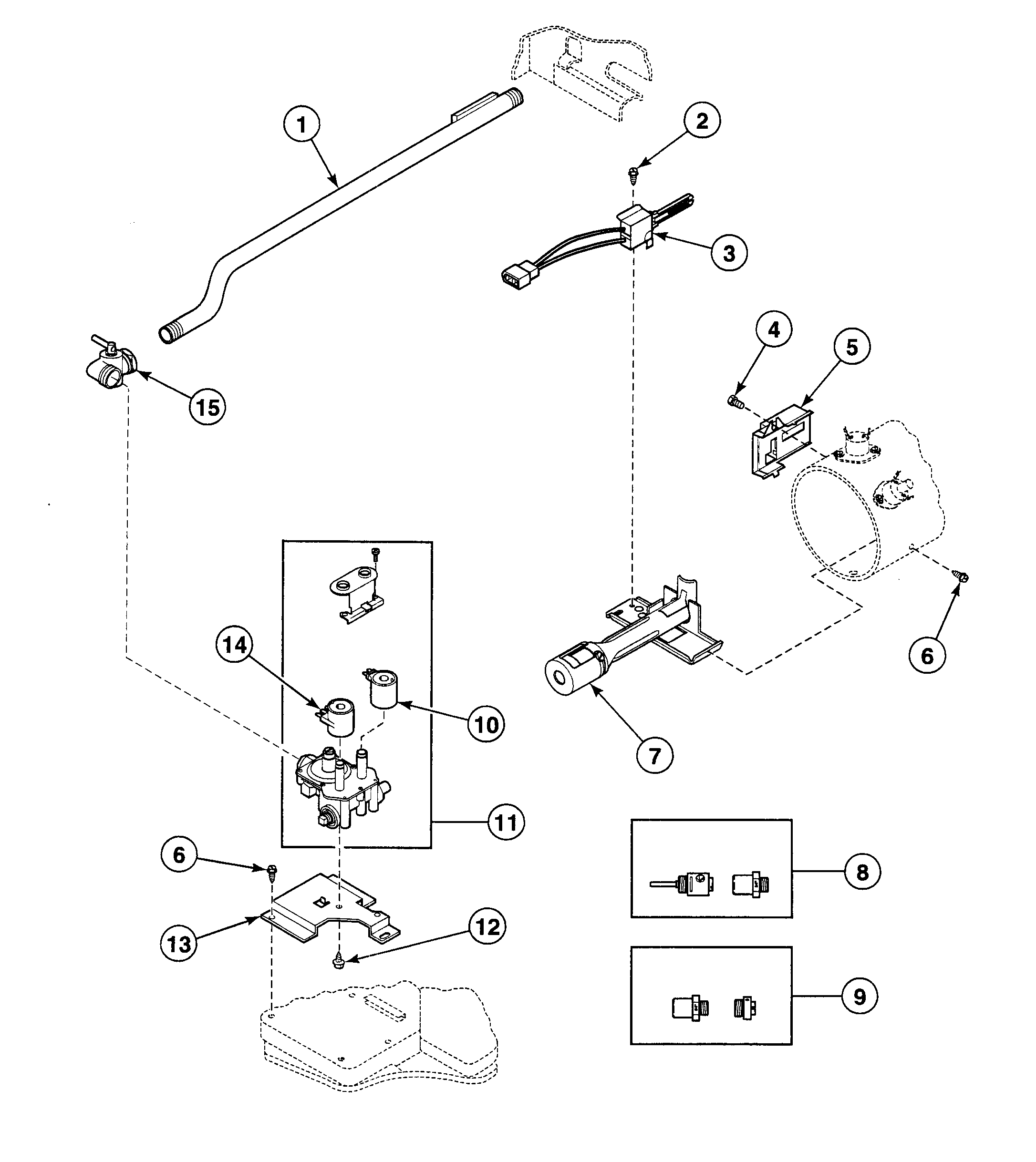

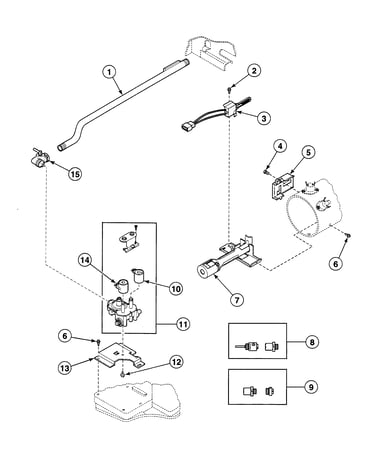

Gas valve diagram

Dryer secondary valve coil

Part #58804B

The manufacturer no longer makes this part, and there's no substitute part

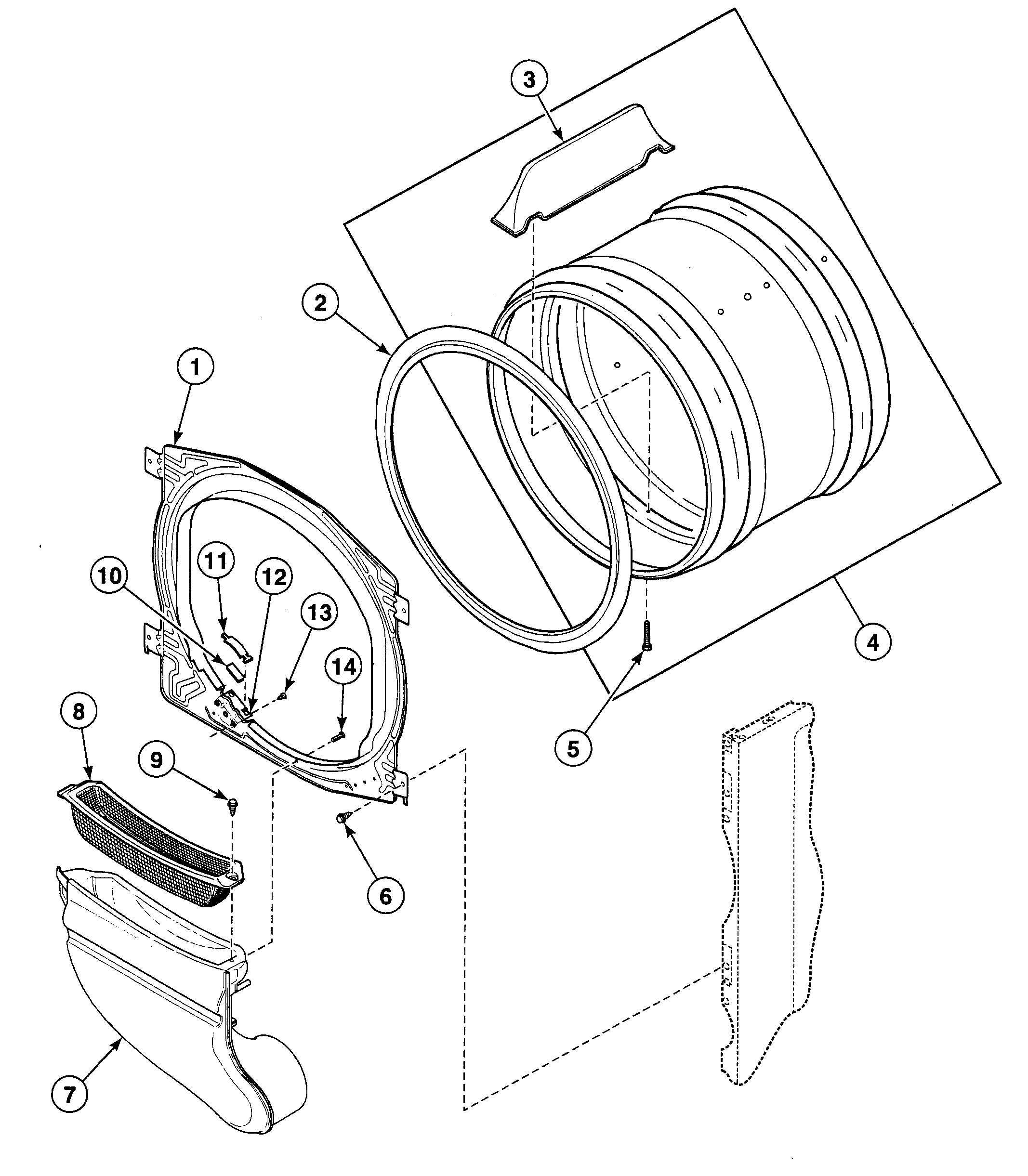

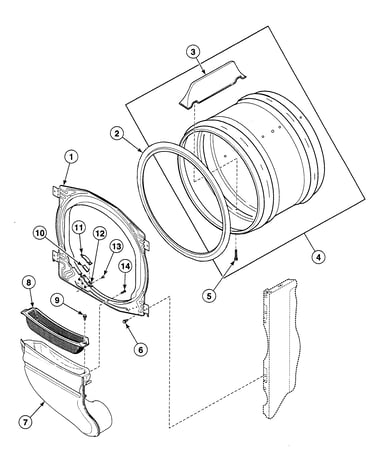

Dryer Drum Felt Seal 510207P
Dryer drum felt seal

Part #510207P

The manufacturer no longer makes this part, and there's no substitute part

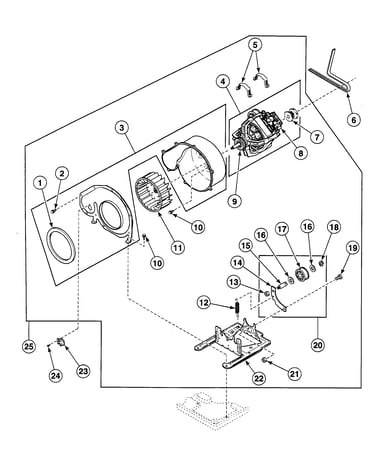

Dryer Blower Fan 510139P
#11

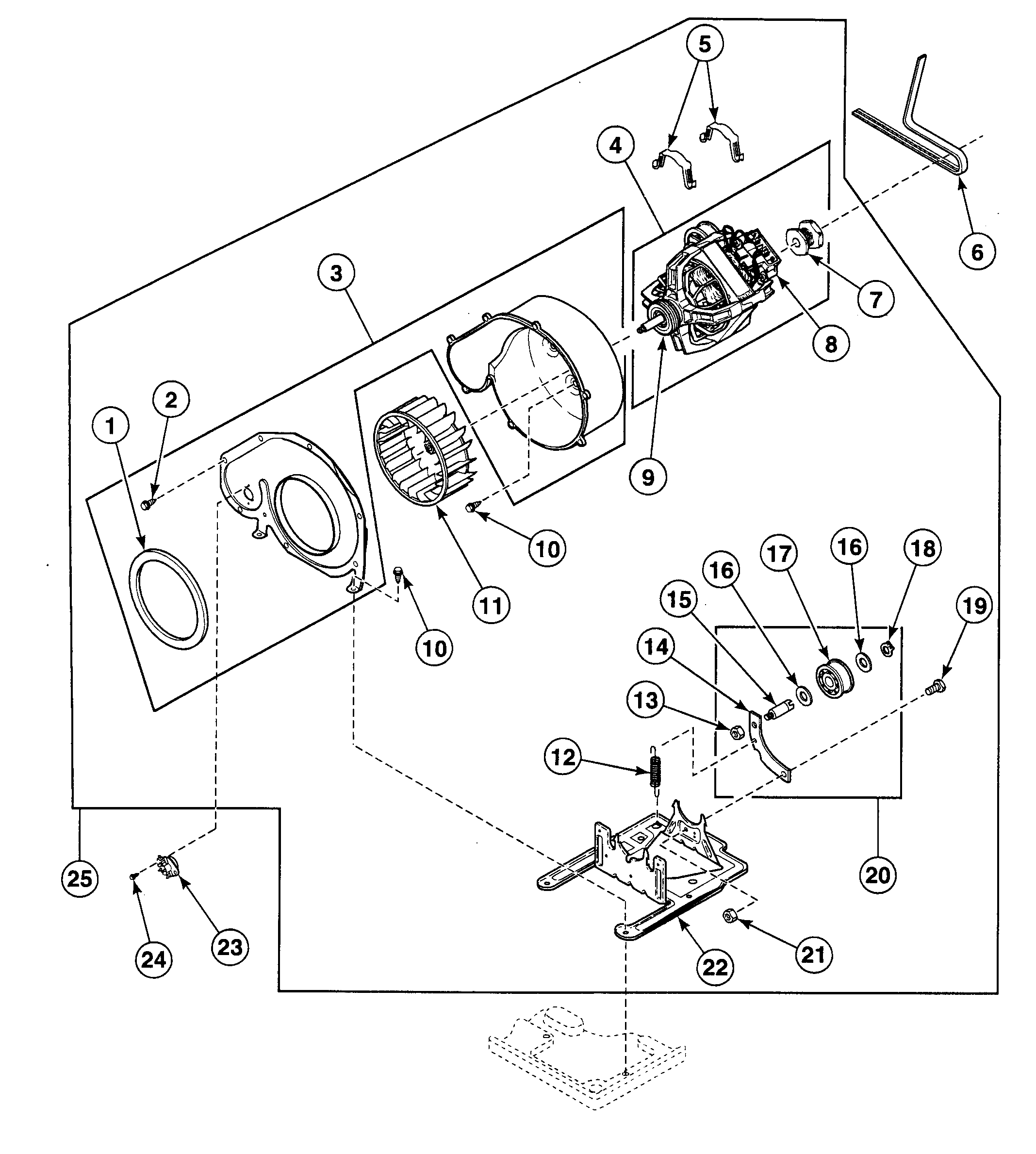

Motor assy diagram

Dryer blower fan

Part #510139P

The manufacturer no longer makes this part, and there's no substitute part

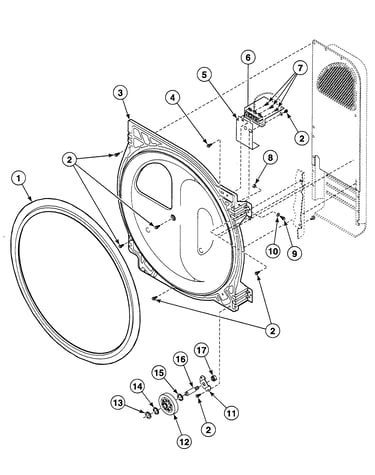

Dryer Drum Support Roller 510708P
#12

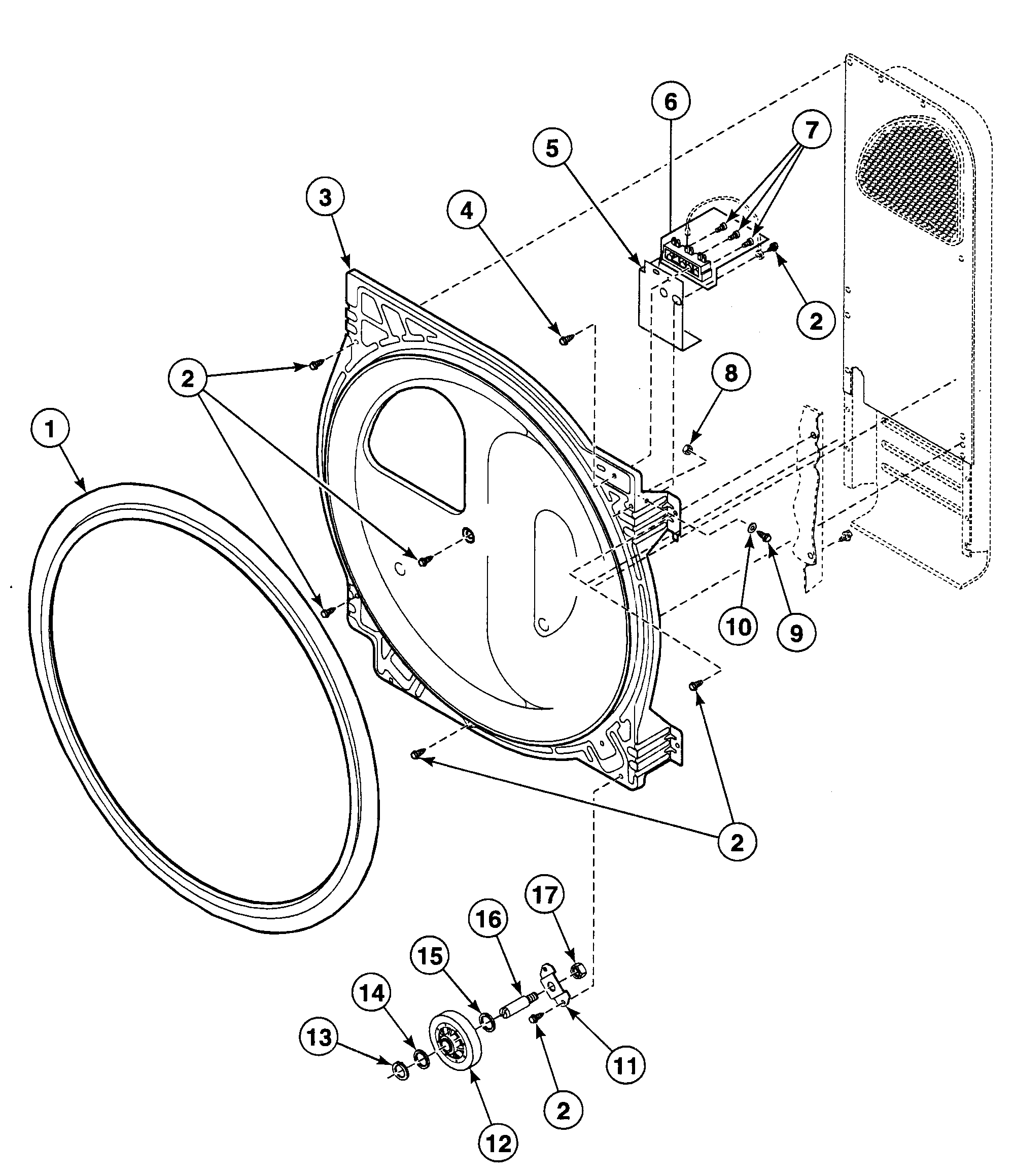

Roller assy diagram

Dryer drum support roller

Part #510708P

The manufacturer no longer makes this part, and there's no substitute part

Screw 61199
#7

Roller assy diagram

Screw

Part #61199

Replaced by #WP3400094

?
Manufacturer substitution
This part replaces 61199. Substitute parts can look different from the original.
This item is not returnable
$3.95 |
20% OFF Phone Price : $4.95
In Stock
Anti-seize 27604P
#NI

Motor assy diagram

Anti-seize

Part #27604P

The manufacturer no longer makes this part, and there's no substitute part

Coin Drop 38479P
#6B

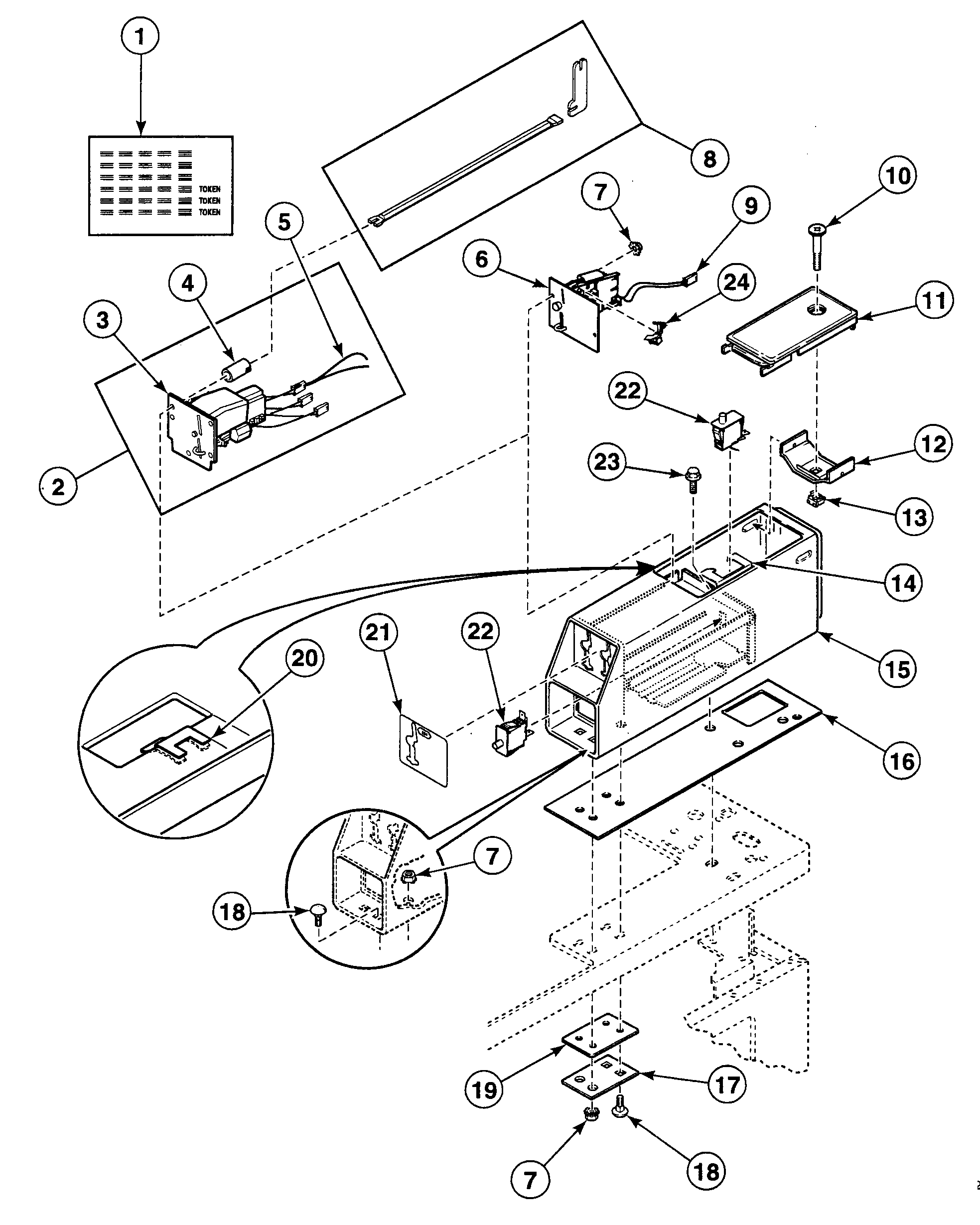

Meter case diagram

Coin drop

Part #38479P

$268.38
In Stock

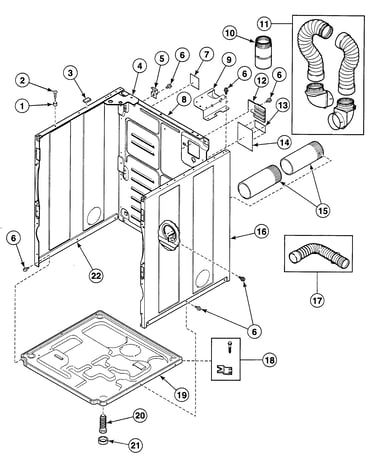

Cabinet Panel 510001WP
#22

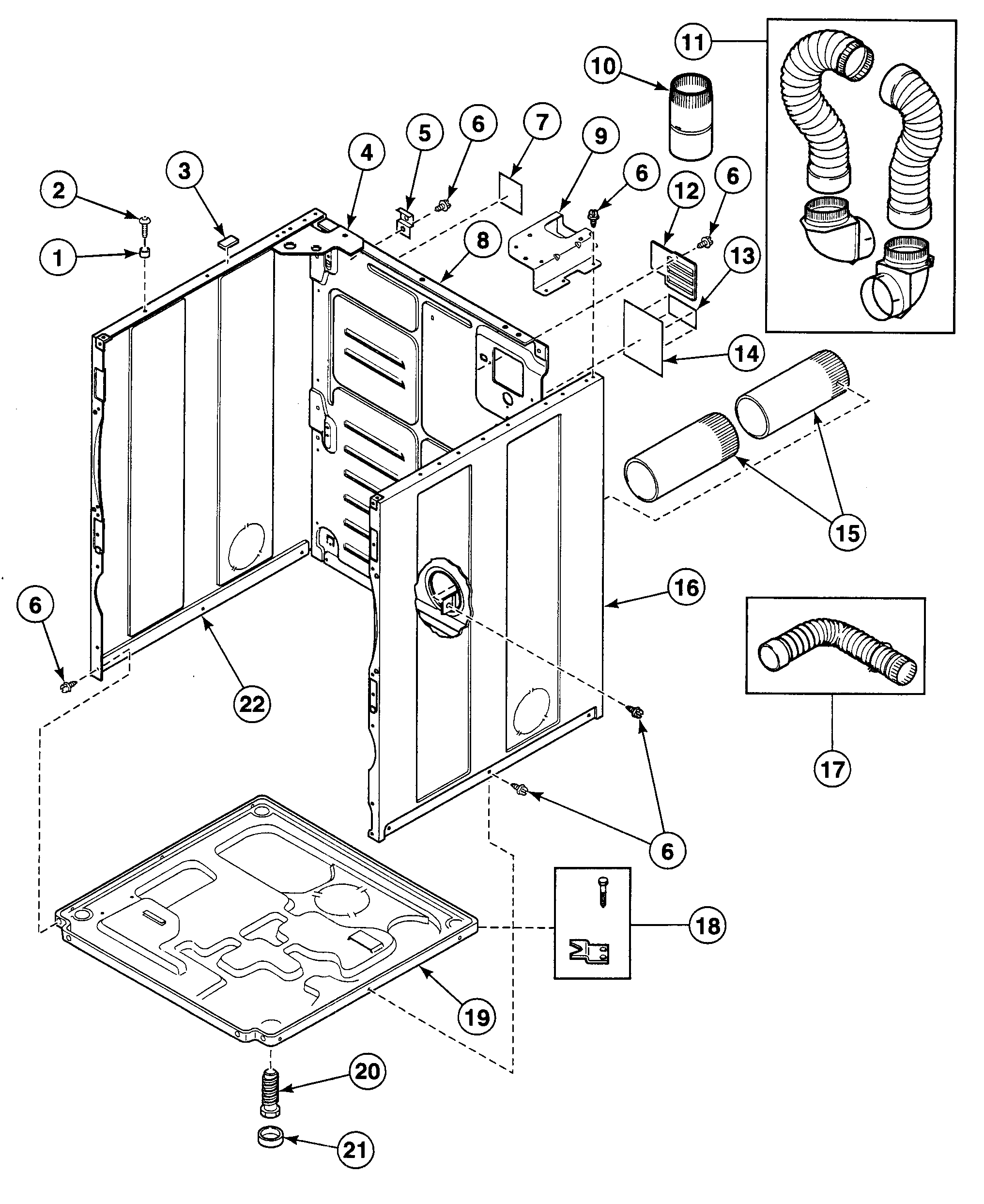

Cabinet diagram

Cabinet panel

Part #510001WP

$150.76
In Stock

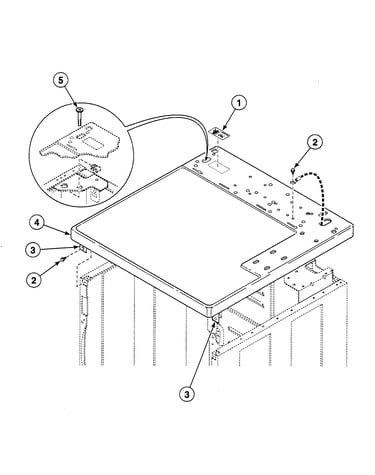

Top Kit 511527WP
#4

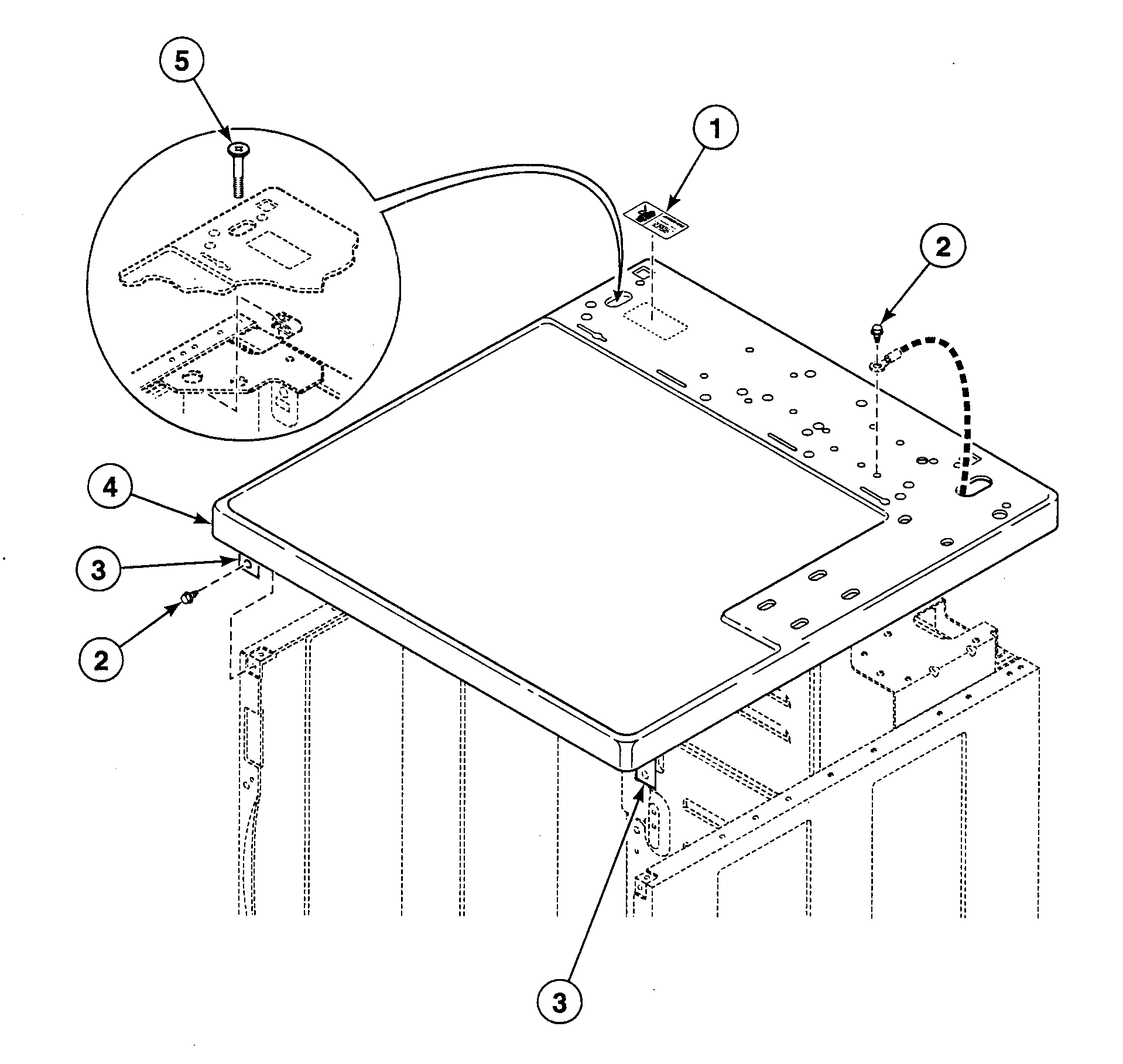

Cabinet top diagram

Top kit

Part #511527WP

$214.78
In Stock

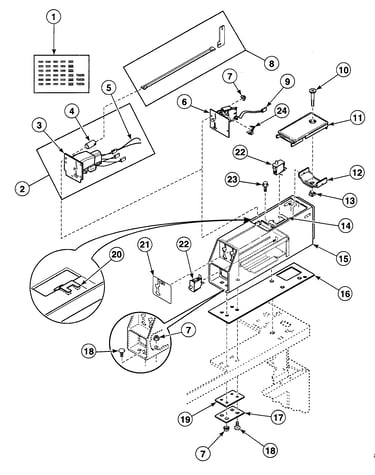

Commercial Laundry Appliance Meter Case 38724W
#15

Meter case diagram

Commercial laundry appliance meter case

Part #38724W

$235.25
In Stock
