Craftsman
Planer

Model # 306233820 Official Craftsman planer/molder

Here are the diagrams and repair parts for Official Craftsman 306233820 planer/molder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

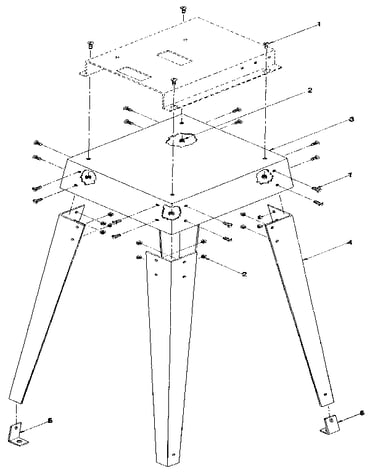

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |
Fastener 3708476
#103

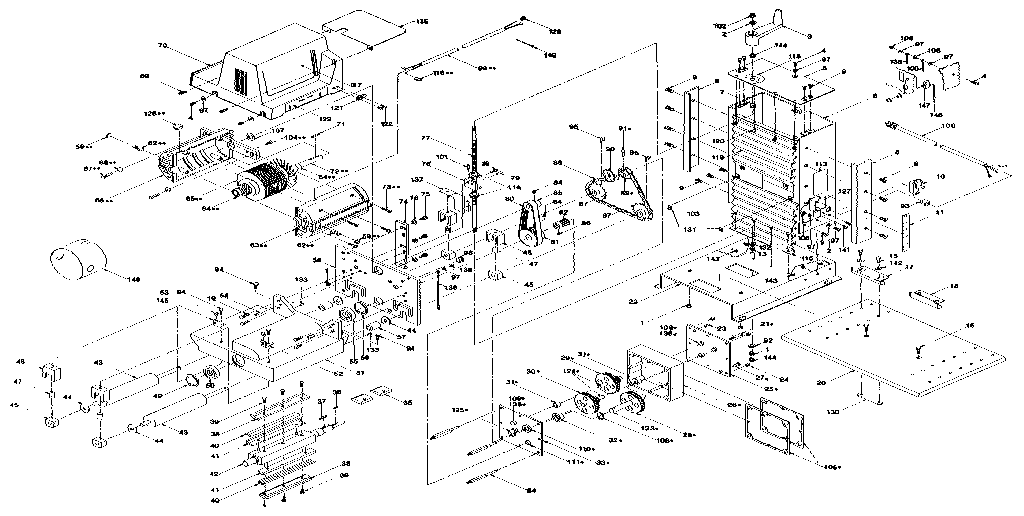

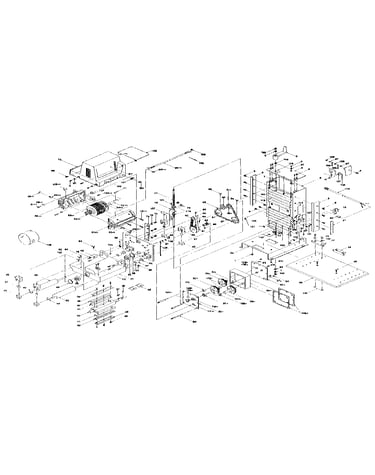

6" planer/molder diagram

Fastener

Part #3708476

The manufacturer no longer makes this part, and there's no substitute part

Shroud Dflct 1559554
#70

6" planer/molder diagram

Shroud dflct

Part #1559554

The manufacturer no longer makes this part, and there's no substitute part

Side Rail 1559013
#8

6" planer/molder diagram

Side rail

Part #1559013

The manufacturer no longer makes this part, and there's no substitute part

Washer 3708475
#107

6" planer/molder diagram

Washer

Part #3708475

The manufacturer no longer makes this part, and there's no substitute part

Shroud Brk L 1559113
#145

6" planer/molder diagram

Shroud brk l

Part #1559113

The manufacturer no longer makes this part, and there's no substitute part

Motor Bushing 3707385
#62

6" planer/molder diagram

Motor bushing

Part #3707385

The manufacturer no longer makes this part, and there's no substitute part

Moldr Clamp 1559014
#35

6" planer/molder diagram

Moldr clamp

Part #1559014

The manufacturer no longer makes this part, and there's no substitute part

Base Plate 1559023
#22

6" planer/molder diagram

Base plate

Part #1559023

The manufacturer no longer makes this part, and there's no substitute part

Bearing 3708492
#55

6" planer/molder diagram

Bearing

Part #3708492

The manufacturer no longer makes this part, and there's no substitute part

Oil Seal 3708494
#111

6" planer/molder diagram

Oil seal

Part #3708494

The manufacturer no longer makes this part, and there's no substitute part
