Kenmore
Room Air Conditioner

Model # 58070188000 Official Kenmore room air conditioner

Here are the diagrams and repair parts for Official Kenmore 58070188000 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Room Air Conditioner Drain Pipe 3H02773A
#19-C

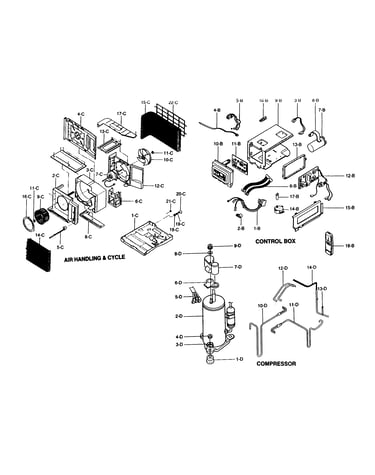

Unit diagram

Room air conditioner drain pipe

Part #3H02773A

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Capacitor 6120AR2194D
#7-B

Unit diagram

Capacitor

Part #6120AR2194D

Replaced by #EAE51432202

?
Manufacturer substitution
This part replaces 6120AR2194D. Substitute parts can look different from the original.
$33.61 |
15% OFF Phone Price : $39.61
In Stock
Room Air Conditioner Blower Wheel 5834AR1599A
#9-C

Unit diagram

Room air conditioner blower wheel

Part #5834AR1599A

Replaced by #5834AR1599B

?
Manufacturer substitution
This part replaces 5834AR1599A. Substitute parts can look different from the original.
$38.30 |
14% OFF Phone Price : $44.30
Back Order
Bracket Support 3H01479D
#5-E

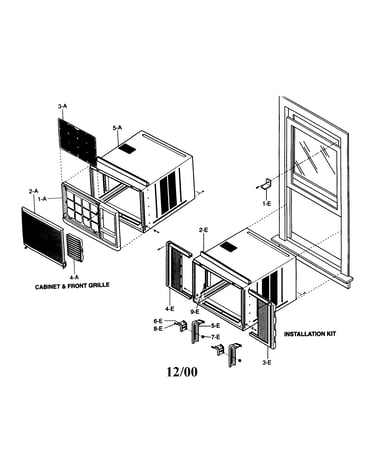

Air conditioner diagram

Bracket support

Part #3H01479D

Replaced by #AET73691406

?
Manufacturer substitution
This part replaces 3H01479D. Substitute parts can look different from the original.
$71.96
In Stock
M-screw 4H01482A
#9-E

Air conditioner diagram

M-screw

Part #4H01482A

Replaced by #AET73691406

?
Manufacturer substitution
This part replaces 4H01482A. Substitute parts can look different from the original.
$71.96
In Stock
Sill Bracket 3H01395C
#6-E

Air conditioner diagram

Sill bracket

Part #3H01395C

Replaced by #AET73691406

?
Manufacturer substitution
This part replaces 3H01395C. Substitute parts can look different from the original.
$71.96
In Stock
Damper 4900AR7265A
#5-C

Unit diagram

Damper

Part #4900AR7265A

$71.93
In Stock
Lg Base Assembly 3040AR6160A
#8-C

Unit diagram

Lg base assembly

Part #3040AR6160A

This item is not returnable
$7.00
In Stock
Lg Grille 3530A20002B
#22-C

Unit diagram

Lg grille

Part #3530A20002B

$24.09
In Stock
Barrier 4790AR1558A
#4-C

Unit diagram

Barrier

Part #4790AR1558A

$35.96
In Stock
