Craftsman
Gas Walk-Behind Mower

Model # 917378151 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917378151 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Lawn Mower 22-in Deck Mulching Blade 850973
#54

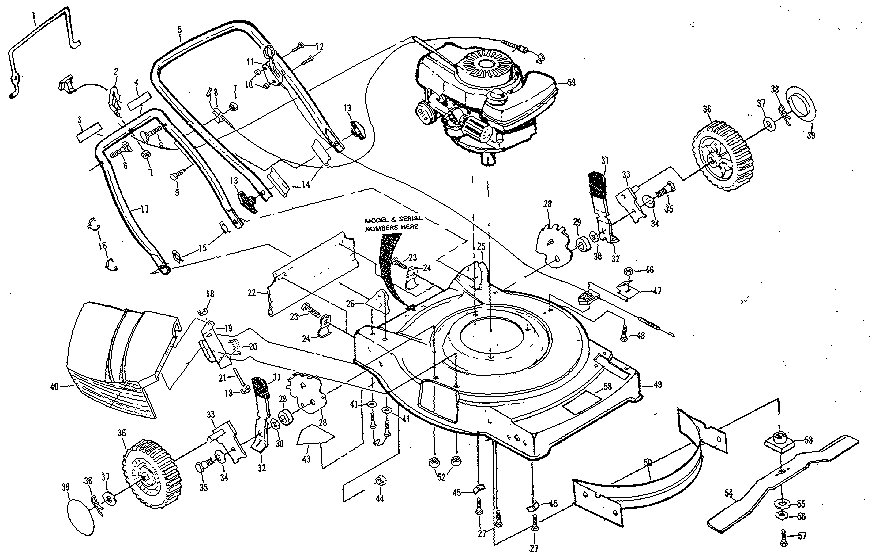

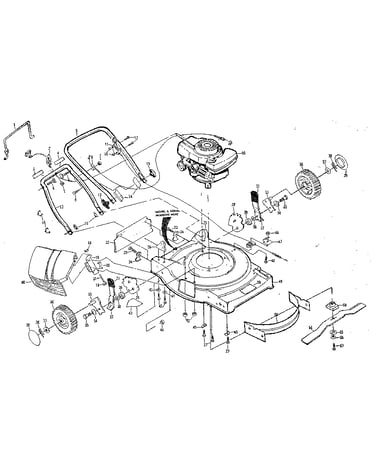

Main frame diagram

Lawn mower 22-in deck mulching blade

Part #850973

Replaced by #532406713

?
Manufacturer substitution
This part replaces 850973. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$28.29 |
17% OFF Phone Price : $34.29
In Stock
Lawn Mower Blade Adapter 851514
#53

Main frame diagram

Lawn mower blade adapter

Part #851514

Replaced by #581547901

?
Manufacturer substitution
This part replaces 851514. Substitute parts can look different from the original.
BEST SELLER
$18.44 |
10% OFF Phone Price : $20.44
In Stock
Washer 67725
#26

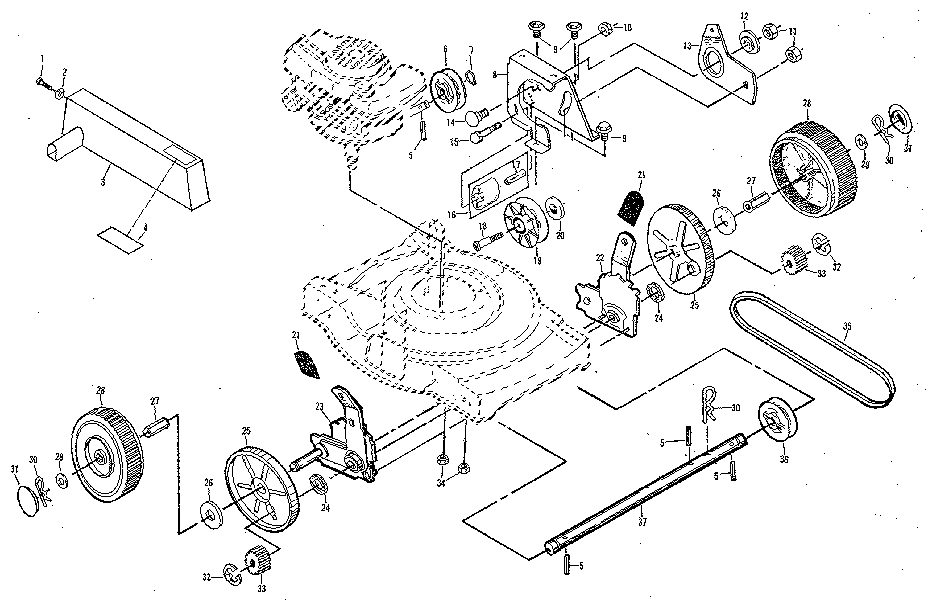

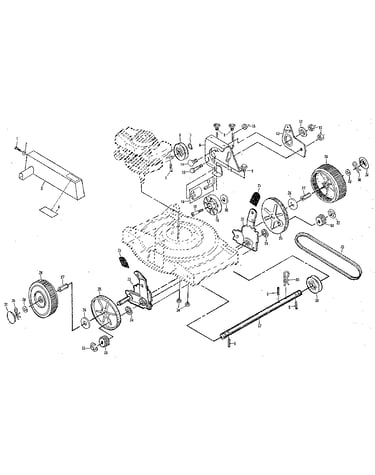

Drive assembly diagram

Washer

Part #67725

Replaced by #532067725

?
Manufacturer substitution
This part replaces 67725. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Washer 52160
Washer

Part #52160

Replaced by #596040101

?
Manufacturer substitution
This part replaces 52160. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Spacer 84920
#29

Main frame diagram

Spacer

Part #84920

Replaced by #532401629

?
Manufacturer substitution
This part replaces 84920. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Drive Belt 88519
#35

Drive assembly diagram

Lawn mower drive belt

Part #88519

Replaced by #582944901

?
Manufacturer substitution
This part replaces 88519. Substitute parts can look different from the original.
This item is not returnable

Get free shipping with Automatic Reorder

$12.59 |
14% OFF Phone Price : $14.59
In Stock
Washer 59289
#41

Main frame diagram

Washer

Part #59289

Replaced by #532059289

?
Manufacturer substitution
This part replaces 59289. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Retainer Clip 85179
Retainer clip

Part #85179

Replaced by #532085179

?
Manufacturer substitution
This part replaces 85179. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Selector Assembly 850982
#22

Drive assembly diagram

Selector assembly

Part #850982

Replaced by #583530901

?
Manufacturer substitution
This part replaces 850982. Substitute parts can look different from the original.
$39.98
In Stock
Handle Knob 63688
#13

Main frame diagram

Handle knob

Part #63688

Replaced by #532183724

?
Manufacturer substitution
This part replaces 63688. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
