Kenmore
Washer

Model # 1107304623 Official Kenmore washer

Here are the diagrams and repair parts for Official Kenmore 1107304623 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 310 parts  |
Washer Spanner Nut 21366
#27

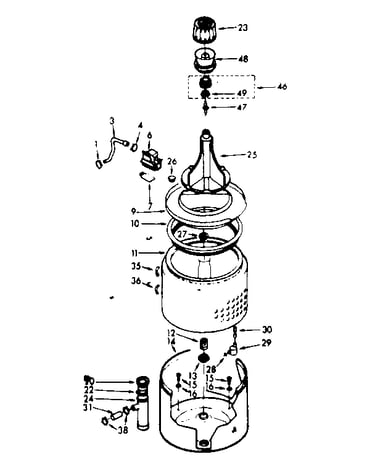

Tub & basket assembly diagram

Washer spanner nut

Part #21366

Replaced by #WP21366

?
Manufacturer substitution
This part replaces 21366. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Gasket 96690
#13

Tub & basket assembly diagram

Gasket

Part #96690

Replaced by #W10814296

?
Manufacturer substitution
This part replaces 96690. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.69 |
21% OFF Phone Price : $4.69
In Stock
Lid Switch 364090
#13

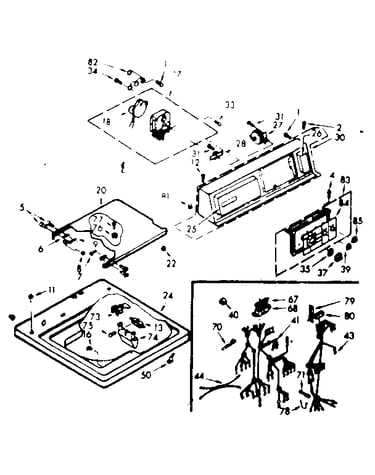

Top & console assembly diagram

Lid switch

Part #364090

Replaced by #W10820036

?
Manufacturer substitution
This part replaces 364090. Substitute parts can look different from the original.
BEST SELLER
$24.95 |
19% OFF Phone Price : $30.95
In Stock
Hose 353401
#30

Tub & basket assembly diagram

Hose

Part #353401

Replaced by #WP353244

?
Manufacturer substitution
This part replaces 353401. Substitute parts can look different from the original.
BEST SELLER
$43.73 |
12% OFF Phone Price : $49.73
In Stock
Screw 18724
#5

Top & console assembly diagram

Screw

Part #18724

Replaced by #WPW10119828

?
Manufacturer substitution
This part replaces 18724. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.40 |
23% OFF Phone Price : $4.40
In Stock
Clip 90296
#53

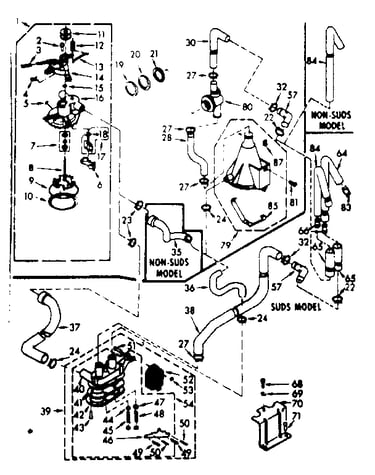

Water system diagram

Clip

Part #90296

Replaced by #WP90296

?
Manufacturer substitution
This part replaces 90296. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 355653
#7

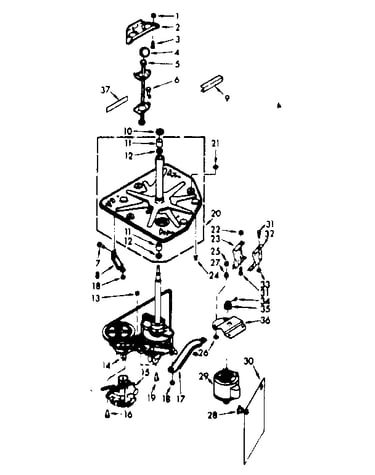

Drive system diagram

Screw

Part #355653

Replaced by #WP3400516

?
Manufacturer substitution
This part replaces 355653. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Bearing 354240
#16

Top & console assembly diagram

Bearing

Part #354240

Replaced by #WP21258

?
Manufacturer substitution
This part replaces 354240. Substitute parts can look different from the original.
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Shaft Seal 91939
#22

Gearcase/transmission diagram

Shaft seal

Part #91939

Replaced by #WP91939

?
Manufacturer substitution
This part replaces 91939. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Ring 90368
#17

Gearcase/transmission diagram

Ring

Part #90368

Replaced by #W11033823

?
Manufacturer substitution
This part replaces 90368. Substitute parts can look different from the original.
This item is not returnable
$8.53 |
10% OFF Phone Price : $9.53
In Stock
