Hotpoint
Top-Mount Refrigerator

Model # CTF17PAB Official Hotpoint refrigerator

Here are the diagrams and repair parts for Official Hotpoint CTF17PAB refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

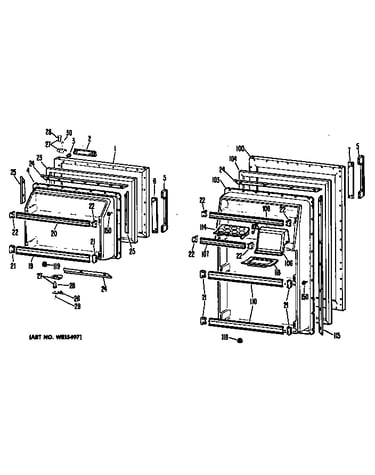

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 203 parts  |
Refrigerator Defrost Bi-metal Thermostat WR50X60
#620

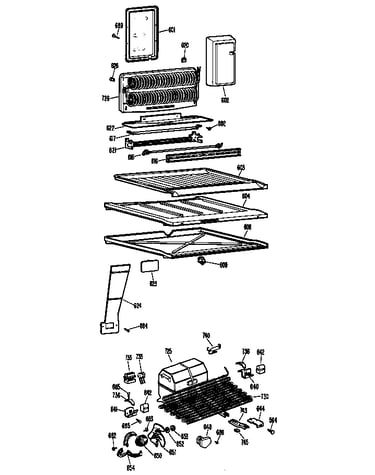

Unit diagram

Refrigerator defrost bi-metal thermostat

Part #WR50X60

$12.22 |
14% OFF Phone Price : $14.22
In Stock
Grommet Tube WR17X1550
#260

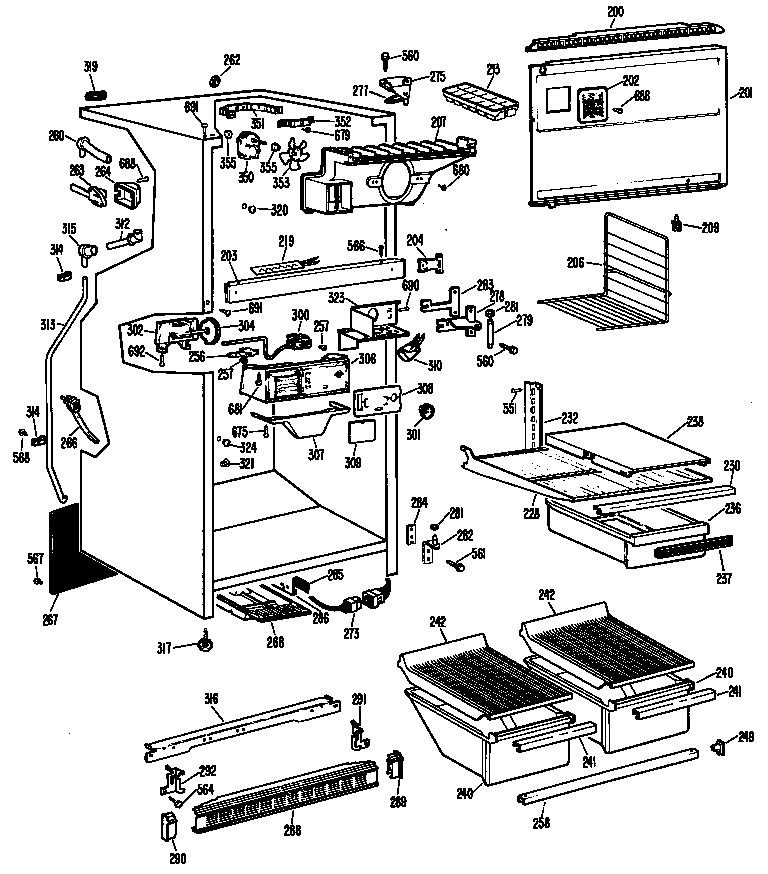

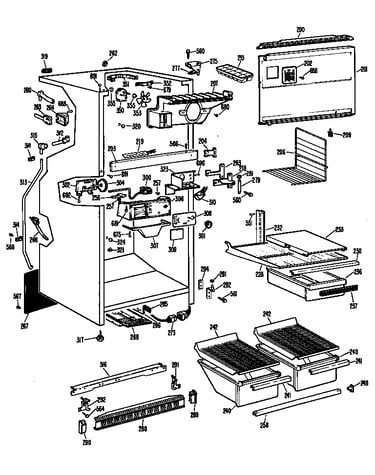

Cabinet diagram

Grommet tube

Part #WR17X1550

Replaced by #WR2X8474

?
Manufacturer substitution
This part replaces WR17X1550. Substitute parts can look different from the original.
$10.24 |
16% OFF Phone Price : $12.24
In Stock
Refrigerator Fan Blade WR2X3198

#NI

All parts diagram

Refrigerator fan blade

Part #WR2X3198

Replaced by #WR60X114

?
Manufacturer substitution
This part replaces WR2X3198. Substitute parts can look different from the original.
This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Refrigerator Screw, 2-pack WR1X5048
#686

Unit diagram

Refrigerator screw, 2-pack

Part #WR1X5048

Replaced by #WZ5X158D

?
Manufacturer substitution
This part replaces WR1X5048. Substitute parts can look different from the original.
$34.63 |
15% OFF Phone Price : $40.63
In Stock
Refrigerator Screw, 2-pack WR1X1466
#690

Cabinet diagram

Refrigerator screw, 2-pack

Part #WR1X1466

Replaced by #WZ5X158D

?
Manufacturer substitution
This part replaces WR1X1466. Substitute parts can look different from the original.
$34.63 |
15% OFF Phone Price : $40.63
In Stock
Refrigerator Water Tubing Clip WR1X5278
#266A

Cabinet diagram

Refrigerator water tubing clip

Part #WR1X5278

$7.57 |
12% OFF Phone Price : $8.57
In Stock
Refrigerator Crisper Drawer Cover WR32X5206
#242

Cabinet diagram

Refrigerator crisper drawer cover

Part #WR32X5206

$57.18 |
9% OFF Phone Price : $63.18
In Stock
Fan Condenser Motor WR60X110
#650

Unit diagram

Fan condenser motor

Part #WR60X110

Replaced by #WR60X177

?
Manufacturer substitution
This part replaces WR60X110. Substitute parts can look different from the original.
$159.18 |
7% OFF Phone Price : $171.18
In Stock
Refrigerator Ice Tray WR30X5101
#213

Cabinet diagram

Refrigerator ice tray

Part #WR30X5101

Replaced by #WR30X311

?
Manufacturer substitution
This part replaces WR30X5101. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Cvr Mtg B WR2X7029
#736

Unit diagram

Cvr mtg b

Part #WR2X7029

This item is not returnable
$2.49
In Stock
