Brother
Electronic Sewing Machine

Model # SC6600 Official Brother sewing machine

Here are the diagrams and repair parts for Official Brother SC6600 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

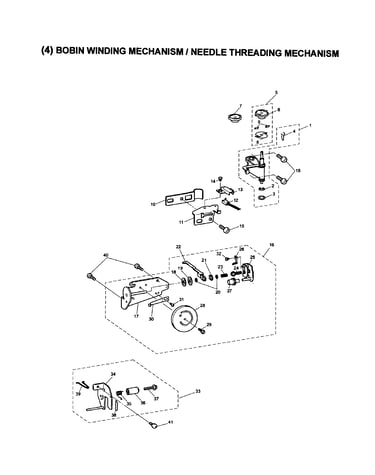

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 294 parts  |

Zigzag Nut XC2435020
#36

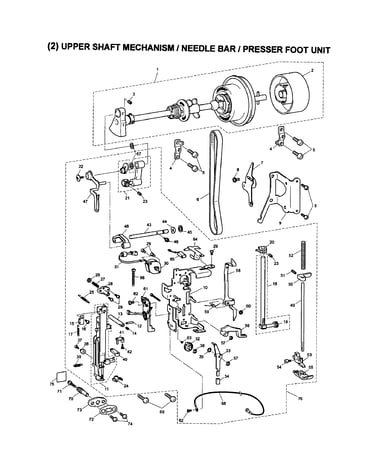

Needle bar diagram

Zigzag nut

Part #XC2435020

The manufacturer no longer makes this part, and there's no substitute part

Washer XZ5030001
#44

Needle bar diagram

Washer

Part #XZ5030001

The manufacturer no longer makes this part, and there's no substitute part

Scrw M3x8 0A5300806
Scrw m3x8

Part #0A5300806

The manufacturer no longer makes this part, and there's no substitute part

Spring XC2429021
#25

Needle bar diagram

Spring

Part #XC2429021

The manufacturer no longer makes this part, and there's no substitute part

Brother Main Pcb XE9751001
#1

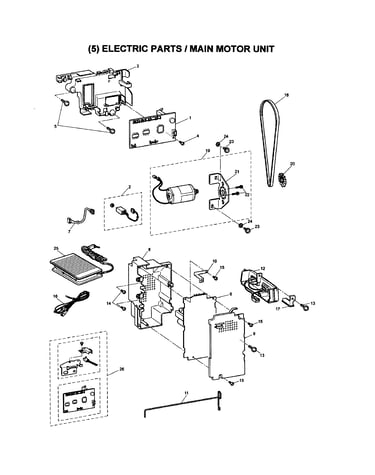

Motor assy diagram

Brother main pcb

Part #XE9751001

The manufacturer no longer makes this part, and there's no substitute part

Bag 130800021
#38

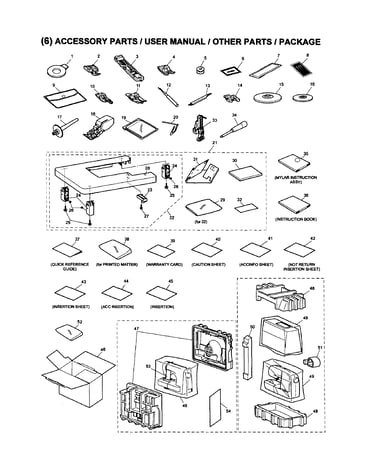

Accessory diagram

Bag

Part #130800021

The manufacturer no longer makes this part, and there's no substitute part

Brother Decorative Plate XE9744001
#29

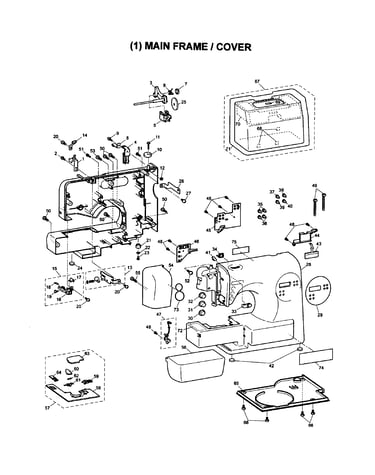

Frame/cover diagram

Brother decorative plate

Part #XE9744001

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Needle Plate XE6468001
#59

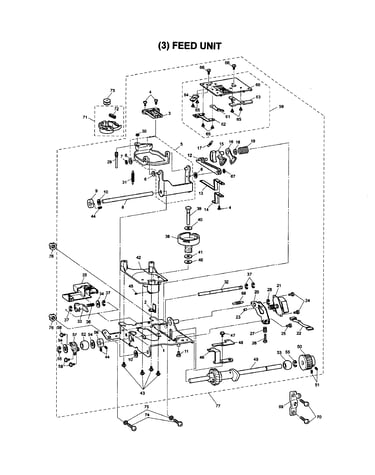

Feed unit diagram

Sewing machine needle plate

Part #XE6468001

The manufacturer no longer makes this part, and there's no substitute part

Lever,thre XC4897020
#48

Needle bar diagram

Lever,thre

Part #XC4897020

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Needle Plate Cover XD1645021
#63

Frame/cover diagram

Sewing machine needle plate cover

Part #XD1645021

The manufacturer no longer makes this part, and there's no substitute part
