Model # KERS205TSS4 Official KitchenAid 30" electric freestanding range
Here are the diagrams and repair parts for Official KitchenAid KERS205TSS4 30" electric freestanding range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forKERS205TSS4 Ranges
- #38

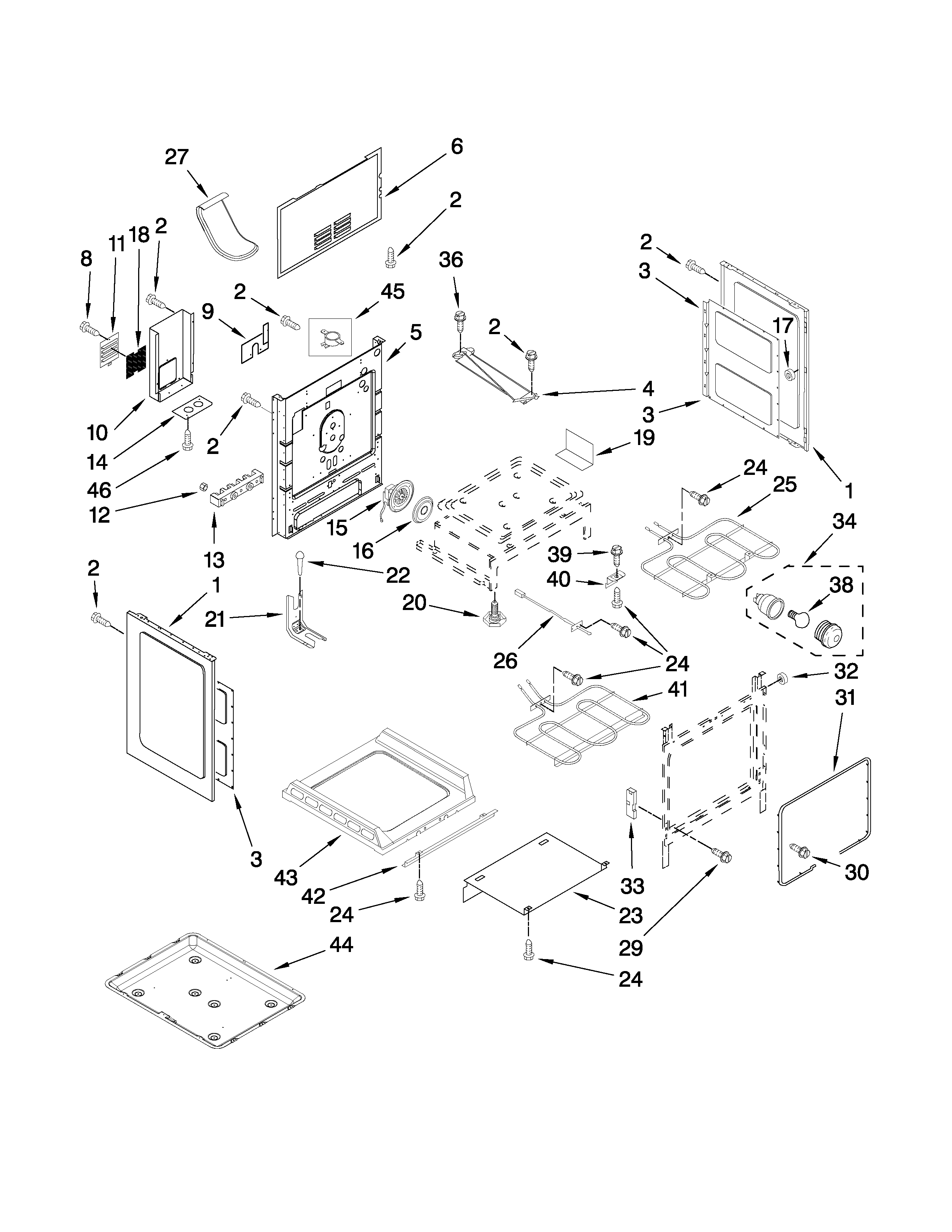

Chassis parts diagram
Light bulb, a-15, 40-wattPart #STD398091
The manufacturer no longer makes this part, and there's no substitute part
- #26
Chassis parts diagram
Range oven temperature sensorPart #W10181986
Replaced by #WPW10181986
?Manufacturer substitutionThis part replaces W10181986. Substitute parts can look different from the original.$58.66 |9% OFF Phone Price : $64.66In Stock - #NI
Optional parts (not included) diagram
PolishPart #3191048
Replaced by #W10355051
?Manufacturer substitutionThis part replaces 3191048. Substitute parts can look different from the original.This item is not returnableGet free shipping with Automatic Reorder
$10.88 |16% OFF Phone Price : $12.88In Stock - #4

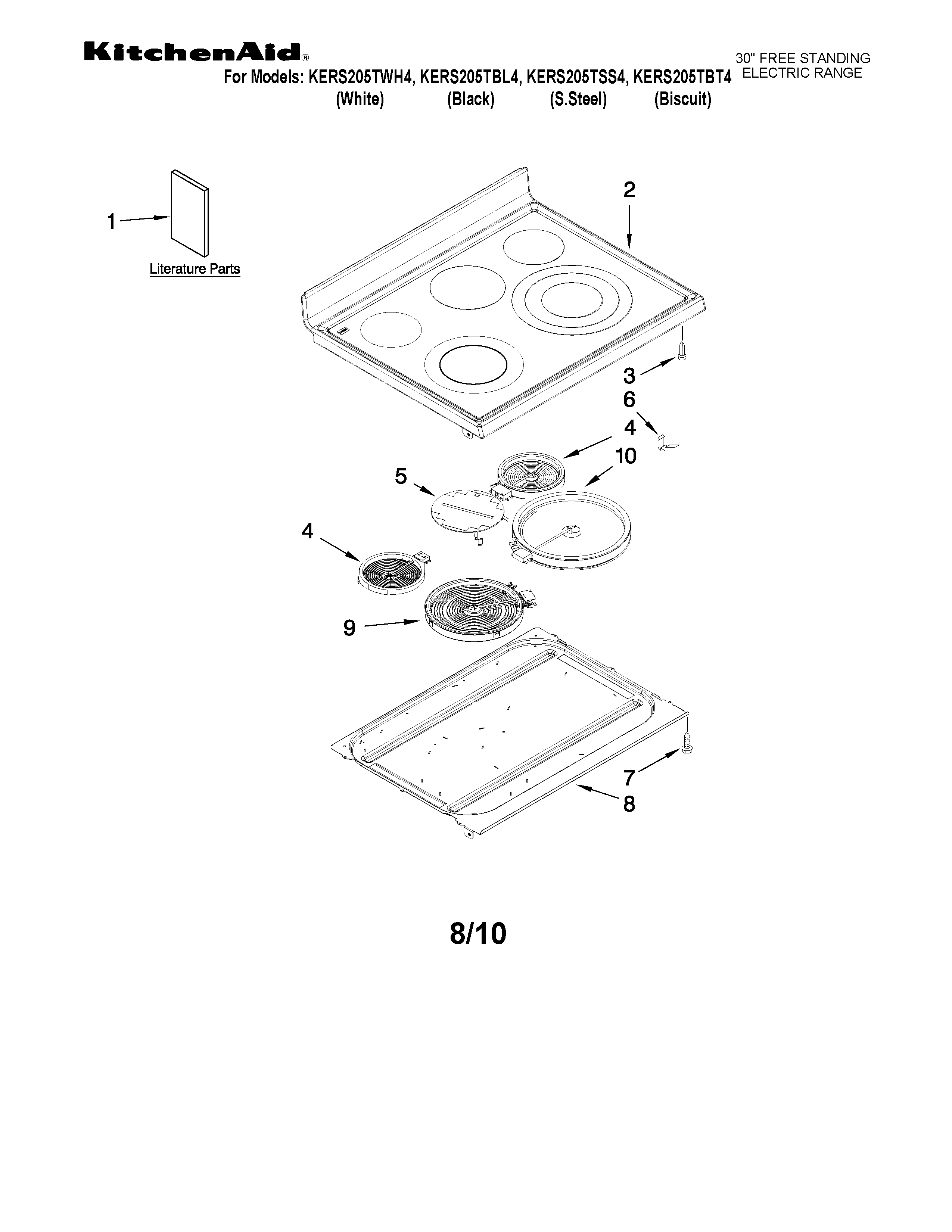

Cooktop parts diagram
Range radiant surface elementPart #8273994
Replaced by #W11171119
?Manufacturer substitutionThis part replaces 8273994. Substitute parts can look different from the original.$116.87 |9% OFF Phone Price : $128.87In Stock - #4

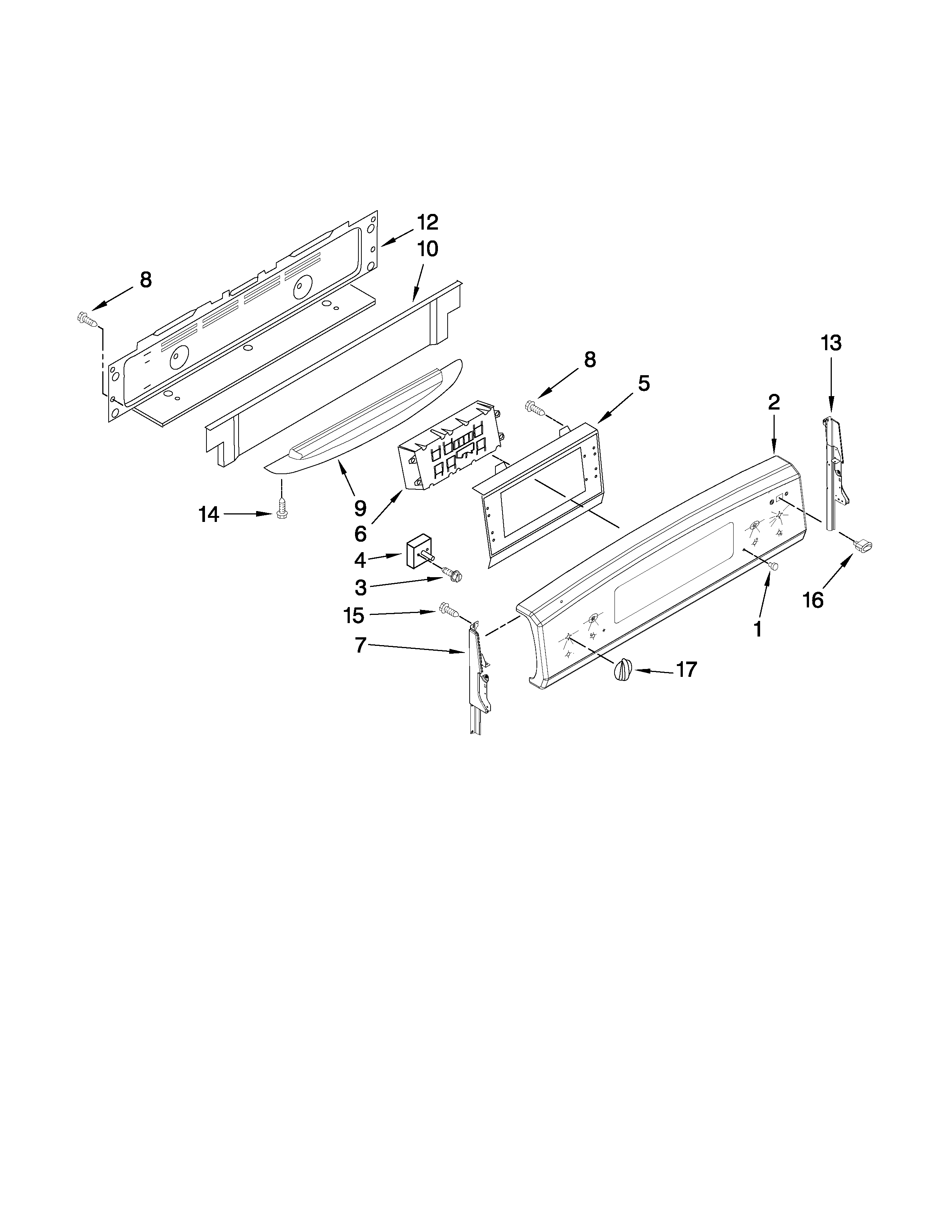

Control panel parts diagram
Switch- elPart #7450P011-60
Replaced by #WP74010824
?Manufacturer substitutionThis part replaces 7450P011-60. Substitute parts can look different from the original.$74.16 |7% OFF Phone Price : $80.16In Stock - #14
Control panel parts diagram
ScrewPart #3196566
Replaced by #WP489491
?Manufacturer substitutionThis part replaces 3196566. Substitute parts can look different from the original.This item is not returnable$4.46 |18% OFF Phone Price : $5.46In Stock - #3
Control panel parts diagram
Range screwPart #3400882
Replaced by #WP3400882
?Manufacturer substitutionThis part replaces 3400882. Substitute parts can look different from the original.This item is not returnable$4.33 |19% OFF Phone Price : $5.33In Stock - #1
Control panel parts diagram
Light lensPart #3196068
Replaced by #WP3196068
?Manufacturer substitutionThis part replaces 3196068. Substitute parts can look different from the original.This item is not returnable$5.07 |16% OFF Phone Price : $6.07In Stock - #6

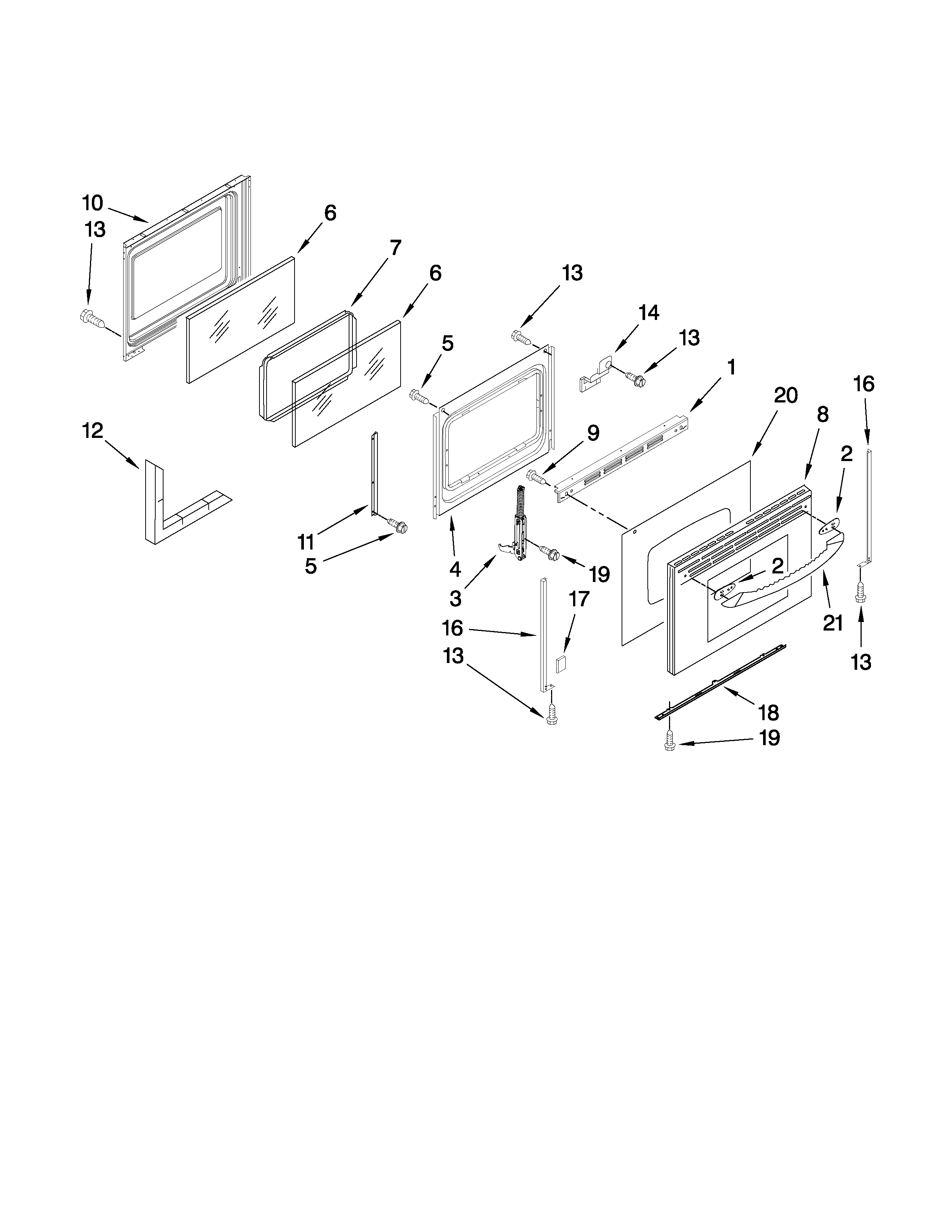

Door parts diagram
Door glassPart #7902P436-60
Replaced by #74003645
?Manufacturer substitutionThis part replaces 7902P436-60. Substitute parts can look different from the original.$108.50 |10% OFF Phone Price : $120.50In Stock - #41
Chassis parts diagram
Bake elementPart #7406P451-60
Replaced by #WPW10276482
?Manufacturer substitutionThis part replaces 7406P451-60. Substitute parts can look different from the original.$124.67 |9% OFF Phone Price : $136.67In Stock
Most common symptoms to help you fix your ranges
Choose a symptom to see related range repairs.
Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…
Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…
Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…
Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…
Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…
Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…
Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…
Most common repair guides to help fix your ranges
These step-by-step repair guides will help you safely fix what’s broken on your range.
How to replace a range oven door switch
The oven door switch detects whether the oven door is closed and helps control the oven light. Replace the switch if it …
Repair difficulty
Time required
30 minutes or less
How to replace a range oven door lock assembly
Oven door not locking? You can replace the lock assembly in less than 30 minutes. Here's how.…
Repair difficulty
Time required
15 minutes or less
Effective articles & videos to help repair your ranges
Use the advice and tips in these articles and videos to get the most out of your range.
Learn how the self-clean cycle works in an oven.…
You might be surprised by these 4 tips for using your oven better.…
Learn how to troubleshoot problems with your range that cause an F10 error to be displayed.…
