Model # GXV140A1KY Official Honda engine

Here are the diagrams and repair parts for Official Honda GXV140A1KY engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

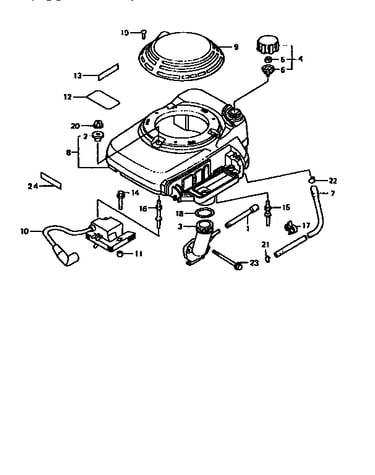

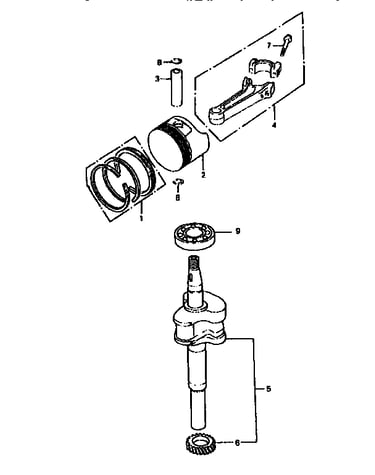

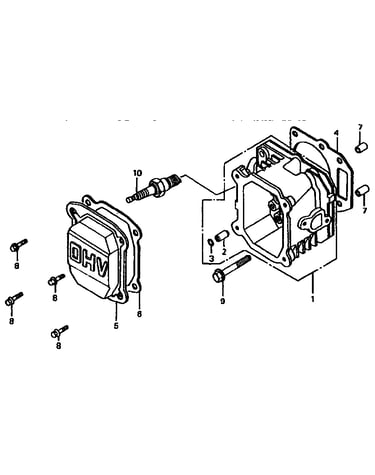

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 179 parts  |
Ratchet Starter 3979937
#12

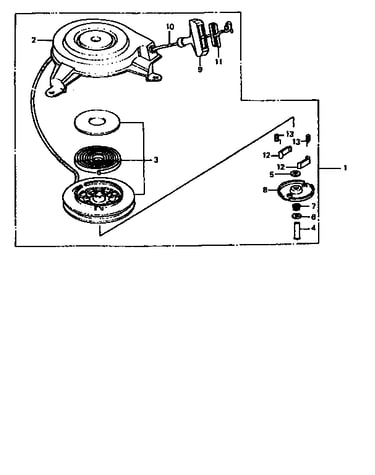

Recoil starter diagram

Ratchet starter

Part #3979937

The manufacturer no longer makes this part, and there's no substitute part

Retainer 4544284
#10

Camshaft diagram

Retainer

Part #4544284

The manufacturer no longer makes this part, and there's no substitute part

Oil Seal 0671628
#29

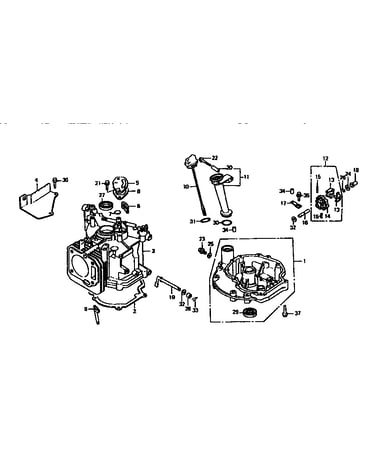

Cylinder barrel diagram

Oil seal

Part #0671628

The manufacturer no longer makes this part, and there's no substitute part

Pan Screw 0173567
#16

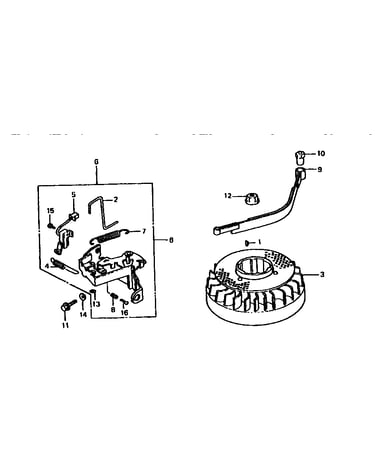

Flywheel diagram

Pan screw

Part #0173567

The manufacturer no longer makes this part, and there's no substitute part

Element Ar 4327383
#1

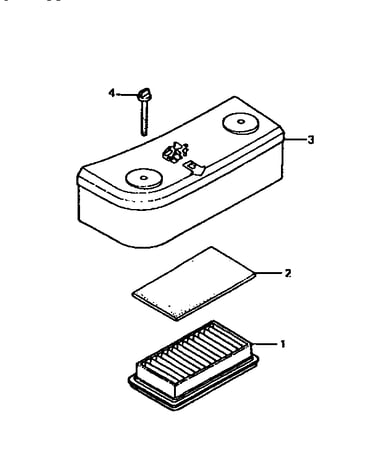

Air cleaner diagram

Element ar

Part #4327383

The manufacturer no longer makes this part, and there's no substitute part

Flange Bolt 3378064
#7

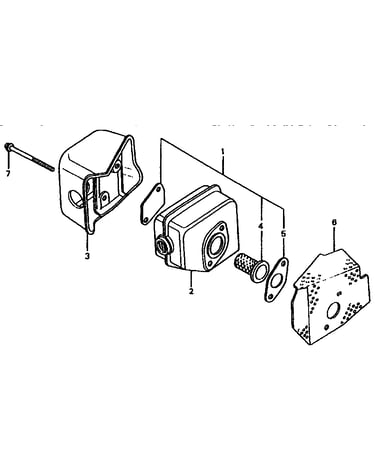

Muffler diagram

Flange bolt

Part #3378064

The manufacturer no longer makes this part, and there's no substitute part

Spring 1452911
#5

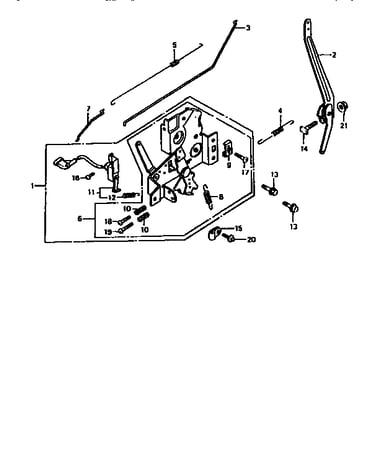

Control diagram

Spring

Part #1452911

The manufacturer no longer makes this part, and there's no substitute part

Control Spring 4428892
#4

Flywheel diagram

Control spring

Part #4428892

The manufacturer no longer makes this part, and there's no substitute part

Bolt 2418671
#14

Control diagram

Bolt

Part #2418671

The manufacturer no longer makes this part, and there's no substitute part

Valve 1441476
#2

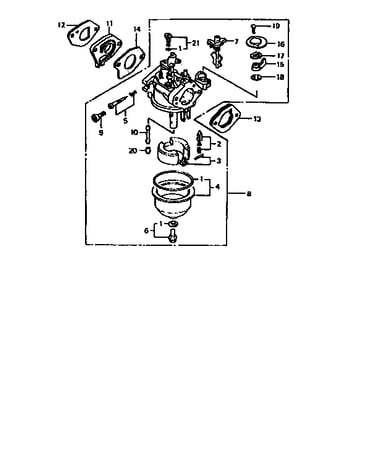

Carburetor diagram

Valve

Part #1441476

The manufacturer no longer makes this part, and there's no substitute part
