GE
Electric Cooktop

Model # PP9830TJ1WW Official GE electric cooktop

Here are the diagrams and repair parts for Official GE PP9830TJ1WW electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Range Dual Radiant Element WB30T10133
#58

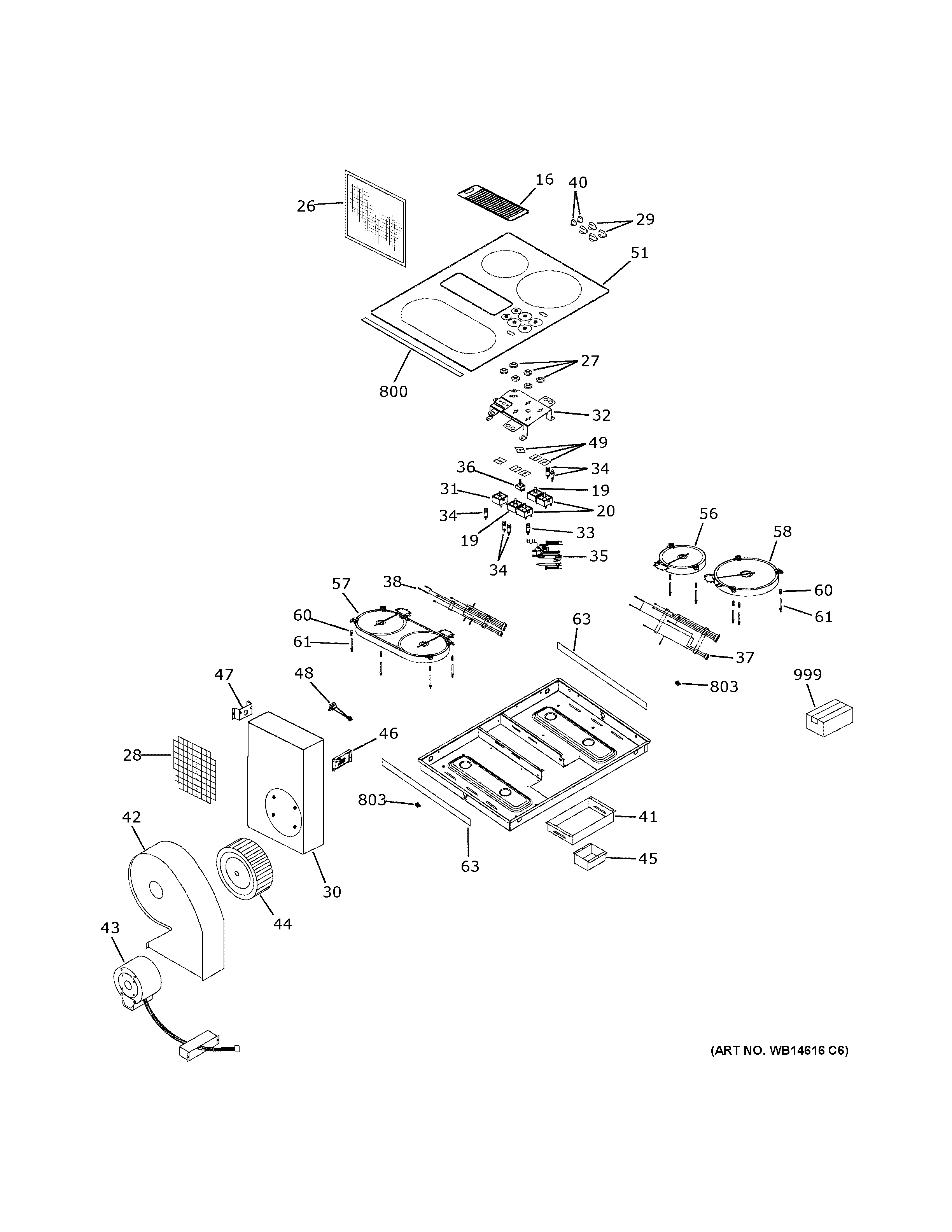

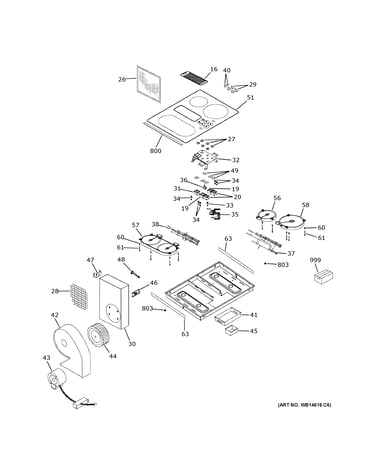

Control panel & cooktop diagram

Range dual radiant element

Part #WB30T10133

BEST SELLER
$98.55 |
11% OFF Phone Price : $110.55
In Stock
Cooktop Downdraft Vent Fan Knob WB24X10174
#36

Control panel & cooktop diagram

Cooktop downdraft vent fan knob

Part #WB24X10174

$50.11 |
11% OFF Phone Price : $56.11
In Stock
Foam Tape WB02X11192
#800

Control panel & cooktop diagram

Foam tape

Part #WB02X11192

Replaced by #WB02X26088

?
Manufacturer substitution
This part replaces WB02X11192. Substitute parts can look different from the original.
$51.24 |
10% OFF Phone Price : $57.24
In Stock
Cooktop Element Control Switch WB24X10175
#19

Control panel & cooktop diagram

Cooktop element control switch

Part #WB24X10175

$99.56 |
11% OFF Phone Price : $111.56
In Stock
Heat Spring WB09X10035
#60

Control panel & cooktop diagram

Heat spring

Part #WB09X10035

$13.36 |
13% OFF Phone Price : $15.36
In Stock
Lock Switch WB24X10177
#31

Control panel & cooktop diagram

Lock switch

Part #WB24X10177

$181.02
In Stock
Buzzer (240v WB08T10038
#48

Control panel & cooktop diagram

Buzzer (240v

Part #WB08T10038

$67.09 |
8% OFF Phone Price : $73.09
In Stock
Range Control Panel WB02X11367
#32

Control panel & cooktop diagram

Range control panel

Part #WB02X11367

$25.29 |
19% OFF Phone Price : $31.29
In Stock
Range Radiant Surface Element, 6-in (replaces Wb30t10125) WB30T10129
#56

Control panel & cooktop diagram

Range radiant surface element, 6-in (replaces wb30t10125)

Part #WB30T10129

$112.74 |
10% OFF Phone Price : $124.74
In Stock
Gasket Switch WB04X10034
#49

Control panel & cooktop diagram

Gasket switch

Part #WB04X10034

$45.81 |
12% OFF Phone Price : $51.81
In Stock
