Model # PGP990DEF1BB Official GE gas cooktop

Here are the diagrams and repair parts for Official GE PGP990DEF1BB gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Spark Module WB02X11172
#436

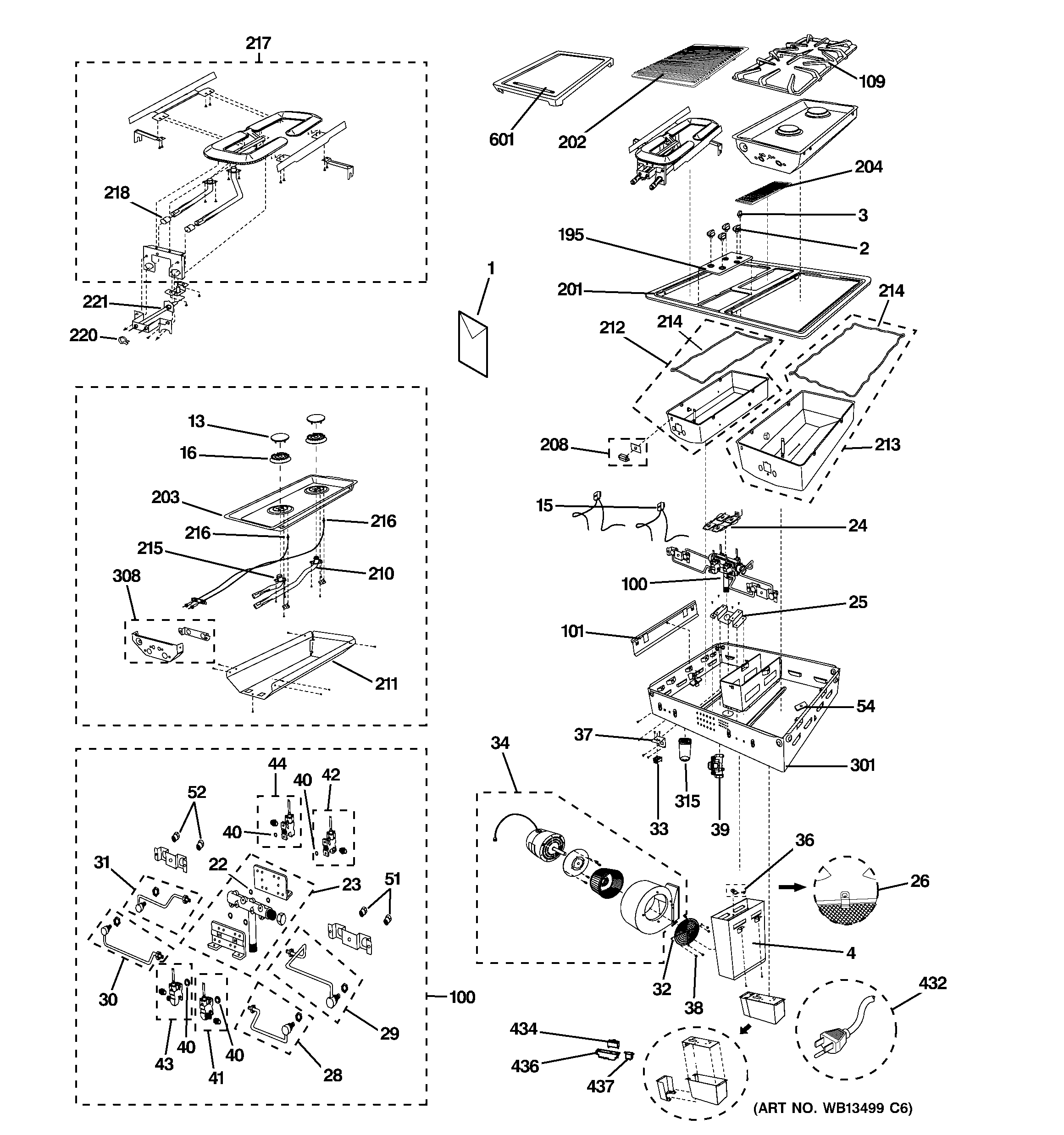

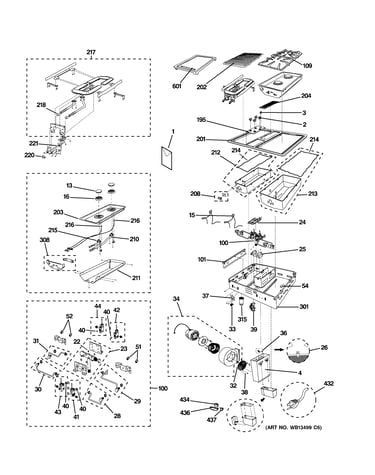

Control panel & cooktop diagram

Spark module

Part #WB02X11172

Replaced by #WB13T10046

?
Manufacturer substitution
This part replaces WB02X11172. Substitute parts can look different from the original.
BEST SELLER
$54.21 |
10% OFF Phone Price : $60.21
In Stock
Cooktop Igniter Switch And Harness Assembly WB24X10143
#24

Control panel & cooktop diagram

Cooktop igniter switch and harness assembly

Part #WB24X10143

$183.41 |
6% OFF Phone Price : $195.41
In Stock
Insulator Si WB35X10006
#101

Control panel & cooktop diagram

Insulator si

Part #WB35X10006

$34.35
In Stock
Cooktop Burner Base WB16X10024
#16

Control panel & cooktop diagram

Cooktop burner base

Part #WB16X10024

$77.62 |
7% OFF Phone Price : $83.62
In Stock
Cooktop Burner Cap (black) WB16X10028
#13

Control panel & cooktop diagram

Cooktop burner cap (black)

Part #WB16X10028

$39.38 |
13% OFF Phone Price : $45.38
In Stock
Fan Screen WB02X11183
#32

Control panel & cooktop diagram

Fan screen

Part #WB02X11183

The manufacturer no longer makes this part, and there's no substitute part

Aeration Pan WB32X10060
#203

Control panel & cooktop diagram

Aeration pan

Part #WB32X10060

The manufacturer no longer makes this part, and there's no substitute part

Gas Line, Lr WB28X10098
#31

Control panel & cooktop diagram

Gas line, lr

Part #WB28X10098

The manufacturer no longer makes this part, and there's no substitute part

Range Surface Burner Knob WB03X10263
#2

Control panel & cooktop diagram

Range surface burner knob

Part #WB03X10263

The manufacturer no longer makes this part, and there's no substitute part

Pan Seal WB04T10062
#214

Control panel & cooktop diagram

Pan seal

Part #WB04T10062

The manufacturer no longer makes this part, and there's no substitute part
