Model # KCMT27-12 Official Kelvinator mega prep table

Here are the diagrams and repair parts for Official Kelvinator KCMT27-12 mega prep table, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

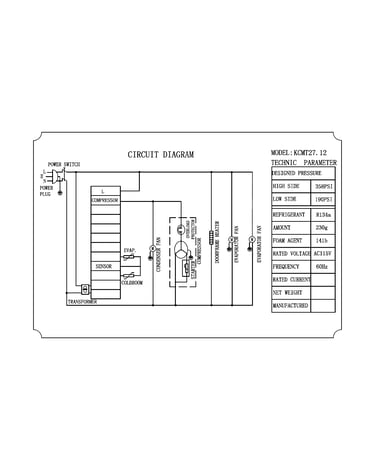

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Refrigeration Appliance Compressor 5304493026
#45

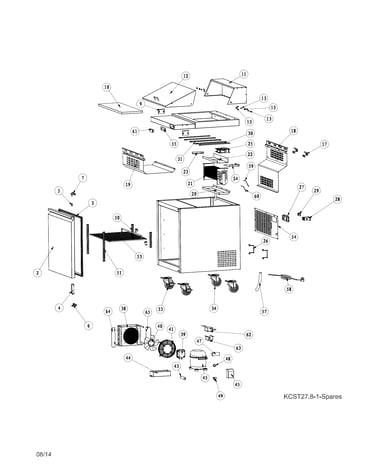

Recommended spare parts diagram

Refrigeration appliance compressor

Part #5304493026

$341.90
In Stock
Control Box 5304493383
#27

Recommended spare parts diagram

Control box

Part #5304493383

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Motor 5304493104
#39

Recommended spare parts diagram

Refrigerator motor

Part #5304493104

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door 5304493358
#2

Recommended spare parts diagram

Refrigerator door

Part #5304493358

The manufacturer no longer makes this part, and there's no substitute part

Sensor 5304492340
#59

Recommended spare parts diagram

Sensor

Part #5304492340

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Support 5304493379
#23

Recommended spare parts diagram

Refrigerator support

Part #5304493379

The manufacturer no longer makes this part, and there's no substitute part

Hinge 5304493362
#7

Recommended spare parts diagram

Hinge

Part #5304493362

The manufacturer no longer makes this part, and there's no substitute part

Tube 5304493401
#57

Recommended spare parts diagram

Tube

Part #5304493401

The manufacturer no longer makes this part, and there's no substitute part

Filter Drier 5304493106
#43

Recommended spare parts diagram

Filter drier

Part #5304493106

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Support 5304493368
#17

Recommended spare parts diagram

Refrigerator support

Part #5304493368

The manufacturer no longer makes this part, and there's no substitute part
