Model # KHTU705SSS0 Official KitchenAid range hood

Here are the diagrams and repair parts for Official KitchenAid KHTU705SSS0 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Slide Switch 8189622
#6

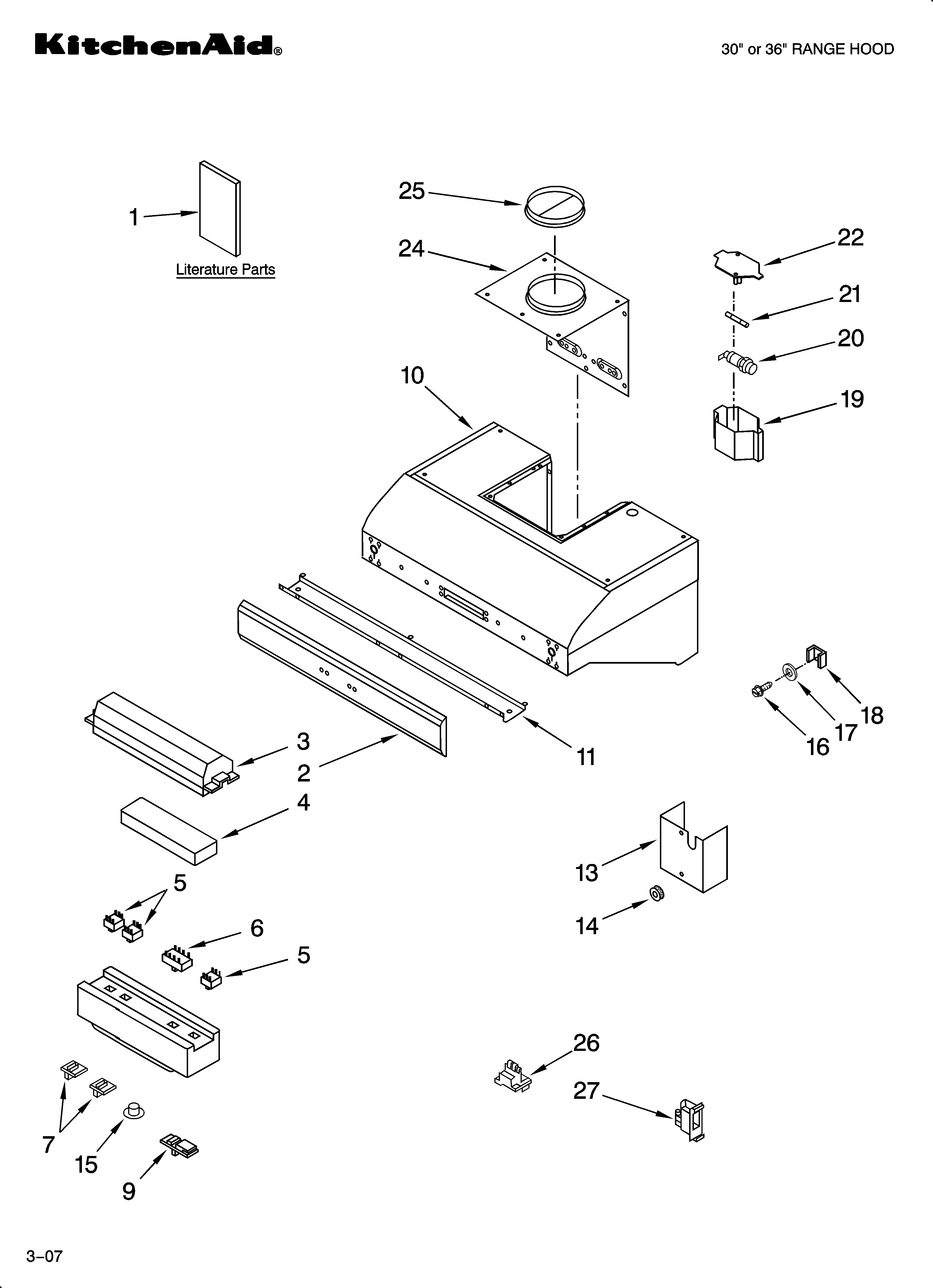

Hood parts diagram

Slide switch

Part #8189622

Replaced by #WPW10252122

?
Manufacturer substitution
This part replaces 8189622. Substitute parts can look different from the original.
$107.27 |
10% OFF Phone Price : $119.27
In Stock
Range Hood Transformer 8190410
#33

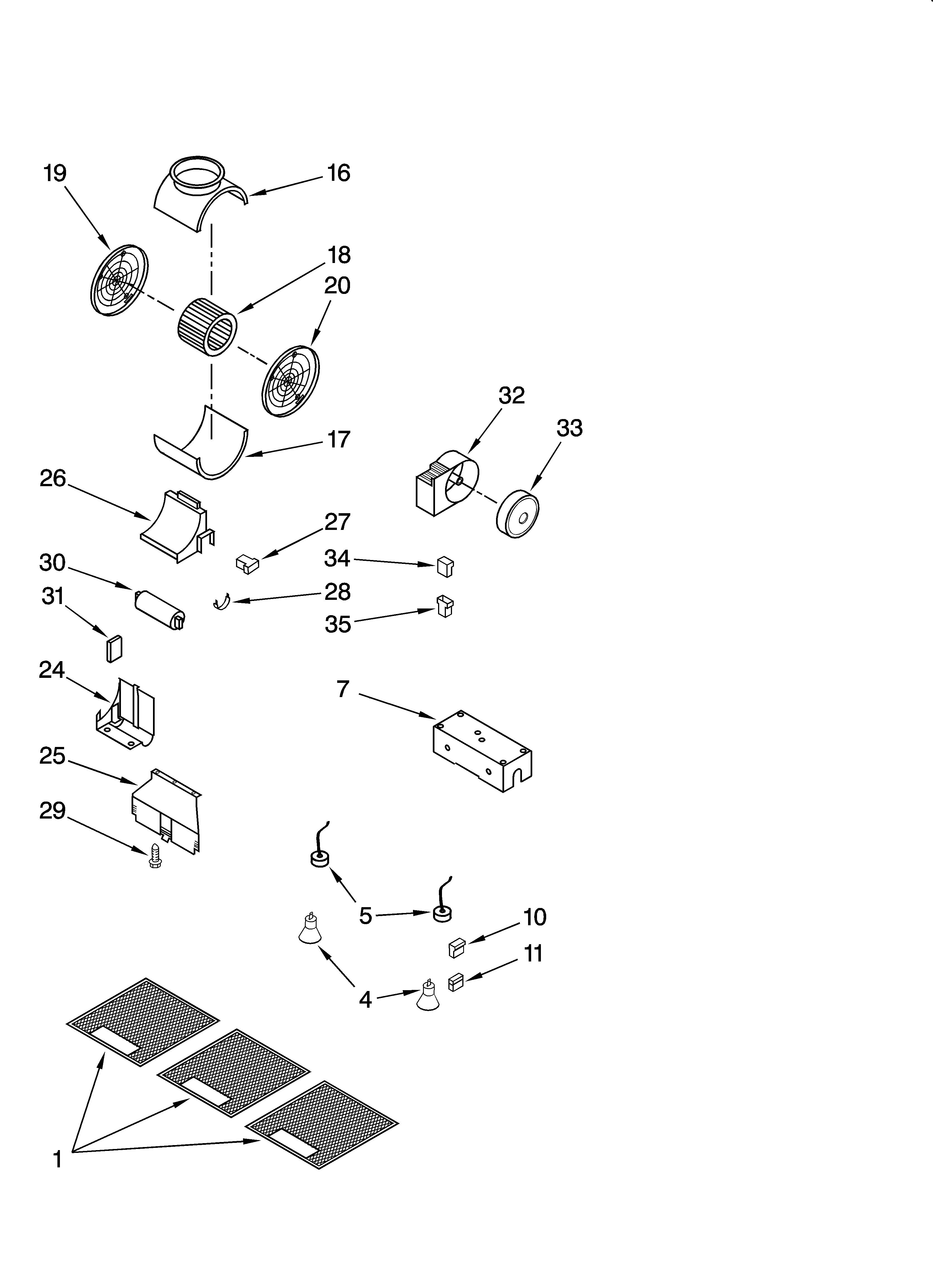

Ventilation parts, optional parts (not included) diagram

Range hood transformer

Part #8190410

$358.49 |
$12.00 OFF Phone Price : $370.49
In Stock
Slide Switch 8189621
#5

Hood parts diagram

Slide switch

Part #8189621

Replaced by #W11731942

?
Manufacturer substitution
This part replaces 8189621. Substitute parts can look different from the original.
$38.56
In Stock
Installation Instructions 8191029
#1

Hood parts diagram

Installation instructions

Part #8191029

The manufacturer no longer makes this part, and there's no substitute part

Wire Cover 8190386
#28

Ventilation parts, optional parts (not included) diagram

Wire cover

Part #8190386

The manufacturer no longer makes this part, and there's no substitute part

Mounting Bracket 8191023
#25

Ventilation parts, optional parts (not included) diagram

Mounting bracket

Part #8191023

The manufacturer no longer makes this part, and there's no substitute part

Mounting Bracket 8191034
#20

Hood parts diagram

Mounting bracket

Part #8191034

The manufacturer no longer makes this part, and there's no substitute part

Support 8190391
#20

Ventilation parts, optional parts (not included) diagram

Support

Part #8190391

The manufacturer no longer makes this part, and there's no substitute part

Socket 8190542
#5

Ventilation parts, optional parts (not included) diagram

Socket

Part #8190542

The manufacturer no longer makes this part, and there's no substitute part

Wire Cover 8190383
#24

Ventilation parts, optional parts (not included) diagram

Wire cover

Part #8190383

The manufacturer no longer makes this part, and there's no substitute part
