Model # K7060V Official Kobalt (Abac America) air compressor

Here are the diagrams and repair parts for Official Kobalt (Abac America) K7060V air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

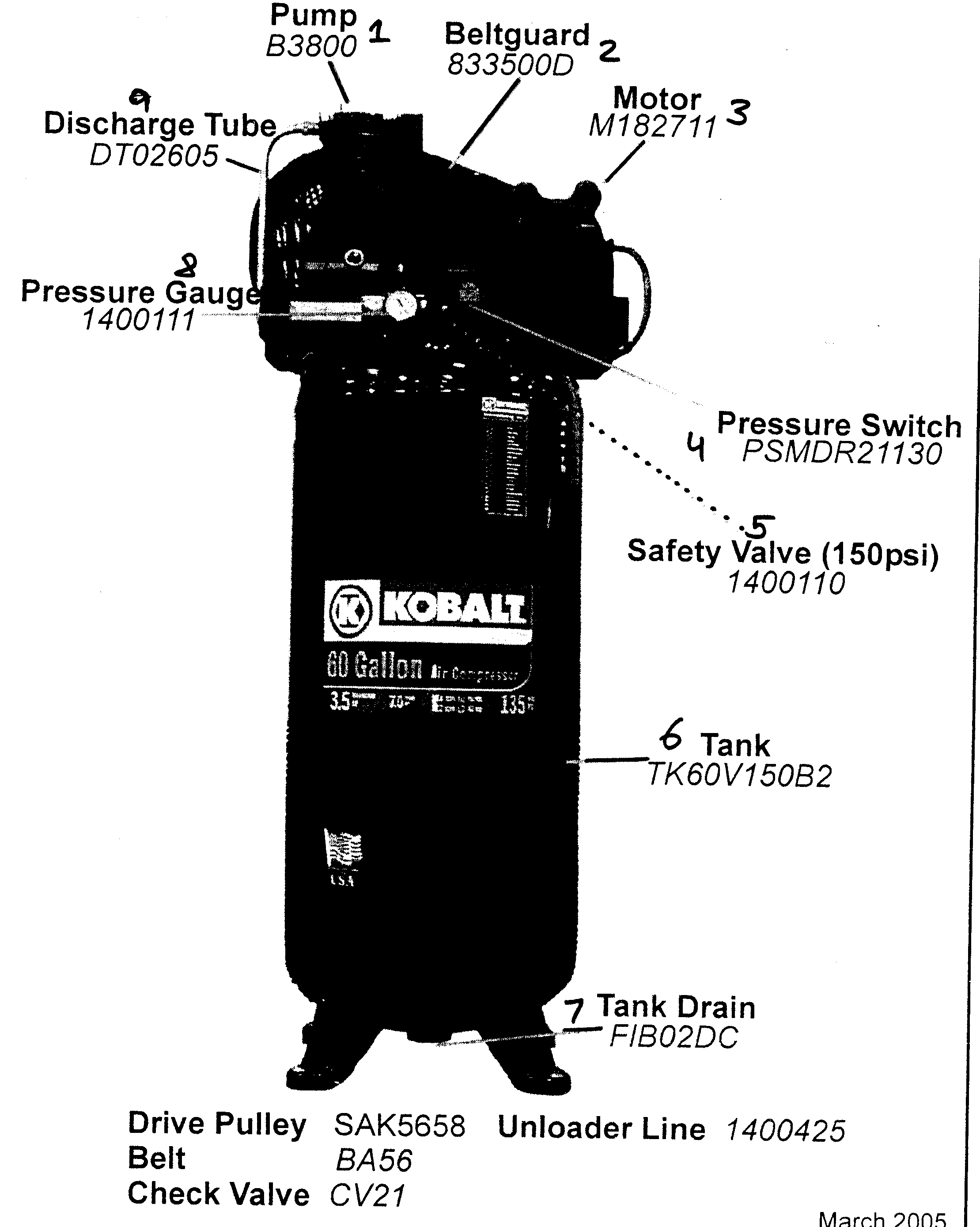

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 50 parts |

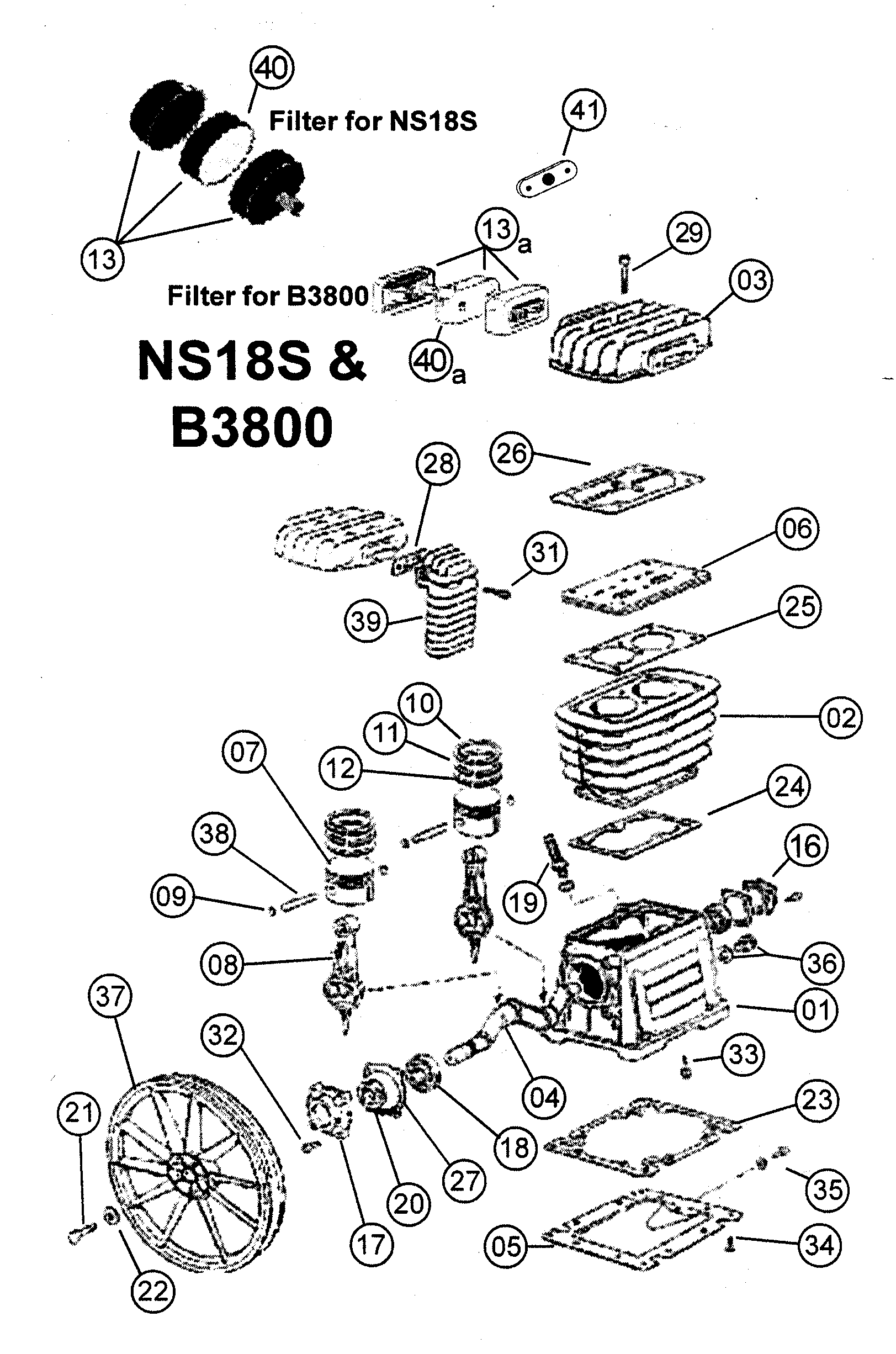

Pump assy diagram

Circlip

Part #9140040

The manufacturer no longer makes this part, and there's no substitute part

Cabinet parts diagram

Safety valve

Part #1400110

The manufacturer no longer makes this part, and there's no substitute part

#40

Pump assy diagram

Air compressor air filter

Part #4981100

The manufacturer no longer makes this part, and there's no substitute part

#39

Pump assy diagram

Aftercoolr

Part #3670102

The manufacturer no longer makes this part, and there's no substitute part

#13

Pump assy diagram

Filter assembly

Part #2281000

The manufacturer no longer makes this part, and there's no substitute part

Pump assy diagram

Crankshaft

Part #3660200

The manufacturer no longer makes this part, and there's no substitute part

#29

Pump assy diagram

Head bolt

Part #9101594

The manufacturer no longer makes this part, and there's no substitute part

#23

Pump assy diagram

Crankcase bottom gasket

Part #3650100

The manufacturer no longer makes this part, and there's no substitute part

Cabinet parts diagram

Discharge tube

Part #DT02605

The manufacturer no longer makes this part, and there's no substitute part

#25

Pump assy diagram

Gasket

Part #2850300

The manufacturer no longer makes this part, and there's no substitute part
